Marine Test Case Pressure and Temperature

Marine Calibrator and Test Case (Pressure and Temperature)

The Marine Test Case for Pressure and Temperature from IKM Instrutek offers a complete set of tools for maintaining your control instrumentation. If you are not sure what the problem is, the Marine Kit offers you the best help in troubleshooting and calibration. The test equipment meets the necessary requirements of SOLAS (Safety Of Life At Sea).

Key advantages:

Complete set
Easy and at-hand troubleshooting and calibration.
SOLAS compliance
Handy, rugged test case.

For sales or commercial inquiries please contact us at marine@insatech.com.

Flexible and Easy-to-use

Our Test Case is designed to tackle pressure and temperature challenges effortlessly. Easily customize it to meet your vessel's specific requirements. Plus, every kit comes complete with all the essential accessories you need.

Experience the convenience and flexibility of Marine Calibrators and Test Cases from IKM Instrutek. They're tailor-made to adapt to your vessel's unique demands, whether you're on a merchant ship, a naval vessel, or an offshore drilling unit.

Get the standard test case that covers it all for your maritime needs - perfect for Mercantile Vessels, Naval Vessels, and Offshore Drilling Units!

SOLAR Compliance

Moreover, the marine calibration and test case simplify compliance with SOLAS requirements with the user-friendly system.

Need more information? Contact us here.

What Does the Marine Test Case Contain?

See the contents of the marine test case below.

The Test Case also contains traceable certificates for all the different calibrators and test instruments, as well as the rugged and handy case on wheels, where all the equipment is in.

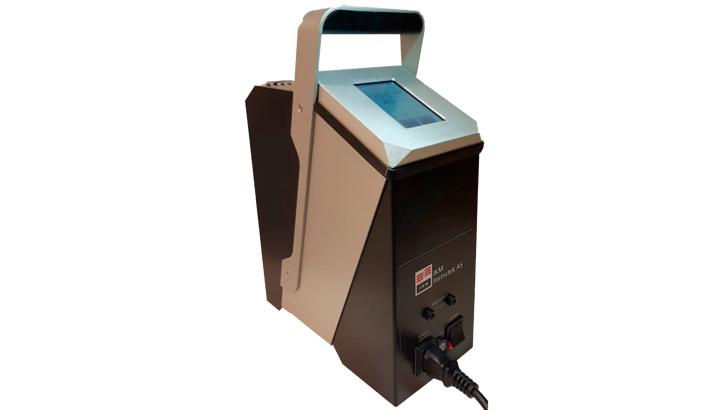

Temperature Calibrator TC65

Environmental and regulatory compliance are integral aspects of the QA systems that must be established on board. Our portable temperature calibrators are designed to meet these requirements, capable of calibrating temperatures up to 650°C with precision and reliability.

Temperature range 30-650°C
Accuracy 1 year ±1,5°C
Accuracy 3 year ±3,5°C

Need our help? Contact us now.

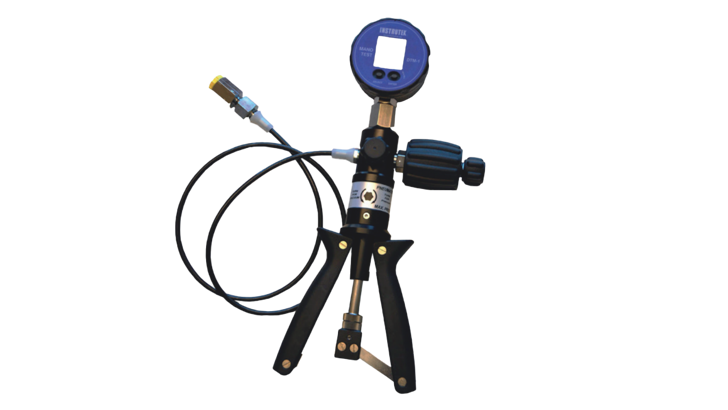

Pressure Calibrator 60 Bar

This pressure calibrator is designed to enhance our already extensive range of pressure calibration products. It's perfect for conducting calibration checks on pressure transmitters, pressure switches, indicators, recorders, and controllers, ensuring accurate and reliable performance across your instrumentation.

Range -0,8 to 60 bar
Fine adjustment
Accuracy 1 year ±0,2% FS
Accuracy 3 year ±0,5% FS.

Read more about the pressure calibrator here:

Need more information? Contact us here.

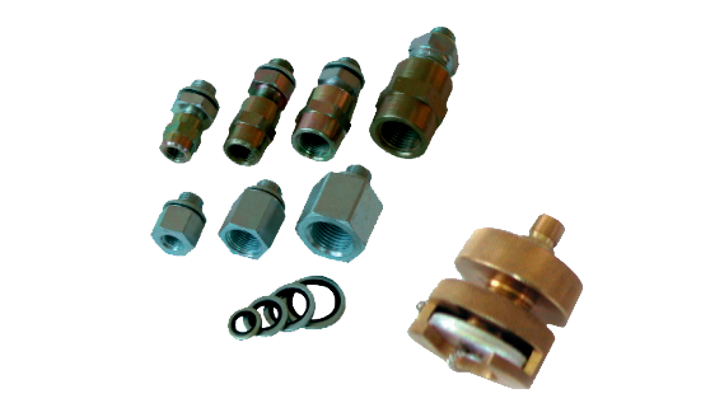

Adapter Kits

The case comes with adapters to fit BSP and NPT:

Adapterkit 1 includes four BSP to NTP adapters
Adapterkit 2 includes three BSP to BSP adapters.

Optional:

Marine adapter, 40mm test flange
Adapterkit 3, M16x2 F to 1/4” BSP M Quick Connector.

Exactly what you need? Contact us here

Your All-in-One Solution for Pressure and Temperature!

The Marine Kit and Test Case are helpful for a broad range of purposes and provide an all-in-one solution:

Main and Auxiliary Engines
Propulsion
Main and Auxiliary Boilers
Hydraulic Plant
Sea Water Cooling
Refrigeration Plant
Fresh Water System
Heads and Bathrooms
Ballast and Bilge Pumps
Cargo Holds.

Exactly what you need? Contact us here

Accessory Parts
5MTS61-CASE	Case type 61, black, including foam and lidpocket.
5MTS68-CASE	Case type 68, black, including foam and lidpocket.
5PM61-CASE	Case type 61, black, including foam and lidpocket.
TC-CASE	Case for TC65M/TC15M.
IN3PPM70150	Pressure pump, hydraulic 0 to 700 bar.
DRPV-411 & DRPV-411-115	DRPV-411: Pressure pump, pneumatic -0,95 to 60 bar DRPV-411-115: Reservoir, 100cc hydraulic for 5PV-411 (hydraulic 700 bar).
IN3PPM60050	Pressure pump, pneumatic -0,95 to 60 bar.
IN3PPM02050	Pressure pump, pneumatic -0,9 to 3 bar.
INP00408	Hose, test kit, 1m M16x1,5mm, 700bar.
IN3SHD00112	Hose, test 1m M16x1,5mm, 700bar.
IN3DHD00211	Test connector M16x1,5-1/4" form CSMK 15-G.
IN3FHD04511	Fitting nipple, 1/4"-1/4" female.
INADAPTERKIT1	Adapter kit BSP-NPT, Carbon Steel: ¼” BSP M to 1/8” NPT F ¼” BSP M to 1/4” NPT F ¼” BSP M to 3/8” NPT F ¼” BSP M to 1/2” NPT F
INADAPTERKIT2	Adapter kit BSP-BSP, Carbon Steel: ¼” BSP M to 1/8” BSP F ¼” BSP M to 3/8” BSP F ¼” BSP M to 1/2” BSP F
INADAPTERKIT4	Adapter kit BSP-BSP, Swivel, 3/8"M-1/4"M.
INADAPTERKIT4A	Adapter kit BSP-BSP, 3/8"M-1/4"F.'
Adapterkit4C	Adapter kit BSP-BSP, Swivel, 1/4"M-1/4"M.
P00484	Oil bottle 250ml, empty.

Discover Your Ultimate On-Board Ally

On board, every bit of assistance matters. That's why we're proud to introduce our comprehensive range of tools designed to cater to all your control instrumentation maintenance needs.

Much like a complex process plant, a vessel can throw unexpected challenges your way, leaving you in uncertainty about what might go wrong and where. In such moments of uncertainty, our wide array of test equipment shines as your most reliable ally for troubleshooting and precise calibration.

Equip yourself with the best tools available, ensuring that you're always prepared to address any issue that arises on board. Trust in our range of solutions to keep your vessel running smoothly and efficiently, no matter what the seas may bring.

Need our help? Contact us now.
