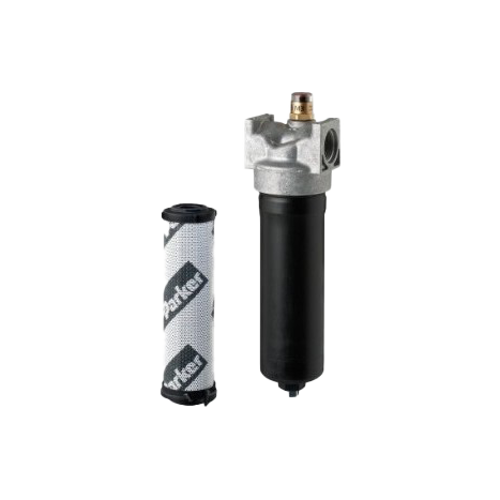

GMF Parker 1024 Square

GMF Series

The GMF Series from Parker is medium pressure filters that are providing high-quality filtration of hydraulic systems because of the iprotect® technology. As well as a new design of the filter element, which ensures that the quality of the filtration is guaranteed. Furthermore, you can reduce the costs of ownership because of an improvement in productivity and profitability.

The advantages for you include:

  • Cost-effective
  • Compact
  • Filter element remains in the filter bowl
  • Service-friendly product design
  • Wide range of differential pressure indicators.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Advantages of the GMF Series

The product features of the GMF Series ensure high quality of your filtration, which impacts the oil cleanness level directly as the usage of pirate types of filters with unknown quality of filter media is excluded. This works as a built-in security that directly impacts the productivity and profitability of your equipment positively.

Thus, the GMF Series provides you with the following features:

  • Guaranteed quality of filtration
  • Compact solutions are available
  • Filter element remains in filter bowl during filter service
  • Reduce waste by over 50% thanks to re-usable element core
  • No risk of installation mistakes due to a 'foolproof' design
  • Easy to integrate into hydraulic manifold solutions.

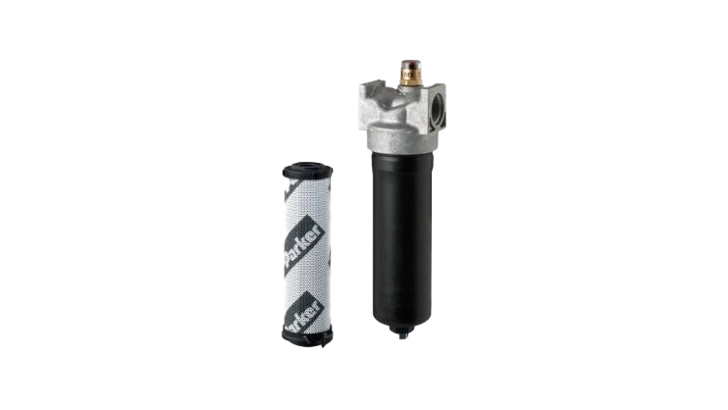

GMF Parker 1024 16X9

Typical applications

The GMF Series is applicable for various purposes including:

  • Maritime equipment
  • Compressor lube oil
  • Off-line filter loops
  • Machine tools (Automotive standard)
  • Hydrostatic drive charge pumps
  • Mobile equipment
  • Pilot lines for servo controls
  • Oil patch drilling equipment
  • Injection molding.

Get more information here

Available filters in the GLF Series

There are three filters available in the GMF Series including:

  • GMF2 with a flow max of 100 1/min. and a pressure max of 70 bar
  • GMF3 with a flow max of 265 1/min. and a pressure max of 70 bar
  • GMF4 with a flow max of 600 1/min. and a pressure max of 70 bar

Exactly what you need? Contact us here

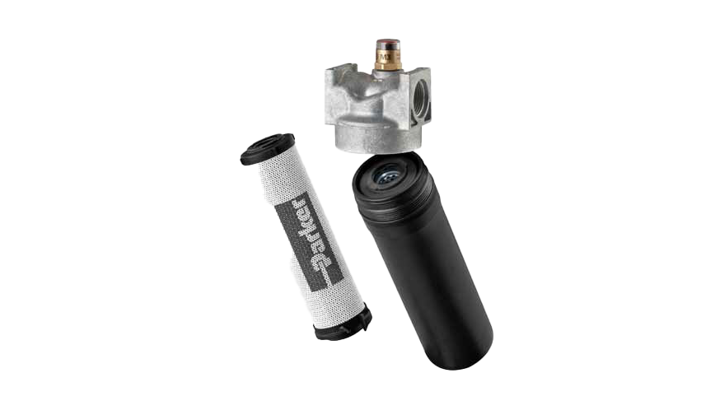

GMF 1 Parker 1024 16X9
GMF 2 Parker 1024 16X9

The iprotect® filtration technology and compact design

The iprotect® technology that the GFM Series features provides maximum filtration capacity and extended element life, while also maintaining low-pressure drop, even in cold start conditions. Thus, the high-efficiency Quantµmfibre™ glass media increases particle capture and dirt-holding capacity.

With less space available for filters, Parker has taken on board the requirements to provide more compact solutions. A unique feature is the filter element remains inside the filter bowl when changing the filter element. This can save over 500 mm of space envelope in comparison with traditional medium-pressure filters.

Need more information? Contact us here

Which benefits does the GMF Series have?

The GMF Series have various features, advantages, and benefits that you can use:

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Pressure ratings:
  • Maximum allowable operating pressure: 70 bar
  • Rated fatigue pressure: 56 bar
Connections:

Several threaded port options are available, flange faced ports are available on GMF size 4.

GMF size 2:

  • BSPF(G): 1", 3/4"
  • SAE: 12, 16

GMF size 3:

  • BSPF(G): 1 1/4", 1 1/2"
  • SAE: 16, 24

GMF size 4:

  • BSPF(G): 11/2", 2"
  • SAE: 24, 32
  • Metric 3000-M: 2"
Filter housing:
  • Head material aluminum.
  • Bowl material hard anodized aluminum.
Seal material:
  • Nitrile
  • Fluoroelastomer
Operating temperature range:
  • -20°C to +100°C for seal matieral Nitrile
  • -20 to +120°C for seal material Fluoroelastomer
Bypass valve & indicator settings:

The table following gives the bypass valve and corresponding indicator setting.

  • Bypass: 1.7 bar - Indicator: 1.2 bar
  • Bypass: 3.5 bar - Indicator: 2.5 bar
  • Bypass: 6 bar - Indicator: 5 bar
Filter element:

Degree of filtration: Quantumfiber™ filter media, determined by Multipass-test according
to ISO16889
iprotect® QI

Supported with epoxy-coated metal wire mesh, end cap material reinforced composite. Collapse pressure rated at 20 bar (ISO 2941)
Indicator options (all with SAE8 thread):
  • Visual M3
  • Electronic F1(PNP)
  • Electrical T1
  • Electronic F2(NPN)
Weights (kg):

GMF size 2:

  • Length 1: 1.1
  • Length 2: 1.6

GMF size 3:

  • Length 1: 2.0
  • Length 2: 2.5

GMF size 4:

  • Length 1: 5.6
  • Length 2: 6.9
Fluid compatibility:

Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please consult Parker Filtration.
