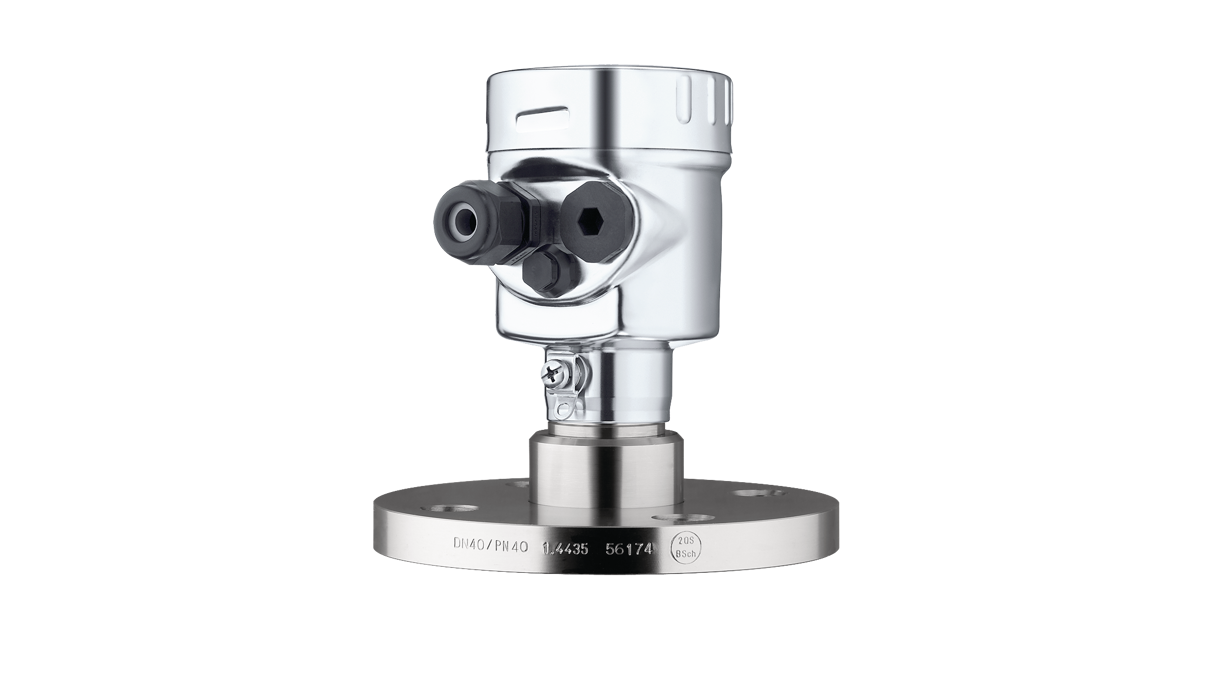

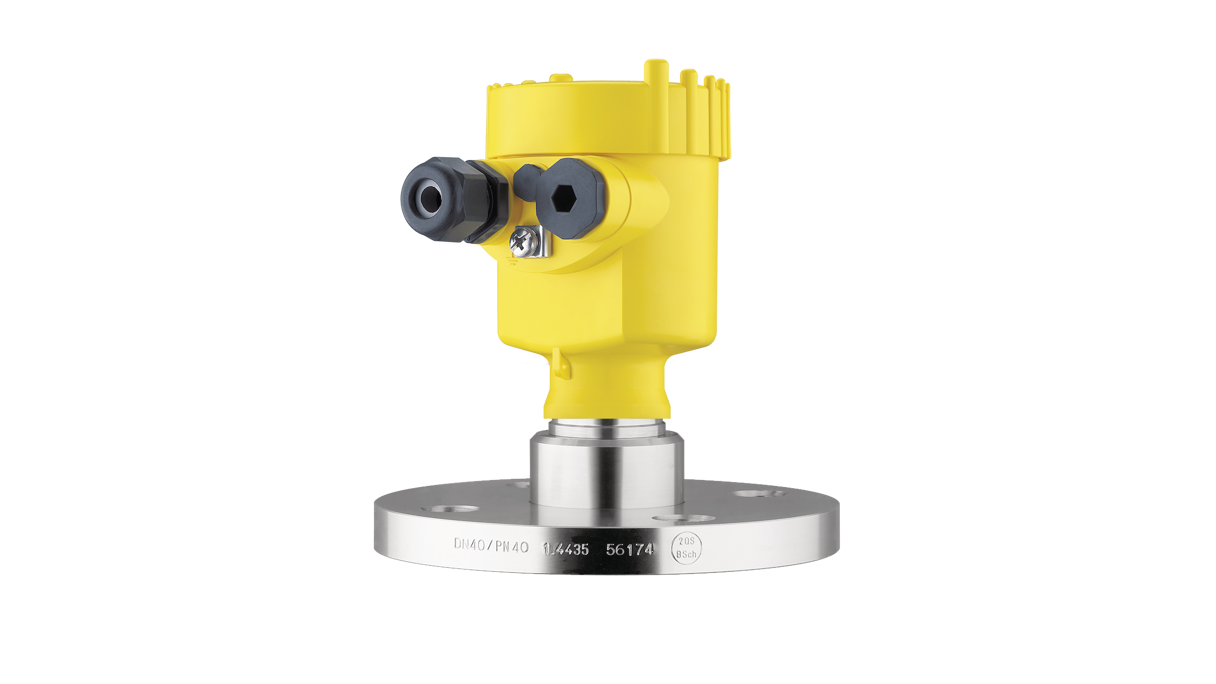

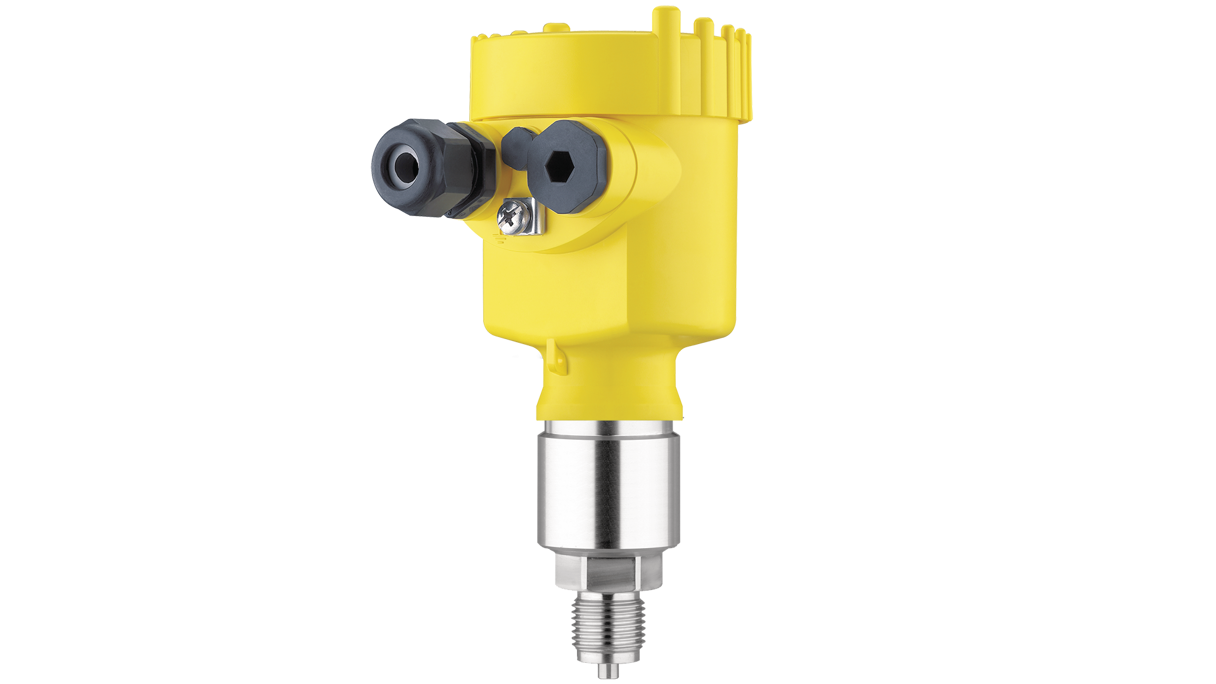

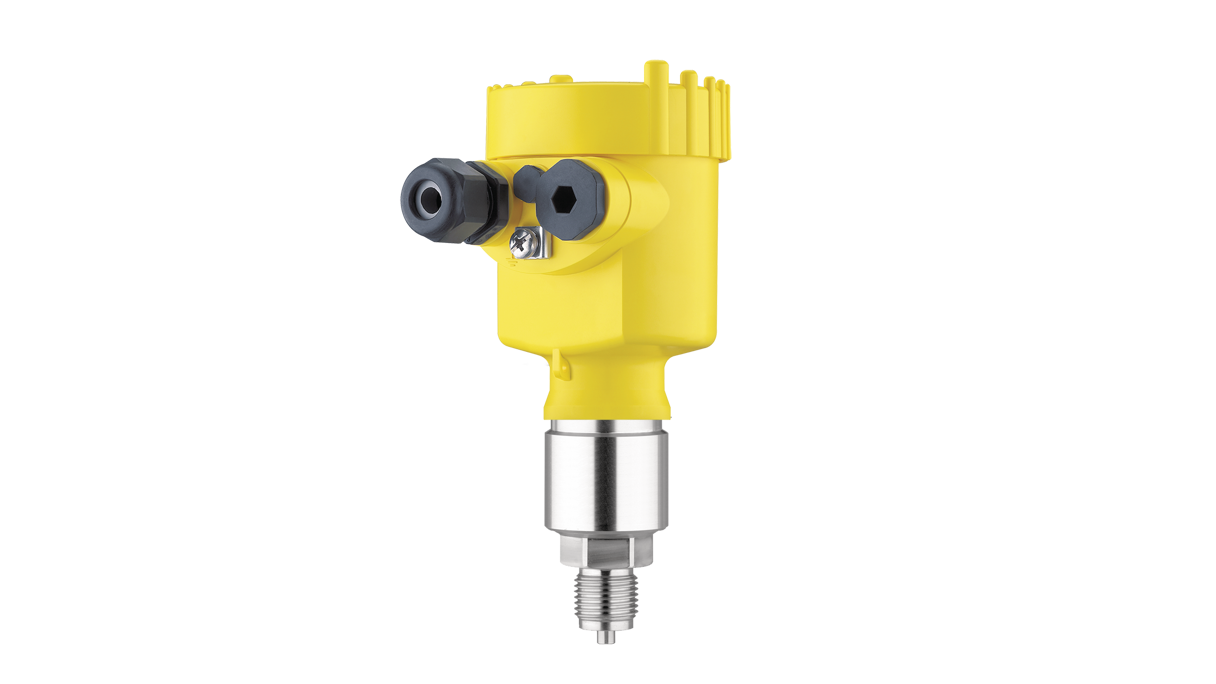

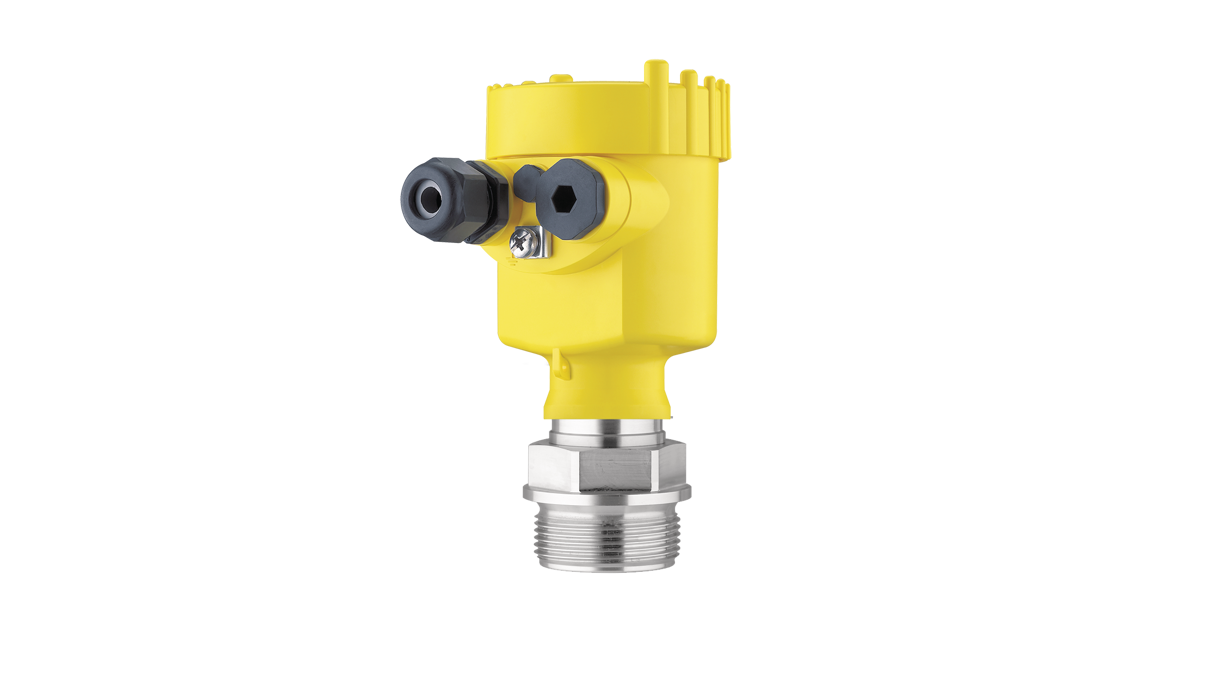

VEGA pressure transmitter

VEGABAR 82 with dry ceramic measuring cell is a versatile pressure transmitter with many possibilities.

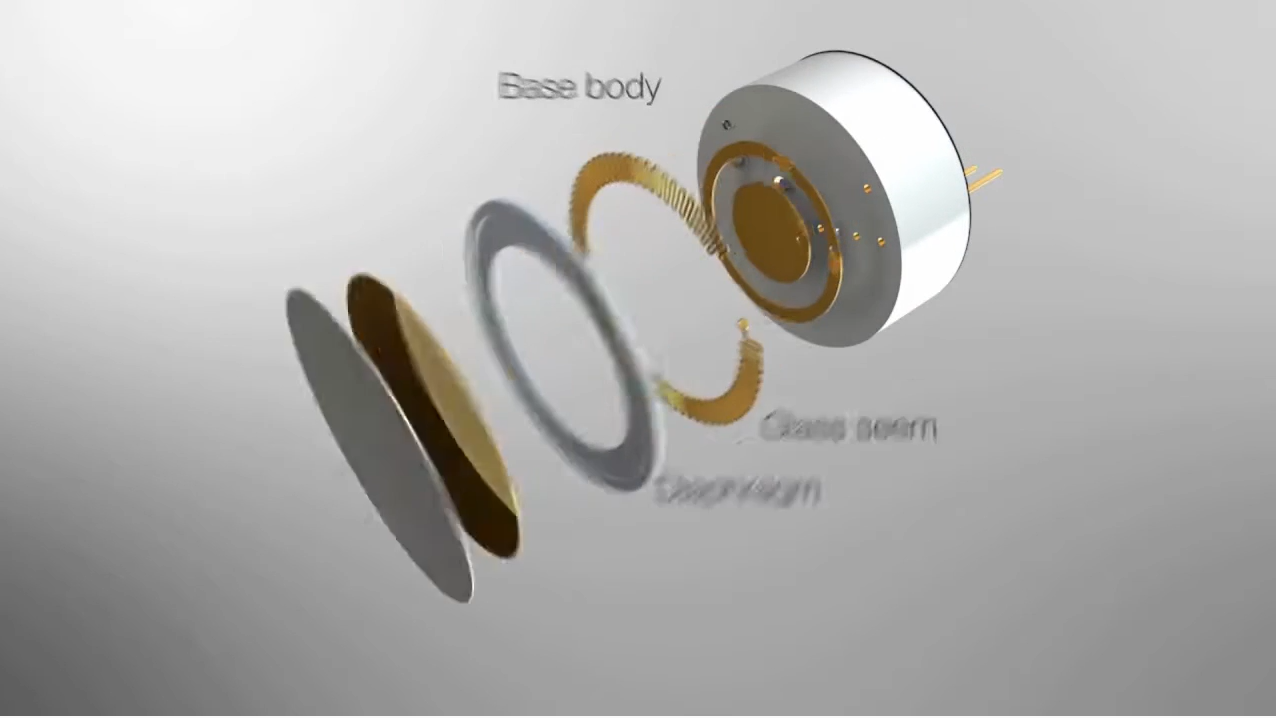

The measuring cell is the durable Certec® measuring cell which has been further developed to also have a built-in temperature sensor in the front of the measuring cell. This temperature sensor uses it to compensate for the temperature shock, but at the same time it has the advantage of getting the media temperature out via an output signal.

Measuring ranges from -1 to 100 bar.

Accuracy from 0.05%

Process temperature between -40 ° C and 150 ° C.

Output signal:

  •     Two conductor 4 - 20 mA / HART
  •     Fieldbus Foundation
  •     Profibus PA
  •     Modbus

Possibility of electronic differential pressure measurement.

With the new VEGABAR 80 series it is possible to make an electronic differential pressure measurement. The pressure transmitters in the VEGABAR 80 series can be ordered with a slave electronics which can be directly connected to a standard VEGABAR 80 series pressure transmitter, whereby the 2 pressure transmitters now act as a differential pressure transmitter.
