Marine Cylinder Pressure Analysis Instruments

Every cylinder in a diesel engine has a combustion story to tell. Peak pressure, compression pressure, the shape of the pressure trace through the cycle - together these reveal whether a cylinder is firing correctly, whether the injector is delivering fuel at the right moment, whether the exhaust valve is seating cleanly, and whether the turbocharger is supplying the air charge the engine expects.

Without cylinder pressure measurement, engine condition assessment relies on exhaust temperatures, fuel consumption trends, and the experience of the engineer. These are useful indicators, but indirect ones. A cylinder that is developing an injector fault or valve leakage will often show only subtle changes in these parameters until the problem is well advanced. Cylinder pressure analysis makes the combustion process directly measurable - giving your engineers the evidence to act on a developing fault before it causes damage or performance loss.

Filter

1RESULTATER NULSTIL

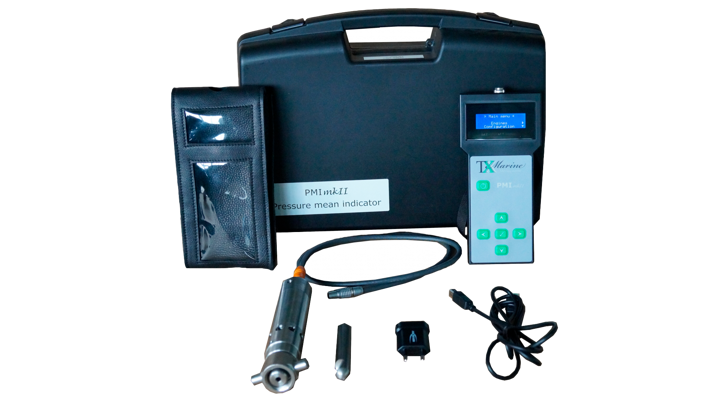

PMI mk2: 2- and 4-stroke engine cylinder pressure measurement for Cylinder pressure analysis, similar alternative to the Leutert DPI, from TX Marine

No results found

What Cylinder Pressure Analysis Tells You

A healthy cylinder produces a consistent, repeatable pressure trace with each cycle. Deviations from that trace, in peak pressure, compression pressure, or the shape of the diagram, point to specific problems:

Reduced peak pressure - indicates late injection timing, worn injector nozzles, or reduced turbocharger performance. A cylinder running at lower peak pressure than its neighbours is contributing less power to the shaft, increasing fuel consumption and placing additional load on the remaining cylinders.

Low compression pressure - signals worn or broken piston rings, a leaking exhaust valve, or blow-by past the piston. Compression pressure trending downward over successive measurements is a reliable early indicator of mechanical wear inside the cylinder.

Injection timing deviations - the shape of the pressure rise before top dead centre reveals whether fuel injection is occurring at the correct crank angle. Advanced or retarded timing affects combustion efficiency, exhaust temperatures, and component loading.

Cylinder imbalance - comparing peak pressure and mean indicated pressure across all cylinders identifies those running rich or lean relative to the average. Balancing cylinders reduces thermal stress on the engine, lowers specific fuel consumption, and extends component life.

Turbocharger performance - charge air pressure at the start of compression, visible in the indicator diagram, gives a direct indication of turbocharger condition. A falling compression pressure trend that correlates with reduced charge air points to turbocharger fouling or wear rather than a mechanical fault inside the cylinder.

Why Cylinder Pressure Measurement Matters Beyond Fault Finding

Cylinder pressure analysis is not only a diagnostic tool - it is also the most direct method available for optimising engine fuel consumption. By measuring the mean indicated pressure in each cylinder and adjusting injection timing and fuel quantity to balance the load across the engine, engineers can reduce specific fuel oil consumption meaningfully without any hardware changes.

On vessels subject to charter party performance clauses or CII rating requirements, documented cylinder pressure data provides objective evidence of engine condition and maintenance standard - evidence that is considerably more credible than estimates based on exhaust temperatures alone.
