Lube oil

Lube oil is one of the most reliable indicators of what is happening inside your machinery. Every time metal surfaces contact each other under load, they leave traces in the oil - iron particles from cylinder liners, copper from bearings, chromium from piston rings. Water ingress, fuel dilution, and additive depletion all show up in the oil long before they show up as a visible problem.

With the right lube oil monitoring instruments on board, your engineers can track these indicators systematically -forecasting when oil needs changing, when wear parts need replacing, and when something is developing that warrants closer attention. The result is maintenance planned around port schedules, not forced by failures.

Our range of lube oil monitoring products covers the full spectrum: portable test kits for periodic on-board analysis, online sensors for continuous real-time measurement, and everything in between.
All backed by Insatech Marine's on-board lube oil testing service for vessels that need external support.

Read about Lube Oil Measurements

What Lube Oil Analysis Reveals

Lube oil analysis works because the oil in a system carries direct evidence of that system's condition. Monitoring it consistently gives you insight across several critical parameters:

Ferrous wear debris - iron particles in the oil indicate wear on cylinder liners, piston rings, and other ferrous components. Rising particle counts are an early warning of accelerating wear before any loss of performance is measurable.

Total Base Number (TBN) - the TBN of cylinder oil reflects its ability to neutralise acidic combustion products. A falling TBN means the oil is losing its protective capacity and needs replenishing or replacing before cold corrosion takes hold.

Cold corrosion - sulphuric acid formed during combustion attacks cylinder liners when TBN is insufficient. Cold corrosion test kits detect corrosive elements in cylinder oil quickly and accurately, without sending samples to a laboratory.

Water in oil - even small amounts of water in a lubrication system reduce oil film strength, promote corrosion, and accelerate bearing wear. Early detection allows operators to identify the source — a cooler leak, seal failure, or condensation — before damage occurs.

Fuel dilution and soot ingress - fuel contamination reduces viscosity and lubricating capacity; soot contamination increases wear. Both are detectable with the right on-board instrumentation.

How to Choose the Right Lube Oil Monitoring Approach

Portable test kits suit vessels that carry out periodic sampling as part of a planned maintenance routine. Results are available in minutes on board, without waiting for a shore laboratory. Ideal for cylinder oil TBN checks, cold corrosion analysis, and iron level screening.

Online sensors provide continuous, real-time monitoring without crew intervention. Best suited to main engines and critical systems where conditions can change between sampling intervals - and where the cost of a missed change is high.

Ferrous debris analysers - both portable and online - give a direct measure of metallic wear particle concentration and size distribution, making them one of the most sensitive early-warning tools available for mechanical wear monitoring.

Not sure which approach fits your vessel or trading pattern? Our technical team can advise.

Speak With a Specialist

Get in Touch with Our Experts

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com

FAQ

What is the difference between periodic lube oil sampling and online monitoring?

Periodic sampling involves taking an oil sample at intervals and analysing it on board or sending it to a laboratory. It gives a snapshot of oil condition at the time of sampling. Online monitoring measures continuously in real time, detecting rapid changes that would be missed between samples. Many operators use both - online monitoring on the main engine for alerting, periodic sampling on auxiliaries and secondary systems.

Can lube oil analysis predict mechanical failure?

Yes - this is one of its most valuable applications. Rising ferrous particle counts, falling TBN, or the appearance of specific metals in the oil can indicate developing wear or contamination weeks before any performance symptom is measurable. Acting on that data avoids the failure entirely.

Do you offer on-board lube oil testing as a service?

Yes. Insatech Marine's service team carries out lube oil tests on board as part of our on-board services programme. This is particularly useful for vessels without dedicated laboratory equipment or for operators who want an independent analysis as part of a planned maintenance visit.

Which systems should be prioritised for lube oil monitoring?

Main engine cylinder oil and crankcase oil are the highest priority - they protect the most critical and expensive components on board. Stern tube lubrication, gearbox oil, and hydraulic systems are the next tier. Auxiliary engine oil monitoring is typically added once primary systems are covered.

To top

Lube oil measurements

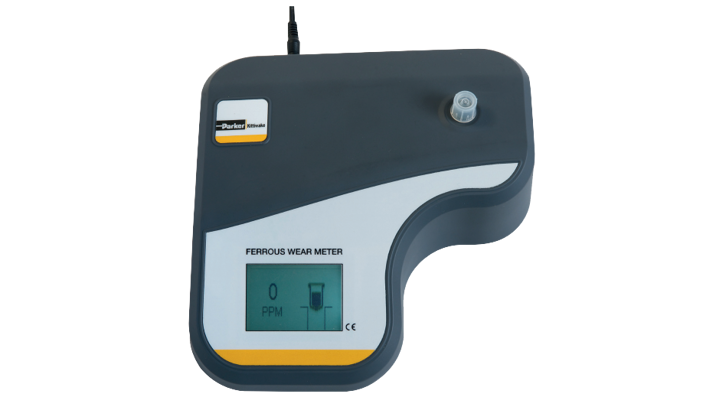

Parker Kittiwake Ferrous Wear Meter FG-K30258-KW

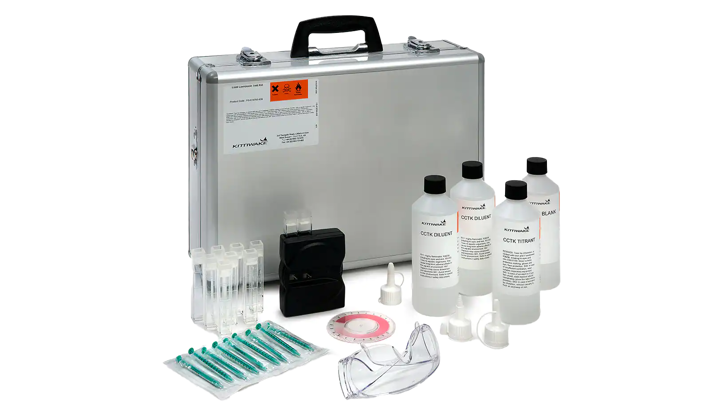

Parker Kittiwake Cold Corrosion Test Kit FG-K19763-KW

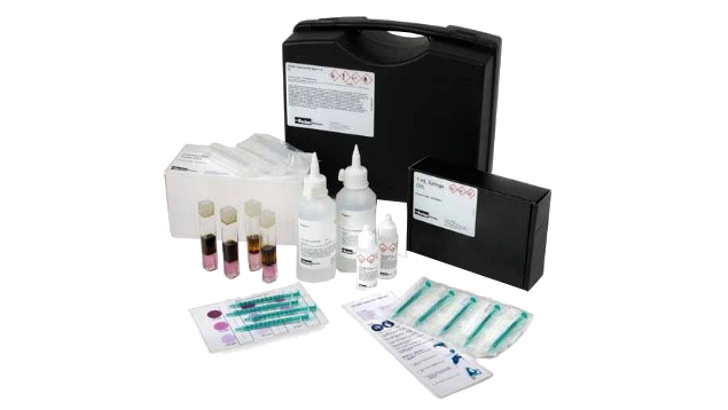

Parker Kittiwake Economy Total Iron Kit FG-K30500-KW

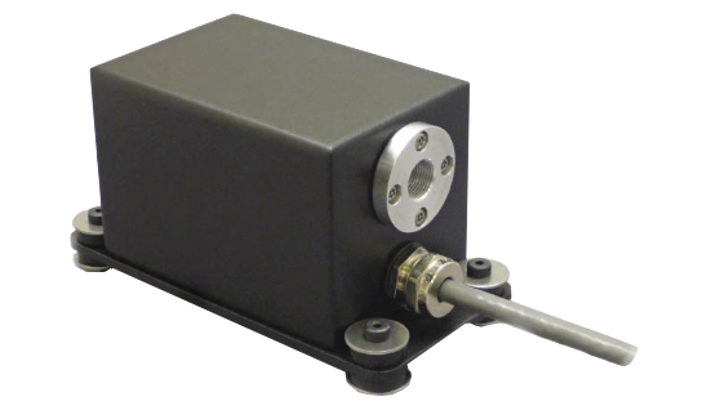

Parker Kittiwake On-Line Metallic Wear Debris Sensor FG-K19567-KW

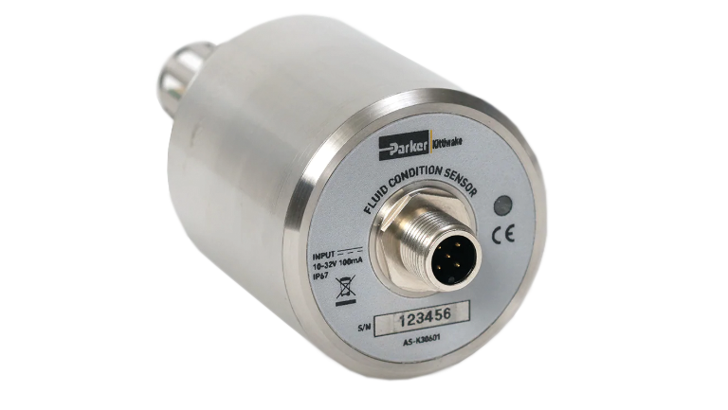

Parker Kittiwake Fluid Condition Sensor

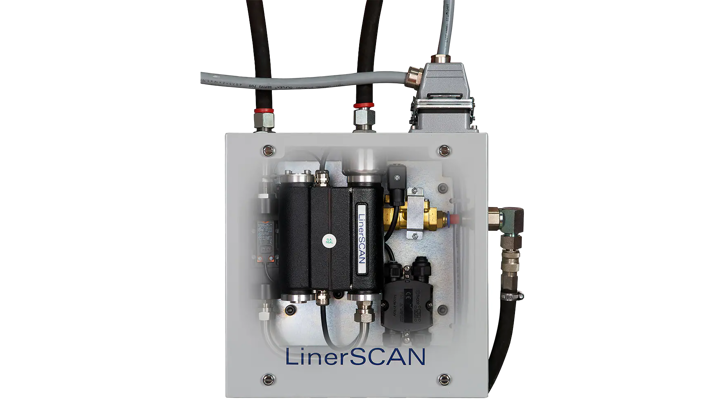

Parker LinerSCAN - Cylinder Liner Monitor FG-K17400-KW

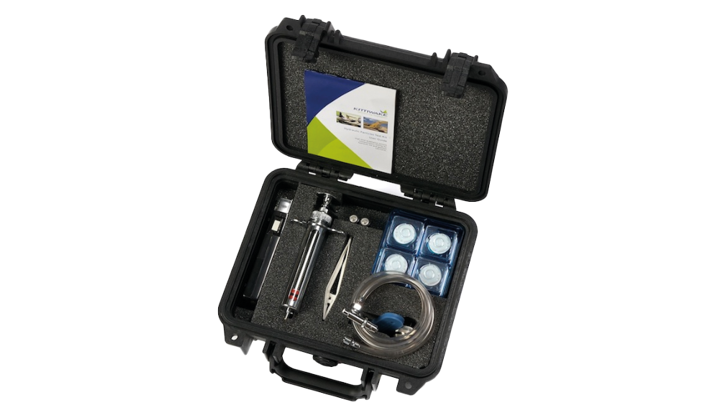

Parker Hydraulic Particles Test / Analysis Kit FG-K14368-KW

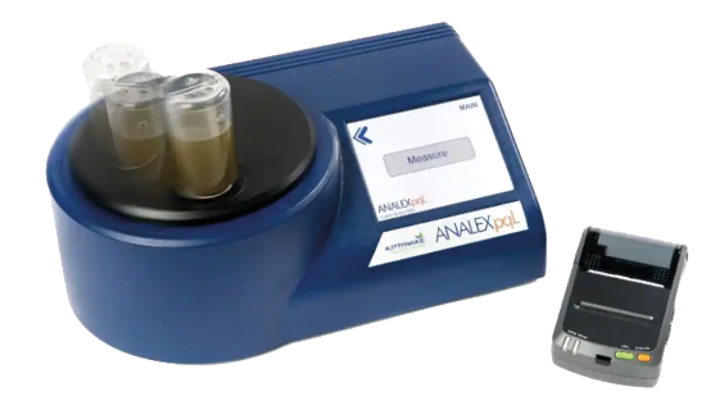

Parker Kittiwake ANALEX pqL - PQ Index Wear Debris FG-K17000-KW

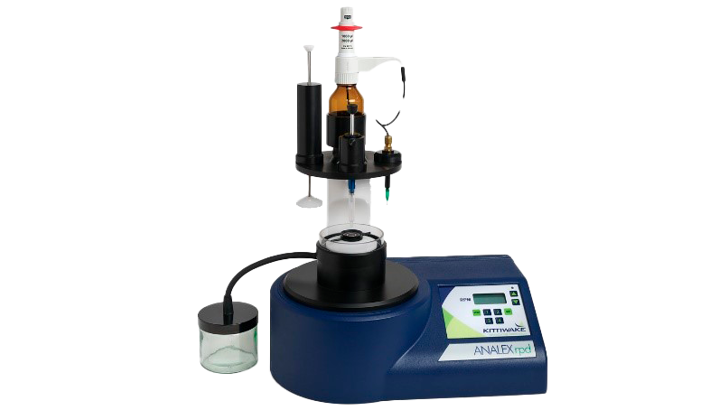

Parker Kittiwake ANALEX rpd - Metallic Wear Particle Depositor FG-K19026-KW
