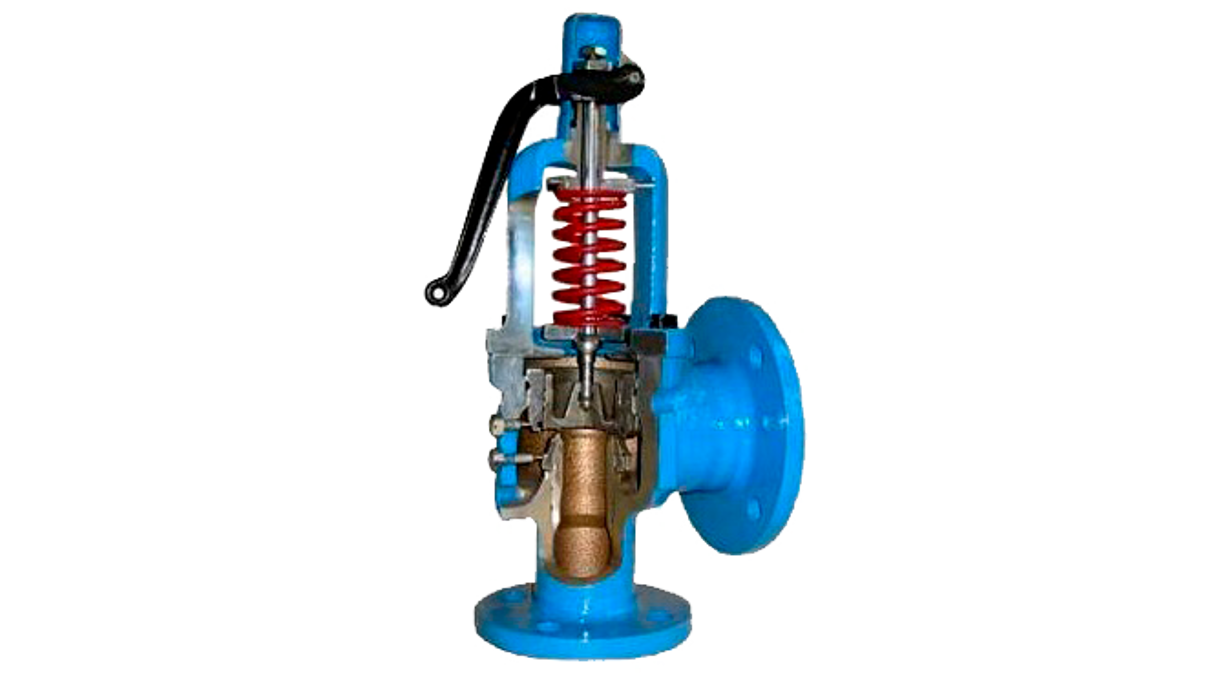

Carraro - Safety valve type CSV 55 – 88

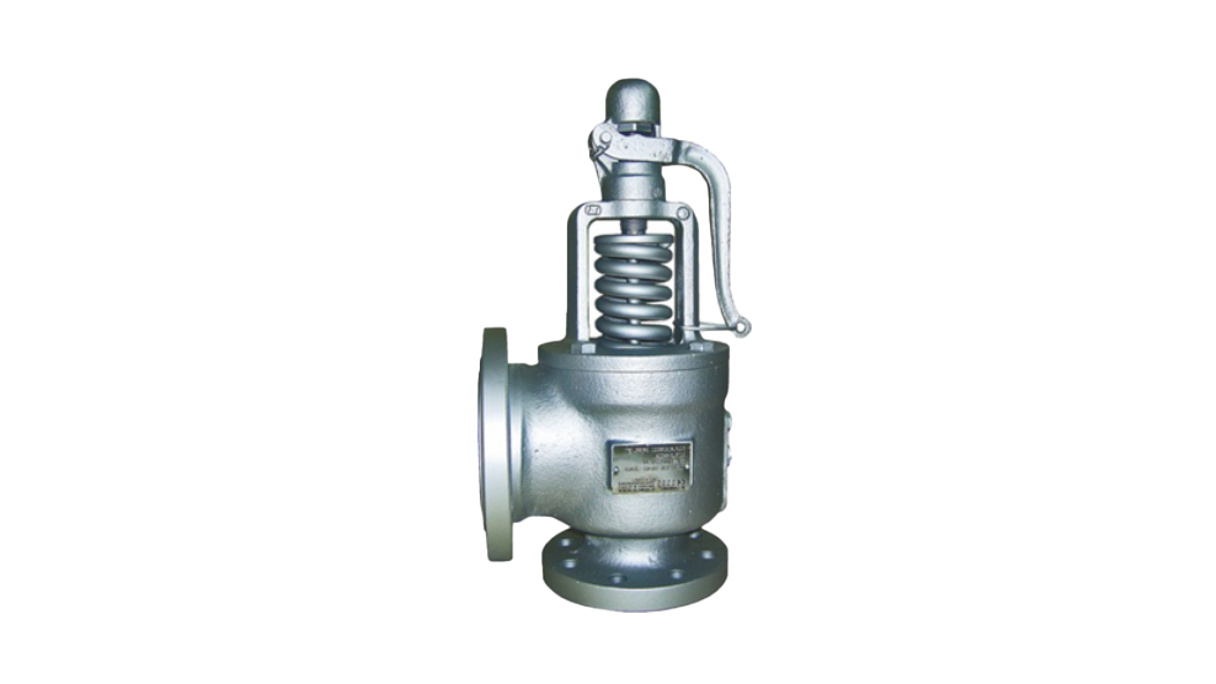

Safety valves steam and gases. Type CSV 55 is made of cast iron and with open spring housing. Type CSV 88 is made of cast steel, also with open spring housing. Both types are suitable for steam and non-hazardous gas applications. Can be supplied with cap / hood or handle
Function: Proportional lift
Size: Inlet DN 40 - DN 50
Outlet DN 50 - DN 80
Connection: Flanges (ANSI 150 - ANSI 300
Max pressure step: ANSI 900 (steel, PN 16 - 160
Material valve body: Cast iron and cast steel
Material trim: Stainless steel
Set pressure: From 2.5 to 18 barg
Max. Set pressure: 18 barg
Min. Temperature: -10 ° C
Max. Temperature: 200 ° C
