IKM Calibration Kit For Pressure 1X1

Calibration kit for pressure

IKM Instrutek delivers various portable pressure calibrators for service, testing, commissioning and calibration. The pressure calibrators are robust and can be delivered with different accuracies as required. The calibrators can be delivered in different pressure ranges, also with Ex ia ATEX approval.

Included in the suitcase:

  • Hand pump
  • Adapter kit
  • Test hose and other coupling parts

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Get a quote

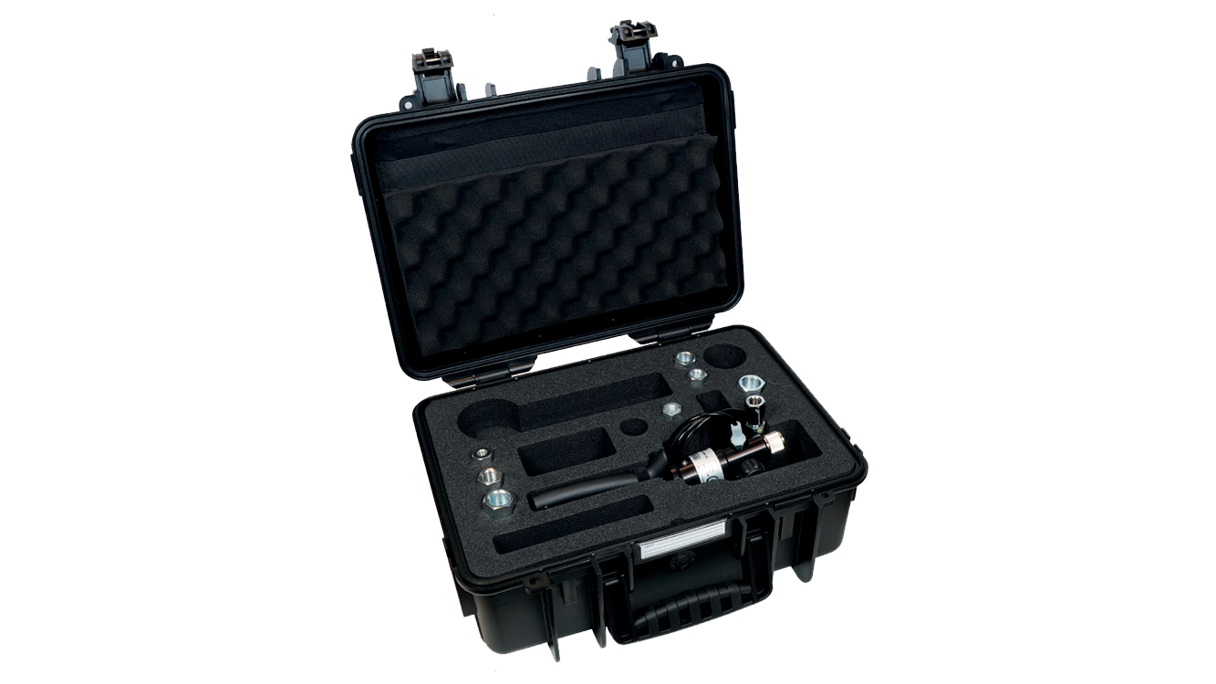

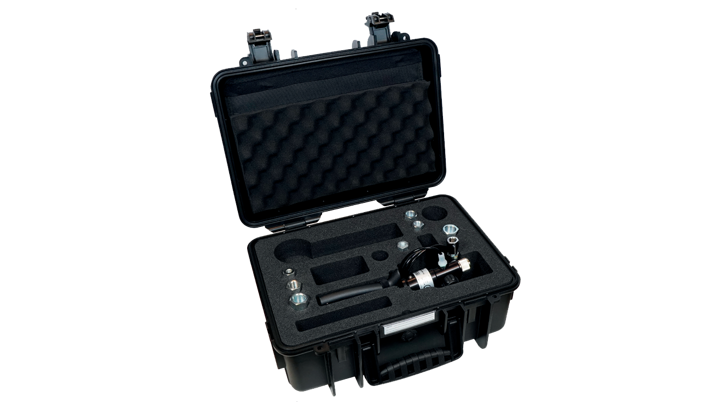

5PM4000LP40

-0.95 ... 60 BAR, STANDARD

Pressure pump and accessories in a compact case
- For digital manometer from vacuum to 60bar.
- Pneumatic pump.
- 1/4 ”BSP pump connection, hose / adapters incl.
- Delivered in a robust dust and waterproof case

Contains:

  • IN3PPM60050-S - Handheld pneumatic pump -0.95 ... 60 bar w/swivel
  • INADAPTERKIT1 - Adapterkit BSP-NPT (4pcs.)
  • INADAPTERKIT2 - Adapterkit BSP-BSP (3pcs.)
  • 5PM4000 - CASE, consists of case / foam / lid pocket

Order Directly from Us – Get in Touch

IKM 5PM4000LP40
IKM 5PM4000LP60

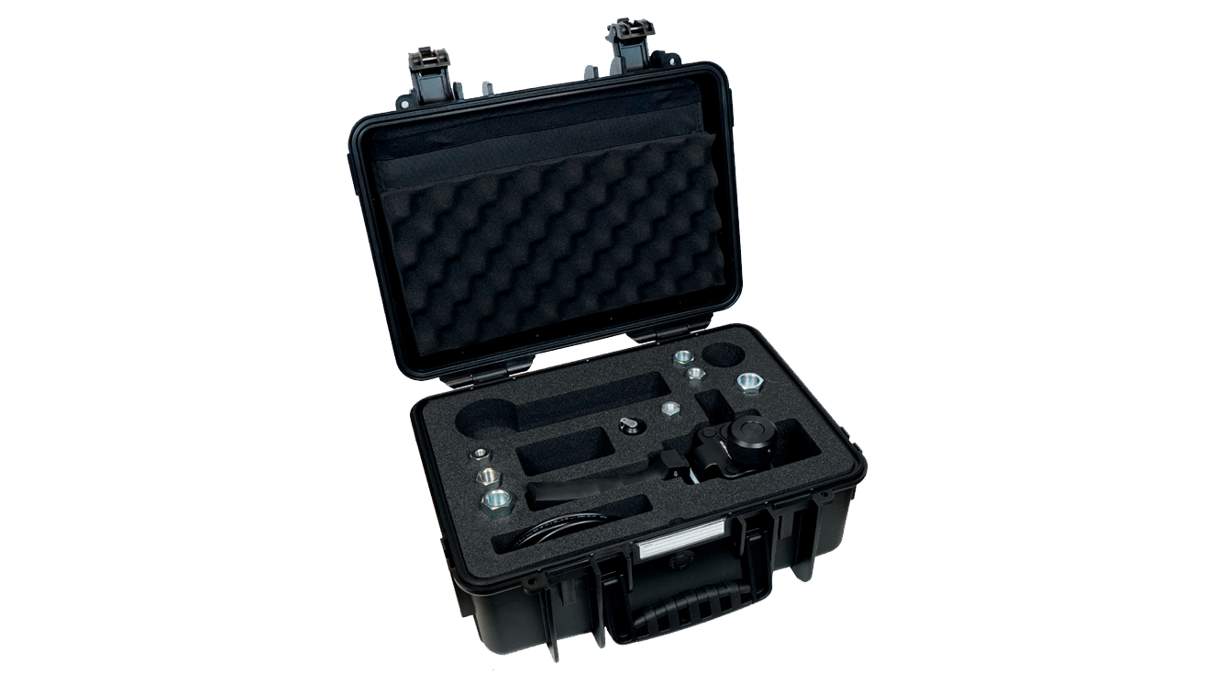

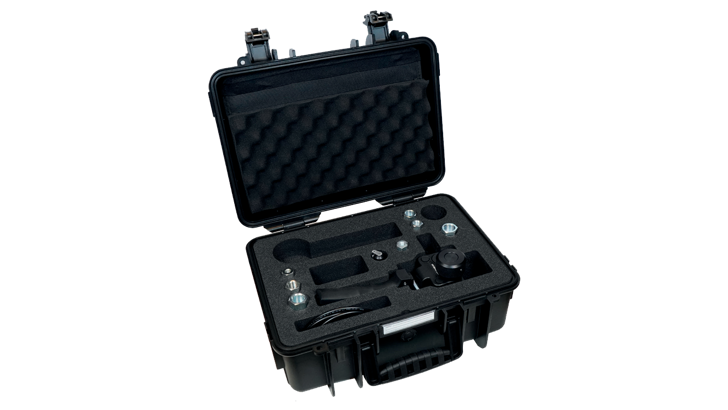

5PM4000LP60

-0.95 ... 60 BAR

Pressure pump and accessories in a compact case
- For digital manometer from vacuum to 60bar.
- PV411 pneumatic pump - can be extended to hydraulic pressure up to 700bar.
- 1/4 ”BSP pump connection, hose / adapters incl.
- Delivered in a robust dust and waterproof case

Contains:

  • DRPV411-S - PV411 Handheld pneumatic pump -0.95 ... 60 bar w/swivel
  • IN3SHD0012 - Test hose, test 1m 16x1,5mm, 700bar
  • IN3DHD00211 - 1/4 ”-M16x1.5 adapter
  • IN3FHD04511 - 1/4 ”socket for M16x1.5 quick coupling.
  • INADAPTERKIT1 - Adapterkit BSP-NPT (4pcs.)
  • INADAPTERKIT2 - Adapterkit BSP-BSP (3pcs.)
  • 5PM4000-CASE - Case, consists of case / foam / lid pocket

Have Questions? Speak to a Specialist

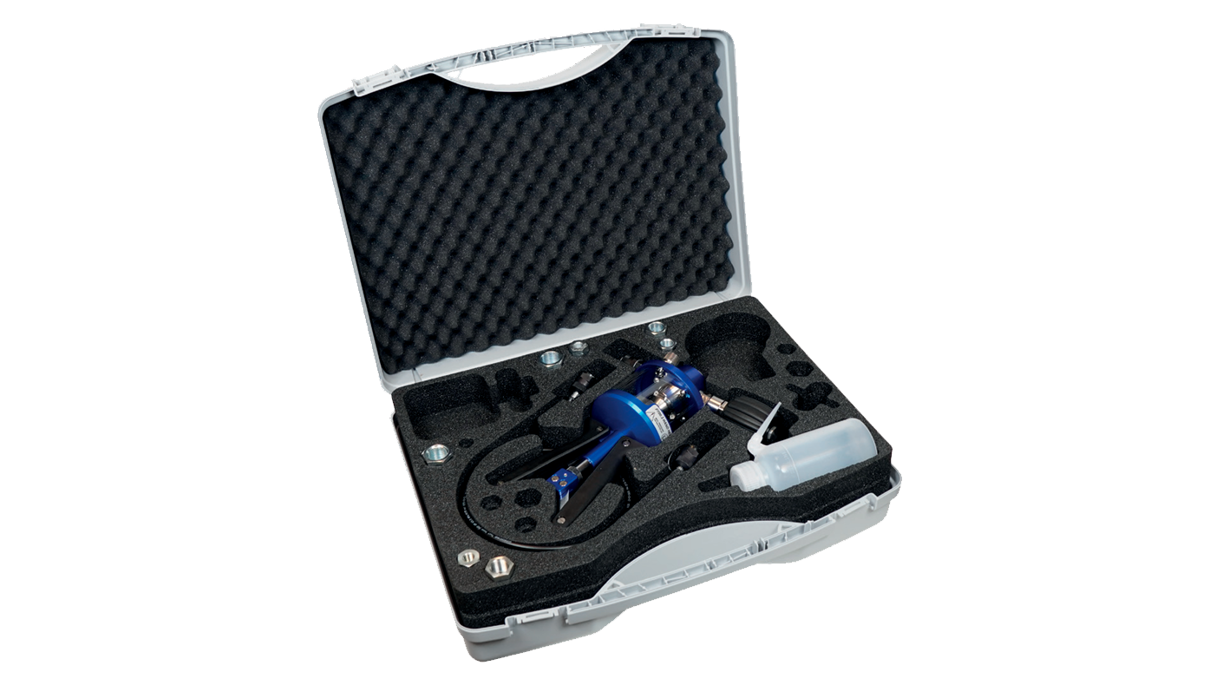

5PM4000HH

0 ... 700 BAR, STANDARD

Pressure pump and accessories in a compact case
- For digital manometer up to 700bar.
- Hydraulic pump with built-in reservoir.
- 1/4 ”BSP pump connection, hose / adapters incl.
- Delivered in a robust dust and waterproof case

Contains:

  • IN3PPM70150 - Handheld hydraulic pump 0 ... 700 bar
  • IN3SHD0012 - Test hose, test 1m 16x1,5mm, 700bar
  • IN3FHD04511 - 1/4 ”socket for M16x1.5 quick coupling.
  • IN3DHD00211 - 1/4 - M16x1.5 adapter
  • INP00484 - Oil bottle 250ml empty
  • INADAPTERKIT1 - Adapterkit BSP-NPT (4pcs.)
  • INADAPTERKIT2 - Adapterkit BSP-BSP (3pcs.)
  • XPH236 - Case, consists of case / foam
  • INADAPTERKIT4D - Nut 1/4 ”BSP and 2 pcs B S gasket 1/4”

Get a quote

IKM Calibration Kit For Pressure
IKM 5PM4000HP60H

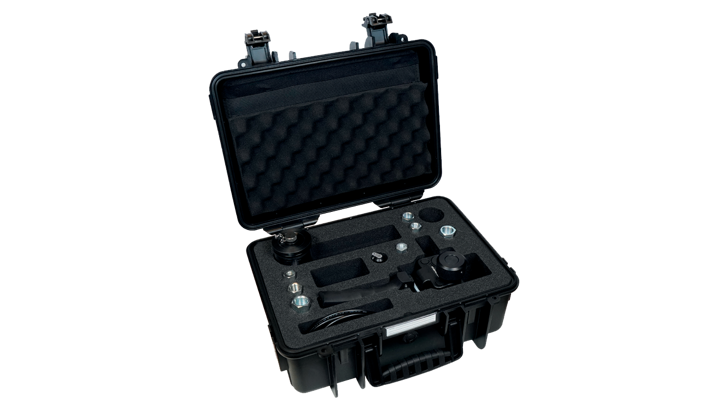

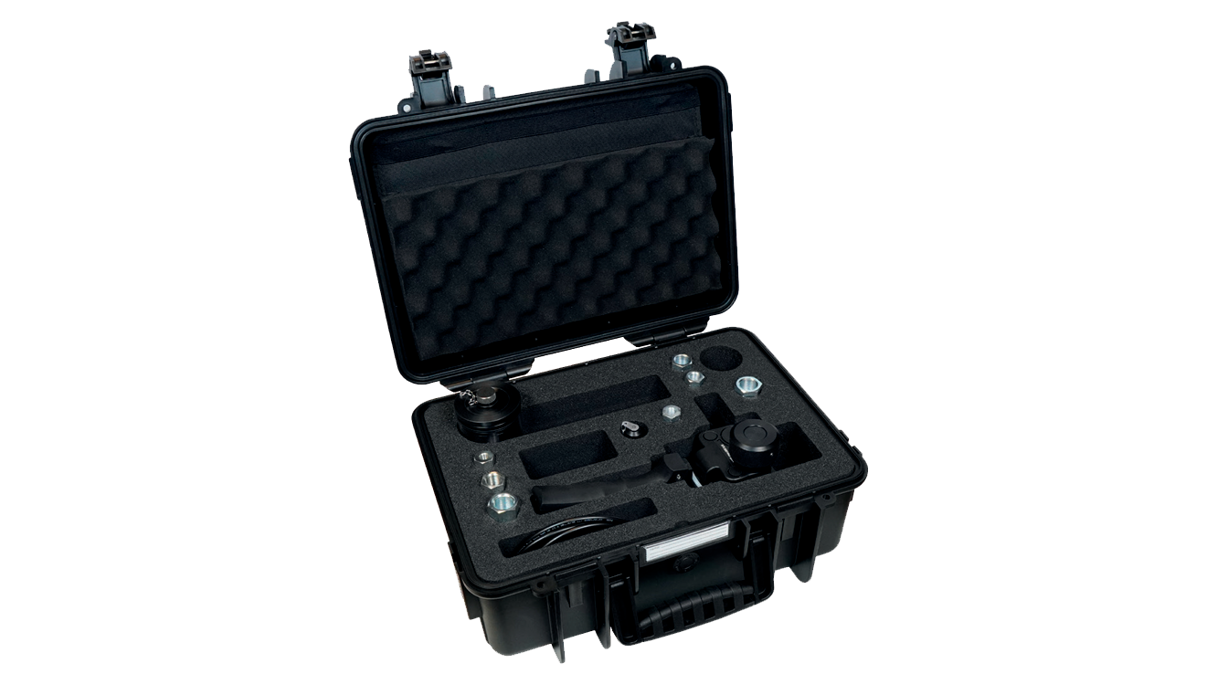

5PM4000HP60H

-0.95 ... 700 BAR

Pressure pump and accessories in a compact case
- For digital manometer from vacuum to 700bar.
- PV411 pump - combined pneumatic / hydraulic
- 1/4 ”BSP pump connection, hose / adapters incl.
- Delivered in a robust dust and waterproof case

Contains:

  • DRPV411-S - PV411 Handheld pneumatic pump -0.95 ... 60 bar w/swivel
  • DRPV411-115 - PV411 Hydraulic reservoir for PV411 pump
  • IN3SHD0012 - Test hose, 1m 16x1.5mm, 700bar
  • IN3DHD00211 - 1/4 ”-M16X1.5 adapter
  • IN3FHD04511 - 1/4 ”socket for M16x1.5 quick coupling.
  • INADAPTERKIT1 - Adapterkit BSP-NPT (4pcs.)
  • INADAPTERKIT2 - Adapterkit BSP-BSP (3pcs.)
  • 5PM4000 - CASE - Case, consists of case / foam / lid pocket

Worldwide Delivery – Contact Our Team

Accessory Parts

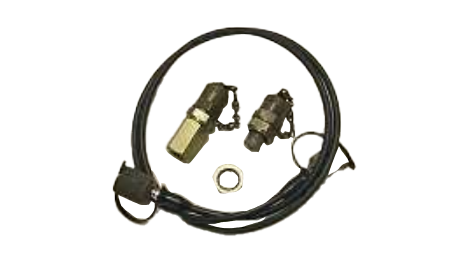

INP00408

Test hose with quick couplings
700bar, M16x1.5, transition to 1/4 ”BSP F

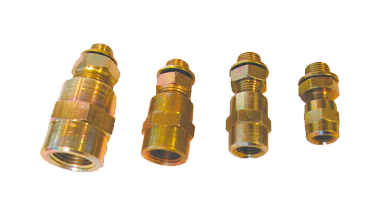

INADAPTERKIT1

Adapter kit BSP-NPT, Carbon Steel:

  • ¼” BSP M to 1/8” NPT F
  • ¼” BSP M to 1/4” NPT F
  • ¼” BSP M to 3/8” NPT F
  • ¼” BSP M to 1/2” NPT F

INADAPTERKIT2

Adapter kit BSP-BSP, Carbon Steel:

  • ¼” BSP M to 1/8” BSP F
  • ¼” BSP M to 3/8” BSP F
  • ¼” BSP M to 1/2” BSP F

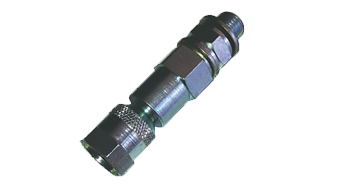

INADAPTERKIT3

Adapter M16x2 F to 1/4 ”BSP M

SK002

Test flange Ø 40MM
