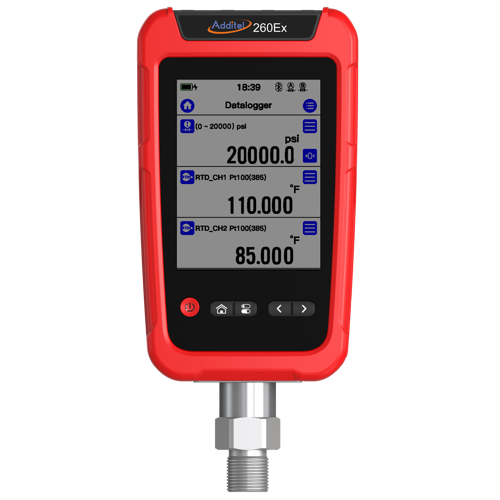

Insatech Additel ADT260EX+Pressure Module Final With 20000 1X1

Additels 260Ex is an intrinsically safe handheld multichannel reference recorder with 8 different channel configurations. Measure and collect data for pressure, temperature (RTD probes available), barometric pressure and electrical measurement - all in one portable device.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Everything you need for your on-site calibration or data logging in the demanding environment

The powerful logging capability and high-level of intrinsic safety make the ADT260Ex the perfect companion for use in the pipeline industry by supporting:

  • Hydrostatic pressure testing
  • Air leak testing
  • Inlet and outlet pressure testing at pump stations
  • Safety valve and ex-proof membrane testing
  • Wellhead pressure testing
  • Pipeline filter testing
  • Differential pressure transmitter/flow computing testing
  • Routine calibration of pressure devices

This highly qualified reference recorder can be widely used in potentially explosive gas environments, such as e.g. oil and gas platforms



8 Channel combinations

  • Channel 1: Built-in digital pressure module, field switchable
  • Channel 2: Built-in barometer, which can be calibrated by the user
  • Channels 3 and 4: External digital pressure module inputs
  • Channel 5: Simulated differential pressure channel synthesized using channels 3 and 4
  • Channels 6 and 7: Temperature measurement channels supporting resistance sensors with 2, 3 or 4 wires
  • Channel 8: Measures current, voltage, frequency, pulse or switch testing. Built-in loop power included

It is possible to show up to 6 channels on the display at one time

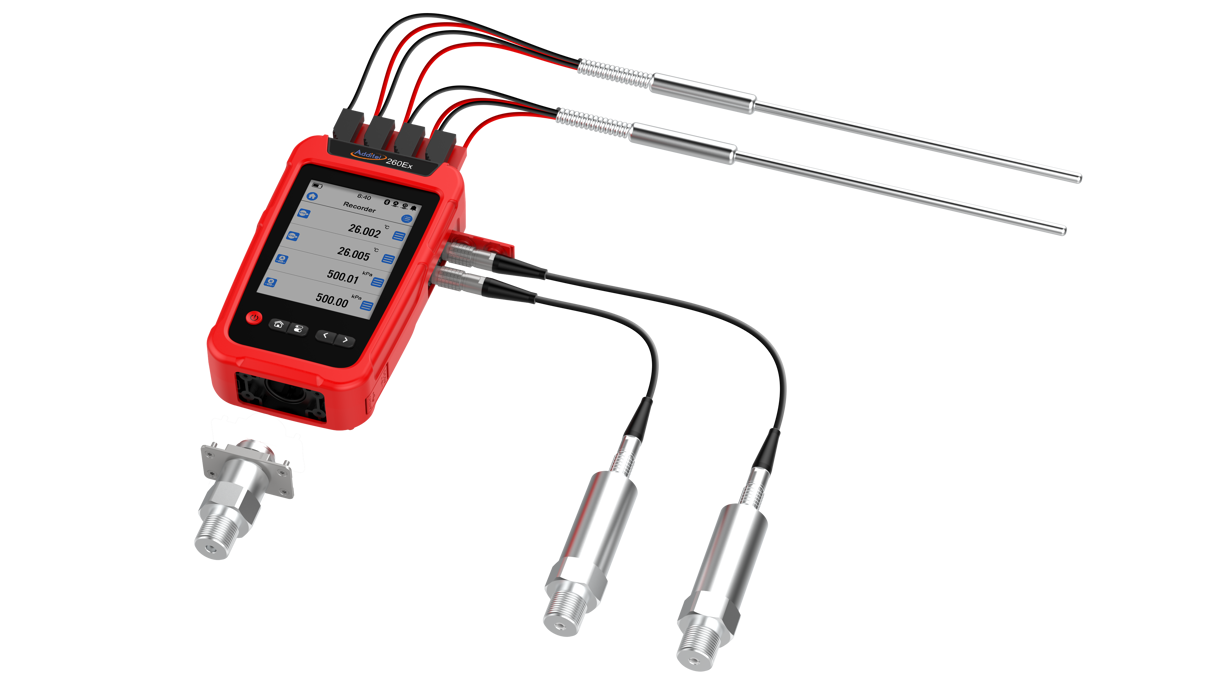

Insatech Additel Adt260ex With Probes And Modules 16 9
Insatech Additel Adt260ex App Photo2 16 9

Features

  • The ADT260EX has passed the most stringent ATEX, IECEX, CSA, and UKCA intrinsic safety certifications.
  • Field Switchable Pressure Module
  • Pressure Accuracy to 0.02% FS
  • Temperature RTD Accuracy to 0.01% RDG + 0.005 % FS
  • Data logging with Real-time Graphical Trending
  • Supports Hydrostatic Testing
  • Color Touchscreen Display
  • Built-in Barometer
  • Optional RTD Probes Available
  • Bluetooth and USB Communication
  • Communicates with Additel's Link Mobile App

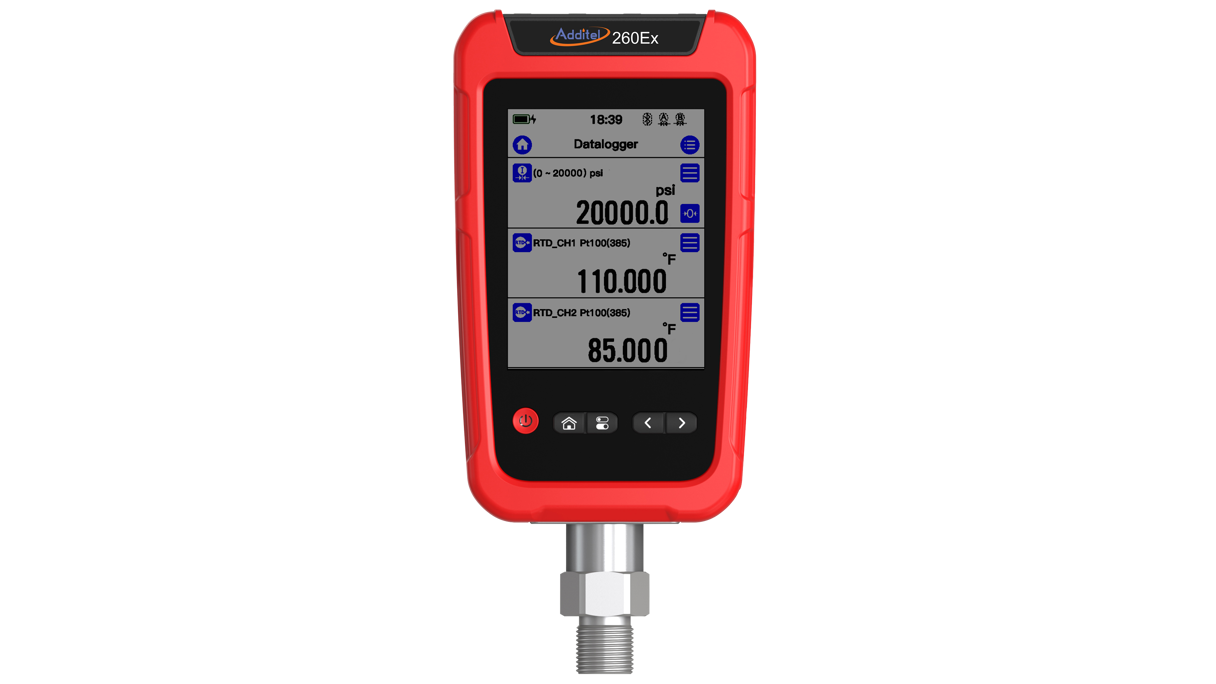

Insatech Additel ADT260EX+Pressure Module Final With 20000 16 9

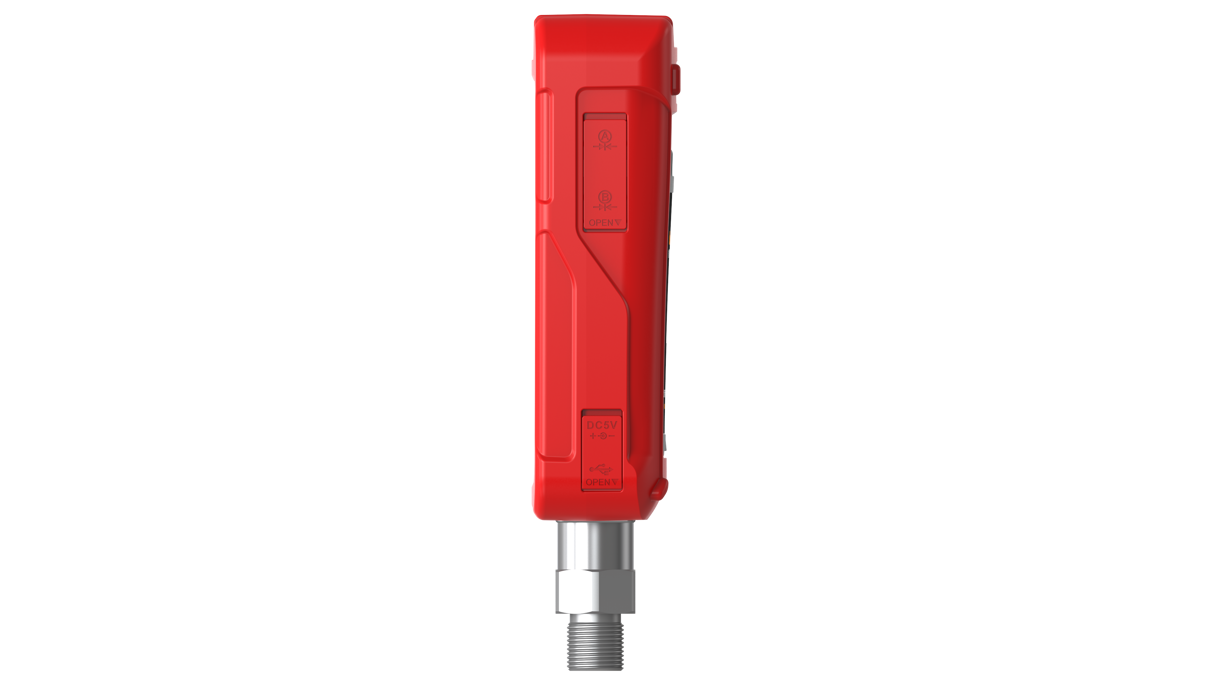

Insatech Additel Adt260ex Side 16 9

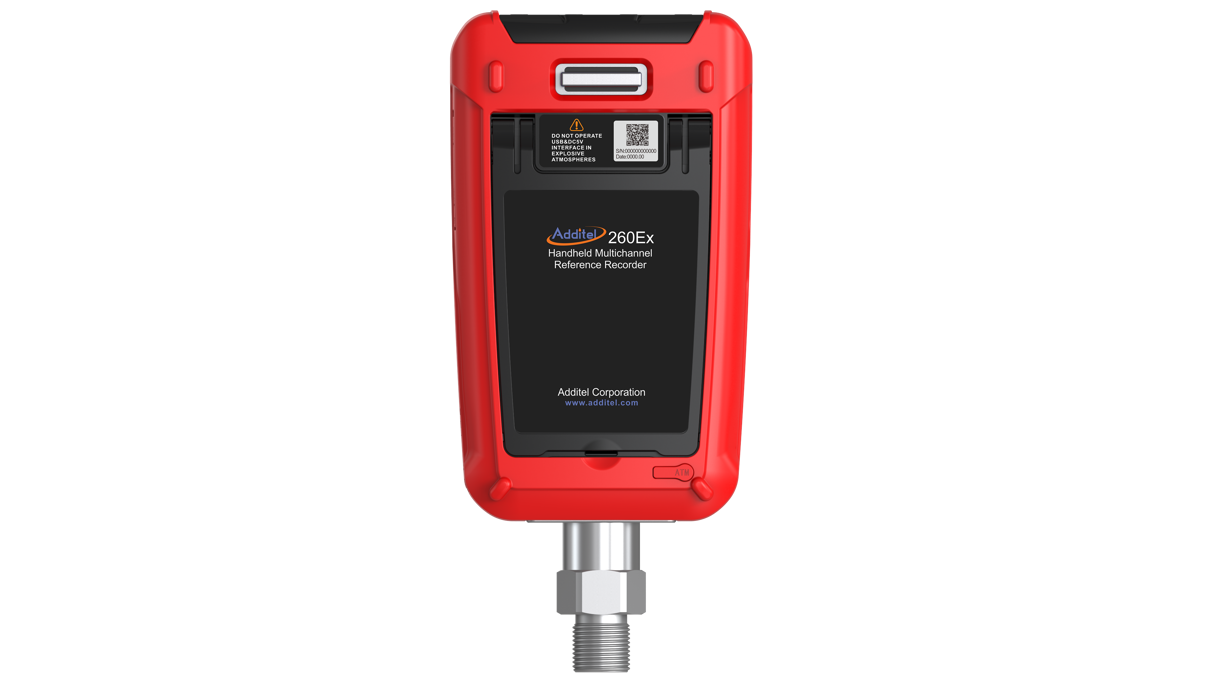

Insatech Additel Adt260ex Rear 16 9
Insatech Additel Adt260ex MEAS Only 16 9

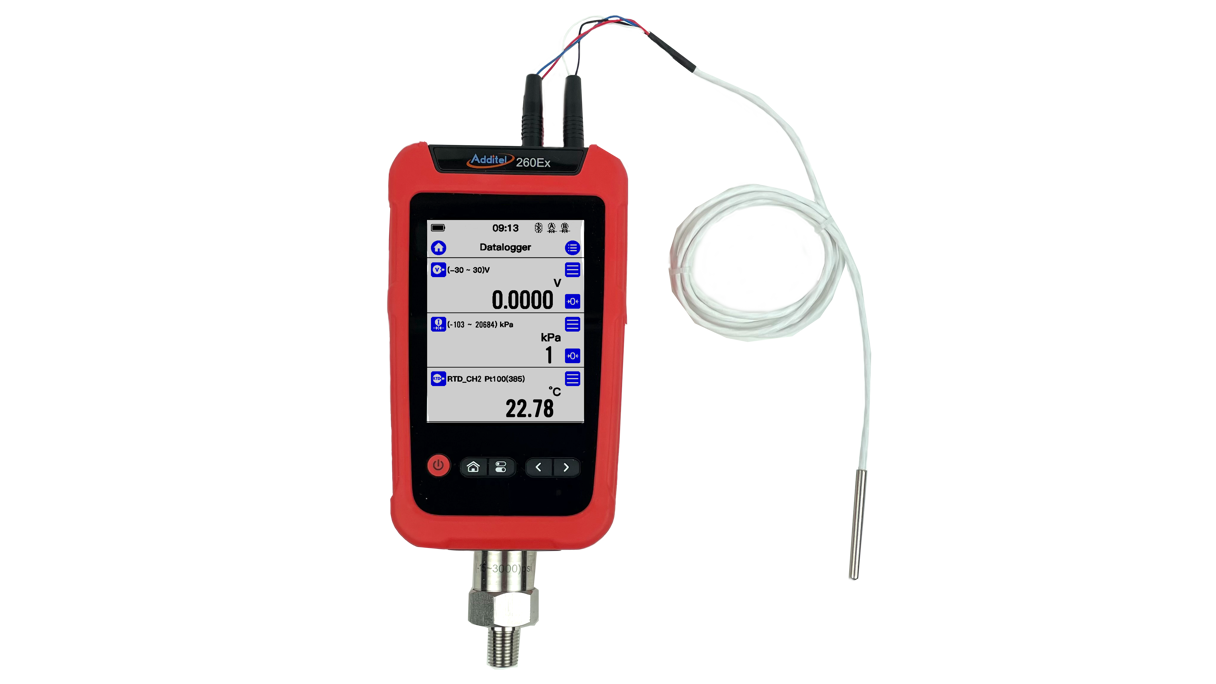

Insatech Additel ADT260EX+PT100 16 9

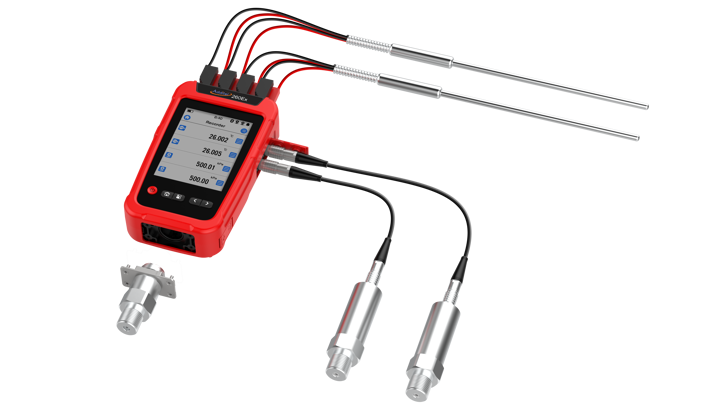

Insatech Additel Adt260ex With Probes And Modules 16 9

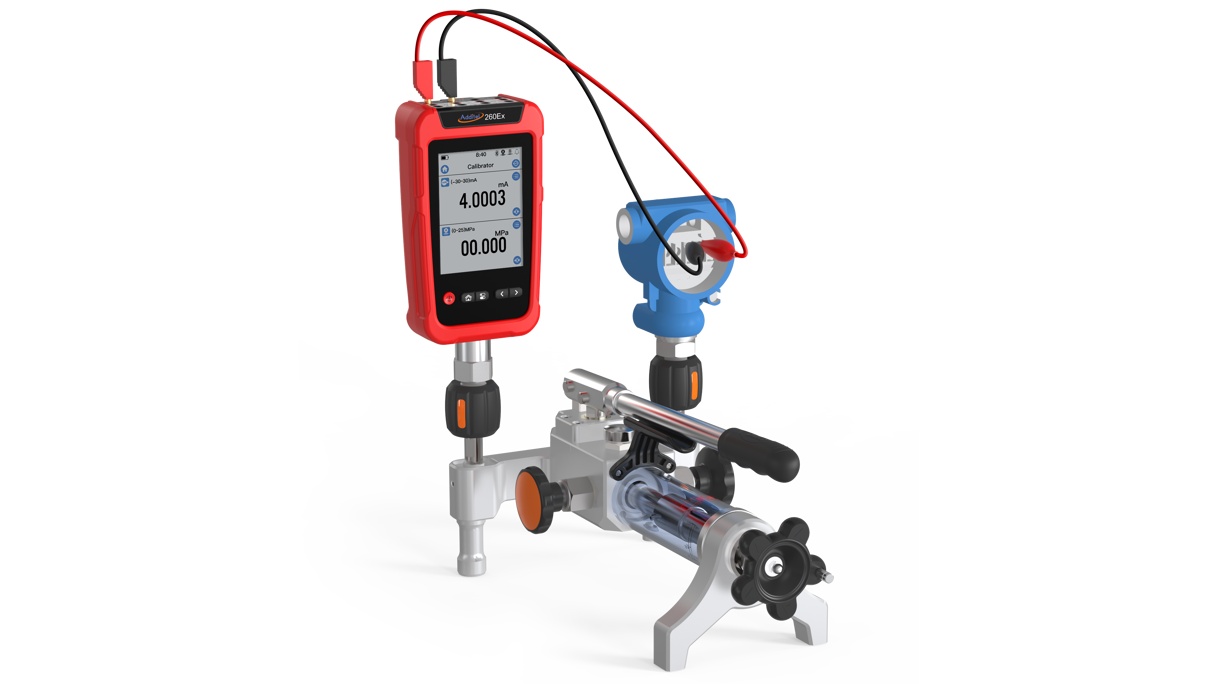

Insatech Additel Adt260ex With Pump & Trans 16 9

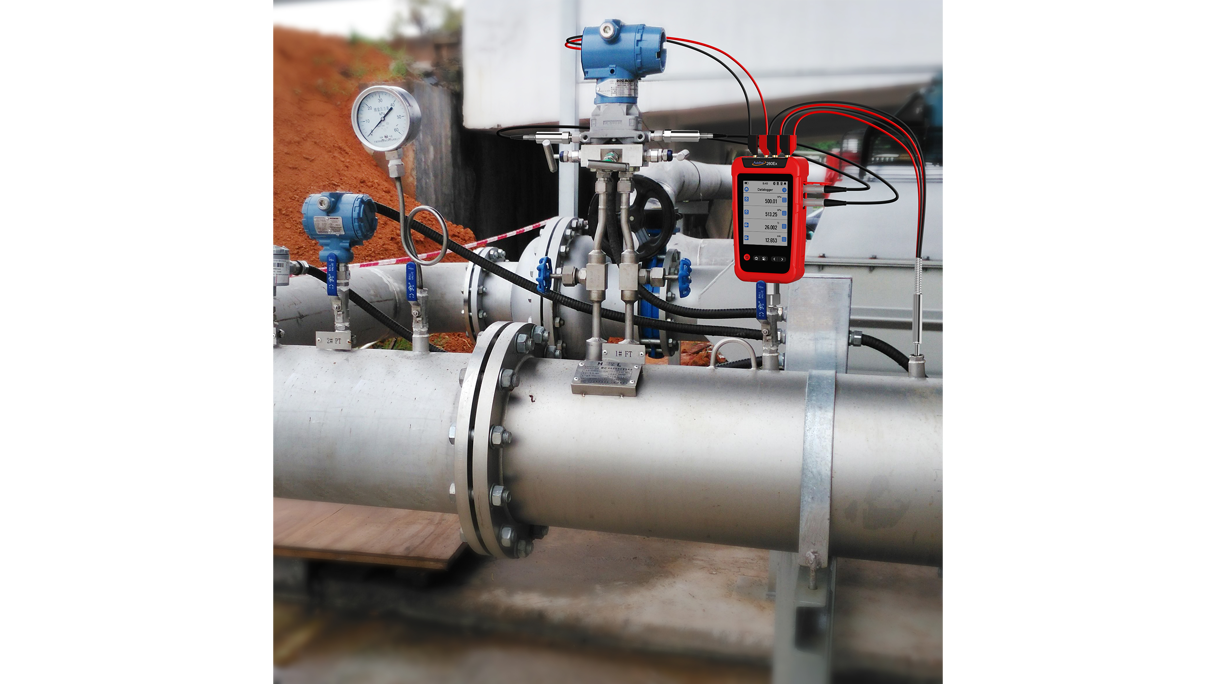

Insatech Additel Adt260ex App Photo1

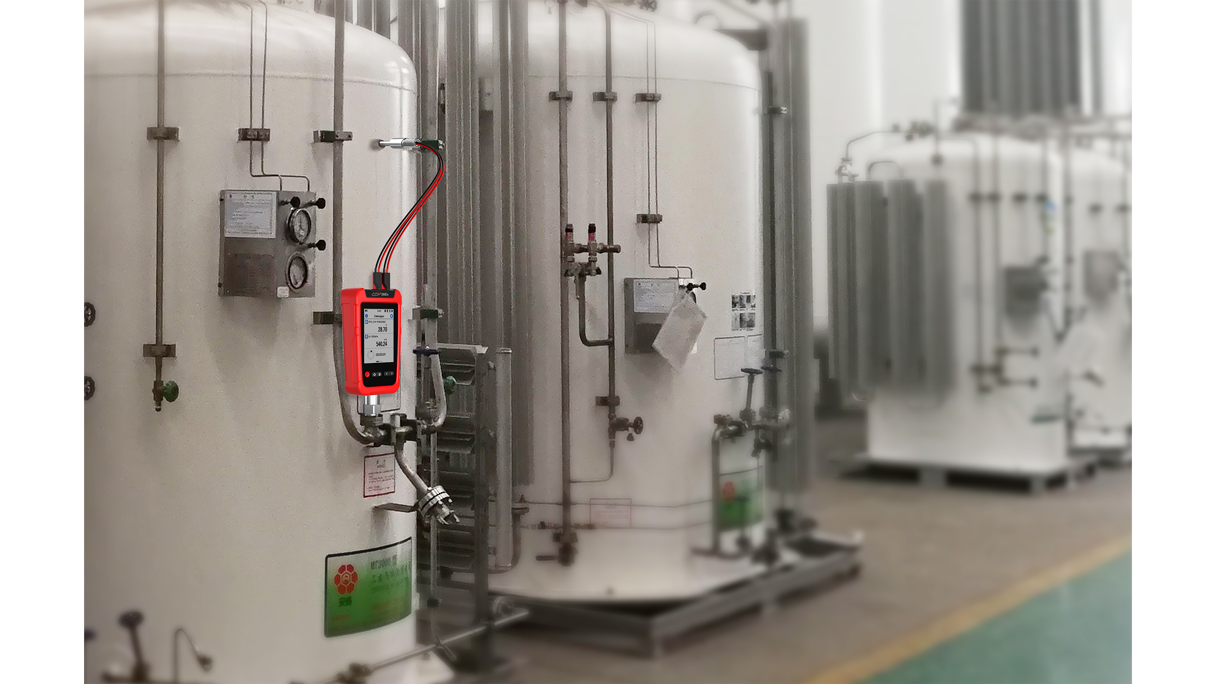

Insatech Additel Adt260ex App Photo2 16 9
Insatech Additel ADT260EX+Pressure Module Final With 20000 16 9
Insatech Additel Adt260ex Side 16 9
Insatech Additel Adt260ex Rear 16 9
Insatech Additel Adt260ex MEAS Only 16 9
Insatech Additel ADT260EX+PT100 16 9
Insatech Additel Adt260ex With Probes And Modules 16 9
Insatech Additel Adt260ex With Pump & Trans 16 9
Insatech Additel Adt260ex App Photo1
Insatech Additel Adt260ex App Photo2 16 9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Explosion-proof Grade
  • ATEX & IECEX: Ex ia IIC T4 Ga (Ta = -20 °C to +50 °C)
  • CSA:
    Class I, Division 1, Group A,B,C and D, T4
    Class I, Zone 0, AEx ia IIC T4 Ga
    Ta = -20°Cto + 50°C Ex ia IIC T4 Ga
  • UKCA-EX
CE Certification

TUV IEC61326, IEC61010

Input Channels

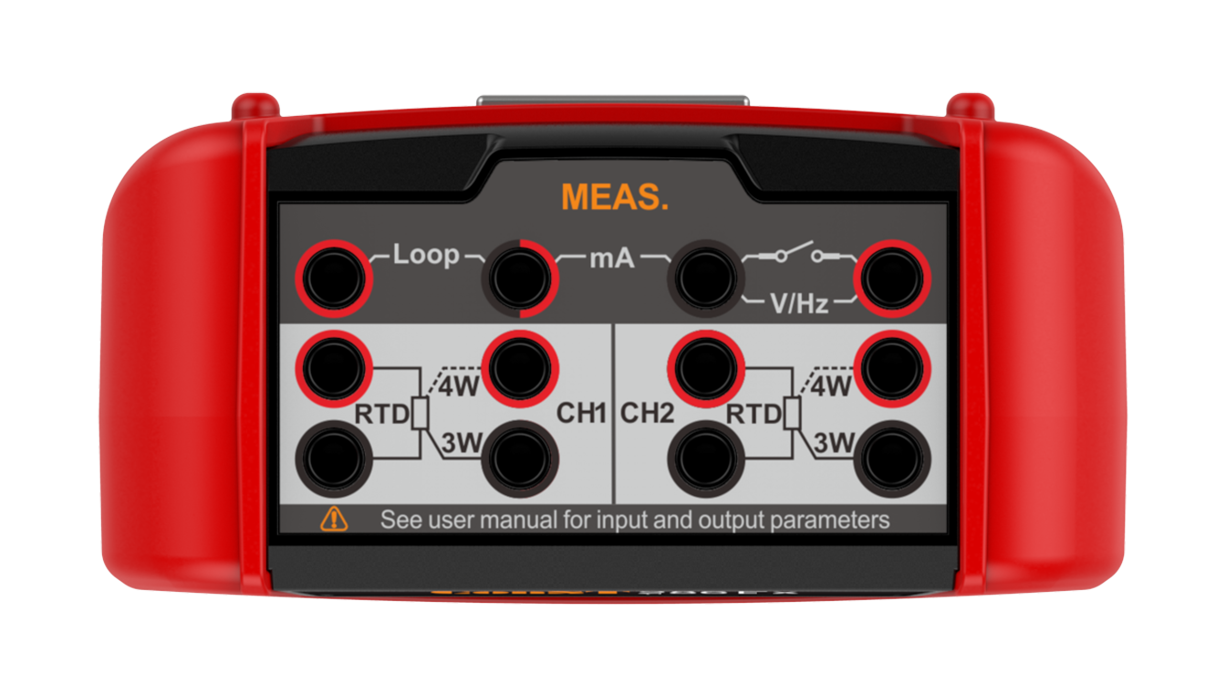

  • Top: 2 channels RTD measurement, 1 channel electric signal measurement, φ4mm banana jacks
  • Right side: 2 channels for external digital pressure module, LEMO style connection
  • Bottom: embedded digital pressure module (model ADT158Ex), field switchable.
  • Internal: 1 embedded atmospheric pressure sensor
Loop power
  • 20V ± 10%
  • max output impedance: 320Ω
  • max load current: 25mA
Measurement Rate
  • mV, V, mA & frequency and RTD: 3 times/ sec
  • Pressure module: 1~10 times/sec selectable (3 as default)
  • Barometer: 1 time/sec
Range:

RTD:

  • 0...400 Ω

Voltage:

  • ±300 mV
  • ±30 V

Current:

  • ±30 mA

Frequency:

  • 0,01...50000 Hz (auto range)

Pressure:

  • From -1...4200 bar
Accuracy

RTD:

  • 0,01 %RDG + 0,005 %FS

Voltage:

  • 0,015 %RDG + 0,005 %FS
  • 0,015 %RDG + 0,005 %FS

Current:

  • 0,015 %RDG + 0,005 %FS

Frequency:

  • 0,005 %RDG + 2 sidste cifre

Pressure

  • 0,02 ... 0,05 %
Resolution

RTD:

  • 1 mΩ

Voltage:

  • 1 uV
  • 0,1 mV

Current:

  • 0,1 uA

Frequency:

  • 6-digit auto-resolution
Data Storage

Logging interval: from 0.1~9999 seconds, log up to 10 million readings (single channel)

Product specifications and manuals

  • Datasheet - ADT260Ex - Additel
    English | pdf
  • Datasheet - Precision Industrial PRTs - Additel
    English | pdf
