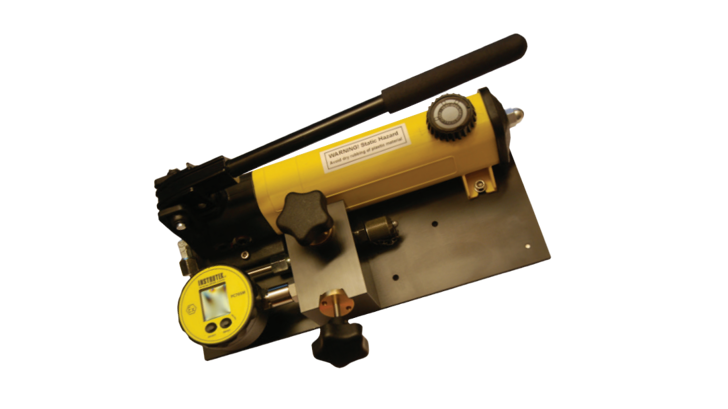

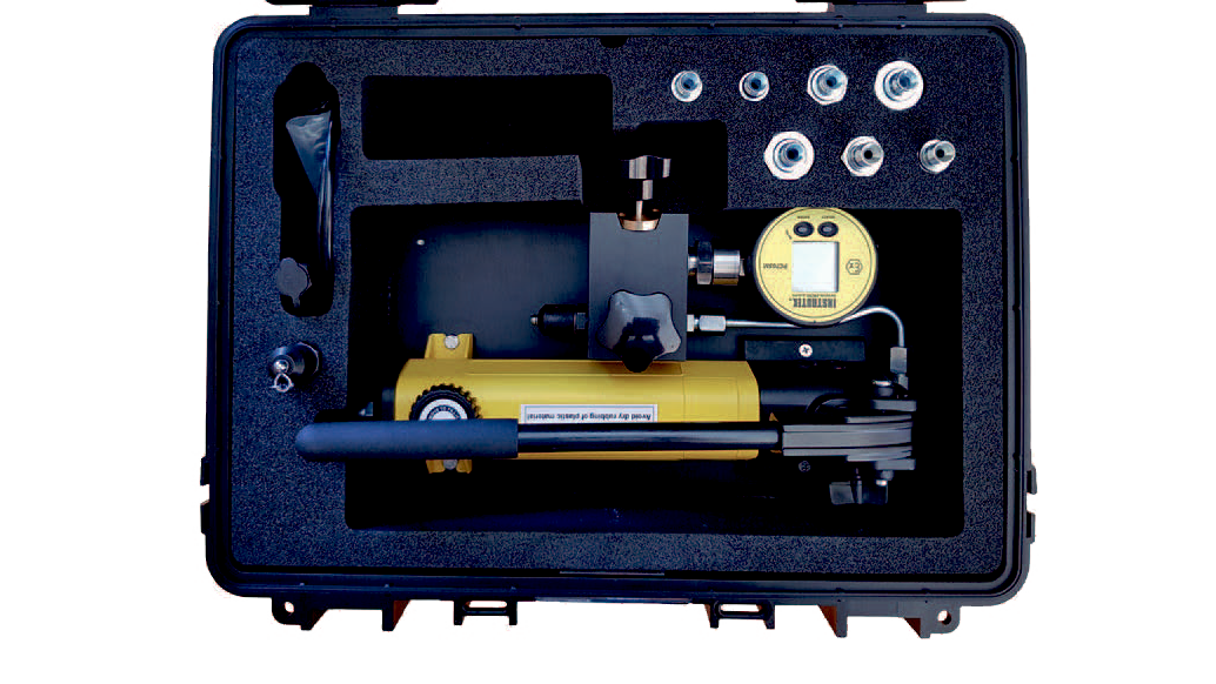

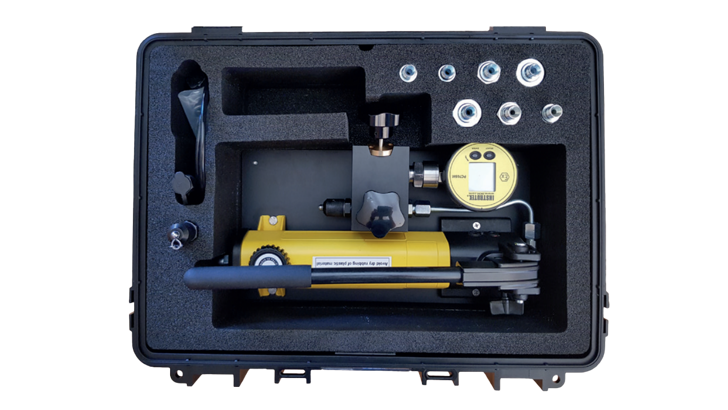

Pressure Calibrator PC705M
The Pressure Calibrator PC705M from IKM Instrutek is robust and renowned for its consistent accuracy, even under decreasing pressures, which is ideal for hysteresis verification.
Key advantages for you:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
You can attain high precision and stability through the implementation of a piezoresistive transducer equipped with an integrated temperature compensation system.
In contrast to certain alternative pressure calibrators, this unit sustains accuracy even under decreasing pressure conditions, rendering it exceptionally well-suited for hysteresis verification.
Moreover, all units undergo calibration in both positive and negative directions to ensure comprehensive accuracy checks.
The integrated hydraulic pump sets the test pressure, while the graphical LCD display provides clear readings of the calibration pressure. No delicate reference gauges are required.
Every unit undergoes calibration against high-precision pressure equipment that adheres to national standards, and each unit is furnished with a calibration certificate. This ensures yours traceability!
The Pressure Calibrator PC705M from IKM has several benefits including, but not excluded to:
IKM Instrutek's calibrators are meticulously engineered to maintain exceptional accuracy and stability even in the harshest conditions.
These portable calibrators are trusted by offshore rig operators and leading ship owners across the globe.
These pressure calibrators, originally conceived for offshore drilling rigs, boast a compact and rugged design that ensures unwavering performance even in the most challenging conditions. Their reliability under severe circumstances is a testament to their robust construction.
Additionally, their remarkable portability, weighing in at just 8 kg, makes them an ideal choice for on-site calibration needs, offering convenience without compromising precision.
Furthermore, these calibrators come with EEX/IS approval for hazardous areas, enhancing their suitability for use in potentially dangerous environments.
A calibration is a comparison between a known measurement (a more accurate standard) and the measurement using your instrument.
A general rule of thumb is that the standard should be ten times more accurate than your own instrument. However, accuracy ratio of 3:1 may also be used in some cases. The objective of a calibration is simply to determine the accuracy of your measuring device.
Your instrument should be calibrated:
Hidden costs and risks associated with un-calibrated devices could be much higher than the cost of the calibration.
The multifunction calibrator logs calibration results electronically. Data can be downloaded via USB, ensuring traceability and easy reporting for audits or compliance documentation.
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure Range | Range: 0...700bar Resolution Display: 50mbar Overpressure: 1100 bar |
||||||||||||||||||
| Engineering units | bar, mbar, hPa, kPa, MPa, PSI, kp/cm2, cmH2O, mH2O, inH20, ftH20, mmHg, inHg |
||||||||||||||||||
| Number of Digits of the LCD Display | 5 digit |
||||||||||||||||||
| Measuring rate (Display LCD) | 2 x per second |
||||||||||||||||||
| Measuring Rate via Serial Interface | Pressure up to 15 x per second |
||||||||||||||||||
| Storage- / Operating Temperature | -10...60 °C |
||||||||||||||||||
| Medium Temperature Pressure Sensor | -20...60 °C |
||||||||||||||||||
| Compensated Temperature Range | 0...50 °C |
||||||||||||||||||
| Battery | 3 V battery, Typ CR 2430 |
||||||||||||||||||
| Battery Life | Approx. 2’000 hours continuous operation |
||||||||||||||||||
| Pressure Connection | G1/4” |
||||||||||||||||||
| Bus Interface ¹ | RS485 |
||||||||||||||||||
| Electrical Connection ¹ | External supply and RS485 communication via Fischer D103A054, flange socket fits with PC-converter cable K-114A (USB to RS485) |
||||||||||||||||||
| External Supply ¹ | 8...28 VDC |
||||||||||||||||||
| Temperature Measurement | Accuracy typ. 0,5 °C |
||||||||||||||||||
| Material in Contact with Media | Stainless Steel (AISI 316L), Viton® O-ring |
||||||||||||||||||
| Protection | IP65 |
||||||||||||||||||
| Diameter x Height x Dept (approx.) | 345 x 160 x 180 mm |
||||||||||||||||||
| Weight (approx.) | 7,5 kg |
||||||||||||||||||
| EEx/IS certification | II 2 G EX ia IIC T6 Gb |
||||||||||||||||||
| Certification file | PTB 05 ATEX 2012 X and IECEx PTB 13.0028X |
||||||||||||||||||
| Notes | ¹ In the Ex-Zone, the gauges are not allowed to be supplied externally, nor can they be connected via the RS485 interface |
||||||||||||||||||
