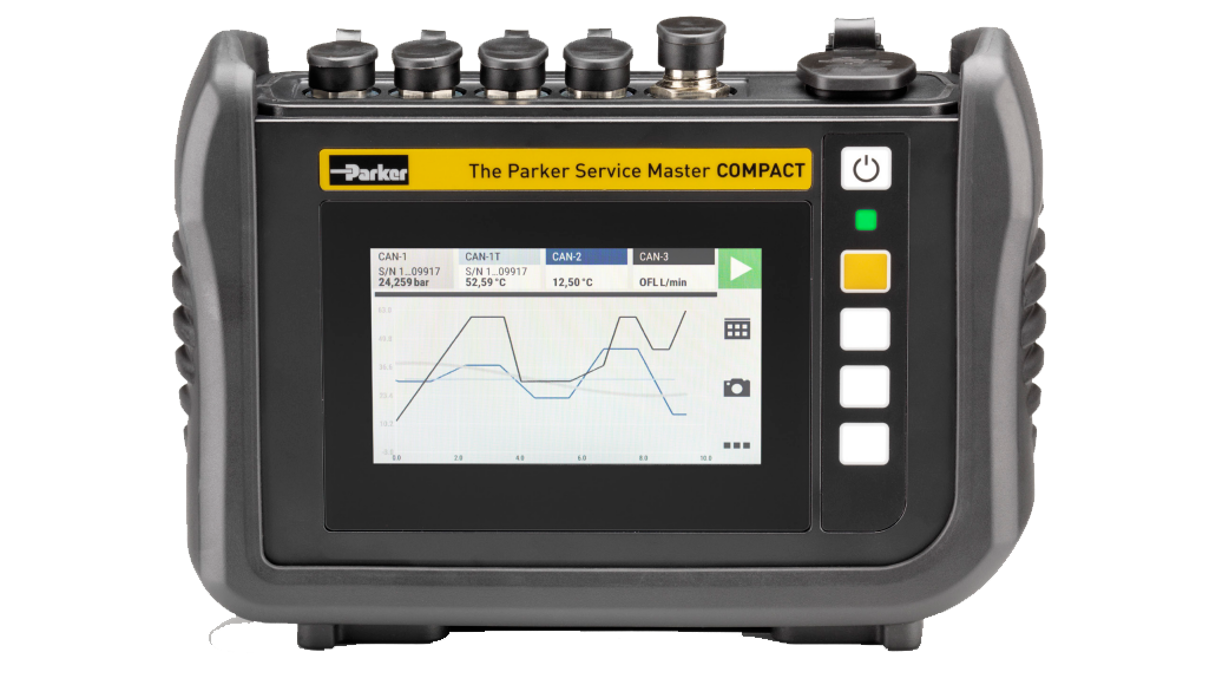

The Parker Service Master COMPACT
The Parker Service Master COMPACT is a universally appliable measuring device for service applications in mobile and stationary hydraulics.
Key Features:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
The Parker Service Master COMPACT is a versatile and robust diagnostic tool designed for real-time monitoring and analysis of hydraulic systems in demanding industries such as construction, agriculture, railway, and defense. It measures key parameters like pressure, temperature, and flow rate, enabling quick fault detection and efficient troubleshooting on-site.
Housed in a durable IP65 casing with a 4.3” touch screen, it supports immediate data analysis and documentation through the included SensoWin 7 software. Compatible with a wide range of Parker sensors, the Service Master COMPACT combines advanced functionality, user-friendly operation, and affordability
- making it an ideal portable solution for technicians at all experience levels.
The Parker Service Master COMPACT is available in three different versions and therefore offers a
wide range of options for different sensor types and configurations.

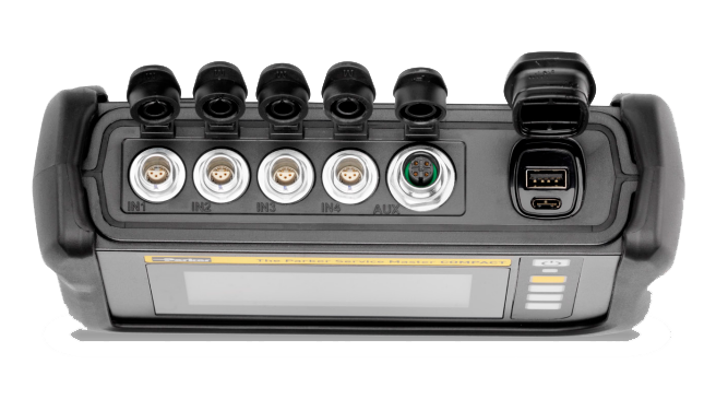

for 4 Parker analogue sensors with automatic sensor recognition and 2 auxiliary analogue sensors.

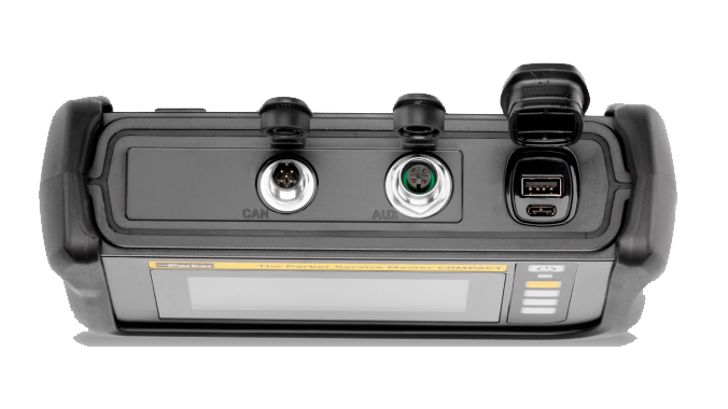

for 6 Parker CAN sensors with automatic sensor recognition and 2 auxiliary analogue sensors.
for 6 Parker CAN sensors with automatic sensor recognition.
| Ordering Information | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description |
||||||||||||||||||
| SCM-370-0-02 | Measuring device |
||||||||||||||||||
| SCM-370-1-05 | Measuring device |
||||||||||||||||||
| SCM-370-2-05 | Measuring device |
||||||||||||||||||
| K-SCM-370-0-02 | Measuring device + Calibration Certificate (ISO 9001) |
||||||||||||||||||
| K-SCM-370-1-05 | Measuring device + Calibration Certificate (ISO 9001) |
||||||||||||||||||
| SCKIT-370-0-02 | Measuring device in case with accessory* *Cable, adapter, test hose and quick charging power supply |
||||||||||||||||||
| SCKIT-370-1-05 | Measuring device in case with accessory* *Cable, adapter, test hose and quick charging power supply |
||||||||||||||||||
| SCKIT-370-2-05 | Measuring device in case with accessory* *Cable, adapter, test hose and quick charging power supply |
||||||||||||||||||
| SCKIT-370-0-PTQ | Measuring device in case with accessory* *Pressure sensors, temprature sensor, flow sensor, cable, adapter, test hose and quick charging power supply |
||||||||||||||||||
Our team of Sales Specialists
Tel.: +45 5537 2095
Email: quotes@insatech.com
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
At Insatech, we choose Parker Hannifin because their products set the industry standard for innovation, reliability, and performance. Parker’s advanced technologies and durable components ensure long-term efficiency and safety in demanding marine and industrial applications. By integrating Parker’s instrumentation, valves, and system solutions, we deliver trusted, high-quality results that help our customers operate smarter and more sustainably.
At Insatech, we deliver more than high-quality Parker Hannifin products - we provide complete Parker solutions. Combining engineering expertise, global support, and proven technology, our turnkey systems are built to meet real operational challenges. With tailored services and expert knowledge, we ensure efficiency, compliance, and long-term performance across marine, industrial, and process applications.
| Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Parker |
||||||||||||||||||
| Product Series | The Parker Service Master COMPACT |
||||||||||||||||||
| Product Type | Diagnostic Testing Equipment |
||||||||||||||||||
| Product Style | Measuring Device in Case with accessory, Measuring Device |
||||||||||||||||||
| Industry | Off-road Machinery, Industrial Manufacturing Equipment |
||||||||||||||||||
| Application | Hydraulic or pneumatic system diagnostic |
||||||||||||||||||
| Technology | Hydraulics, Fluid & Gas Handling |
||||||||||||||||||
| Division | High Pressure Connectors Europe Division |
||||||||||||||||||
| Inputs/Outputs | Analog, Parker CAN, Auxiliary |
||||||||||||||||||
| Number of Inputs | Up to 8 |
||||||||||||||||||
| Accuracy | 0.1% Full Scale |
||||||||||||||||||
| Communication Port Type | USB-C |
||||||||||||||||||
| Type | USB |
||||||||||||||||||
| Housing Material | ABS/PC |
||||||||||||||||||
| Cover Material | TPE |
||||||||||||||||||
| Display Size | 4,3" |
||||||||||||||||||
| Display Type | Touch Display |
||||||||||||||||||
| Ingress Protection Rating | IP 65 |
||||||||||||||||||
| Ambient Temperature | -20 .. +50°C |
||||||||||||||||||
| Storage Temperature | -30 .. +80°C |
||||||||||||||||||
| Operating Humidity | 0 .. 95%, non-condensing |
||||||||||||||||||
| Software | SensoWin |
||||||||||||||||||
