Service Master CONNECT 1X1

The Parker Service Master CONNECT

Parker's Service Master CONNECT is a powerful diagnostic measuring device for mobile, stationary hydraulic applications with up to 100 channels.

Key Features:

  • Modular system
  • Measure and display up to 100 channels
  • Remote control application

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Get a quote

Universal Measuring Device for Hydraulic Applications

The Parker Service Master CONNECT is a versatile measuring device designed for both mobile and stationary applications. Its modular hardware and software design, combined with a broad range of compatible sensors, make it ideal for service, commissioning, research, and development tasks within hydraulic systems.

The device can process various electrical signals and supports advanced CAN bus technology, offering flexible sensor integration options:

  • Parker CAN sensors with automatic sensor recognition - no manual parameter setup needed for pressure, temperature, flow, or rpm sensors.
  • Standard CAN sensors, which can be independently powered and processed by the device.
  • CAN system communication for “listening” mode, allowing display and data processing without interfering with the main bus controller.
  • An optional CAN monitor assists in the installation and analysis of CAN channels and bus reports.

This modular, plug-and-play system ensures precise measurement, fast setup, and reliable diagnostics across a wide range of hydraulic applications.

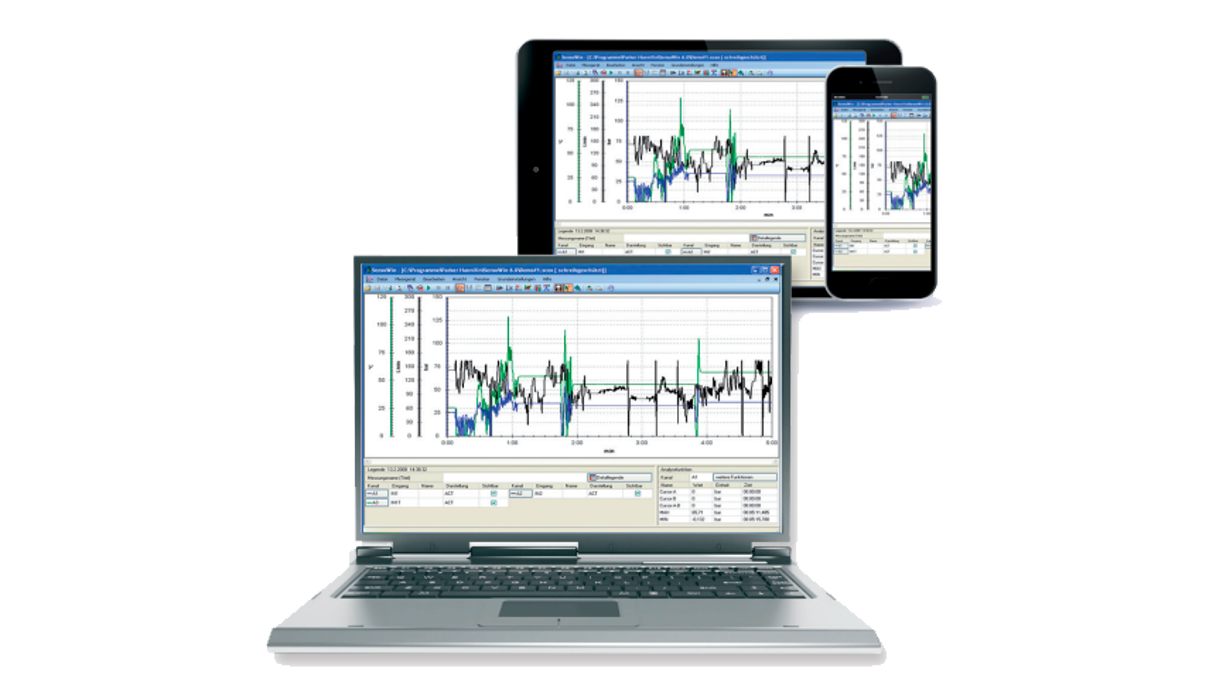

Parker PC Software Sensowin

PC software SensoWin®

  • Compatible with Windows 10 (32- and 64-Bit)
  • Zoom functions
  • Conjunction of measurement curves
  • Cursor functions
  • Export function
  • Extensive filter function
  • Remote connection/remote control
  • Freely definable calculation channels
  • Online measurement
  • Easy operation

Features

  • Modular design
  • Multiple inputs
  • Up to 100 channels measured and displayed
  • 7″ color touchscreen
  • Tactile keyboard for operation in harsh conditions
  • Remote control functionality
  • Rugged, oil-resistant housing for tough environments
  • Analysis software for PC
  • Media storage: PDFs, images, videos, etc.
  • Template creation for recurring measurements
  • Wireless connectivity: WLAN and Bluetooth LE
Service Master CONNECT On

Scope of delivery

Part No. Product Style Version Includes Specifications
SCM-600-00 Measuring Device Base Model No Input Module n/a
SCM-600-0A Measuring Device Base Model without Wireless Connectivity No Input Module n/a
K-SCM-600-00 Measuring Device Base Model without Wireless Connectivity No Input Module Calibration Certificate (ISO 9001)
K-SCM-600-0A Measuring Device Base Model without Wireless Connectivity No Input Module Calibration Certificate (ISO 9001)
SCMI-600-01 Input Module - Analogue n/a n/a n/a
SCMI-600-02 Input Module - CAN n/a n/a n/a
SCMI-600-03 Input Module - Analogue with Electrical Isolation n/a n/a n/a
K-SCMI-600-01 Input Module - Analogue n/a n/a Calibration Certificate (ISO 9001)
K-SCMI-600-03 Input Module - Analogue with Electrical Isolation n/a n/a Calibration Certificate (ISO 9001)
SCMSET-600-00-1-0 Measuring Device Base Model 1 Analogue Input Module n/a
SCMSET-600-0A-1-0 Measuring Device Base Model without Wireless Connectivity 1 Analogue Input Module n/a
K-SCMSET-600-00-1-0 Measuring Device Base Model 1 Analogue Input Module Calibration Certificate (ISO 9001)
K-SCMSET-600-0A-1-0 Measuring Device Base Model without Wireless Connectivity 1 Analogue Input Module Calibration Certificate (ISO 9001)
SCMSET-600-00-2-0 Measuring Device Base Model 1 CAN Input Module n/a
K-SCMSET-600-00-2-0 Measuring Device Base Model without Wireless Connectivity 1 CAN Input Module n/a
SCMSET-600-0A-2-0 Measuring Device Base Model 1 CAN Input Module Calibration Certificate (ISO 9001)
K-SCMSET-600-0A-2-0 Measuring Device Base Model without Wireless Connectivity 1 CAN Input Module Calibration Certificate (ISO 9001)
SCMSET-600-00-3-0 Measuring Device Base Model 1 Analogue with Electrical Isolation Input Module n/a
K-SCMSET-600-00-3-0 Measuring Device Base Model without Wireless Connectivity 1 Analogue with Electrical Isolation Input Module n/a
SCMSET-600-0A-3-0 Measuring Device Base Model 1 Analogue with Electrical Isolation Input Module Calibration Certificate (ISO 9001)
K-SCMSET-600-0A-3-0 Measuring Device Base Model without Wireless Connectivity 1 Analogue with Electrical Isolation Input Module Calibration Certificate (ISO 9001)
SCMSET-600-00-1-1 Measuring Device Base Model 2 Analogue Input Modules n/a
K-SCMSET-600-00-1-1 Measuring Device Base Model 2 Analogue Input Modules n/a
SCMSET-600-0A-1-1 Measuring Device Base Model without Wireless Connectivity 2 Analogue Input Modules n/a
K-SCMSET-600-0A-1-1 Measuring Device Base Model without Wireless Connectivity 2 Analogue Input Modules Calibration Certificate (ISO 9001)
SCMSET-600-00-2-1 Measuring Device Base Model 1 Analogue + 1 CAN Input Modules n/a
K-SCMSET-600-00-2-1 Measuring Device Base Model 1 Analogue + 1 CAN Input Modules Calibration Certificate (ISO 9001)
SCMSET-600-0A-2-1 Measuring Device Base Model without Wireless Connectivity 1 Analogue + 1 CAN Input Modules n/a
K-SCMSET-600-0A-2-1 Measuring Device Base Model without Wireless Connectivity 1 Analogue + 1 CAN Input Modules Calibration Certificate (ISO 9001)
SCMSET-600-00-3-1 Measuring Device Base Model 1 Analogue + 1 Analogue with Electrical Isolation Input Modules n/a
K-SCMSET-600-00-3-1 Measuring Device Base Model 1 Analogue + 1 Analogue with Electrical Isolation Input Modules Calibration Certificate (ISO 9001)
SCMSET-600-0A-3-1 Measuring Device Base Model without Wireless Connectivity 1 Analogue + 1 Analogue with Electrical Isolation Input Modules n/a
K-SCMSET-600-0A-3-1 Measuring Device Base Model without Wireless Connectivity 1 Analogue + 1 Analogue with Electrical Isolation Input Modules Calibration Certificate (ISO 9001)
SCMSET-600-00-3-3 Measuring Device Base Model 2 Analogue Input Modules n/a
K-SCMSET-600-00-3-3 Measuring Device Base Model 1 Analogue with Electrical Isolation Input Module Calibration Certificate (ISO 9001)
SCMSET-600-0A-3-3 Measuring Device Base Model without Wireless Connectivity 2 Analogue with Electrical Isolation Input Modules n/a
K-SCMSET-600-0A-3-3 Measuring Device Base Model without Wireless Connectivity 1 Analogue with Electrical Isolation Input Module Calibration Certificate (ISO 9001)
SCKIT-600-00 Measuring Device Kit in Trolley Case Base Model Carry Strap, Trolley Case, 2x5m CAN cable, 2x1.5m Test Hose M16x2, 2xCAN Terminating Resistor n/a
K-SCKIT-600-00 Measuring Device Kit in Trolley Case Base Model Carry Strap, Trolley Case, 2x5m CAN cable, 2x1.5m Test Hose M16x2, 2xCAN Terminating Resistor Calibration Certificate (ISO 9001)
SCKIT-600-0A Measuring Device Kit in Trolley Case Base Model without Wireless Connectivity Carry Strap, Trolley Case, 2x5m CAN cable, 2x1.5m Test Hose M16x2, 2xCAN Terminating Resistor n/a
K-SCKIT-600-0A Measuring Device Kit in Trolley Case Base Model without Wireless Connectivity Carry Strap, Trolley Case, 2x5m CAN cable, 2x1.5m Test Hose M16x2, 2xCAN Terminating Resistor Calibration Certificate (ISO 9001)

Markets

  • Agriculture
  • Defence
  • Mobile
  • Transportation
  • Construction
  • Industrial
  • Automotive
  • Testing
  • Maintenance and Repair, MRO

Applications

  • Mobile hydraulics
  • Transport vehicles
  • Conveyor vehicles
  • Commercial vehicles
  • Automotive technology
  • Oil molding
  • Test equipment and technology
Service Master CONNECT Service Master CONNECT Installed Service Master CONNECT Standing Parker PC Software Sensowin

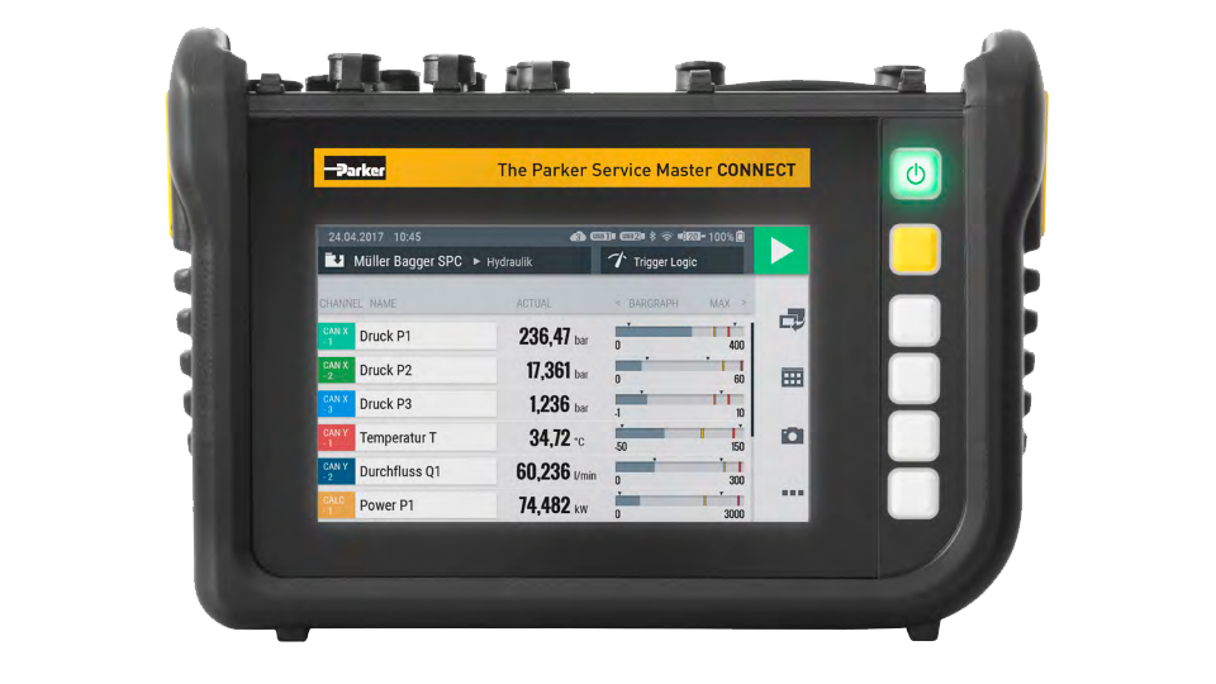

Service Master CONNECT
Service Master CONNECT Installed

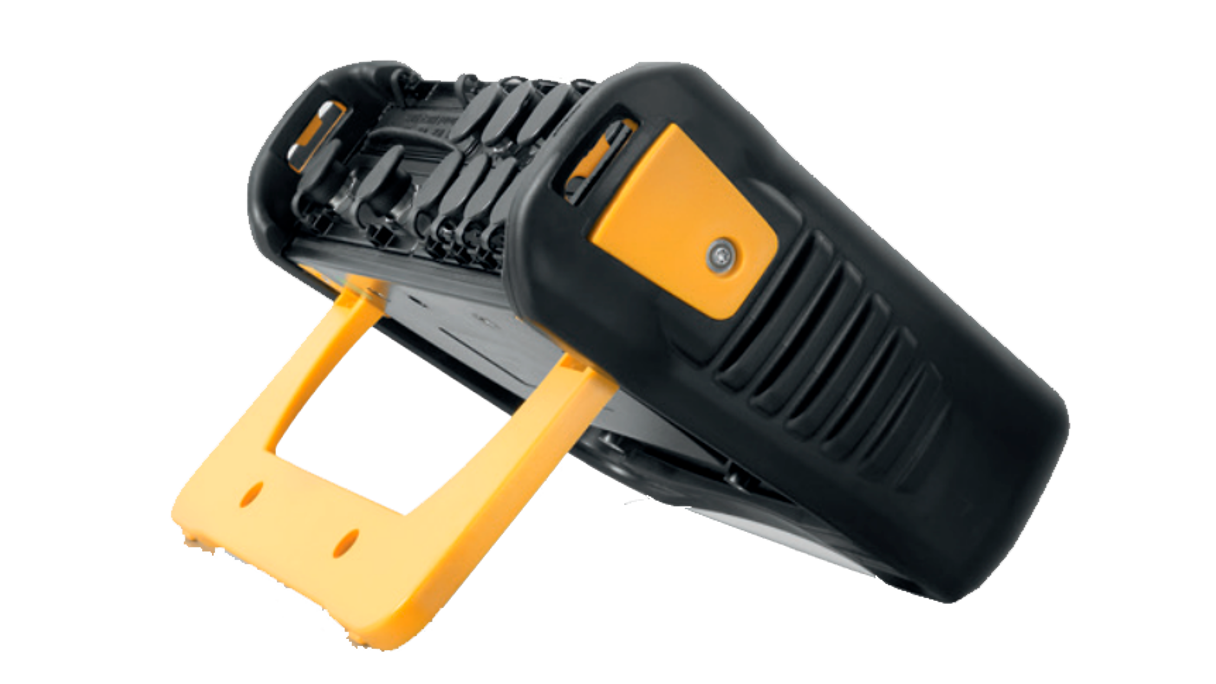

Service Master CONNECT Standing
Parker PC Software Sensowin

Get in Touch with Our Experts

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

Test Af Websitebillede FREJ ANAN HNI
For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Parker logo



Why We Offer Parker Products

At Insatech, we choose Parker Hannifin because their products set the industry standard for innovation, reliability, and performance. Parker’s advanced technologies and durable components ensure long-term efficiency and safety in demanding marine and industrial applications. By integrating Parker’s instrumentation, valves, and system solutions, we deliver trusted, high-quality results that help our customers operate smarter and more sustainably.

Authorized Parker Hannifin Distributor



At Insatech, we deliver more than high-quality Parker Hannifin products - we provide complete Parker solutions. Combining engineering expertise, global support, and proven technology, our turnkey systems are built to meet real operational challenges. With tailored services and expert knowledge, we ensure efficiency, compliance, and long-term performance across marine, industrial, and process applications.

Get help and support

Two Insatech employees at a meeting
Specifications
Brand

Parker
Product Series

The Parker Service Master CONNECT
Product Type

Diagnostic Testing Equipment
Product Style

Measuring Device Kit in Trolley Case, Input Modules (Analogue, Analogue with Electrical Isolation, CAN), Measuring Device
Industry

Off-road Machinery, Industrial Manufacturing Equipment
Application

Hydraulic or pneumatic system diagnostic
Technology

Process Control, Hydraulics, Fluid & Gas Handling
Division

High Pressure Connectors Europe Division
Input/Output

CAN sensor input: 2 CAN bus networks, 24 Parker CAN bus sensors each. Alternative at CAN Y up to 5 external CANopen sensors. Baudrate at different CAN adjustable. 24 VDC power supply/ max. 250 mA. No mixed mode of Parker-CAN and different CAN within a CAN-Bus section possible. Internal termination impedance 120 Ohm fixed. Supports CAN 2.0 A/CAN 2.0 B. Version SMC-600-LC: max. 20 channels.
SMC-600-LC: only predefined calculation channels possible.

Scanning rate: 1 ms = 1.000 measurement value/s
Plug connection: M12x1, 5 pin with SPEEDCON®, connection plug
D-IN/OUT F1/2: dual-function input, which can be used either as DIGITAL-IN or DIGITAL-OUT, or through a changeover, two frequency inputs are made available. Also possible as recognition of rotation direction.

Connection: M12x1 SpeedCon female. (5 pin)
Input: galvanic separated
Supply: 24 V DC, 80 mA
Input signals: Frequency (0 Hz … 20 KHz)
Gauge/level: Activ low: 0-1.4 V, Activ high: 3-30 V
Precision: ≤± 0,1%
Module slots: 2, for input module, flexible placement possible
Touch display: 7” color graphic display, 800 x 480 pixels
Calculation channels

Quantity: 4
Functions: /, *, +, -, f´(t), Integral, sin, cos, tan, x2, SQRT, xy
Max. offsettings of channels/Calc-channels: 3
Ports

USB device: data transmission between device and PC
USB host 1: connection with external storage media
USB host 2: connection with external storage media
Memory: 12 GB
LAN: connection with network cable
SIM card: MINI-SIM insert
Wireless communication: SMC-600-00: WLAN, Bluetooth LE (Europe)
Ambient conditions

Ambient temperature: -10. . .+50 °C
Storage temperature: -20…+60 °C
Rel. humidity: < 80 %
Environmental impact test: Drop test 1 m (EN 60721-3-7)
Vibration: (EN 60721-3-7, 7M3)
Protection class: IP 65 (EN/IEC 60529:2014)
External power supply: 110/240 VAC - 24 VDC/3.750 mA KFZ charging cable as accessory (12/24 VDC)
Connection: 3 pin
Battery

Lithium-ion pack, +14.4 VCD/3.250 mAh
Material

Housing: ABS/PC (thermoplastic)
Housing protective cover: TPE (thermoplastic elastomer)
Flammability rating: UE94VO
Dimensions: (W x H x D) 257 mm x 181 mm x 87 mm
Weight: 1880 g without input modules
VESA connection: 100 x 100 mm / M4 metric
