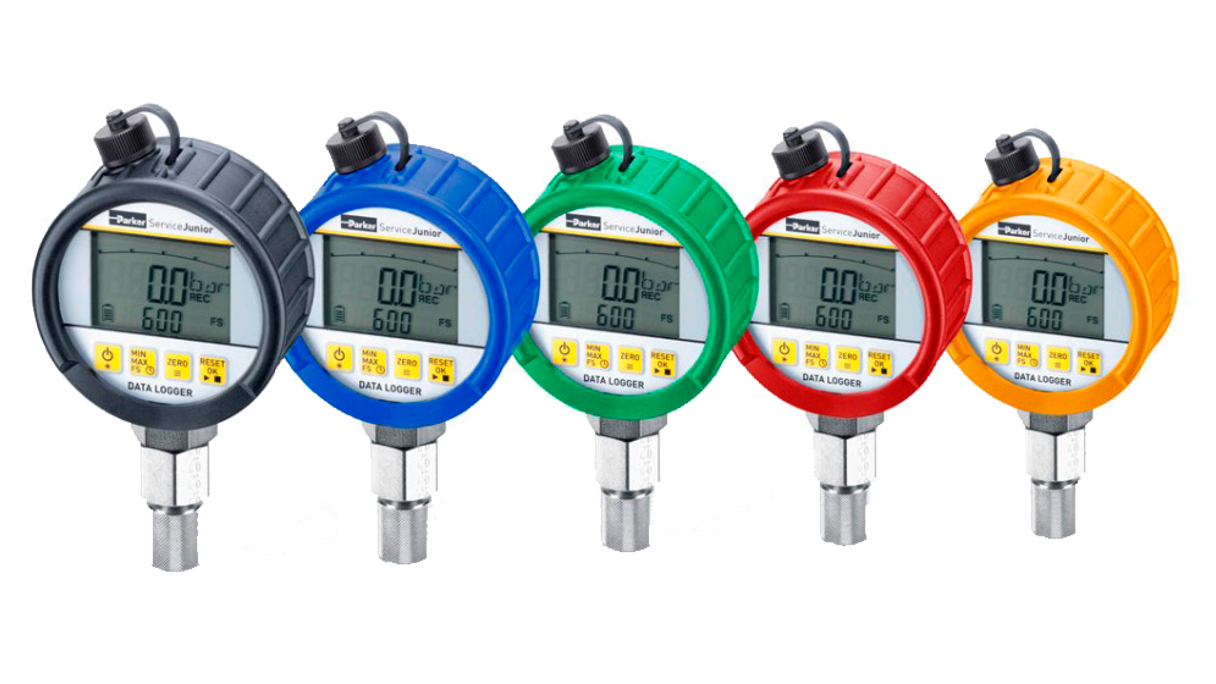

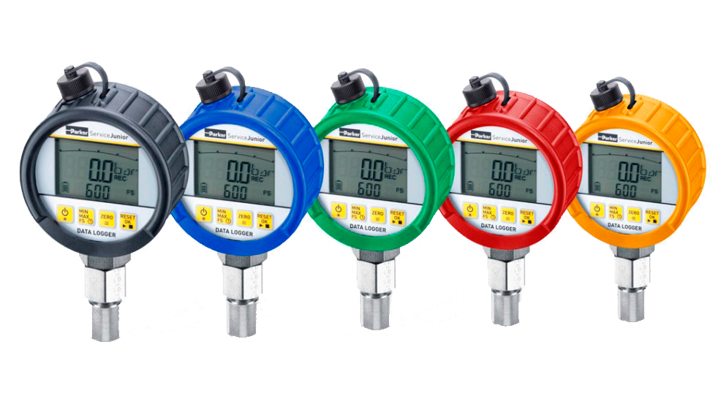

SensoControl ServiceJunior Measuring Device
Parker's SensoControl ServiceJunior is ideal to digitally measure and display pressure with high precision in any hydraulic or pneumatic system.
Key Features:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
The ServiceJunior combines pressure measurement, display, and storage in one robust, easy-to-use device. Its high accuracy, resolution, and long-term stability eliminate the need for multiple mechanical gauges. Pressure peaks are captured reliably with a 10 ms sampling rate, and the MIN/MAX function stores extreme values at the push of a button.
The optional data logger with real-time clock records current, minimum, and maximum measured values. Parker’s signature start/stop function with automatic data compression eliminates the need for complex calculations and lengthy configurations.
A measurement period of up to 24 hours can be initiated with a single button press. Stored measurement data is easily transferred to a computer or laptop via the USB interface, and thanks to the universal CSV format, it can be analyzed and documented without requiring special software.
| Ordering Information | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description |
||||||||||||||||||

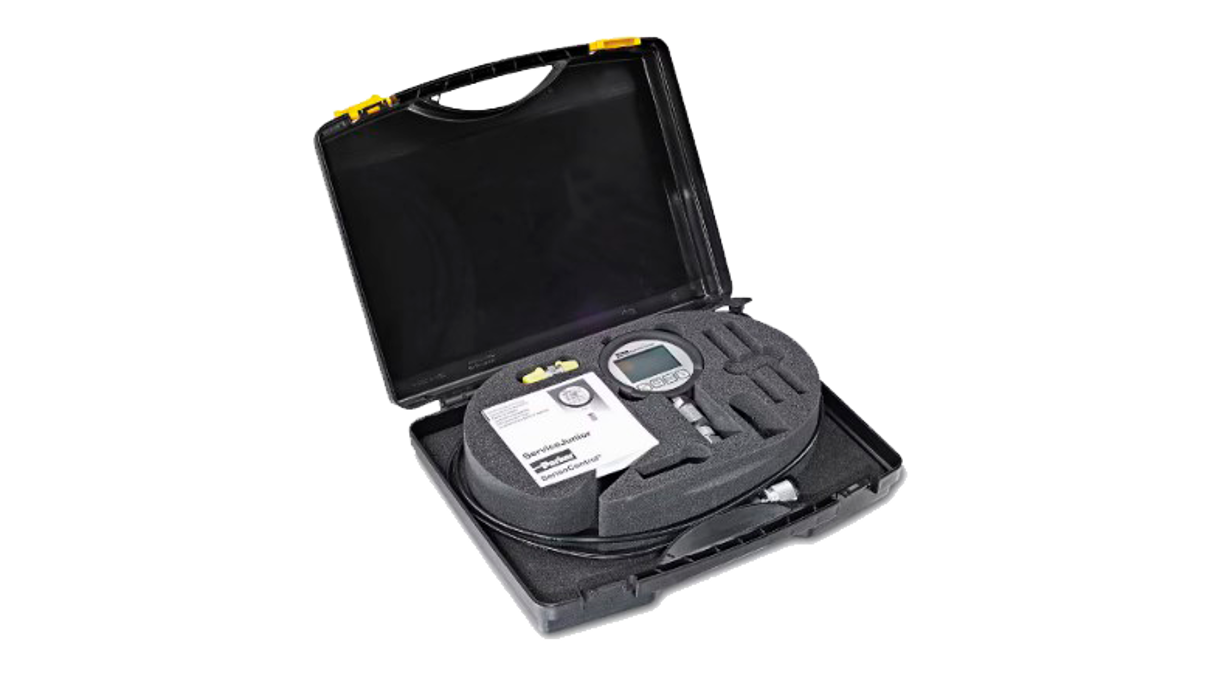

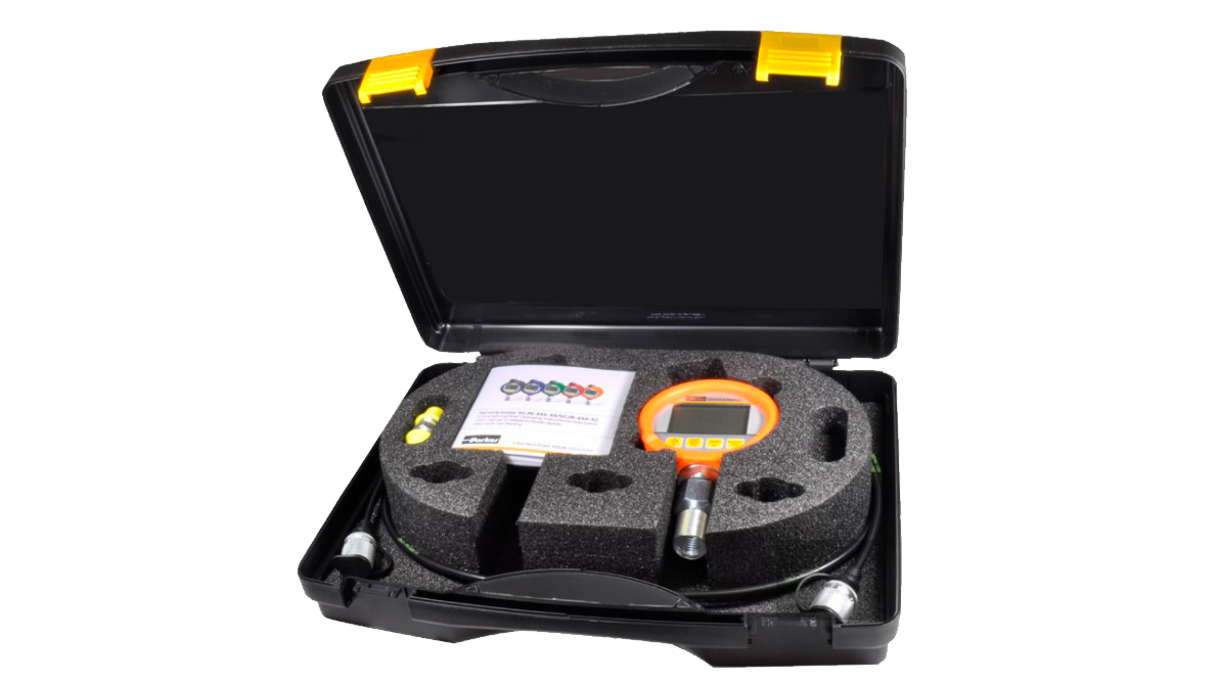

| SCJN-KIT-016 | ServiceJunior kit -1 to 16 bar |
||||||||||||||||||
| SCJN-KIT-100 | ServiceJunior kit 0 to 100 bar |
||||||||||||||||||
| SCJN-KIT-400 | ServiceJunior kit 0 to 400 bar |
||||||||||||||||||
| SCJN-KIT-600 | ServiceJunior kit 0 to 600 bar |
||||||||||||||||||
| SCJN-KIT-400-L1 | ServiceJunior kit with Datalogger 0 to 400 bar |
||||||||||||||||||
| SCJN-KIT-600-L1 | ServiceJunior kit with Datalogger 0 to 600 bar |
||||||||||||||||||
| K-SCJN-KIT-016 | ServiceJunior kit with Calibration Certificate (ISO 9001) -1 to 16 bar |
||||||||||||||||||
| K-SCJN-KIT-100 | ServiceJunior kit with Calibration Certificate (ISO 9001) 0 to 100 bar |
||||||||||||||||||
| K-SCJN-KIT-400 | ServiceJunior kit with Calibration Certificate (ISO 9001) 0 to 400 bar |
||||||||||||||||||
| K-SCJN-KIT-600 | ServiceJunior kit with Calibration Certificate (ISO 9001) 0 to 600 bar |
||||||||||||||||||
Our team of Sales Specialists
Tel.: +45 5537 2095
Email: quotes@insatech.com
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
At Insatech, we choose Parker Hannifin because their products set the industry standard for innovation, reliability, and performance. Parker’s advanced technologies and durable components ensure long-term efficiency and safety in demanding marine and industrial applications. By integrating Parker’s instrumentation, valves, and system solutions, we deliver trusted, high-quality results that help our customers operate smarter and more sustainably.
At Insatech, we deliver more than high-quality Parker Hannifin products - we provide complete Parker solutions. Combining engineering expertise, global support, and proven technology, our turnkey systems are built to meet real operational challenges. With tailored services and expert knowledge, we ensure efficiency, compliance, and long-term performance across marine, industrial, and process applications.
| Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Parker |
||||||||||||||||||
| Product Series | ServiceJunior |
||||||||||||||||||
| Product Type | Diagnostic Testing Equipment |
||||||||||||||||||
| Product Style | Measuring Device Kit |
||||||||||||||||||
| Pressure Measurement Range | -1 to 600 bar |
||||||||||||||||||
| Industry | Mining, Off-road Machinery, Transportation, Marine, Power Generation and Renewable Energy, Industrial Manufacturing Equipment |
||||||||||||||||||
| Application | Pressure Test, Leakage Test, Monitoring and Commissioning, Quality Assurance and Laboratory, Maintenance and Service |
||||||||||||||||||
| Technology | Process Control, Hydraulics, Fluid & Gas Handling |
||||||||||||||||||
| Division | High Pressure Connectors Europe Division |
||||||||||||||||||
