Parker Serviceman Plus 1X1

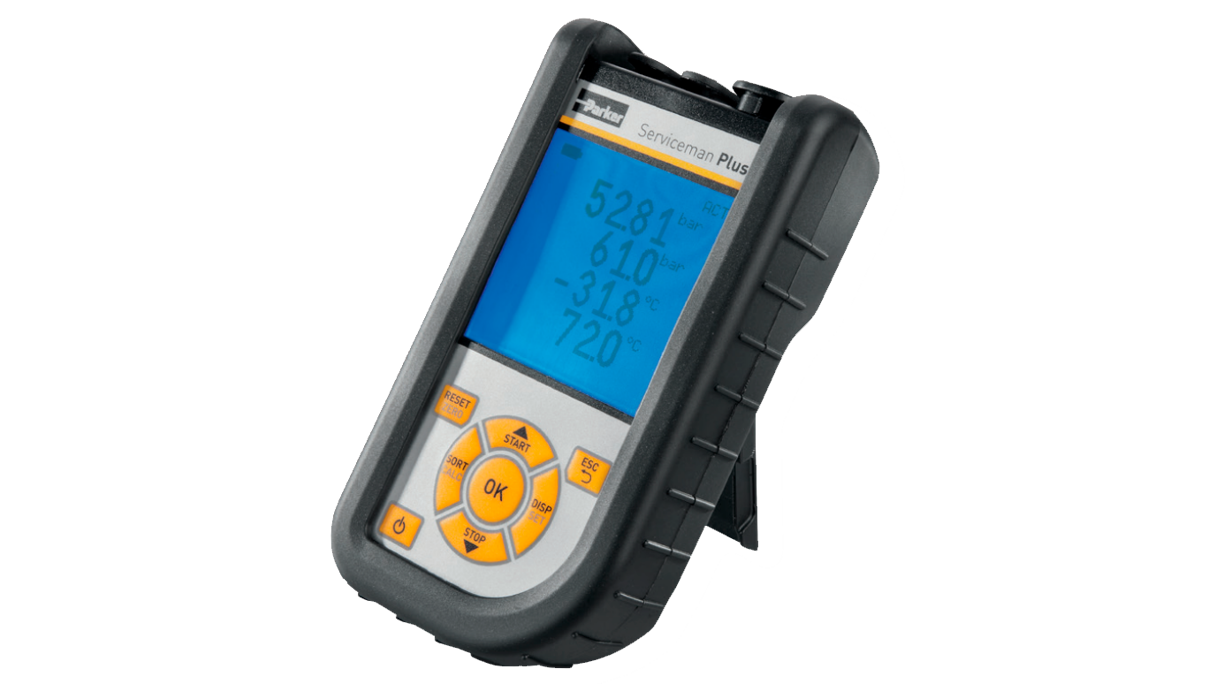

Parker Serviceman Plus

Parker’s SensoControl Serviceman Plus diagnostic test kits provide an efficient solution for measuring and recording essential performance data in hydraulic and pneumatic systems.

Key Benefits:

  • Easy intuitive operation
  • SensoWin software
  • Pressure kits are easily expanded with SensoControl accessories

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Get a quote

Portable and Versatile Hydraulic Diagnostic Meter

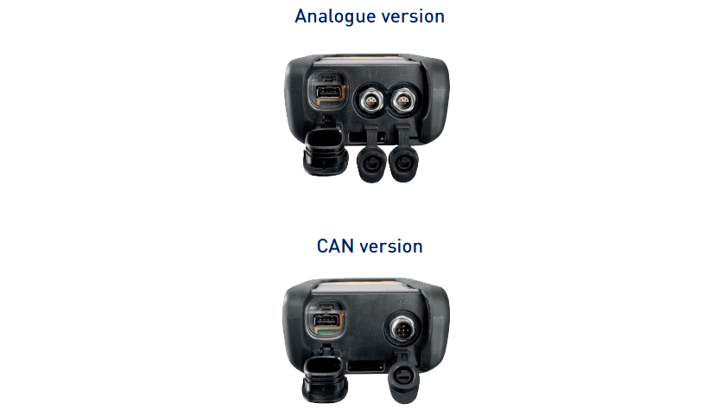

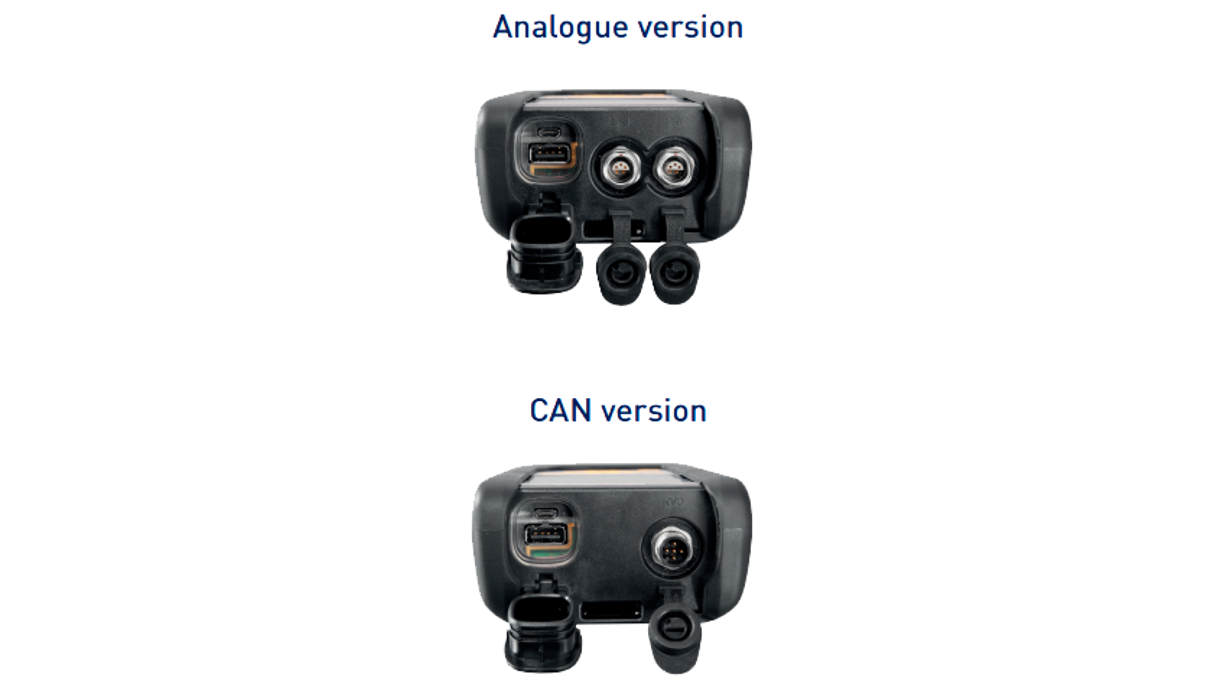

The Parker SensoControl Serviceman Plus is a rugged and user-friendly portable diagnostic meter designed for quick and reliable hydraulic testing. It offers flexible sensor connectivity with options for CAN bus communication or traditional analog inputs, available in versions with either two analog channels or a CAN interface supporting up to three sensors.
This compact instrument accurately measures pressure, flow, temperature, and RPM, and can be paired with a range of pressure test kits to suit different applications.

Parker Serviceman





Advantages of the Parker CAN bus

  • Cable lengths up to 50 m
  • Low wiring effort, up to 3 sensors on one bus line
  • High interference resistance due to digital data transfer
  • Plug & Play functionality without parameterisation

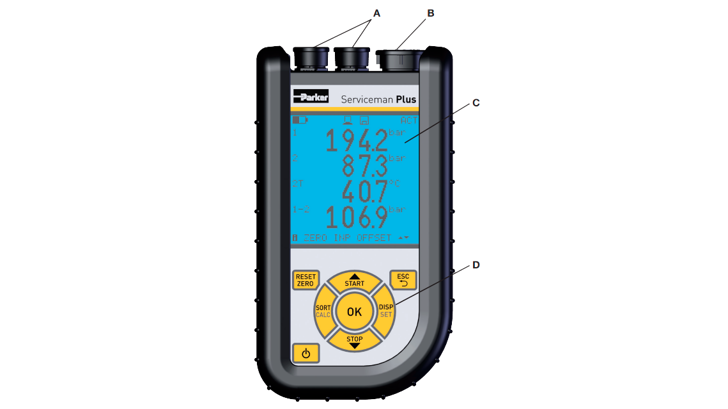

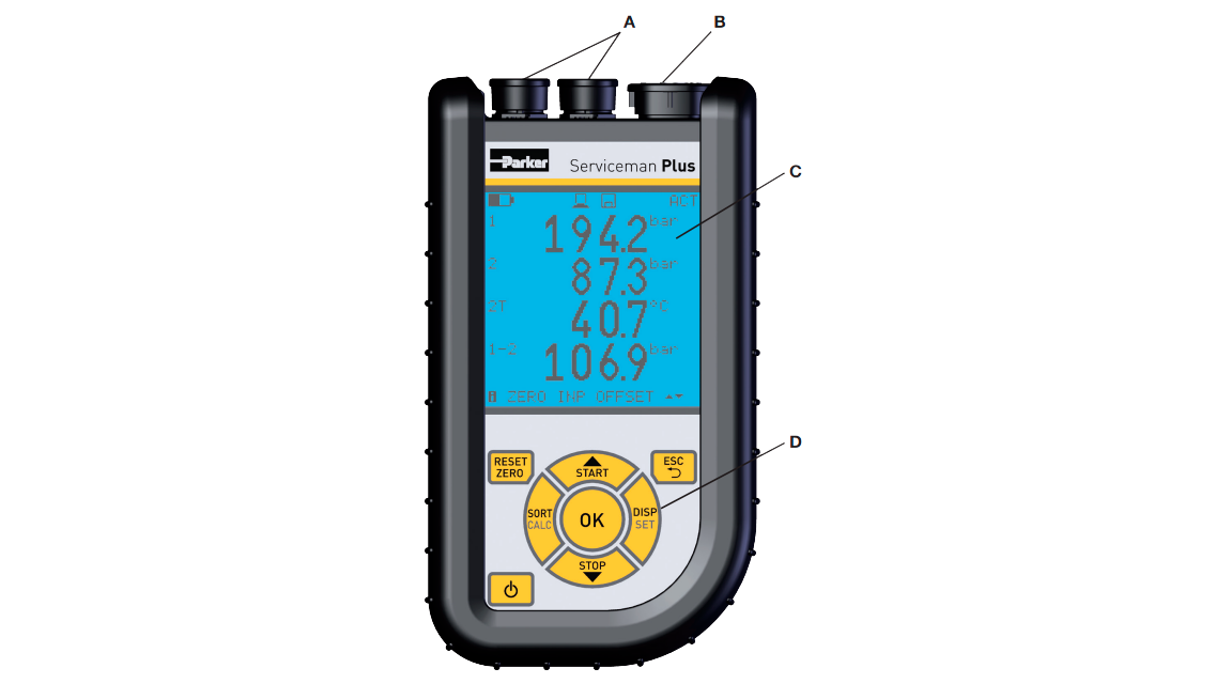

Parker Serviceman Plus - Functional description

A: Sensor connections

B: USB connections for external hard drive, charging function and data transfer to PC

C: Illuminated display

D: Keyboard

Parker Serviceman Plus Function
Ordering Information
SCM-155-0-02

Serviceman Plus analogue

SCM-155-2-05

Serviceman Plus CAN

K-SCM-155-0-02

Serviceman Plus analogue with calibration certificate as per ISO 9001

SCKIT-155-0-00

Serviceman Plus analogue kit

SCKIT-155-0-600

Serviceman Plus analogue kit with 600 bar pressure sensor

SCKIT-155-0-PQ

Serviceman Plus analogue p-Q

SCKIT-155-2-00

Serviceman Plus CAN kit

SCKIT-155-2-600

Serviceman Plus CAN kit with 600 bar pressure sensor

K-SCKIT-155-0-00

Serviceman Plus kit analogue with calibration certificate as per ISO 9001

K-SCKIT-155-0-600

Serviceman Plus kit analogue with calibrated 600 bar pressure sensor as per ISO 9001

K-SCKIT-155-0-PQ

Serviceman Plus kit analogue p-Q kit

K-SCKIT-155-2-600

Serviceman Plus kit CAN with calibrated 600 bar pressure sensor as per ISO 9001

Spares
SCSN-440

Serviceman Plus power supply unit with USB connection 110/240 VAC, 1A

SCK-315-02-36

2-m USB connection cable (for charging and connection to PC)

SC-USB-MINISTICK

Nano USB stick 1 GB

SCNA-USB-CAR

Car cable with USB connection 12/24 VDC, 1 A

SCC-200

Equipment Case

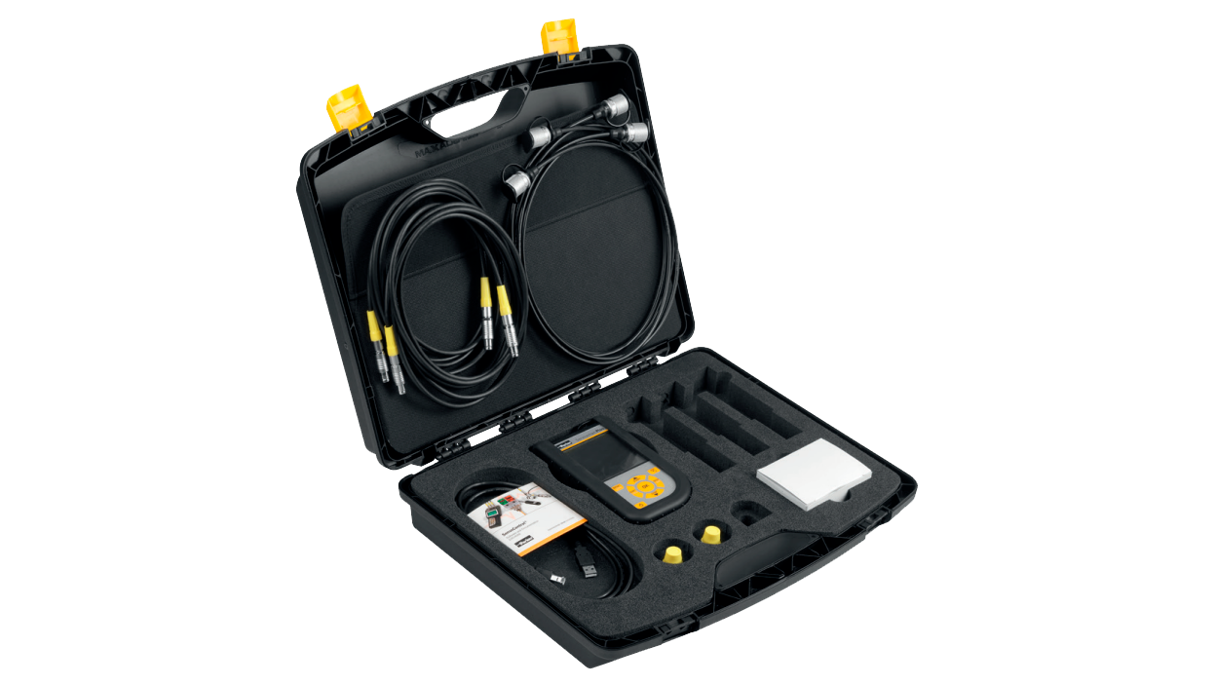

CAN style Pressure Test Kits include:

  • The Parker Serviceman Plus (CAN)
  • Storage case
  • 1 or 2 Transducers (choice of pressure range and coupling style)
  • 1 or 2 Transducer cables
  • CAN Y cable (kits with 2 transducers only)
  • Power supply
  • Terminator resistor
  • SensoWin software and documentation
  • USB connection cable
  • Nano USB memory stick - 1GB
  • Optional kit expansion additions include: other transducers, flow sensors, temperature sensor, tachometer, voltage adapter, cables (order separately).

Analog style Pressure Test Kits include:

  • The Parker Serviceman Plus (Analog)
  • Storage case
  • 1 or 2 Transducers (choice of pressure range and coupling style)
  • 1 or 2 Transducer cables
  • Power supply
  • SensoWin software and documentation
  • USB connection cable
  • Nano USB memory stick - 1GB
  • Optional kit expansion additions include: other SensoControl transducers, flow sensors, temperature sensor, tachometer, voltage adapter, cables (order separately).
Parker Serviceman Plus Parker Serviceman Plus Case Parker Serviceman Plus Function Parker Serviceman
Parker Serviceman Plus
Parker Serviceman Plus Case
Parker Serviceman Plus Function
Parker Serviceman

Get in Touch with Our Experts

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

Test Af Websitebillede FREJ ANAN HNI
For commercial inquiries

Our team of Sales Specialists


Tel.: +45 5537 2095

Email: quotes@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Parker logo



Why We Offer Parker Products

At Insatech, we choose Parker Hannifin because their products set the industry standard for innovation, reliability, and performance. Parker’s advanced technologies and durable components ensure long-term efficiency and safety in demanding marine and industrial applications. By integrating Parker’s instrumentation, valves, and system solutions, we deliver trusted, high-quality results that help our customers operate smarter and more sustainably.

Authorized Parker Hannifin Distributor



At Insatech, we deliver more than high-quality Parker Hannifin products - we provide complete Parker solutions. Combining engineering expertise, global support, and proven technology, our turnkey systems are built to meet real operational challenges. With tailored services and expert knowledge, we ensure efficiency, compliance, and long-term performance across marine, industrial, and process applications.

Get help and support

Two Insatech employees at a meeting
Specifications SCM-155-2-05 CAN
Brand

Parker

Product Type

Serviceman Plus CAN

Sensor inputs

CAN bus interface for up to 3 Parker
CAN bus sensors with sensor recognition

Measuring accuracy

< ± 0.2 % FS ± 1 digit

Plug-in Connection

5 pin, M12x1, SPEEDCON®, plug

Sample rate

1 ms

USB device

Online data transfer between device and PC via PC software SensoWin®, measured value
transfer: ACT/MIN/MAX, min. 5 ms, USB standard: 2.0, full speed, plug connection: Micro-USB
socket, shielded, type B

USB host

Port for USB stick, max. 4 GB, recommended types: Delock USB 2.0 Nano-Stick, Intenso Micro Line,
USB standard: 2.0, full speed, max. 100 mA, plug connection: Micro-USB socket, shielded, type B

Internal measured value memory

1 measurement, approx. 15,000 data records (270,000 measured values ACT/MIN/MAX), max.
24 h per measurement

USB stick

4 GB included

Storage format

Choice of SCMO (SensoWin compatible) or CSV

Display indication

FSTN-LCD, graphic, with LED backlight, 130 x 130 pixels

Power supply (external)

Micro USB socket, type. B, + 5V DC, max. 1,000 mA

Housing material

PC/ABS/POM

Housing protective cover material

TPU

Dimensions

96 x 172 x 54 mm

Weight

approx. 530 g

Ambient temperature

0…+50 °C

Storage temperature

-25…+60 °C

Rel. Humidity

< 80%

Environmental impact test

DIN EN 60068-2-32 (1 m free fall)

Protection class

IP67 EN 60529

SensoWin® PC software

Read-out, display, computer analysis of measured data, read-out, alteration of device settings, loading of device settings from library onto hand-held device

Specifications SCM-155-0-02 analogue
Brand

Parker

Product Type

Serviceman Plus analogue

Sensor inputs

2 Parker analogue sensors with sensor recognition

Measuring accuracy

< ± 0.2 % FS ± 1 digit

Plug-in Connection

5 pin, push-pull

Sample rate

1 ms

USB device

Online data transfer between device and PC via PC software SensoWin®, measured value
transfer: ACT/MIN/MAX, min. 5 ms, USB standard: 2.0, full speed, plug connection: Micro-USB
socket, shielded, type B

USB host

Port for USB stick, max. 4 GB, recommended types: Delock USB 2.0 Nano-Stick, Intenso Micro Line,
USB standard: 2.0, full speed, max. 100 mA, plug connection: Micro-USB socket, shielded, type B

Internal measured value memory

1 measurement, approx. 15,000 data records (270,000 measured values ACT/MIN/MAX), max.
24 h per measurement

USB stick

4 GB included

Storage format

Choice of SCMO (SensoWin compatible) or CSV

Display indication

FSTN-LCD, graphic, with LED backlight, 130 x 130 pixels

Power supply (external)

Micro USB socket, type. B, + 5V DC, max. 1,000 mA

Housing material

PC/ABS/POM

Housing protective cover material

TPU

Dimensions

96 x 172 x 54 mm

Weight

approx. 530 g

Ambient temperature

0…+50 °C

Storage temperature

-25…+60 °C

Rel. Humidity

< 80%

Environmental impact test

DIN EN 60068-2-32 (1 m free fall)

Protection class

IP54 EN 60529

SensoWin® PC software

Read-out, display, computer analysis of measured data, read-out, alteration of device settings, loading of device settings from library onto hand-held device
