The Parker UBS provides the dynamic link to portable particle counters. The UBS off-line sampler has microprocessor technology to recognize and adjust to the connecting monitor including the icountLCM30.
Key Benefits:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

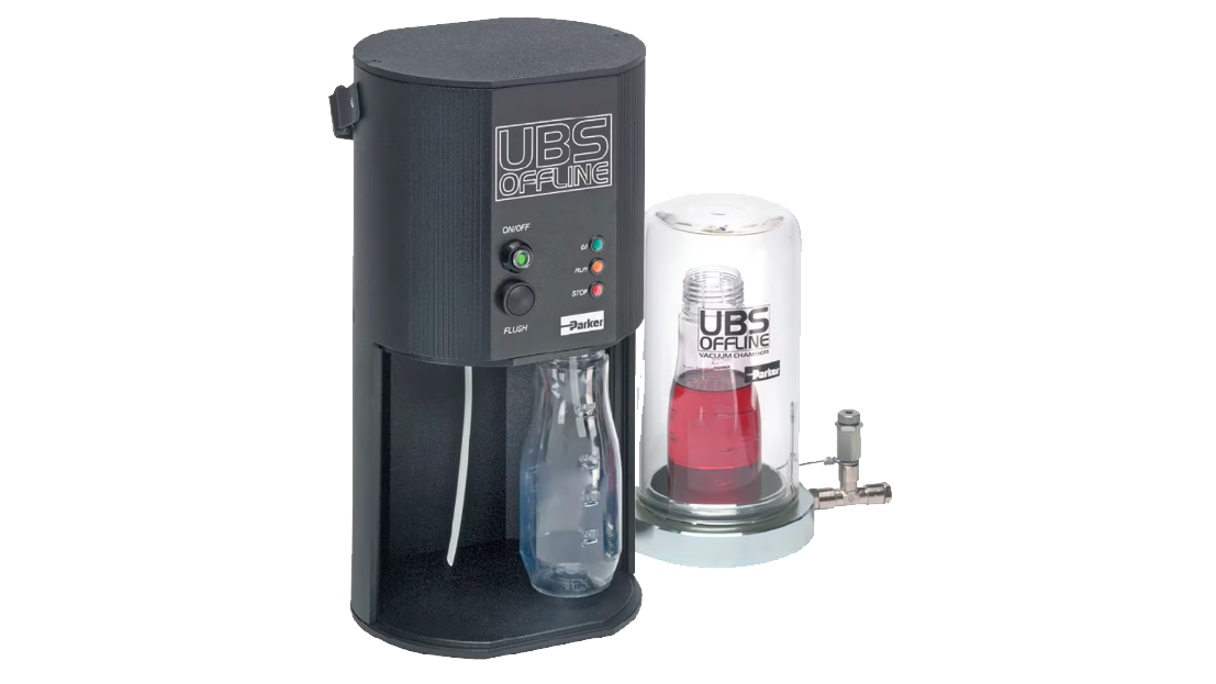

The Universal Bottle Sampler (UBS) is engineered for precise and contamination-free oil sampling in laboratory and field environments. Designed to interface seamlessly with portable particle counters such as the icountLCM20, it enables efficient, offline batch sampling for a wide range of fluids. Built with a robust extruded aluminium body and compatible with both mineral-based and aggressive fluids, the UBS combines reliability with versatility. Its intelligent microprocessor automatically adjusts to connected monitors, while minimal working parts and an internal auto-reset fuse ensure long-term durability and maintenance-free operation. Ideal for batch sampling, oil research, and laboratory testing, the UBS delivers clean, consistent results every time.

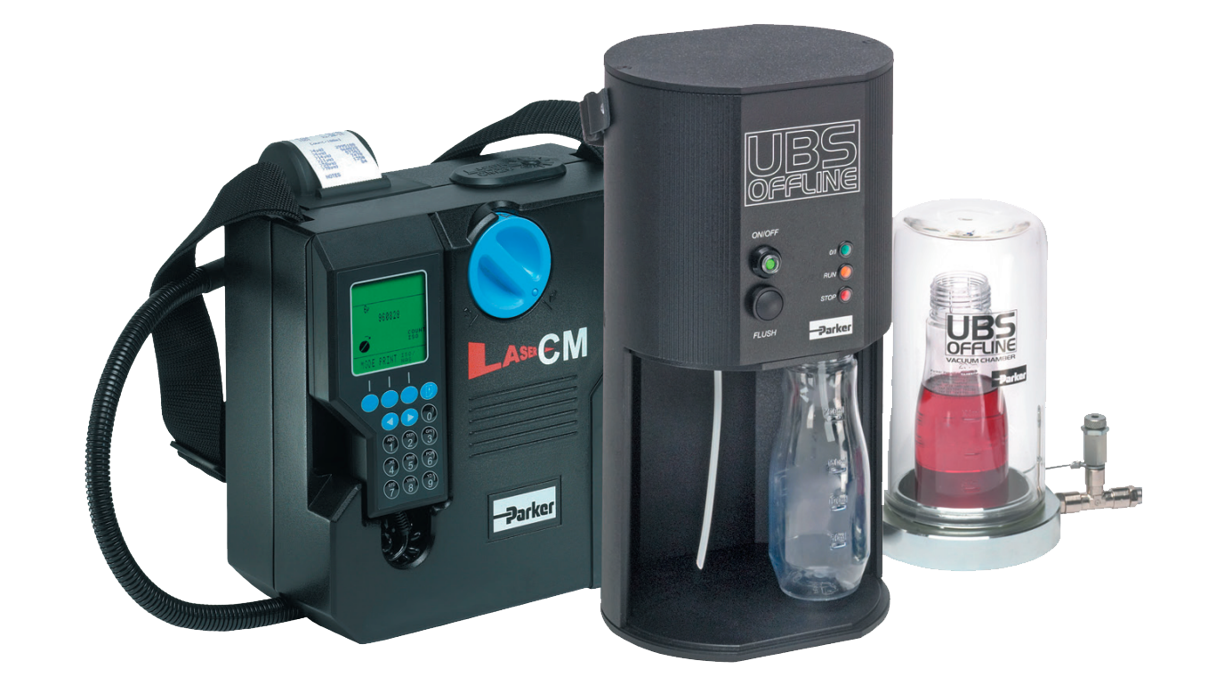

The Universal Bottle Sampler (UBS) provides a reliable connection to portable particle counters, enabling accurate and efficient offline oil sampling. Equipped with smart microprocessor technology, it automatically recognizes and adapts to connected monitors such as the icountLCM30 for seamless operation and consistent results.
Fluctuations in system flow, temperature, pressure, or vibration can cause settled contaminants to re-enter the oil flow or lead filters to release trapped particles. To ensure accurate results, samples should always be taken when the system is operating in a steady, stable condition, minimizing the risk of contamination spikes.
| Ordering Information | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UBS9002 | Universal Bottle Sampler (includes aluminium case and accessories): Mineral Oil |
||||||||||||||||||
| UBS9003 | Universal Bottle Sampler: Mineral oils and petroleum based fluids |
||||||||||||||||||
| UBS9004 | Universal Bottle Sampler: Phosphate Esters |
||||||||||||||||||
| UBS9005 | Universal Bottle Sampler (includes aluminium case and accessories): Aggressive Fluid |
||||||||||||||||||
| Spares | |||||||||||||||||||
| ACC6NK001 | Sample bottle (2/pack) |
||||||||||||||||||
| ACC6NK002 | UBS power supply |
||||||||||||||||||
| ACC6NK003 | UBS degassing chamber and pump |
||||||||||||||||||
| ACC6NK004 | UBS degassing chamber only |
||||||||||||||||||
| ACC6NK005 | Cable and adaptor |
||||||||||||||||||

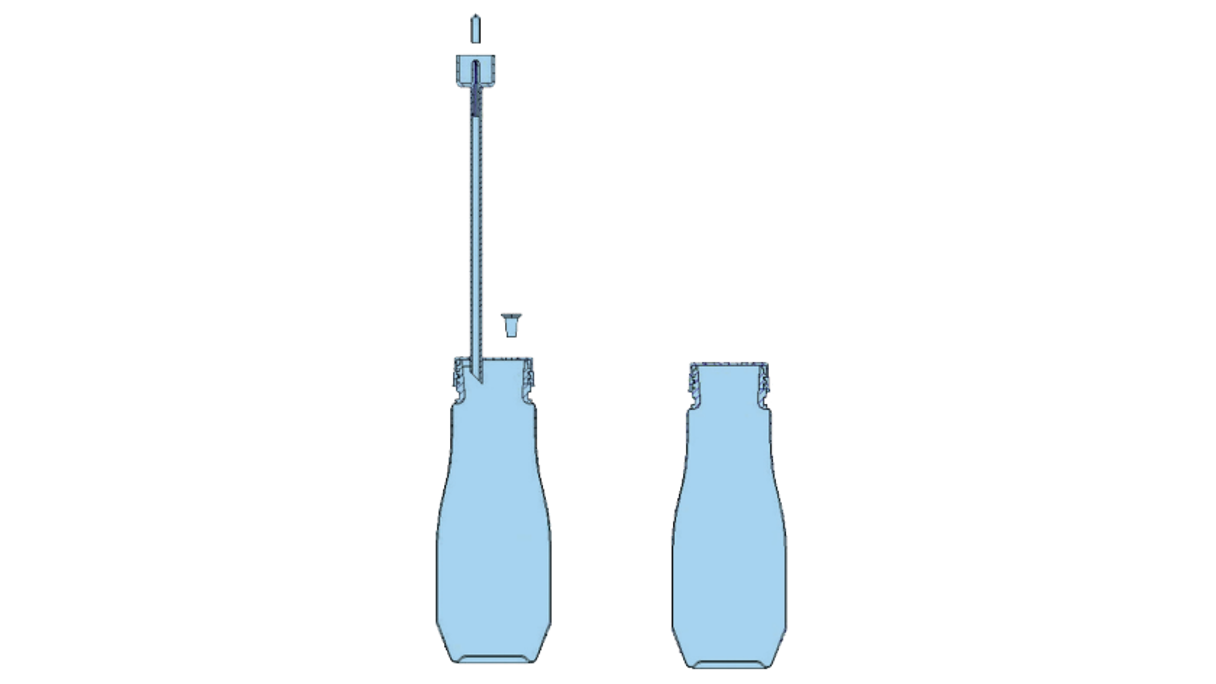

| ACC6NW001 | Sample bottle with extraction hose (2/pack) |
||||||||||||||||||
| ACC6NW002 | Sample bottle with extraction hose (50/pack x 2) |
||||||||||||||||||
Our team of Sales Specialists
Tel.: +45 5537 2095
Email: quotes@insatech.com
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
At Insatech, we choose Parker Hannifin because their products set the industry standard for innovation, reliability, and performance. Parker’s advanced technologies and durable components ensure long-term efficiency and safety in demanding marine and industrial applications. By integrating Parker’s instrumentation, valves, and system solutions, we deliver trusted, high-quality results that help our customers operate smarter and more sustainably.
At Insatech, we deliver more than high-quality Parker Hannifin products - we provide complete Parker solutions. Combining engineering expertise, global support, and proven technology, our turnkey systems are built to meet real operational challenges. With tailored services and expert knowledge, we ensure efficiency, compliance, and long-term performance across marine, industrial, and process applications.
| Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Parker |
||||||||||||||||||
| Product Type | Universal Bottle Sampler |
||||||||||||||||||
| For Fluid Type | Mineral Oil |
||||||||||||||||||
| Industry | Industrial Manufacturing |
||||||||||||||||||
| Technology | Filtration, Hydraulics |
||||||||||||||||||
| Operating Temperature | 41°F to 176°F (+5°C to +80°C) |
||||||||||||||||||
| Power Supply Voltage | 12 Vdc |
||||||||||||||||||
| Materials of Construction | Extruded Aluminium |
||||||||||||||||||
| Weight | 8.82 lbs (4 Kg) |
||||||||||||||||||
| Seal Material | Fluorocarbon |
||||||||||||||||||
| Specifications Met | CE Certified |
||||||||||||||||||
| Operation Type | Manual interface with LCM30 |
||||||||||||||||||
| Includes | Bottle Pack |
||||||||||||||||||
