EGD50.0 HORN 1024 Square

Angle Sensor EGD50 50.5X & 50.7X

The Angle Sensor EGD50 Series from Dr. E. Horn has been meticulously crafted following the guidelines outlined in CiA 406: Device Profile for encoders, incorporating NMT slave functionality. The Node-ID can be conveniently chosen via hardwire or jumper settings, offering a selection of 7 distinct Node-IDs.

Key Features & Benefits

  • Absolute Positioning – Retains accurate position after power loss.

  • High Precision – Delivers reliable, high-resolution output.

  • Rugged Design – Built for harsh marine and industrial conditions.

  • Easy Integration – Supports multiple interfaces for seamless setup.

We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.

Contact us now

In the Spotlight: EGD 50.5X & EGD 50.7X

Below we have gathered two of the Angle Sensors from the EGD Series: The EGD 50.5X and the EGD 50.7X.

BUT if there is a specific kind you need, which is not found here, please do not hesitate contacting us here.

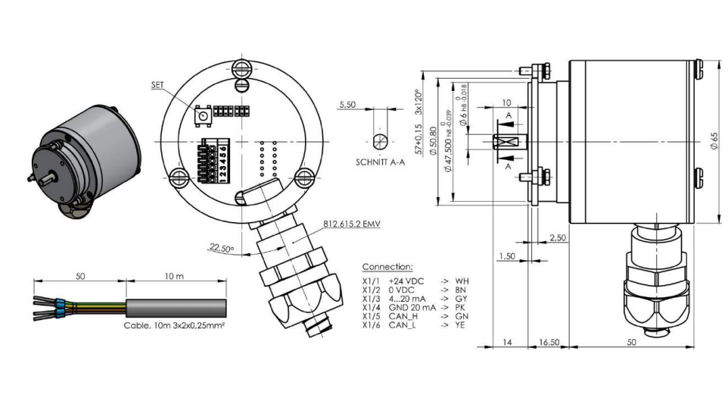

EDG50.52 HORN 1024 16X9

Angle Sensor EGD 50.7X

The EGD 50.7 is an absolute encoder designed as a dual encoder, comprising two separate measuring devices, meticulously built to comply with the SOLAS regulations governing main drives and rudder systems.

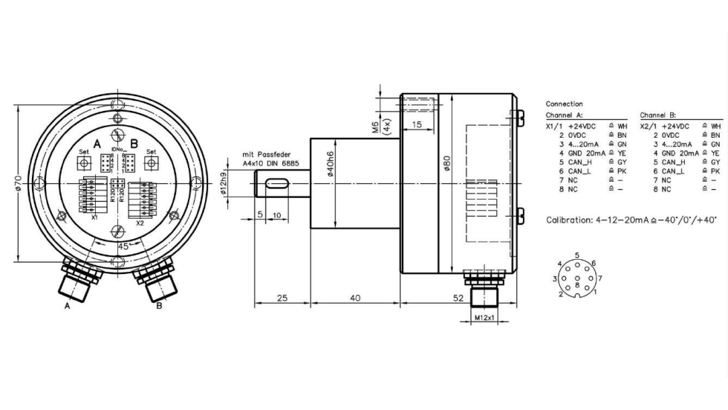

On the right you see the EGD 50.72z S34 pictured.

Need our help? Contact us now.

EDG50.72Fl HORN 1024 16X9

Address Adjustments

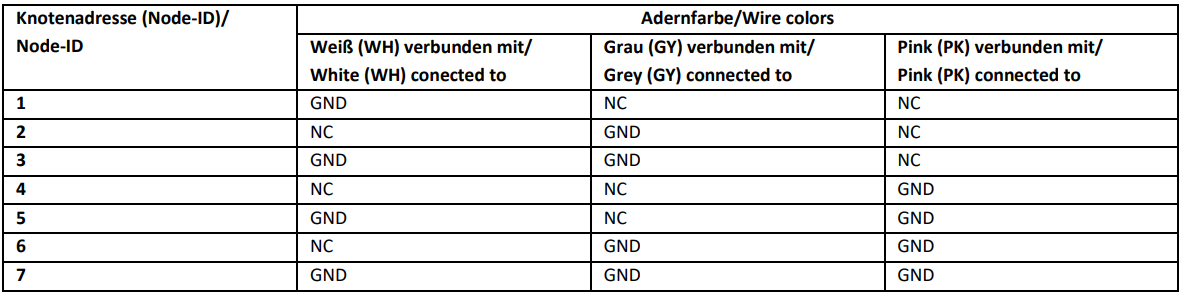

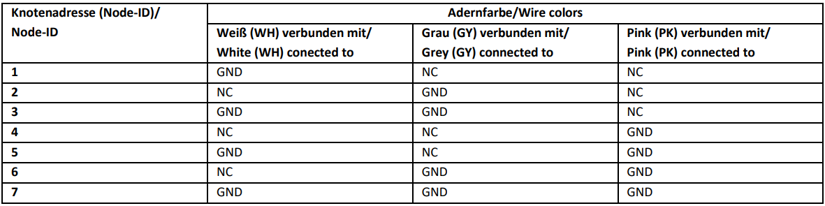

Below you see the possible address adjustment for the angle sensor EGD50 Series.

How to operate the EGD 50 Series

If you wonder how you operate the encode, the follow the instructions below - after 3 steps you know how to do it.

1. If you have an encoder model with two power supply connections both of them have to be supplied with voltage.

2. If you only utilize the 4-20 mA analog output, meaning the Can bus is not connected, it is necessary to configure the 120 Ω termination resistor of the encoder by bridging the connections labelled "CAN_L" and "120 Ohm."

IF your device is lacking a "120 Ohm" connection possess a termination resistor that is pre-set and cannot be modified.

3. You have to make sure that all the wire you use is isolated or connected to the terminals.

Do you have any questions? Contact us

EGD50.0 HORN 1024 16X9 EDG50.52 HORN 1024 16X9 EDG50.72Fl HORN 1024 16X9
EGD50.0 HORN 1024 16X9
EDG50.52 HORN 1024 16X9
EDG50.72Fl HORN 1024 16X9

Smart Sensor Technology
- Decentralized Intelligence for Engine Safety

Horn sensors continuously measure critical parameters to ensure engine safety. They can be sold individually or integrated into our monitoring systems, providing customized solutions tailored to customer needs.

Ensuring Safety for Large Engines and Drives

Horn specialize in safety solutions for large 4-stroke and 2-stroke engines, whether used in marine vessels, power generation, or industrial applications on land.

Looking for something else? See our selection of sensors from HORN:

Sensors

Horn Logo Overview

Get in Touch with Our Experts

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

Websitebillede Miho Hni Anan Frej (1)
For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Technical Specifications EGD 50 series
Electrical Data
  • Power supply: 24 VDC -20 % … + 25 %
  • Power consumption: approx. 2 W
Enviroment
  • Operating temperature: 5 °C … +70 °C
  • Storage temperature: -10 °C … +85 °C
  • Relative humidity: <90 %, non-condensing
Mechanical Data
  • Friction torque: <2.5 Ncm
  • Housing: aluminium
  • Flange: synchro
  • Shaft loading: axial/radial 45 N
  • Vibration: IEC 68 section 2-6 diagram 2
  • Shock: IEC 68 section 2-27

Protection class (IEC/EN 60529)

  • Housing: IP 67
  • Shaft inlet: IP 65
Accuracy
  • Measurement range: 360°
  • Resolution: 12 Bit
  • Linearity: < ± 0,3 % (typ.), < ± 0,5 % (max.); respectively from full scale
CAN bus
  • Bus protocol: CANopen
  • CANopen documents:
    • DS-301 V4.01
    • DS-406 V2.0
    • DS-302 V3.1
  • Transmission rate: 125 kbit/s
  • CAN bus termination: 120 Ω resistor; enabled by 1 wire (cabling)
  • NMT: Slave
  • Error control: Heartbeat
  • Node-ID: 1 … 7; adjustable by 3 wire (cabling)
  • Transmit-PDO: 1
  • Receive-PDO: 0
  • PDO transmission mode: Event-driven (adjustable event-time)
  • Emergency message: Supported
4 – 20 mA output
  • Range: 4 – 20 mA
  • Burden: max. 500 Ω
  • Design: galvanic isolated from power supply
Classification
  • GL
  • BV
  • Brochure - Angle Sensor EGD 50 Series - HORN
    English | pdf
  • Manual - Angle Sensor EGD 50 Series - HORN
    English | pdf
  • Article - Drawing - Angle Sensor EGD 50 Series - HORN
    English | pdf
