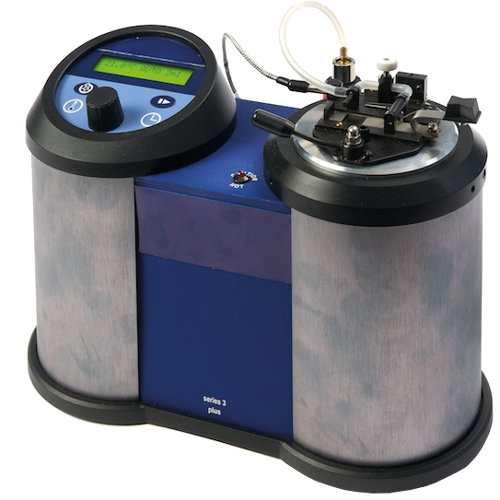

A uniquely designed flash point tester for the determination of flash points of fuel, its an automated closed cup instrument using a small sample size and 1 or 2 minute standard test time. The flammability of a material determines its safety classification and the regulations under which it must be handled, stored and transported. Can also be used to help detect fuel dillution.
For sales or commercial inquiries please contact us at marine@insatech.com.
Flash point is the lowest temperature at which the vapours of fuel can be ignitable mixture in air when a test flame is applied. Flashpoint is used in lube oils as an indication of fuel oil contamination.
A uniquely designed flash point tester for the determination of flash points of fuel. Easy to use, completing a fuel test in less than a few minutes, in the temperature range 0- 300 °C.
| Ordering information | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description |
||||||||||||||||||
| FG-K16909-KW | Electronic Flashpoint Tester |
||||||||||||||||||
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cup Material | Aluminium |
||||||||||||||||||
| Ramp Rate | 2°C / min ramp |
||||||||||||||||||
| Sample Size | 2 - 4 ml |
||||||||||||||||||
| Size (HxWxD) | 26 x 28 x 26cm |
||||||||||||||||||
| Temp Range | Ambient 0 to 300°C |
||||||||||||||||||
| Test Duration, Rapid Equilibrium Mode | 1 minute below 100°C, 2 minutes above 100°C, or user determined 1 to 99 minutes |
||||||||||||||||||
| Test Modes | Rapid Equilibrium and Ramp, 1 to 99 minutes |
||||||||||||||||||
| Voltage | 110/120V or 220/240V, 50/60Hz (switchable), 12Vdc with optional adaptor |
||||||||||||||||||
| Weight | 4 kg |
||||||||||||||||||
