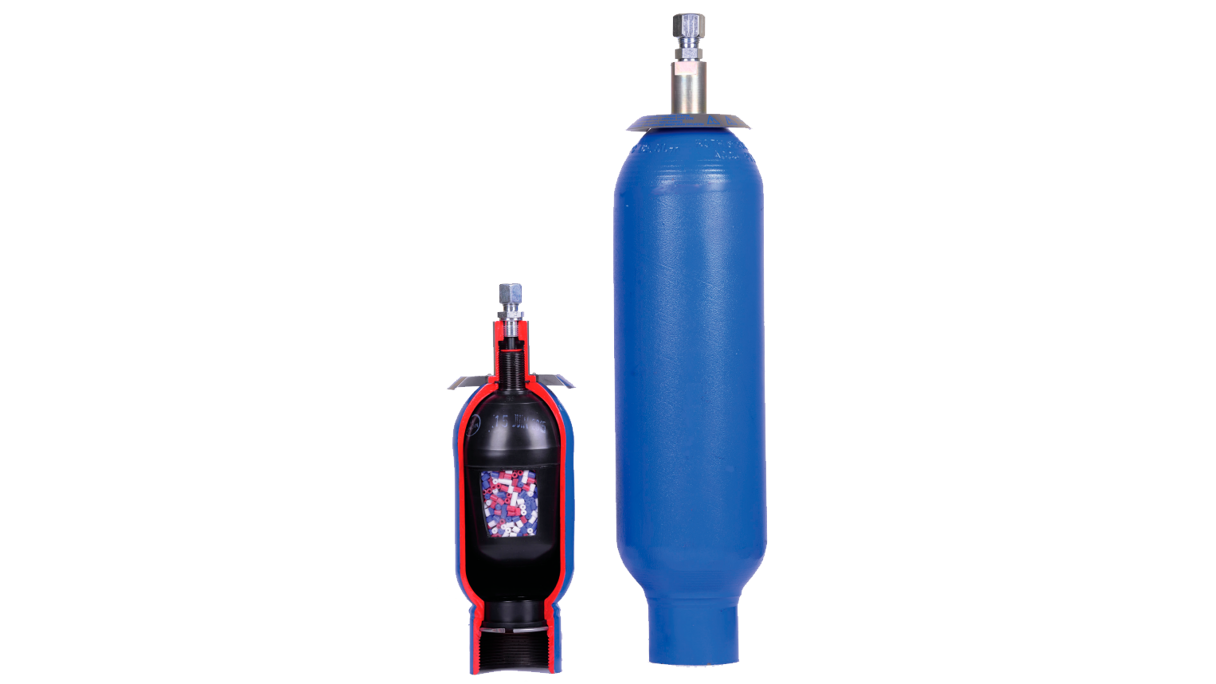

Parker SBV3 pulsation damper is specially designed for installation on low pressure fuel systems, typically in Marine and Power Generation applications, to attenuate pressure pulses (up to 40 bar/ 2.5 Litres).
Key Benefits:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

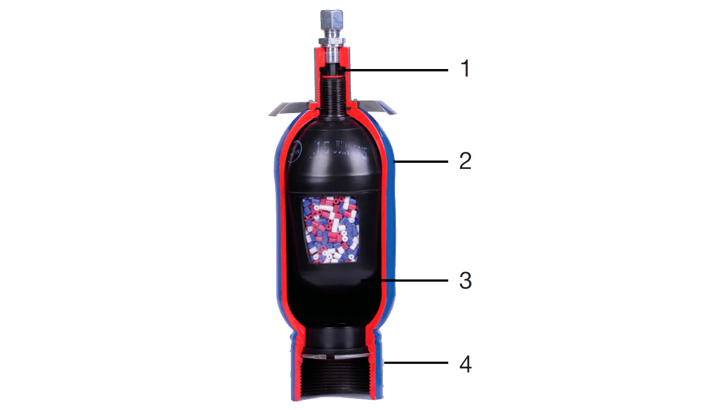

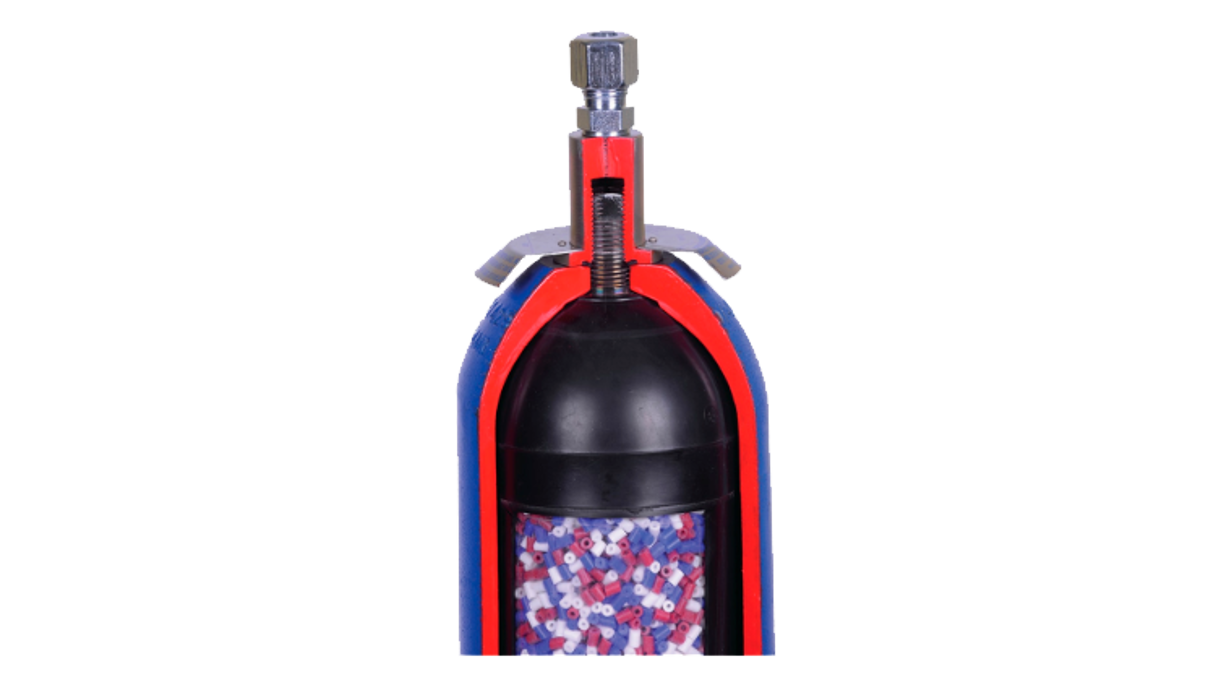

The SBV3 pulsation damper is purpose-built for low-pressure fuel systems in marine and power generation applications, effectively reducing pressure pulses. Its patented design eliminates the risks and maintenance linked to pressurised gas, as silicone particles replace the need for precharge. This third-generation model features the advanced S2 rubber mix for enhanced durability and efficiency, along with a new stem adapter that ensures greater reliability in demanding conditions.
Two pieces of information are required to select the most suitable SBV3 model for your system:
To select:

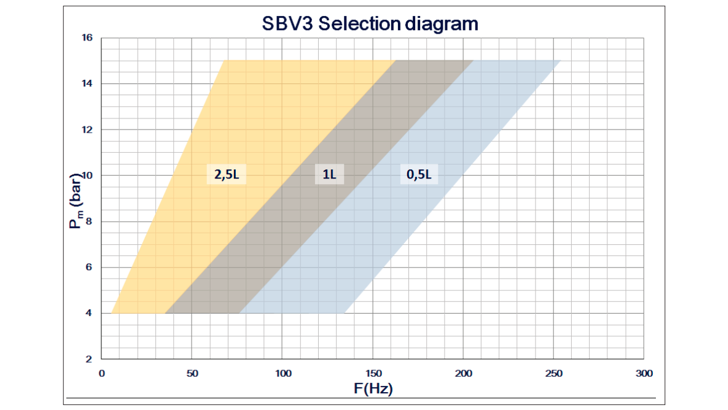

1. Using the adjacent diagram, find the fundamental frequency and the mean pressure.
2. Select the right model in the shaded area.
| Ordering Information | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 092686011S2 | Volume (Liters): 0.5 |
||||||||||||||||||
| 092390011S2 | Volume (Liters): 1 |
||||||||||||||||||
| 092391011S2 | Volume (Liters): 2.5 |
||||||||||||||||||
Our team of Sales Specialists
Tel.: +45 5537 2095
Email: quotes@insatech.com
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
At Insatech, we choose Parker Hannifin because their products set the industry standard for innovation, reliability, and performance. Parker’s advanced technologies and durable components ensure long-term efficiency and safety in demanding marine and industrial applications. By integrating Parker’s instrumentation, valves, and system solutions, we deliver trusted, high-quality results that help our customers operate smarter and more sustainably.
At Insatech, we deliver more than high-quality Parker Hannifin products - we provide complete Parker solutions. Combining engineering expertise, global support, and proven technology, our turnkey systems are built to meet real operational challenges. With tailored services and expert knowledge, we ensure efficiency, compliance, and long-term performance across marine, industrial, and process applications.
| Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Parker |
||||||||||||||||||
| Product Series | SBV3 |
||||||||||||||||||
| Product Type | SBV3 0.5-40/00-AS2KM-100, SBV3 1.0-40/13-AS2KM-100, SBV3 2.5-40/11-AS2KL-100 |
||||||||||||||||||
| Product Style | Measuring Device Kit in Trolley Case, Input Modules (Analogue, Analogue with Electrical Isolation, CAN), Measuring Device |
||||||||||||||||||
| Maximum Operating Pressure | 40 bar |
||||||||||||||||||
| Specifications Met | PED Article 4.3, PED article 4.3, BV Marine, CE + BV Marine |
||||||||||||||||||
| Body Material | All Parts in Carbon Steel with Epoxy Paint for Shell Only (11) |
||||||||||||||||||
| Elastomer | Compound S2 Type HNBR |
||||||||||||||||||
| Port Size | G 2 According to ISO 228 |
||||||||||||||||||
| Valve Port Size | 8 to 10 mm (no gas valve, pipe connection) |
||||||||||||||||||
| For Fluid Type | Fluid Type 1 CE Fluid Group 1 |
||||||||||||||||||
