Parker Kittiwake Oil Test Centre (OTC)

Oil Test Centre - OTC

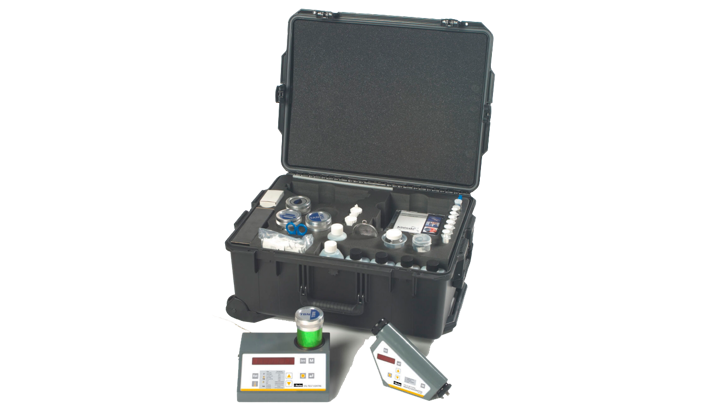

The Oil Test Kits from Parker Kittiwake provides near laboratory measurement of critical lubrication and fuel oil parameters on board. A rugged design suite, developed for use in harsh conditions. Simple to use and a good choice for operation by non-technical personnel.

The OTC gives you following benefits:

Lab Accuracy & High Specification
Fuel & Lube Oil Analysis Made Easy
Non-Hazardous for shipping
NATO approved.

We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.

MIL Spec OTC Provides Lab Quality Results On-Site

A rugged design suite, developed for use in harsh conditions. Easy to use and ideal for non-technical personnel, this solution simplifies Fuel & Lube Oil Analysis.

OTC gives near laboratory accuracy for critical lubricant parameters of:

Viscosity, heated or unheated 20-500 cSt @ 40oC
Water 0-3000, 0-6000ppm, 0-1%, 0-2.5%
Base Number 0-90
Insolubles 0-3.5%
TAN 0-3, 0-6

Capabilities of the OTC to test on-site, providing a condition monitoring tool that enables you to make informed operational and maintenance decisions about your critical plant and equipment.

Choose the Right Oil Test Centre

Options

The Oil Test Centre is available in two variants:

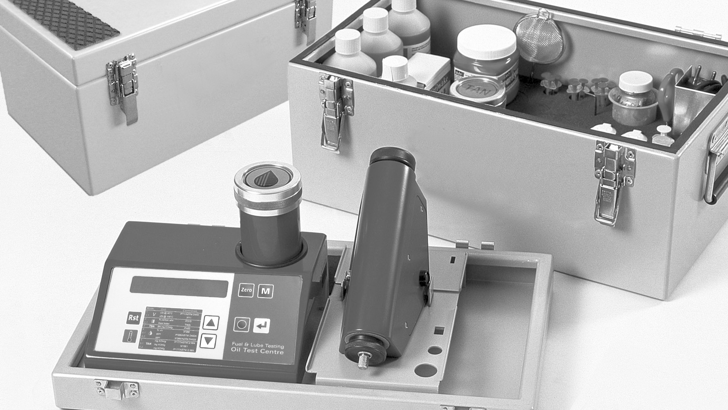

NATO Approved metal case specifically designed for marine use
Portable industrial roller case

Features

Fast accurate results
Available with standard and reagent
Identify potential problems before the critical failure

Order Directly from Us – Get in Touch

Ensure Long-Term Accuracy with the Kittiwake Oil Test Centre

Parker Kittiwake’s oil test kits offer a cost-effective and accurate solution for routine oil analysis. Designed for on-site testing, these kits provide engineers and maintenance teams with real-time insights into fuel and lubricant conditions, enabling proactive maintenance decisions.

By detecting out-of-spec fuels and lubricants early, potential issues can be addressed before they become critical, reducing downtime and costly repairs. Choose from a wide range of testing equipment and parameters, available individually or as a complete test kit to suit your specific monitoring needs.

Get a Quote Today

Oil Test Centre Specifics for Your Needs

We have listed all the configurations and spare parts below.

If you cannot find what you need, please, do not hesitate contacting us here.

OTC Configurations
Order Code	Tests Included
FG-K4-120-KW-A	EasySHIP Water (0-1%), 2-90 TBN, Insols, Unheated Visco
FG-K4-120-KW-A-H	EasySHIP Water (0-1%), 2-90 TBN, Insols, Heated Visco
FG-K4-120-KW-B	EasySHIP Water (0-1%), 0-6 TAN, Unheated Visco
FG-K4-120-KW-B-H	EasySHIP Water (0-1%), 0-6 TAN, Heated Visco
FG-K4-120-KW-C	EasySHIP Water (0-6000ppm), 0-6 TAN, Insols, Unheated Visco
FG-K4-120-KW-C-H	EasySHIP Water (0-6000ppm), 0-6 TAN, Insols, Heated Visco
FG-K4-120-KW-D	EasySHIP Water (0-6000ppm), 0-3 TAN, Unheated Visco
FG-K4-120-KW-D-H	EasySHIP Water (0-6000ppm), 0-3 TAN, Heated Visco
FG-K4-120-KW-E	EasySHIP Water (0-6000ppm), 2-90 TBN, 0-3 TAN, Insols, Unheated Visco
FG-K4-120-KW-E-H	EasySHIP Water (0-6000ppm), 2-90 TBN, 0-3 TAN, Insols, Heated Visco
FG-K4-120-KW-F	EasySHIP Water (0-6000ppm), 2-90 TBN, Insols, Unheated Visco
FG-K4-120-KW-F-H	EasySHIP Water (0-6000ppm), 2-90 TBN, Insols, Heated Visco
FG-K4-100-KW-A	NATO Kit. Oil Test centre configurations are available in marine NATO approved metal case.

OTC Spare Part List
Order Code	Description
AS-K1-106	CELL TBN 0-50 OTC
AS-K1-107	CELL INSOLUBLES 0-3.5% OTC
AS-K1-108	TAN 0-6 OTC
AS-K1-104	CELL WATER IN OIL 0-2.5% OTC
AS-K3-013-KW	VISCO POWER SUPPLY
FG-K10503-KW	SPARES ELECTRICAL CABINET (contains TBN cell seal pack assembly and Water seal pack assembly, Seal for Viscometer, Allen Key, WD40, hinge and screws , Viscometer Steel Ball x 2, Fuses, Visco Cap and o-ring)
FG-K2-404-KW	OTC REAGENT PACK
FG-K1-601-V3	CONSOLE UNIT

Sampling Lube Oils

With Parker Kittiwake we provide comprehensive solutions for all your oil sampling needs, whether you require bottles, vacuum pumps, tubes, or labels.

Read more about how you take samples further down.

Spare parts

FG-K3-207-KW	100ml lubricant sample bottles (450 PVC bottles and caps)
FG-K11289	Sample bottle pump
PL-K10215	Sample pump tubing - 15 meters
FG-K14297-KW	Sample bottle labels - 1000 off

Get Detailed Product Insights – Contact Us

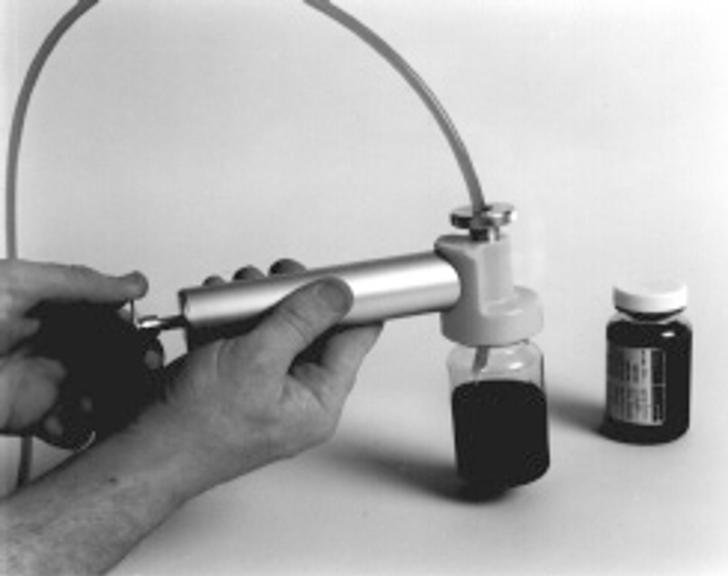

Sampling Procedures: How to Take Samples

Sample directly from the top of the main oil supply reservoir, ensuring consistency by always sampling from the same point.
Maintain a consistent total quantity of oil in circulation during each sampling.
Thoroughly purge the sample connection until hot oil flows before collecting the sample.
Draw samples over several minutes into a clean container, utilizing sample bottle kits for optimal results.

Additional Sampling Guidelines

For hydraulic systems, sample from the middle of the main reservoir or system return line, exercising caution to avoid high-pressure lines.

Global Supply – Speak to Our Sales Team

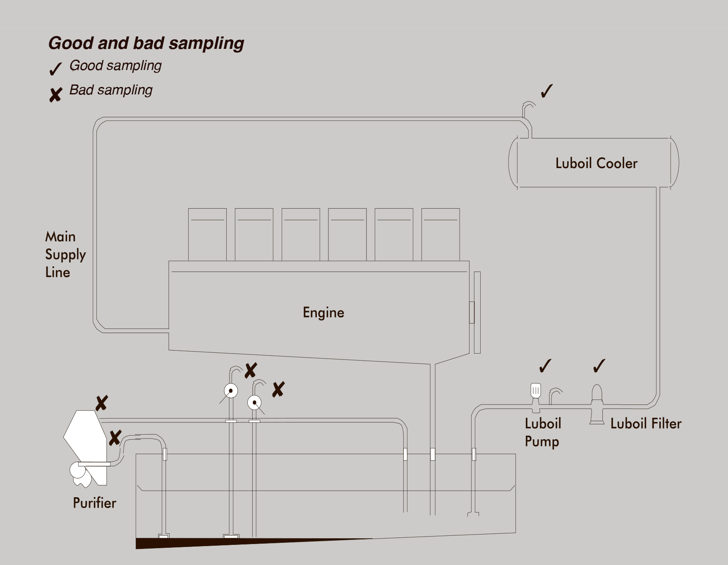

Good And Bad Sampling Practice OTC Parker

FAQ

What is the Parker Kittiwake Oil Test Centre (OTC)?

The OTC is a comprehensive, portable kit designed for on-site analysis of critical lubrication and fuel oil parameters. It provides near-laboratory accuracy, enabling users to make informed operational and maintenance decisions without the need for external laboratory services.

What parameters can the OTC measure?

The OTC can assess several vital oil parameters, including:

Viscosity: Measures the oil's resistance to flow, with options for heated or unheated testing ranging from 20 to 500 cSt at 40°C.
Water Content: Detects water contamination in oil, with measurement ranges of 0-3000 ppm, 0-6000 ppm, 0-1%, and 0-2.5%.
Base Number (BN): Determines the oil's alkaline reserve, with a range of 0-90.
Insolubles: Identifies the presence of insoluble particles, with a range of 0-3.5%.
Total Acid Number (TAN): Measures the acidity of the oil, with ranges of 0-3 and 0-6.

How user-friendly is the OTC?

The OTC is designed for simplicity and ease of use, making it suitable for operation by non-technical personnel. Its rugged design ensures durability in harsh conditions, and the straightforward testing procedures allow for quick and efficient on-site oil analysis.

How does the OTC benefit my operations?

By providing rapid and accurate on-site oil analysis, the OTC allows for immediate decision-making regarding equipment maintenance. This proactive approach helps in identifying potential issues before they lead to critical failures, thereby reducing downtime and maintenance costs.
