System 20 Inline Sensors & Monitors

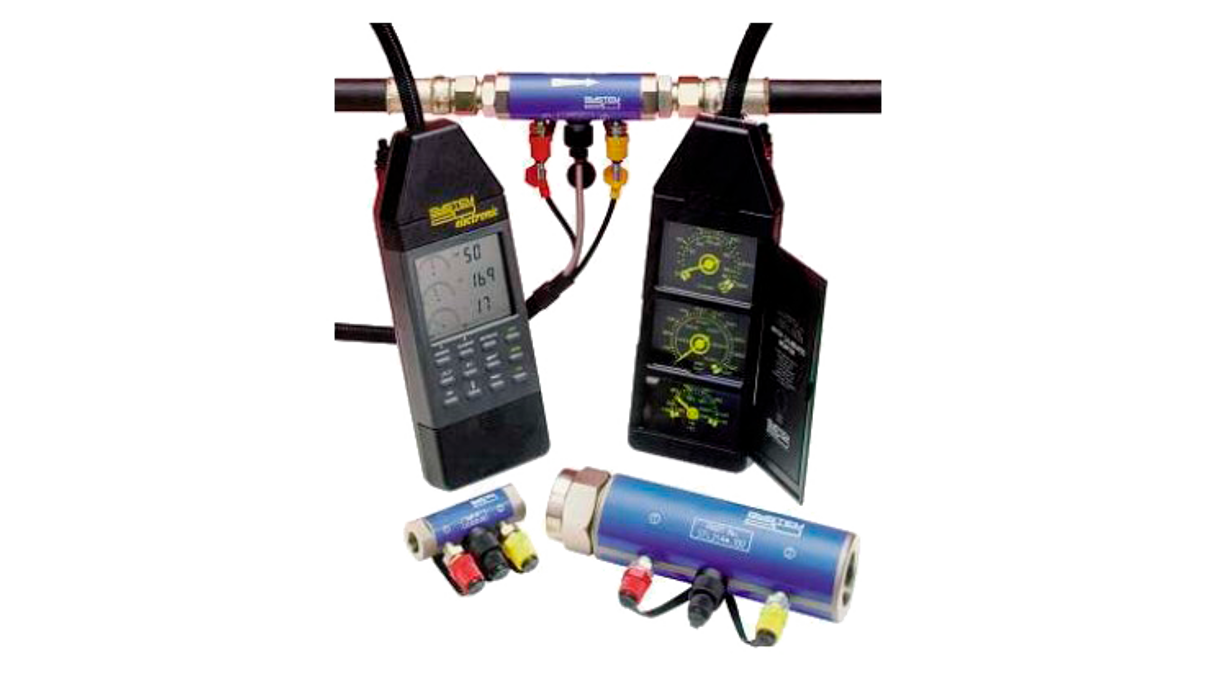

Parker System 20 monitor, used in combination with inline sensors, provide accurate and real-time measurements of oil or water flow, pressure, and temperature - without requiring system shutdown.
Key features that benefit you:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
Parker System 20 delivers fast, accurate readings of flow, pressure, and temperature using inline sensors. You won't need to stop your system. Designed for use with electronic or analogue handheld monitors, System 20 covers a wide range of fluids and flow rates.
The EM20 Electronic Monitor displays real-time data and calculates hydraulic power, while auto-calibrating for all sensor sizes. For intrinsically safe environments, the analogue monitor offers a portable, power-free solution with reliable performance.
Special sensor versions with EPDM seals are available for aggressive fluids, making System 20 the go-to solution for predictive maintenance and efficient hydraulic monitoring.
The System 20 Monitor is applicable for various purposes including:
In any industry, minimizing downtime is key to maintaining productivity. That’s why predictive maintenance and routine condition monitoring of hydraulic systems are essential.
At the core of this strategy is Parker’s System 20, a proven solution for real-time monitoring of flow, pressure, temperature, and contamination. Whether you're in mining, construction, agriculture, marine, or offshore drilling, System 20 delivers reliable performance and helps keep your equipment running at peak efficiency.

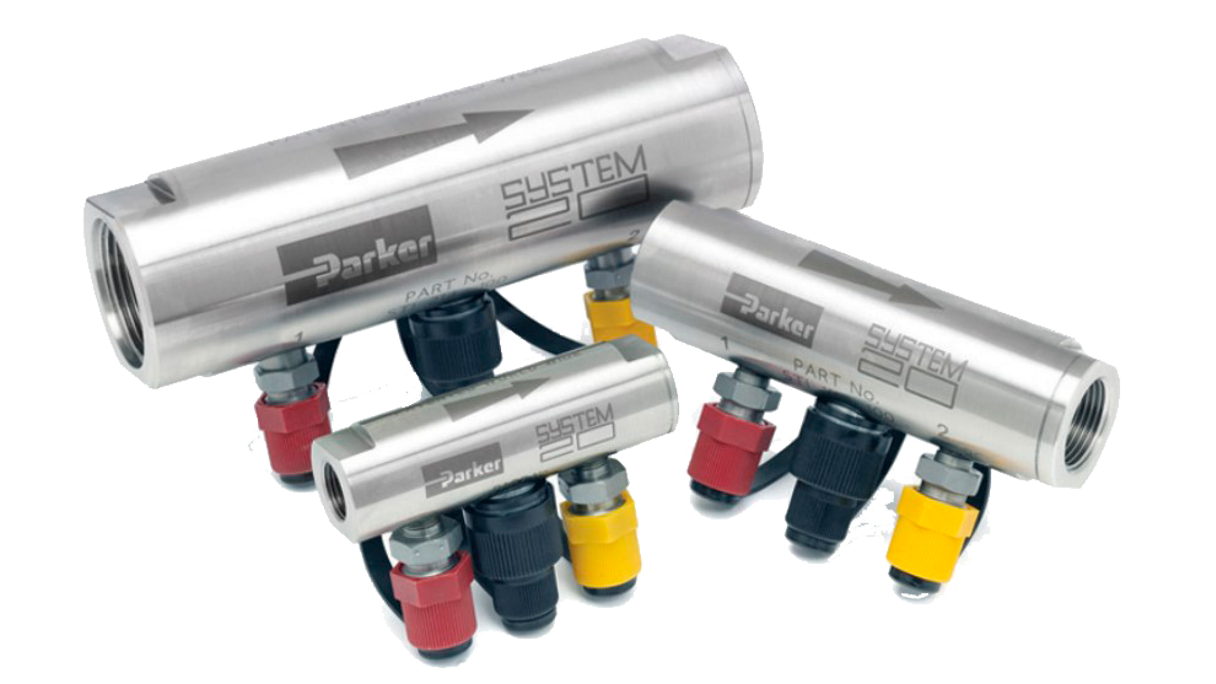

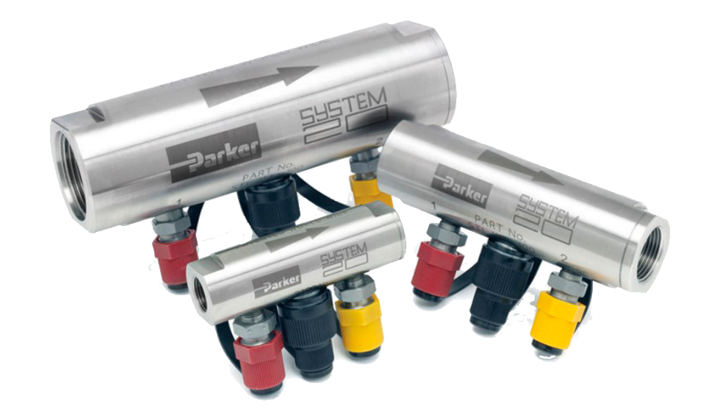

Parker’s System 20 sensors support a wide range of flow rates, fluid types, and applications. Designed for seamless integration with System 20 analogue or electronic monitors, contamination monitors, and the H2Oil system, these sensors deliver precise, real-time measurements without requiring system shutdowns. Special variants with EPDM seals are available for aggressive fluids.
Compatible with mineral oils, water, and water/oil emulsions, the System 20 inline sensor provides accurate monitoring of flow, pressure, and temperature.
Monitoring Options:
Analogue Monitor:
Equipped with three Day-Glo dial gauges behind a protective hinged cover. Calibrated up to 380 l/min with dual scale readings in bar/psi and °C/°F (US GPM also available).
EM20 Electronic Monitor:
Offers a full digital display, automatically calibrated for all three sensor sizes. Displays line, differential, and peak pressure. Features metric/US unit toggling, 300-test memory, and data download capability to a Datum device.
| Ordering Information | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product number | STI0144100 |
||||||||||||||||||
| Size | 0 |
||||||||||||||||||
| Flow range I/min | 6-25 |
||||||||||||||||||
| Fluid type | Mineral |
||||||||||||||||||
| Port threads | 3/8 |
||||||||||||||||||
| Product number | STI1144100 |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 1 |
||||||||||||||||||
| Flow range I/min | 20-100 |
||||||||||||||||||
| Fluid type | Mineral |
||||||||||||||||||
| Port threads | 3/4 |
||||||||||||||||||
| Product number | STI2144100 |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 2 |
||||||||||||||||||
| Flow range I/min | 80-380 |
||||||||||||||||||
| Fluid type | Mineral |
||||||||||||||||||
| Port threads | 1 1/4 |
||||||||||||||||||
| Product number | STI0148100 |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

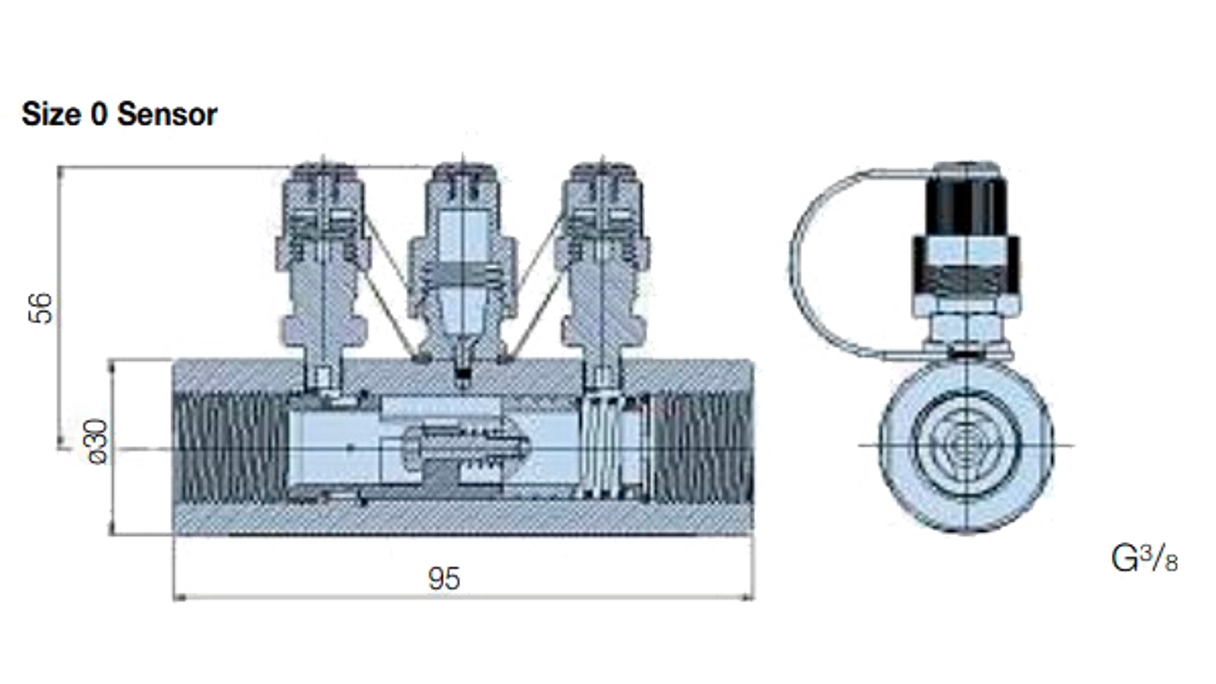

| Size | 0 |
||||||||||||||||||
| Flow range I/min | 6-25 |
||||||||||||||||||
| Fluid type | Aggressive |
||||||||||||||||||
| Port threads | 3/8 |
||||||||||||||||||
| Product number | STI1148100 |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 1 |
||||||||||||||||||
| Flow range I/min | 20-100 |
||||||||||||||||||
| Fluid type | Aggressive |
||||||||||||||||||
| Port threads | 3/4 |
||||||||||||||||||
| Product number | STI2148100 |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 2 |
||||||||||||||||||
| Flow range I/min | 80-380 |
||||||||||||||||||
| Fluid type | Aggressive |
||||||||||||||||||
| Port threads | 1 1/4 |
||||||||||||||||||
Advanced Diagnostics with Digital Precision
The EM209000 Electronic Monitor delivers a full-featured digital experience for hydraulic diagnostics. Paired with any System 20 sensor, it provides real-time readings of flow, temperature, differential, peak, and line pressure.
Models: STM6211110 (oil) & STM6211120 (water)
Reliable, No-Power Monitoring with Instant Readout

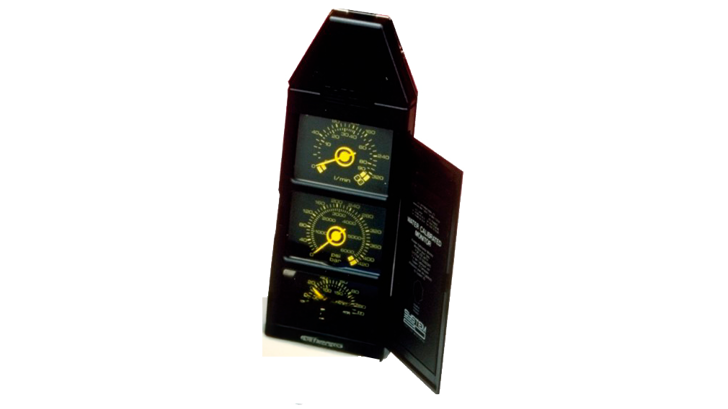

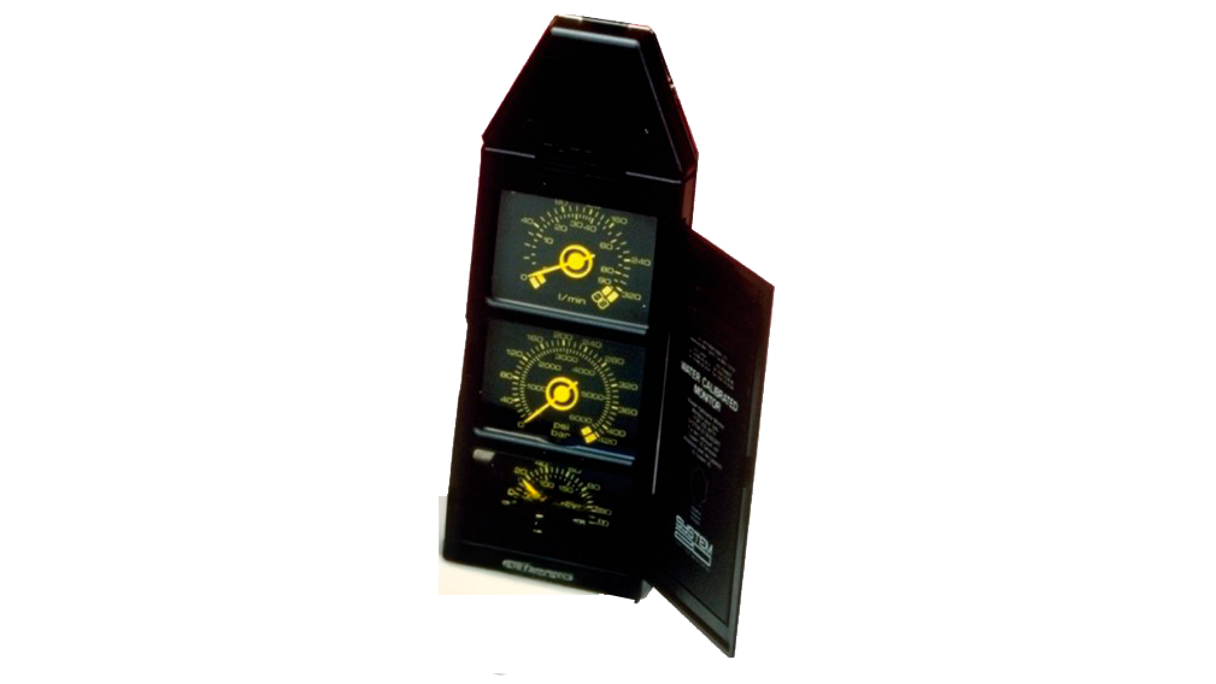

The Parker System 20 Analog Monitor is a rugged, portable tool designed for real-time flow, pressure, and temperature monitoring using System 20 inline sensors.
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Brand | Parker |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Type | Condition Monitor |
||||||||||||||||||
| For Fluid Type | Water, Water/Oil emulsions, Aggressive, Mineral Oils |
||||||||||||||||||
| Operating Pressure | 6000 psi, 420 bar |
||||||||||||||||||
| Flow Rate | 6 to 380 L/min, 1.3 to 84 gal/min |
||||||||||||||||||
| Materials of Construction | ABS, Stainless Steel |
||||||||||||||||||
| Port Type | Metric, BSP |
||||||||||||||||||
| Seal Material | Fluorocarbon, EDPM |
||||||||||||||||||
| Operating Temperature | -10 to 110 °C, 14 to 230 °F |
||||||||||||||||||
| Product Style | Flow Meter |
||||||||||||||||||
| Port Size | ⅜, ¾, 1¼ inch |
||||||||||||||||||
| Maximum Fluid Temperature | 110 °C |
||||||||||||||||||
| Minimum Fluid Temperature | -10 °C |
||||||||||||||||||
| Sensing Method | Differential Pressure |
||||||||||||||||||
| Accuracy | +/- 2.5% FSD |
||||||||||||||||||
| Specifications Met | CE Certification |
||||||||||||||||||
| Weight | 0.5 to 4.4 kg |
||||||||||||||||||
| Thread Size | G3/8, G3/4, G1 1/4 , 1 1/16 - 12 UNF, 1 5/8 - 12 UNF |
||||||||||||||||||
