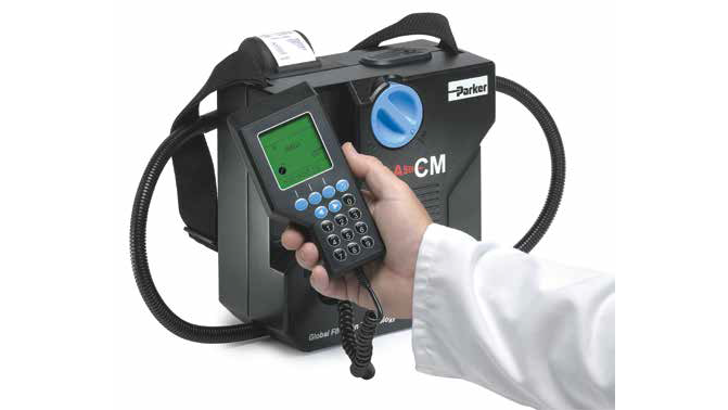

| Principle of Operation |
Optical scanning analysis and measurement of actual particulates. |
| Fluid Compatibility |
Mineral oils and petroleum based fluids. |
| Test time |
2 minutes; repeat test time every 2 minutes. |
| Particle counts |
MTD: >4, >6, >14, >21, >38 and >70e µm (see Note 1)
ACFTD: >2, >5, >10 (see Note 2), >15, >25, >50 and >100e µm (see Note 1) |
| Analysis range (See Note 3) |
SO 4406: 7 to 22 inclusive; NAS 1638: 0 to 12 inclusive; AS4059E(cum): 000 to 12 inclusive; AS4059E(diff): 00 to 12 inclusive; GOST 17216: 00–17 inclusive. |
| Repeatability (see Note 4) |
≤7% of measured counts for MTD Particle Sizes: 4, 6, 14µm |
| Coincidence Error Limit (see Note 5) |
23,000 particles / mL |
| Data Entry |
32-character two-line dot-matrix LCD. Full alphanumeric entry facility on keypad. |
| Calibration |
The LCM and calibration master sample the same particle distribution suspension.
The LCM is calibrated to the master to meet specification at the measured points.
- MTD: Instrument calibrated using MTD reference material.
- ACFTD: Instrument calibrated using ACFTD reference material.
Consult Parker for recalibration.
|
| Certification |
This product complies with all relevant EU declarations of conformity. |
| Working Viscosity |
2–100 centistokes (500 cSt with Single Point Sampler). |
| CMP Max. Viscosity Range |
200 Centistokes (100 cSt when reporting in GOST standard and using Heated Bath). |
| Oil temp. range |
+5°C to +80°C |
| Operating temp. range |
+5°C to +40°C |
| Max. working pressure |
2.5 bar when using Case Mounted Pump; up to 420 bar when CMP not used. |
| Max. Flow Rate |
- 30ml/min when using Case Mounted Pump.
- System 20 Sensors flow up to 400 l/min.
- Single Point Sampler can be used for high flow (contact us for more information).
|
| System connection |

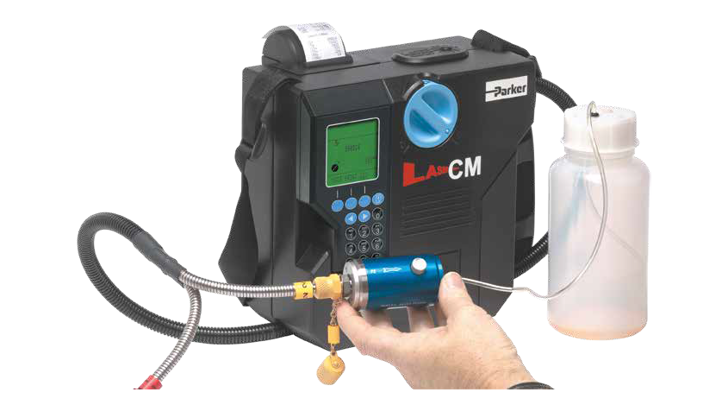

Via System 20 In-line Sensors or the Single Point Sampler. |
| Memory store |
300 test (scrolling memory) capacity. |
| Integral printer |
16-column printer for hard copy data. |
| Computer compatibility |
Interface via RS232 connection at 9600 baud rate. |
| Power |
- Replaceable battery pack: Requires 6 x 1.5V D cells.
- Rechargeable battery pack: Supply voltage of 12V DC 1A max, 9mm jack plug with positive centre contact.
- Unit: Supply voltage 12V DC 3A max, 9mm jack plug with positive centre contact.
|
| Battery performance |
- Replaceable battery pack: maximum 25 tests before replacement.
- Rechargeable battery pack: maximum 40 tests before recharging.
|
| Fuse |
1.25A fast blow fuse included for overload protection (spare supplied). |
| Cover |
Weatherproof cover. |
| Construction |
- Case: ABS
- Hand-held display: ABS
- Keypad: Fluorosilicone rubber
- Carrying case: Astraboard
- Mechanical components: Brass, plated steel, stainless steel and aluminium
- Seals: FKM (Viton). Other materials available - contact us.
- Hoses: Nylon (Kevlar braided microbore). Stainless steel armoured ends.
|
| Hose length |
- Fluid connection hose: 1.2 metres (1 metre extensions can be used).
- Hand-held display cable length: 1 metre. CMP standard hose length: 0.26 metre.
|
| Portability |
icountLCM20, 8kg; LCM with CMP 8.15kg. Carrying case 5kg approx. |
| Commissioning kit |
6-off D cell batteries; 1-off print rolls (shrink wrapped); 2-off printer ribbons; ‘ParSmart Downloader’ software plus cable; weather protector cover; 12V DC power supply; Rechargeable battery pack. |
| Notes |
- i The number of particles >70 μm (MTD), >100 μm (ACFTD) and in the ranges 50–100 μm and 100–200 μm (GOST) are not measured by this device. However, estimated values (indicated by the letter e on the display) have been calculated using the following formulae: MTD: >70e μm = >38 μm × 0.06816; ACFTD: >100e μm = >50 μm × 0.06816; GOST: 50–100e μm = >50 μm(ACFTD) × 0.93184; GOST: 100-200e μm = >50 μm(ACFTD) × 0.06816
- Special versions only - contact us.
- The instrument only uses the shorthand in these standards for reporting contamination levels.
- 95% confidence level using an MTD distribution with a concentration of 6mg/L.
- ISO 11171:2016 Annex B methodologies followed to determine Coincidence Error Limits.
|
