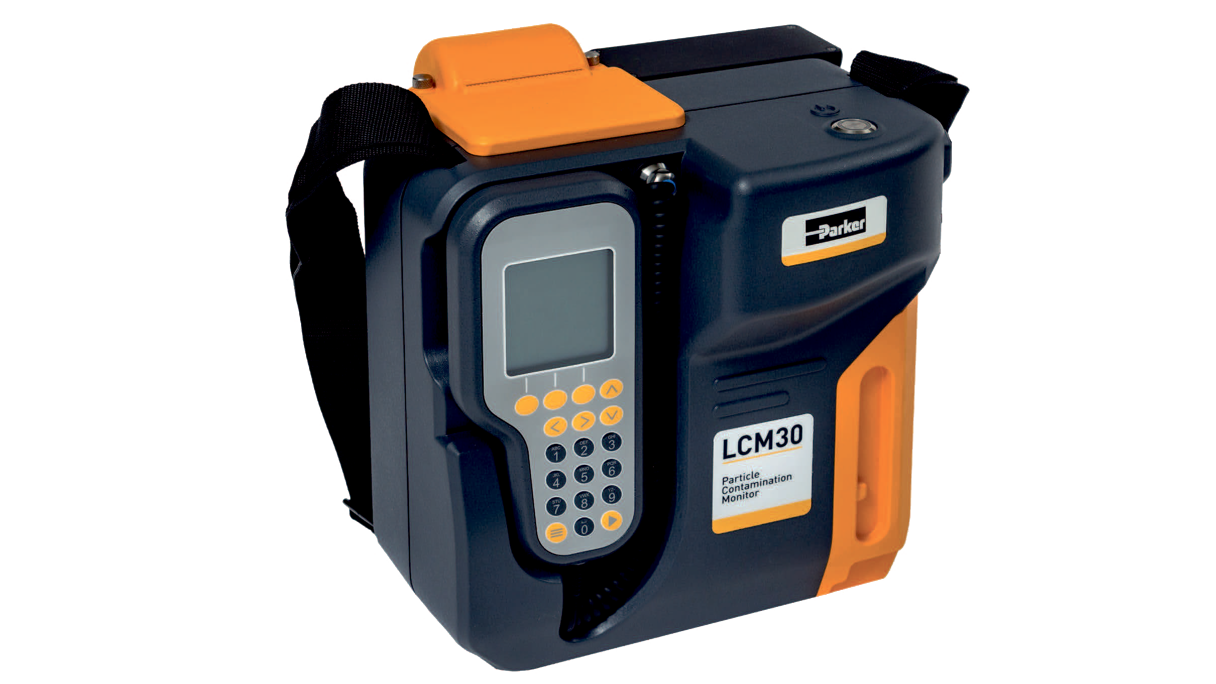

icount LaserCM30 Particle Contamination Monitoring Parker

icountLaserCM30

The LCM30 is a particle contamination monitoring solution that measures the cleanliness of oil - in just 90 seconds.

The portable unit can be used in the field as a user-friendly diagnostic device, giving you a quick way to assess the cleanliness of the hydraulic fluid or oil in a wide range of applications.

Key features that benefits you:

Auto testing
Short test time
improved rechargeable battery life
Integrated RH% moisture sensor and temperature
Long life thermal printer
Easy to use.

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Get a quote

Avoid damage on your machinery

You can even use it while your equipment is in operation.

The icountLCM30 complies with multiple standards for cleanliness reporting including:

ISO 4406
NAS 1638
AS4059
GOST.

The equipment uses laser technology to measure the amount and size of particles in the oil, which is a very important tool in order to avoid damage on machinery.

Moreover, the icountLCM30 has an integral printer and a built-in memory storage.

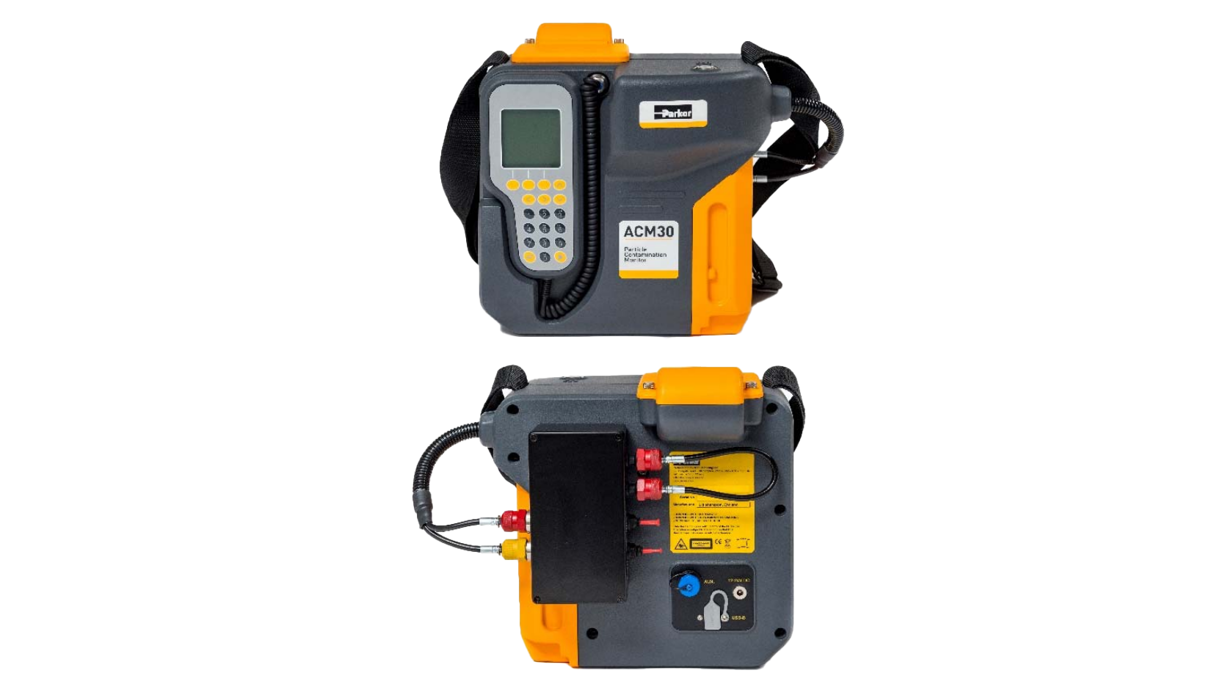

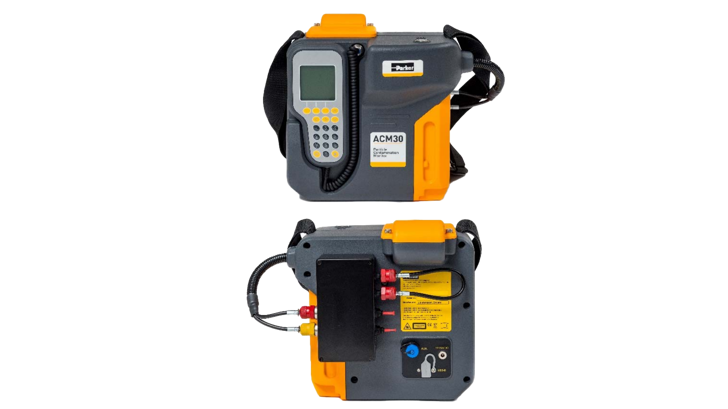

What is new?

The icountLaserCM30 is the renewed and improved version of the previous icountLaserCM20 (Read more about the version here), where customers, engineers, and maintenance operatives have made this new version into a unique predictive maintenance instrument.

But what is different with the LCM30 compared to the LCM20? See below:

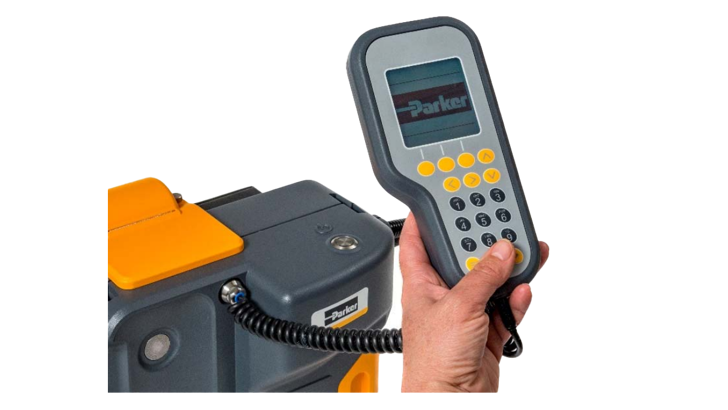

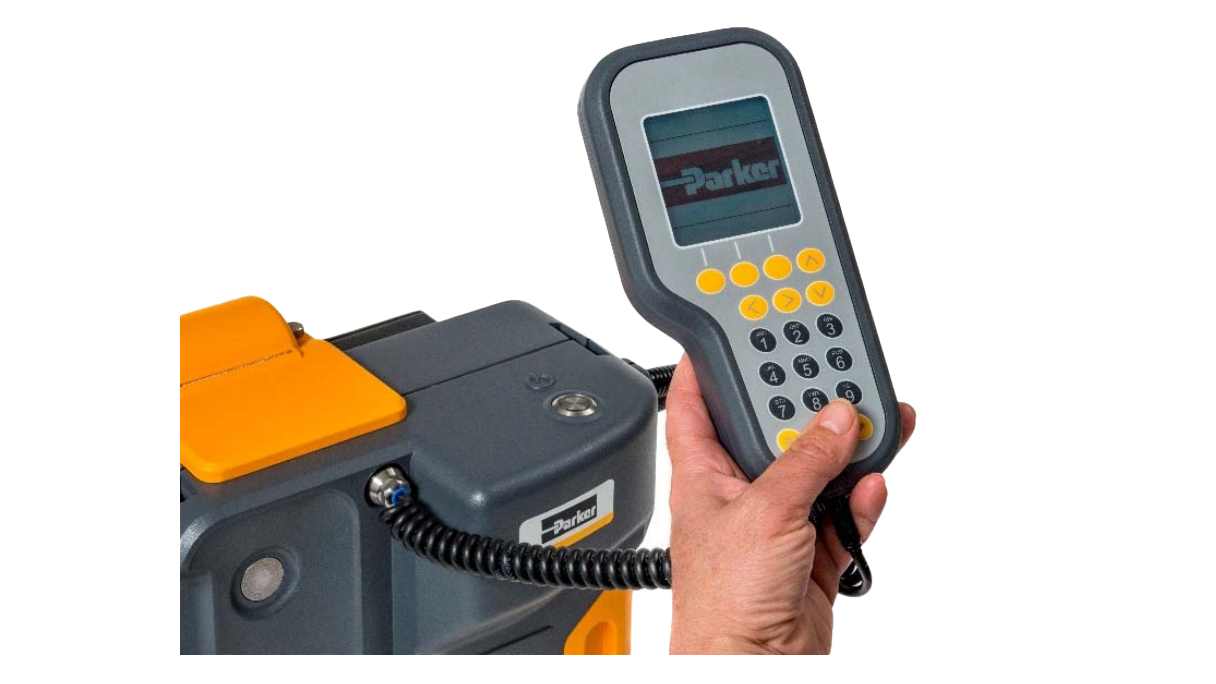

Start an automatic test directly from the handset
Perform a test in just 90 seconds
Upgraded main enclosure
Enhanced handset design
Clarified user interface
Improved rechargeable battery life
Integrated RH% moisture and temperature sensor
Long life thermal printer for improving data documentation
Easy clip-on rechargeable battery
RS232 data transfer via USB.

Need our help? Contact us now.

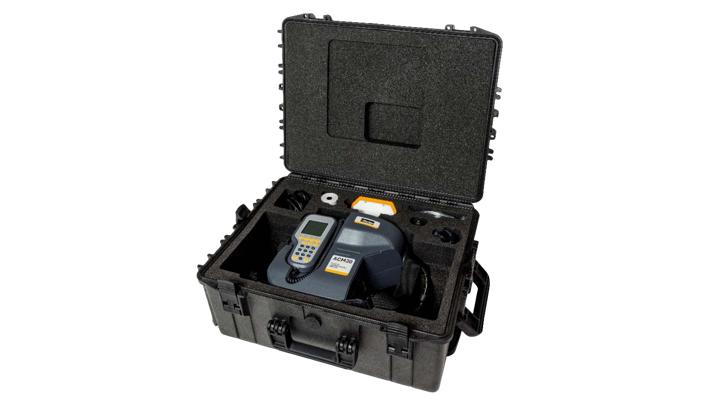

The content of the case

You might ask what is in the case of icountLaserCM30.

So, we have gathered all the items in the list below:

1 x Particle Contamination Monitor
1 x Re-chargeable Battery Pack
2 x Printer Paper Rill (one is fitted, the other one is a spare)
1 USB Cable
1 x Flash Drive Memory Stick (incl. Manual and Download Software)
1 x Quick Start Guide
1 x Power Supply & Regional Power Cable.

Exactly what you need? Contact us here

Calibration of the icountLaserCM30

This equipment is calibrated according to MTD in accordance with ISO 11943: Section 9. OR according to ACFTD and calibrated against the Master PCM at the particle sizes shown within the specified limits.

Therefore, the icountLCM30 has to be re-calibrated every 12 months, where it will get the annual certification and new calibration certificate.

This is something the equipment is set-up to automatically remind you of.

As master distributor of Parker you can contact us and we will take care of the re-calibration of your LCM30.

Need a re-calibration? Contact us now!

Why do you need on-site monitoring?

There is multiple reasons why you or the crew on-board your vessel need the icountLaserCM30 to monitor the fluid contamination including, but not excluded to:

Ensuring fluid cleanliness certification
Utilizing early warning tools to prevent critical system failure
Achieving laboratory-level results for testing
Meeting customer requirements and specifications for cleanliness
Complying with new equipment warranty standards
Implementing new testing for oil cleanliness.

Do you have any questions? Contact us

How does the LCM30 operates?

The icountLaserCM30 is an advanced Particle Contamination Monitor (PCM) that utilizes laser-illuminated optical light extinction principles to automatically count and size individual particles suspended in a fluid. The sensor features a focused light source that is projected through oil as it moves through a flow cell. If there is any particulate contamination within the oil, it will cause a proportional change in signal on the detector.

The laser light is projected through the fluid in the flow cell, and any particulate contamination within the fluid reduces the amount of light that reaches the detector. Thus, if there is anything dirty in your liquid, it will block some of the light and the machine will measure how much was blocked.

The icountLaserCM30 reports particle sizes in micrometres (µm) and displays them as such for both ISO Medium Test Dust (MTD) calibration and Air Cleaner Fine Test Dust (ACFTD) calibration. This powerful tool offers advanced monitoring capabilities, allowing for real-time analysis of fluid contamination levels and quick detection of potential issues.

Need our help? Contact us now!

The Ultimate Contamination Monitoring Solution

The icountLaserCM30 has many features that benefit including:

Incorporating special ‘diagnostics’ for effective testing
Routine monitoring saves time and money
Monitoring during application operation saves production downtime
Record individual equipment test log details and retrieve data
Automatic test cycle logging for up to 1000 tests
Portable for field or laboratory use
Automatic calibration reminder
Results achieved in under 90 seconds
Record individual equipment footprint
Auto 99 test logging and worldwide technical support
Annual certification by an approved Parker Service Centre.

The icountLaserCM30 is a powerful solution for contamination monitoring. With special diagnostics, routine monitoring capabilities, and the ability to monitor during application operation, this device saves time, money, and production downtime.

The unit allows for data entry and retrieval, and automatic test cycle logging, and is completely portable for use in the field or laboratory. With an automatic calibration reminder, results achieved in under 90 seconds, and worldwide technical support, the icountLaserCM30 is the ultimate contamination monitoring solution.

Introducing the LCM30

Watch the video to see all the new features of the icountLaserCM30 from Parker here.

The Parker icountLaserCM30 is the next generation contamination monitoring system. With a test procedure taking under 90 seconds, this advanced device offers multi-standard ISO 4406, NAS 1638, AS4059 & GOST cleanliness reporting, data entry and integral printing capabilities.

Exactly what you need? Contact us here

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

Technical Specifications
Fluid Compatibility	Mineral oils and petroleum based fluids.
Working Viscosity	2 to 100 cSt 2 to 200 cSt when used with LCM30 Case Mounted Pump (100 cSt when reporting in GOST standard and using Heated Bath) 2 to 500 cSt when used with Single Point Sampler Higher viscosities when used with Trace Heated Hoses
Environmental Temperature	+5°C to +40°C
Fluid Temperature	+5°C to +80°C
Working Pressure	2.5 bar when using Case Mounted Pump; up to 420 bar when CMP not used
Flow Rate	35ml/min when using Case Mounted Pump 6 - 380 l/min max. when used with System 20 Sensors, higher with Single Point Sampler

Product information

Brochure - Icount LaserCM30 - Parker Kittiwake
English | pdf

Download
Manual - Icount LaserCM30 - Parker Kittiwake
English | pdf

Download
