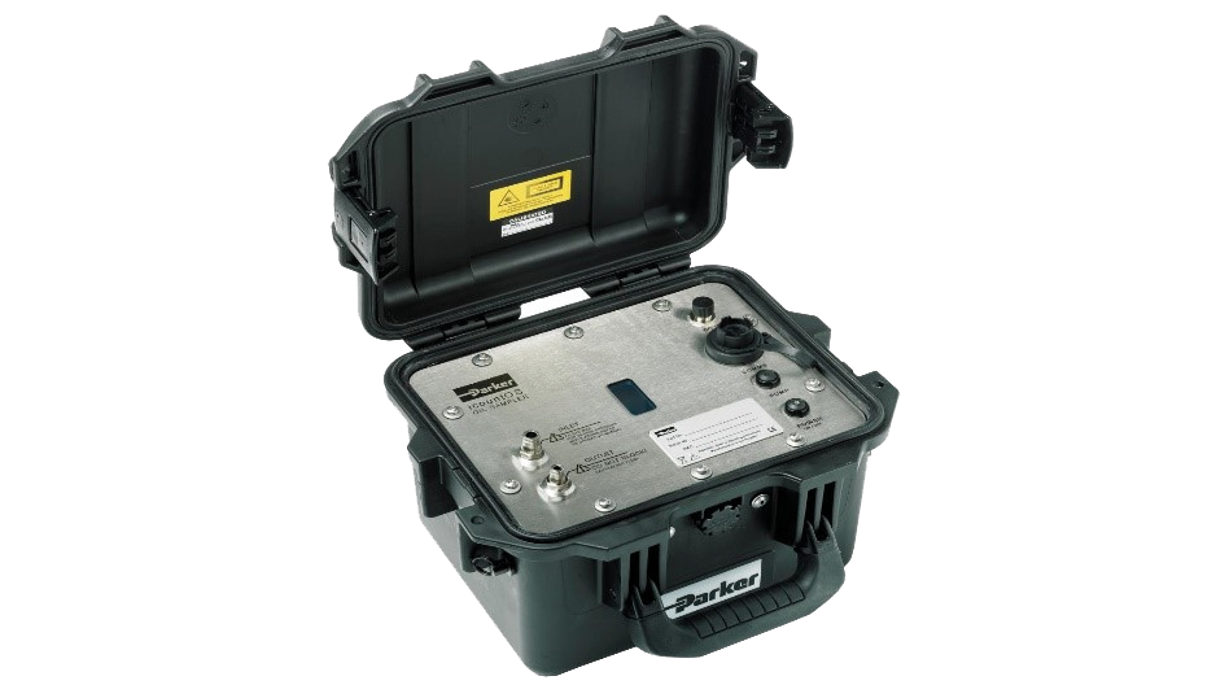

Åben Parker Icount Oil Sampler IOS Partikelmåler

MTD Range: 4+, 6+, 14+, 21+, 38+ and 70+ microns

A compact designed and robust unit, for measuring the quality of hydraulic oil in different applications, with laser detection technology and fast contamination detection. Ease of use, at a much lower cost that fits most maintenance budgets.

Key Feautures

  • Accurate Portable Condition Monitoring
  • Proven laser detection technology
  • High on-board test data storage capacity

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Accurate condition monitoring made quick, simple and cost effective

The best solution to measure the quality of hydraulic oil and hydrocarbon fuel, in renewable energy, marine and offshore, mobile, military, aerospace and agriculture manufacturing.

Ability to take a sample from any part of the hydraulic system.

A system that is completely self-contained, because it has everything it needs (laser detection, memory, battery and pump) .

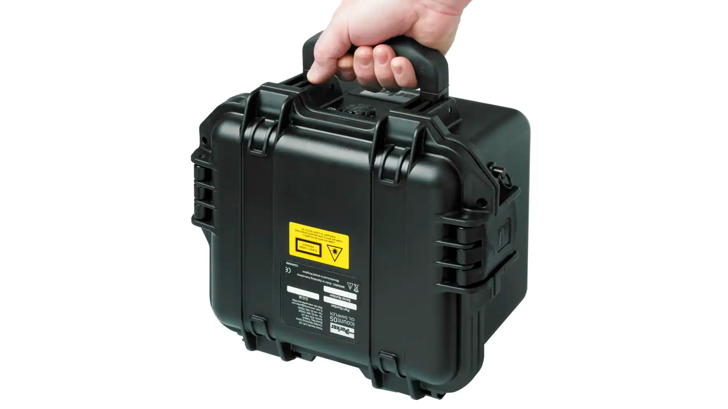

Insatech Parker Icount Oil Sampler IOS Closed


  • Laser detection technology
  • High test data storage capacity up to 250,000 sets.
  • Rugged casing
  • Fast contamination detection
  • Connecting the IOS is quick and reliable.
  • Long life remote operation
  • Easy to use
  • Consistent with the latest standards.
  • Adjusting flow rate automatically.
  • The device is compact, lightweight (5.5 kg) and robust (IP67)

Ordering Information

IOS, Mineral MTD Online UK


IOS, Mineral MTD Offline UK


IOS Mineral Wireless Online UK


Power Supply (UK)


Pressure Reduction Valve ("PRV"), working pressure 2.5 - 350 bar


RJ45 Network Cable


Hose Accessory Bag


Carry Strap (Must be ordered together with IOS unit as attached during production)


Low Pressure Hose 1.5m


IOS Packing Box


IOS Blanking Plugs


High Pressure Hose - 1m


Verification Fluid (2 x 500ml) - SIX MONTH SHELF LIFE

Åben Parker Icount Oil Sampler IOS Partikelmåler
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com


Contact us now

Technical Specifications
Product start-up time

10 seconds minimum

Measurement period

Default 30 seconds run time; 15 seconds data logging time

Reporting interval

 On-board data storage every second. Output via RJ45 connection

Principle of operation

Laser diode optical detection of actual particulates

International codes range

Up to ISO 22 (+/- 1 ISO code) NAS 0 - 12


Calibration by recognised on-line methods confirmed by the relevant ISO procedures. MTD - via a certified primary ISO 11171 automatic particle detector using ISO 11943 principles. Particle distribution reporting to ISO 4406:1999

Recalibration and Servicing

Recommended every 12 months

Working pressure

2.5 - 350 bar ( 35 - 5000 psi). Pressures above 2.5 bar require the use of a Parker Pressure Reducing Valve (PRV) - ACC6NN027

Working viscosity

1 - 300 cSt

Flow range through IOS

40 - 140 ml/minute; controlled at 60 ml/min by IOS's internal pump

Fluid connection interface

INLET: 6 mm push-fit. DRAIN: 4mm push-fit

Ambient storage temperature for unit

-40°C to +80°C; -40°F to +176°F

Operating temperature for unit

-30°C to +80°C; -22°F to +176°F

Operating humidity range

5% RH to 100% RH

Fluid operating temperature (oil)

+5°C to +80°C; +41°F to +176°F

Fluid operating temperature (fuel)

 -20°C to +70°C; -4°F to +158°F

Moisture sensor

Linear scale within the range 5% RH to 100% RH

Computer compatibility

IP68-rated RJ45 connection that may be connected to a laptop computer's RJ45 LAN port using the 2 m cable supplied

Power requirement

Regulated power supply supplied with the unit

  • IP54 rating (unit open)
  • IP67 rating (unit closed)
  • EC Declaration of Conformity
  • Machinery Directive
  • EMC EN61000-6-3:2001
  • EMC EN61000-6-2:2001
  • EMC EN61010-1:20


  • Brochure - iCount Oil Sampler (IOS) - Parker
