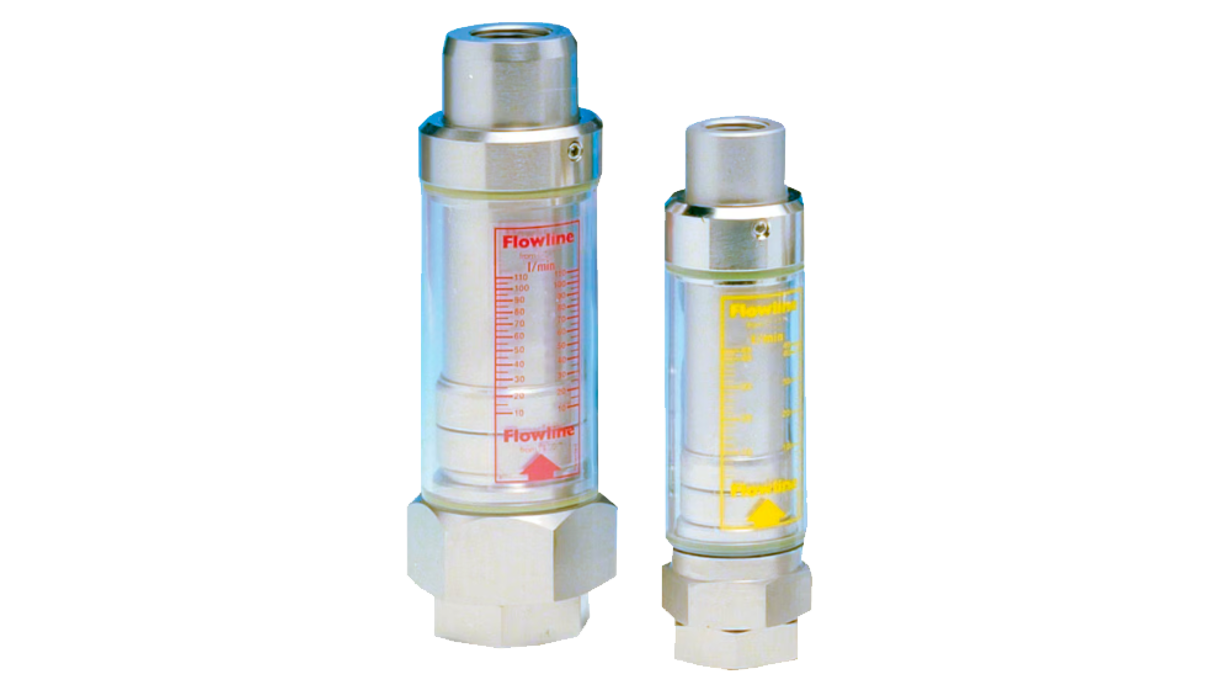

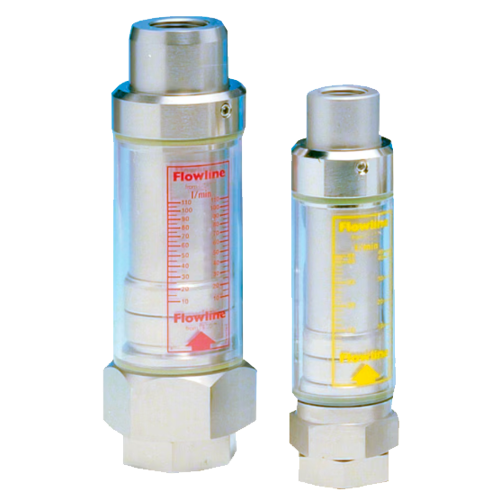

The Flowline Series comprises rugged inline mechanical flowmeters that deliver a clear visual indication of fluid flow in hydraulic systems. They measure flow rates from 1 to 360 L/min and withstand pressures up to 350 bar (5076 psi).
Key Benefits:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
The Parker Flowline Series offers a versatile range of inline mechanical flowmeters engineered for high-flow and high-pressure environments such as off-road mobile systems and industrial oil supply lines. These non-intrusive meters do not restrict flow and are available in brass or stainless steel housings, ensuring durability even in harsh or corrosive conditions.
The Easiflow models operate on the variable area principle, using an internal piston that moves with the flow to provide a direct visual indication of rate. Suitable for air, water, and hydraulic oil, they can be installed in any orientation and deliver simple, reliable flow measurement.
For enhanced functionality, the meters can be fitted with a magnetically operated reed switch to control valves or pumps, or to trigger alarm signals when flow exceeds or drops below a set threshold.
| Part Number | Flow Rate | For Fluid Type | Housing Material |
|---|---|---|---|
| FM26122212 | 0.5 to 4.5 l/min | Oil | Brass |
| FM26122312 | 1 to 9 l/min | Oil | Brass |
| FM26222112 | 2 to 20 l/min | Oil | Brass |
| FM26222212 | 5 to 46 l/min | Oil | Brass |
| FM26322112 | 5 to 55 l/min | Oil | Brass |
| FM26322212 | 10 to 110 l/min | Oil | Brass |
| FM26122112 | 0.2 to 2 l/min | Oil | Brass |
| FM26422112 | 20 to 180 l/min | Oil | Brass |
| FM26422212 | 30 to 270 l/min | Oil | Brass |
| FM26422312 | 40 to 360 l/min | Oil | Brass |
| FM26222122 | 2 to 20 l/min | Water | Brass |
| FM26222222 | 5 to 46 l/min | Water | Brass |
| FM26322122 | 5 to 55 l/min | Water | Brass |
| FM26322222 | 10 to 110 l/min | Water | Brass |
| FM26122122 | 0.2 to 2 l/min | Water | Brass |
| FM26122222 | 0.5 to 4.5 l/min | Water | Brass |
| FM26122322 | 1 to 9 l/min | Water | Brass |
| FM26422122 | 20 to 180 l/min | Water | Brass |
| FM26422222 | 30 to 270 l/min | Water | Brass |
| FM26422322 | 40 to 360 l/min | Water | Brass |
| FM26232112 | 2 to 20 l/min | Oil | Stainless Steel |
| FM26332112 | 5 to 55 l/min | Oil | Stainless Steel |
| FM26332212 | 10 to 110 l/min | Oil | Stainless Steel |
| FM26132112 | 0.2 to 2 l/min | Oil | Stainless Steel |
| FM26132212 | 0.5 to 4.5 l/min | Oil | Stainless Steel |
| FM26132312 | 1 to 9 l/min | Oil | Stainless Steel |
| FM26232212 | 5 to 46 l/min | Oil | Stainless Steel |
| FM26432112 | 20 to 180 l/min | Oil | Stainless Steel |
| FM26432212 | 30 to 270 l/min | Oil | Stainless Steel |
| FM26432312 | 40 to 360 l/min | Oil | Stainless Steel |
| FM26132122 | 0.2 to 2 l/min | Water | Stainless Steel |
| FM26132222 | 0.5 to 4.5 l/min | Water | Stainless Steel |
| FM26132322 | 1 to 9 l/min | Water | Stainless Steel |
| FM26232122 | 2 to 20 l/min | Water | Stainless Steel |
| FM26232222 | 5 to 46 l/min | Water | Stainless Steel |
| FM26332122 | 5 to 55 l/min | Water | Stainless Steel |
| FM26332222 | 10 to 110 l/min | Water | Stainless Steel |
| FM26432122 | 20 to 180 l/min | Water | Stainless Steel |
| FM26432222 | 30 to 270 l/min | Water | Stainless Steel |
| FM26432322 | 40 to 360 l/min | Water | Stainless Steel |
Our team of Sales Specialists
Tel.: +45 5537 2095
Email: quotes@insatech.com
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
At Insatech, we choose Parker Hannifin because their products set the industry standard for innovation, reliability, and performance. Parker’s advanced technologies and durable components ensure long-term efficiency and safety in demanding marine and industrial applications. By integrating Parker’s instrumentation, valves, and system solutions, we deliver trusted, high-quality results that help our customers operate smarter and more sustainably.
At Insatech, we deliver more than high-quality Parker Hannifin products - we provide complete Parker solutions. Combining engineering expertise, global support, and proven technology, our turnkey systems are built to meet real operational challenges. With tailored services and expert knowledge, we ensure efficiency, compliance, and long-term performance across marine, industrial, and process applications.
| Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Parker |
||||||||||||||||||
| Product Type | Condition Monitor |
||||||||||||||||||
| Product Style | Flow Meter |
||||||||||||||||||
| For Fluid Type | Water, Oil |
||||||||||||||||||
| Industry | Industrial & Chemical Processing, Industrial Manufacturing Equipment, Off-road Machinery |
||||||||||||||||||
| Technology | Filtration |
||||||||||||||||||
| Operating Temperature | -4 to 221 °F, -20 to 105 °C |
||||||||||||||||||
| Operating Pressure | 5000 psi, 350 bar |
||||||||||||||||||
| Materials of Construction | Stainless Steel, Brass |
||||||||||||||||||
| Body Material | Stainless Steel BS 2056 EN 58J, Nickel Plate, Brass |
||||||||||||||||||
| Accuracy | +/- 5% FSD |
||||||||||||||||||
| Seal Material | Fluoroelastomer |
||||||||||||||||||
| Port Type | BSP Parallel Threads |
||||||||||||||||||
| Sensing Method | Variable Orifice Flow Meter |
||||||||||||||||||
| Specifications Met | Pressure Directive |
||||||||||||||||||
