The Easiflow line comprises a range of highly economical, inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 to 150 L/MIN. Maximum allowable working pressure: 10 bar.
Key Benefits:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

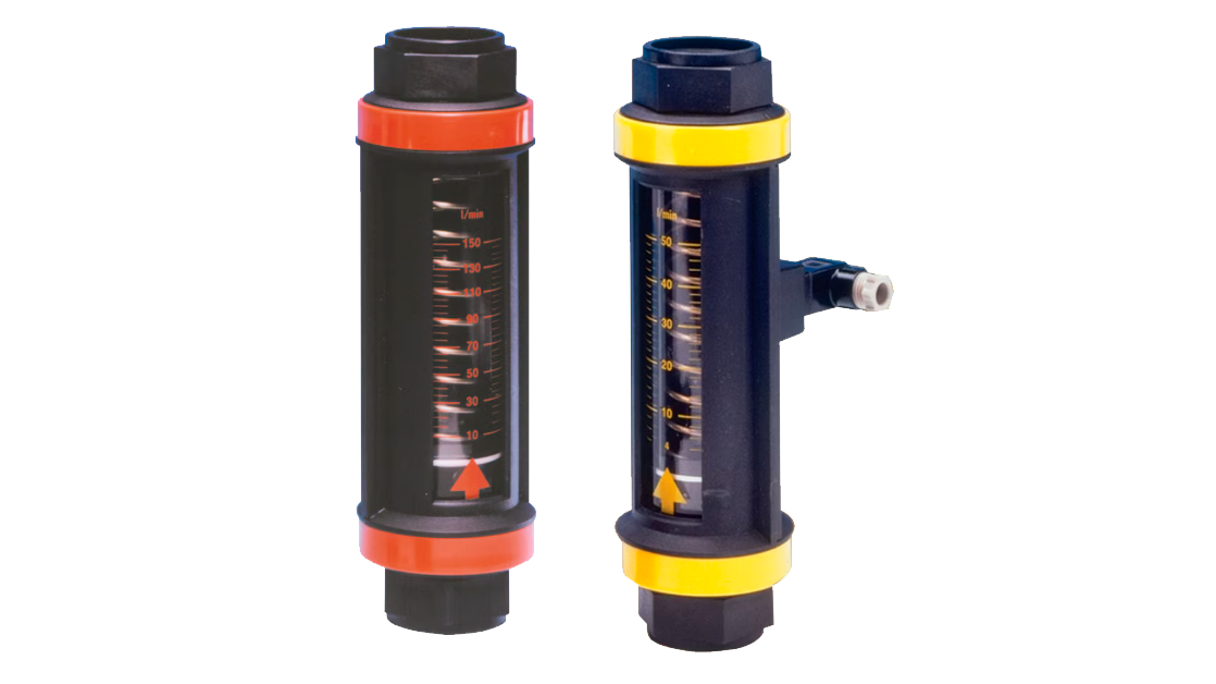

The Parker Easiflow Series offers durable inline mechanical flowmeters for high-flow, low-pressure applications such as hydraulic return lines and water systems. These non-intrusive meters feature a clear glass body for easy visual flow indication and can be fitted with an optional reed switch for control or alarm functions.
Operating on the variable area principle, Easiflow meters provide accurate, economical measurement for air, water, or hydraulic oil.
They cover flow ranges from 1–150 L/min (0.25–40 GPM) with a maximum working pressure of 10 bar (145 psi) and ±5% accuracy.
| Part Number | Flow Rate | For Fluid Type | Switch Type |
|---|---|---|---|
| EF7731111220 | 2 to 30 l/min | Water | No Switch |
| EF7731112220 | 5 to 50 l/min | Water | No Switch |
| EF7731113220 | 5 to 100 l/min | Water | No Switch |
| EF7731114220 | 10 to 150 l/min | Water | No Switch |
| EF7731110120 | 1 to 15 l/min | Oil | No Switch |
| EF7731111120 | 2 to 30 l/min | Oil | No Switch |
| EF7731112120 | 4 to 50 l/min | Oil | No Switch |
| EF7731113120 | 5 to 100 l/min | Oil | No Switch |
| EF7731114120 | 10 to 150 l/min | Oil | No Switch |
| EF7731110220 | 1 to 15 l/min | Water | No Switch |
| EF7731110221 | 1 to 15 l/min | Water | Magnetically Operated Reed |
| EF7731111221 | 2 to 30 l/min | Water | Magnetically Operated Reed |
| EF7731110121 | 1 to 15 l/min | Oil | Magnetically Operated Reed |
| EF7731111121 | 2 to 30 l/min | Oil | Magnetically Operated Reed |
| EF7731112121 | 4 to 50 l/min | Oil | Magnetically Operated Reed |
| EF7731113121 | 5 to 100 l/min | Oil | Magnetically Operated Reed |
| EF7731114121 | 10 to 150 l/min | Oil | Magnetically Operated Reed |
| EF7731112221 | 4 to 50 l/min | Water | Magnetically Operated Reed |
| EF7731113221 | 5 to 100 l/min | Water | Magnetically Operated Reed |
| EF7731114221 | 10 to 150 l/min | Water | Magnetically Operated Reed |
Our team of Sales Specialists
Tel.: +45 5537 2095
Email: quotes@insatech.com
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
At Insatech, we choose Parker Hannifin because their products set the industry standard for innovation, reliability, and performance. Parker’s advanced technologies and durable components ensure long-term efficiency and safety in demanding marine and industrial applications. By integrating Parker’s instrumentation, valves, and system solutions, we deliver trusted, high-quality results that help our customers operate smarter and more sustainably.
At Insatech, we deliver more than high-quality Parker Hannifin products - we provide complete Parker solutions. Combining engineering expertise, global support, and proven technology, our turnkey systems are built to meet real operational challenges. With tailored services and expert knowledge, we ensure efficiency, compliance, and long-term performance across marine, industrial, and process applications.
| Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Parker |
||||||||||||||||||
| Product Type | Condition Monitor |
||||||||||||||||||
| Product Style | Flow Meter |
||||||||||||||||||
| For Fluid Type | Water, Oil |
||||||||||||||||||
| Industry | Industrial Manufacturing Equipment, Off-Road Machinery, Industrial & Chemical Processing |
||||||||||||||||||
| Technology | Filtration |
||||||||||||||||||
| Operating Temperature | +41 to +176 °F, +5 to +80 °C |
||||||||||||||||||
| Operating Pressure | 145 psi, 10 bar |
||||||||||||||||||
| Materials of Construction | Cone Acetal |
||||||||||||||||||
| Accuracy | +/- 5% FSD |
||||||||||||||||||
| Connections | 1” BSP parallel threads |
||||||||||||||||||
| Sensing Method | Variable Orifice Flow Meter |
||||||||||||||||||
| Specifications Met | Pressure Directive |
||||||||||||||||||
