Parker flow measurement provides low flow resistance and allows combined pressure, temperature, and flow measurement when used with additional sensors.
Key Features:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

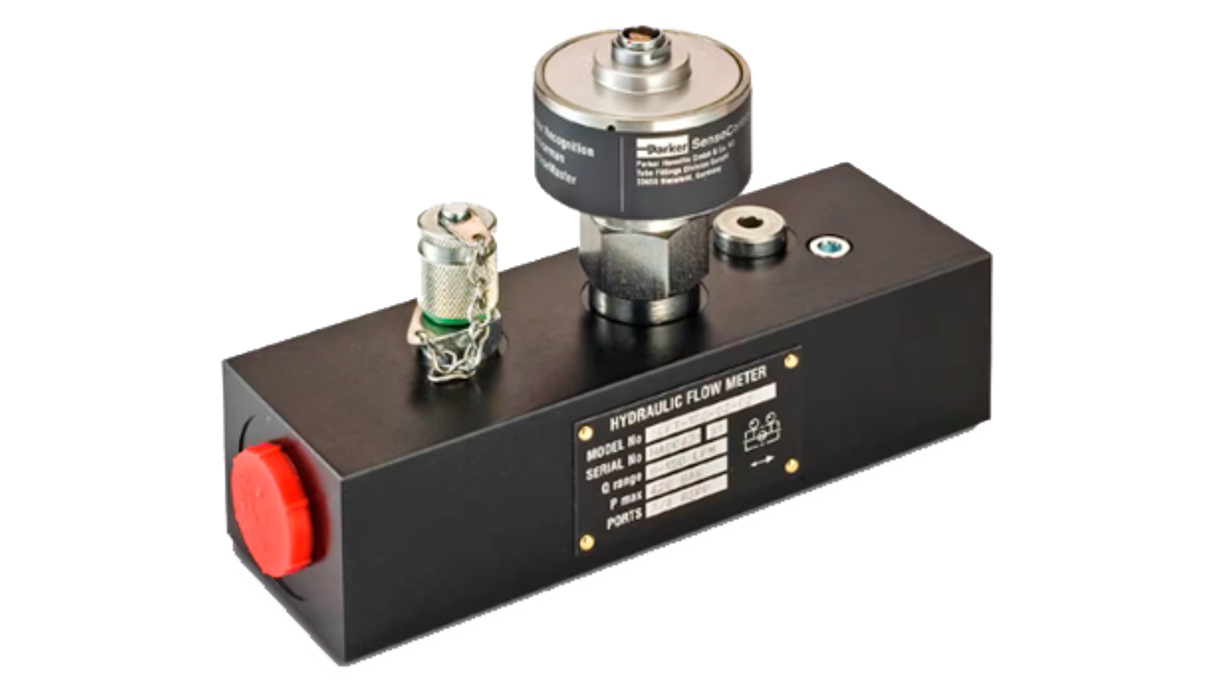

The turbine wheel is driven by the oil flow, generating frequency signals processed by digital electronics. Turbulent flow effects are compensated, ensuring precise results. With its low flow resistance, the QR design minimizes losses in the hydraulic circuit. An EMA-3 quick connector enables pressure measurement, while oil temperature can be measured directly in the turbine flow meter - providing all key parameters at a single measuring point.

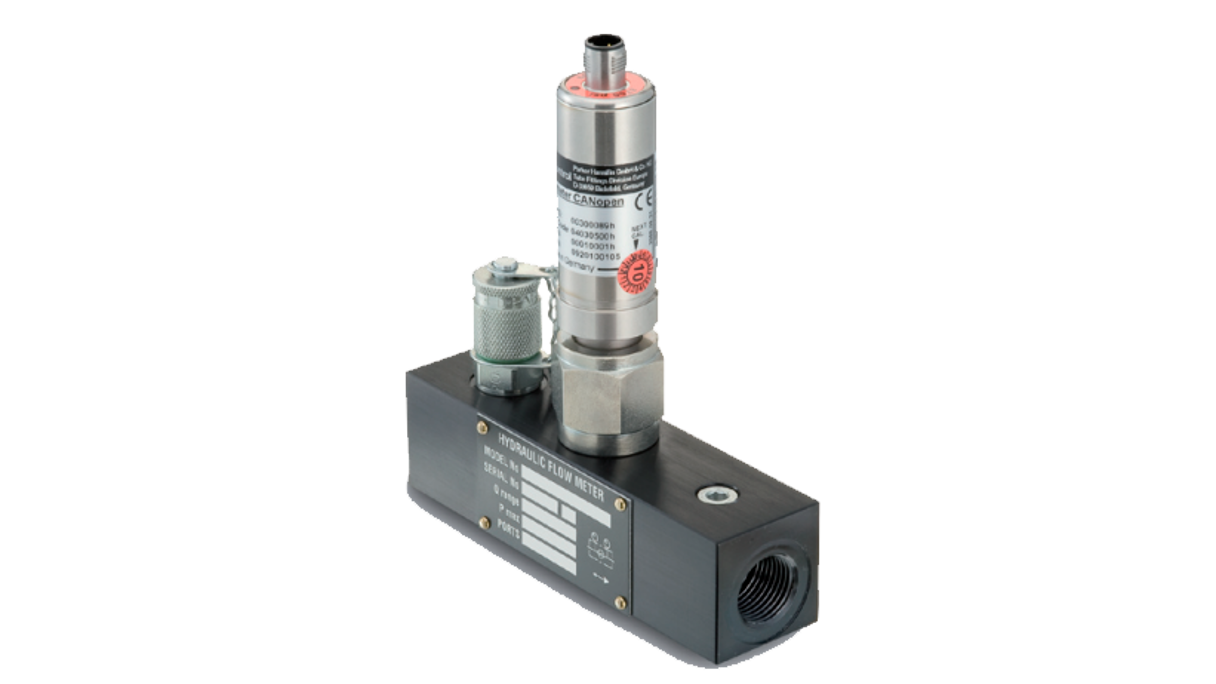

The SCFT-CAN is a compact turbine flow sensor for measuring hydraulic oil flow in test stands, machine tools, and other systems. It enables precise performance testing of pumps, motors, valves, and hydrostatic drives, with data transmitted via CANopen. Designed for use with the Parker Service Master Plus, it includes an LED for status indication.

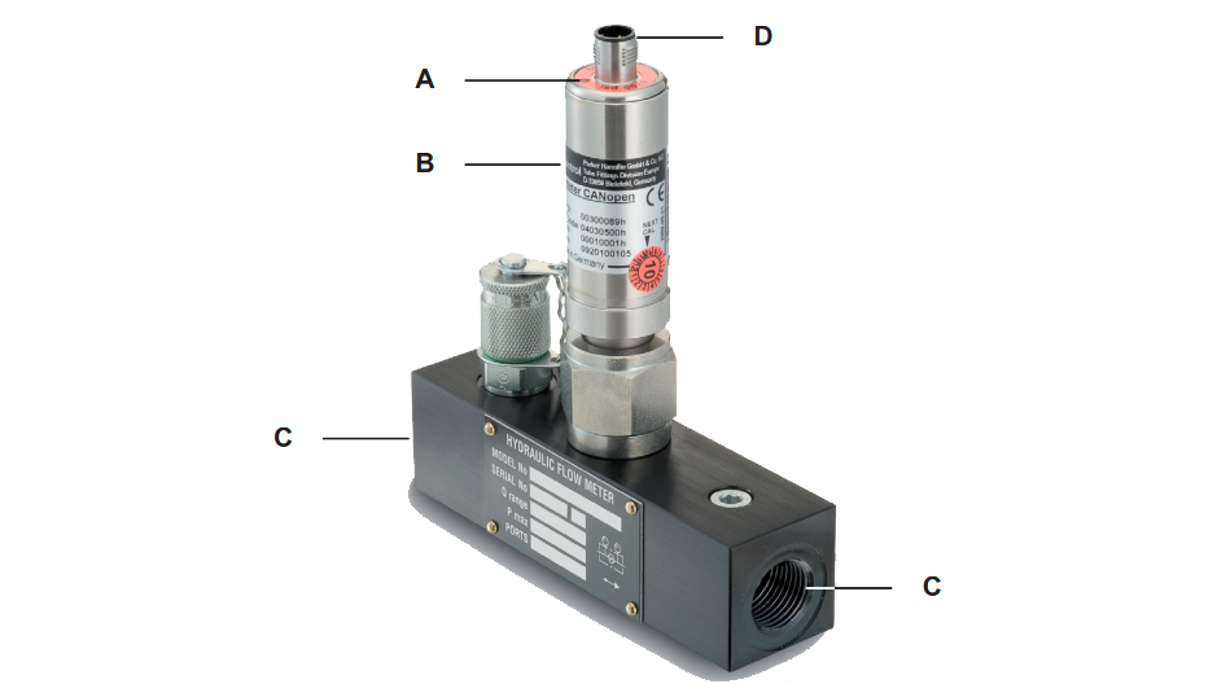

A LED
B Ratings plate
C Flow connection
D SPEEDCON® connection for spur line or lead-in
| Products | Flow Rates | Operating Pressure | Product Style | Calibration Type |
|---|---|---|---|---|
| K-SCFT-015-02-02 | 1…15 l/min | 350 bar | Analogoue Turbine | Factory calibration according to ISO 9001 |
| K-SCFT-015-22-07 | 1...15 l/min | 350 bar | Turbine | Factory calibration according to ISO 9001 |
| K-SCFT-060-02-02 | 3…60 l/min | 350 bar | Analogoue Turbine | Factory calibration according to ISO 9001 |
| K-SCFT-060-22-07 | 3...60 l/min | 350 bar | Turbine | Factory calibration according to ISO 9001 |
| K-SCFT-150-02-02 | 5...150 l/min | 350 bar | Analogoue Turbine | Factory calibration according to ISO 9001 |
| K-SCFT-150-22-07 | 5...150 l/min | 350 bar | Turbine | Factory calibration according to ISO 9001 |
| K-SCFT-300-02-02 | 8...300 l/min | 350 bar | Analogoue Turbine | Factory calibration according to ISO 9001 |
| K-SCFT-300-22-07 | 8...300 l/min | 350 bar | Turbine | Factory calibration according to ISO 9001 |
| K-SCFT-600-02-02 | 15...600 l/min | 290 bar | Analogoue Turbine | Factory calibration according to ISO 9001 |
| K-SCFT-600-22-07 | 15...600 l/min | 290 bar | Turbine | Factory calibration according to ISO 9001 |
| K-SCFT-750-02-02 | 20...750 l/min | 400 bar | Analogoue Turbine | Factory calibration according to ISO 9001 |
| K-SCFT-800-22-07 | 20...800 l/min | 400 bar | Turbine | Factory calibration according to ISO 9001 |
| K-SCFTT-015-C2-05 | 1…15 l/min | 350 bar | CAN Turbine | Factory calibration according to ISO 9001 |
| K-SCFTT-060-C2-05 | 3…60 l/min | 350 bar | CAN Turbine | Factory calibration according to ISO 9001 |
| K-SCFTT-150-C2-05 | 5...150 l/min | 350 bar | CAN Turbine | Factory calibration according to ISO 9001 |
| K-SCFTT-300-C2-05 | 8...300 l/min | 350 bar | CAN Turbine | Factory calibration according to ISO 9001 |
| K-SCFTT-600-C2-05 | 15...600 l/min | 290 bar | CAN Turbine | Factory calibration according to ISO 9001 |
| K-SCFTT-750-C2-05 | 20...750 l/min | 400 bar | CAN Turbine | Factory calibration according to ISO 9001 |
| SCFT-015-02-02 | 1…15 l/min | 350 bar | Analogoue Turbine | None |
| SCFT-015-22-07 | 1...15 l/min | 350 bar | Turbine | None |
| SCFT-060-02-02 | 3…60 l/min | 350 bar | Analogoue Turbine | None |
| SCFT-060-22-07 | 3...60 l/min | 350 bar | Turbine | None |
| SCFT-150-02-02 | 5...150 l/min | 350 bar | Analogoue Turbine | None |
| SCFT-150-22-07 | 5...150 l/min | 350 bar | Turbine | None |
| SCFT-300-02-02 | 8...300 l/min | 350 bar | Analogoue Turbine | None |
| SCFT-300-22-07 | 8...300 l/min | 350 bar | Turbine | None |
| SCFT-600-02-02 | 15...600 l/min | 290 bar | Analogoue Turbine | None |
| SCFT-600-22-07 | 15...600 l/min | 290 bar | Turbine | None |
| SCFT-750-02-02 | 20...750 l/min | 400 bar | Analogoue Turbine | None |
| SCFT-800-22-07 | 20...800 l/min | 400 bar | Turbine | None |
| SCFTT-015-C2-05 | 1…015 l/min | 350 bar | CAN Turbine | None |
| SCFTT-060-C2-05 | 3…60 l/min | 350 bar | CAN Turbine | None |
| SCFTT-150-C2-05 | 5...150 l/min | 350 bar | CAN Turbine | None |
| SCFTT-300-C2-05 | 8...300 l/min | 350 bar | CAN Turbine | None |
| SCFTT-600-C2-05 | 15...600 l/min | 290 bar | CAN Turbine | None |
| SCFTT-750-C2-05 | 20...750 l/min | 400 bar | CAN Turbine | None |
| SCFT-1500-22-07 | 50…1500 l/min | n/a | Turbine | None |
Our team of Sales Specialists
Tel.: +45 5537 2095
Email: quotes@insatech.com
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Parker |
||||||||||||||||||
| Product Type | Flow meter analogue, Flow meter CAN, Flow meter |
||||||||||||||||||
| Operating Temperature | 10...+50 °C |
||||||||||||||||||
| Maximum Fluid Temperature | +90 °C, +80 °C |
||||||||||||||||||
| Minimum Fluid Temperature | -20 °C |
||||||||||||||||||
| Specifications Met | CE |
||||||||||||||||||
| For Fluid Type | Oil based hydraulic fluids |
||||||||||||||||||
| Accuracy | ± 1 % FS, ± 1 % IR |
||||||||||||||||||
| Division | High Pressure Connectors Europe Division |
||||||||||||||||||
