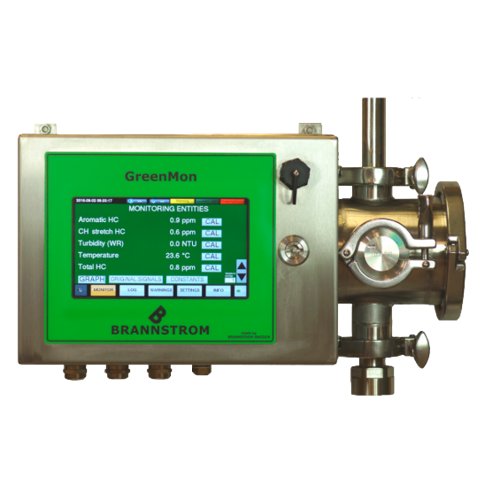

Greenmon Brannstrom instrument

The GreenMon is a different instrument from the regular 15 ppm monitor. The instrument is mainly used for dirty water applications where the optical measuring principle of the regular 15 ppm instrument cannot be used.

  • Compact solution
  • Can measure on Muddy/Dirty water
  • Long list of features to fit any application

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

How the GreenMon works

The GreenMon oil content monitor is based on Raman scattering and fluorescencespectroscopy of a free falling sample water jet. The use of these technologiesenables accurate oil content monitoring of high turbidity muddy waters without theneed for frequent recalibration or zero point check with clean water. The free fallingsample water jet means that there’s no sensor glass fouling or scaling demandingfrequent cleaning. This makes the GreenMon ideal for demanding 24/7 applications.

The GreenMon oil content monitor separately indicates the contents of aromatichydrocarbons, CH stretch hydrocarbons, total hydrocarbons, turbidity, andtemperature. The GreenMon logs the readings in its memory, and the local displaycan be set to indicate the readings numerically or as a graph. High ingressprotection, corrosion resistant materials, and data connection to the process controlmakes the GreenMon ideal for offshore as well as land based industrial applications.

Technical features with GreenMon

  • Type approved according to MEPC.107(49)
  • Power supply 100-240VAC or 24VDC, 20W
  • Wet materials AISI 316L, Fused Silica, PVDF
  • Free falling sample jet, no measuring cell glass means no fouling or scaling
  • No need for measuring cell cleaning with a brush, cleaning detergent, or acid
  • No need for flushing water piping
  • No need for frequent zero point or span calibration
  • Less sensitive to solids and gas bubbles in the sample
  • No freezing damage when stored in sub-zero temperature
  • Data retrieval via USB port on front plate and Ethernet data connection
  • Detects low or non-fluorescent substances like lubricant oils, kerosene, etc.
  • Calibration data embedded in sensor
  • Detachable sensor with a 3” tri clamp fitting
  • Connection for optional air flow to prevent extreme condition sample vapour condensing on the sensor unit
  • Optionally available certified for hazardous area (Ex ia or Ex p)
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com


Contact us now

Technical Specifications
Measuring range EN 590 diesel

0 … 200 ppm or 0 … 1000 ppm

Accuracy for 0 … 30 ppm range

as per MEPC.107(49)

Accuracy above 30 ppm

as per MEPC.108(49)

Measuring range PAH

0 … 5000 ppb

Sample water turbidity up to

10000 NTU

Sample water temperature

0°C … +80°C

Sample flow

3 – 5 lpm

Ambient temperature

+5°C … +50°C

Ingress protection


Specifications & Manuals

  • Specification Sheet - GreenMon - Brannstrom
    English | pdf
