15P 30P Series Parker

15P / 30P Series

The 15P/30P series is compact and has a lightweight design. It features 2 head sizes, 2 bowl lengths, large ports, and wide flow paths. It is a high-quality filter that offers better control and extends the lifespan of components, providing you with effective filtration and maximized element life.

The maximum pressure is 207 bars, and the maximum flow is 200 l/min.

Product features:

  • Compact aluminium housing
  • Two head sizes and two bowl lengths
  • Large ports and wide flow paths
  • Microglass III replacement elements
  • Visual, electrical and electronic indicators available

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Ensuring your need for clean hydraulc fluid.

Today's high-pressure hydraulic systems impose significant demands. Improved control and extended component lifespan are now expected. To meet these high performance standards, hydraulic components are manufactured with tighter tolerances, thereby increasing their susceptibility to contamination.

This is where Parker pressure filters play a crucial role. They effectively eliminate contaminants that may infiltrate and cause valve blockages or cylinder scoring. They also prevent pump-generated debris from reaching servo or proportional valves. Parker pressure filters serve as a vital component in meeting the requirements of modern hydraulic systems and ensuring the need for clean hydraulic fluid.

Typical application

  • Marine equipment
  • Saw mills
  • Aircraft ground support equipment
  • Asphalt pavers
  • Hydraulic fan drives
  • Power steering circuits
  • Domestic refuse vehicles
  • Cement trucks
  • Servo control protection
  • Logging equipment



Exactly what you need? Contact us here

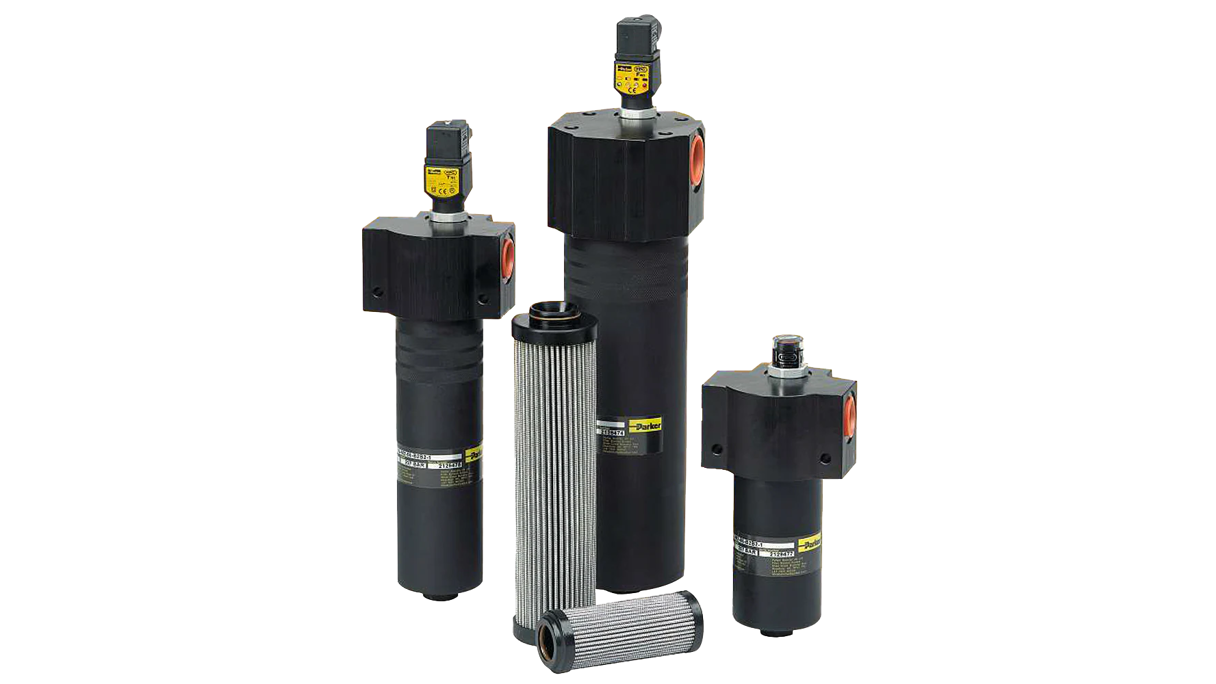

15P 30P Series Parker Overview

Which benefits does the 15P / 30P Series have?

The 15P / 30P Series have various features, advantages, and benefits that you can use:

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Pressure ratings
  • Maximum allowable operating pressure 207 bar
  • Filter housing pressure pulse fatigue tested: 138 bar
Connections

Inlet and outlet connections are threaded.

15P:

  • BSPF(G): 3/4”
  • ISO 6149: M27

30P:

  • BSPF(G): 1”
  • ISO 6149: M33
Filter housing
  • Head material extruded aluminium (anodised 6061-T6)
  • Bowl material impacted aluminium (anodised 6061-T6)
Seal material
  • Nitrile
  • Fluoroelastomer
Operating temperature range
  • -40 to 100°C Nitrile
  • -20 to +120°C Fluoroelastomer
Bypass valve

Opening pressure 3.5 bar
Filter element

Degree of filtration determined by Multipass-test according to ISO 16889.
Flow fatigue characteristics

Filter media is supported so that the optimal fatigue life is achieved (ISO 3724)
Microglass III

Supported with epoxy coated metal wire mesh, end cap material reinforced composite and metal inner core.
Collapse rating 24 bar (ISO 2941)
High collapse elements

High collapse elements available
Indicator options

Indicating differential pressure: 2.5 ± 0.3 bar.

  • Visual M3.
  • Electrical T1.
  • Electronic F1(PNP).
  • Electronic F2(NPN).
Fluid compatibility

Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please contact us.
  • Data Sheet - 15P / 30P Series - Parker
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

15P105QBM3KG121, 15P110QBM3KG121, 15P110QBT1KG121, 15P205QBM3KG121, 15P205QBT1KG121, 15P210QBM3KG121, 15P210QBT1KG121, 30P105QBT1KG161, 30P110QBM3KG161, 30P110QBT1KG161, 30P202QBM3KG161, 30P205QBM3KG161, 30P205QBT1KG161, 30P210QBM3KG161
