ATZ Series Tank Mounted Suction Filter Parker1x1

ATZ Series

The ATZ Series from Parker is low pressure filters, and a solution for critical protection of your hydraulic system pump. This compact and robust cast aluminium filter is designed to be located below tank oil level, providing maximum protection. The ATZ Series features a magnetic column for pre-filtration and has a maximum flow of 300 l/min. Ideal for heavy duty industrial applications, this filter is recommended for reservoirs with high contamination ingress.

Product features:

  • ATZ submersible suction filters locate below tank oil level
  • Pre-filtration takes place by means of a magnetic column
  • Maximum flow 300 l/min
  • In-to-Out filter stops contaminated oil leaking back into the system

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Get a quote

No More Oil Leakage: Unique Check Valve

The ATZ Series Submersible Suction Filters from Parker Filtration provide optimal protection for hydraulic system pumps, as they are positioned below the oil level in the tank. Removing the element triggers the automatic closure of the check valve, effectively preventing any risk of oil leakage. Pre-filtration occurs using a magnetic column, while the 'In-to-Out' filter principle ensures that contaminated oil cannot re-enter the system.

They are are specifically designed to operate while submerged. These filters feature a unique check valve that automatically closes when the filter insert is removed from the housing, making it possible to change the element below the oil level. The filters are constructed using the field-proven Parker Filter System.

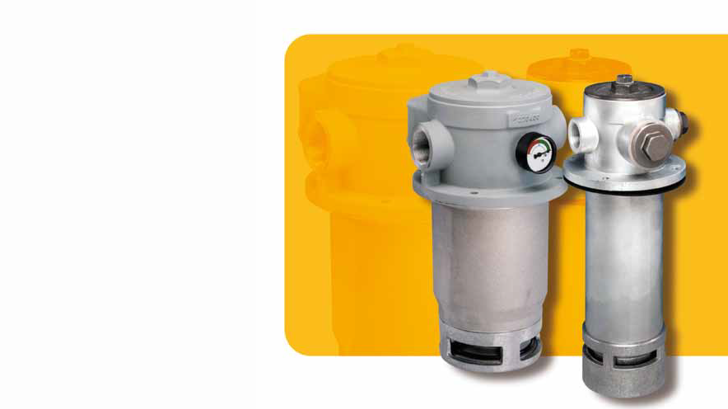

ATZ Series Parker Fdhb500ukv2 1

Typical applications

The ATZ Series is applicable for various purposes including:

  • Wool untangling machine
  • Hydraulic winch
  • Power packs with sophisticated pumps
  • Drilling blocks

Get more information here

Which benefits does the ATZ Series have?

The ATZ Series have various features, advantages, and benefits that you can use:

Get in Touch with Our Experts

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

Test Af Websitebillede FREJ ANAN HNI
For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com



Contact us now

Parker logo



Why We Offer Parker Products

At Insatech, we choose Parker Hannifin because their products set the industry standard for innovation, reliability, and performance. Parker’s advanced technologies and durable components ensure long-term efficiency and safety in demanding marine and industrial applications. By integrating Parker’s instrumentation, valves, and system solutions, we deliver trusted, high-quality results that help our customers operate smarter and more sustainably.

Authorized Parker Hannifin Distributor



At Insatech, we deliver more than high-quality Parker Hannifin products - we provide complete Parker solutions. Combining engineering expertise, global support, and proven technology, our turnkey systems are built to meet real operational challenges. With tailored services and expert knowledge, we ensure efficiency, compliance, and long-term performance across marine, industrial, and process applications.

Get help and support

Two Insatech employees at a meeting
Operating pressure

Vacuum
Assembly

Suction line filter, mounted horizontally against tank side
Connections
  • Threads G11/2 (ISO 228)
  • Flanges 2” SAE-300PSI
Filter housing

Aluminium
Seal material
  • Nitrile
  • Neoprene
  • Fluoroelastomer
Operating temperature range
  • -40°C to +100°C for seal matieral Nitrile
  • -20 to +130°C for seal material Fluoroelastomer
Bypass valve

Blocked
Degree of filtration

Determined by multipass test according to ISO 16889
Flow fatigue characteristics

Filter media is supported so that the optimal fatigue life is achieved
Filtration media
  • Microglass III
  • 10µ cellulose and 40µ Stainless Steel
Element burst+ rating

10 bar (ISO 2941)
Features

Unique check valve, enabling element change below oil level
Filter element

Element with steel end caps
  • Data Sheet - ATZ - Parker
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

ATZ110QBPXG241, ATZ210QBPXR481, ATZ1040WBPXG24P, ATZ1040WBPXG241, ATZ1040WBU2XG24Q, ATZ1040WBU2XG241, ATZ1040WVU2XG24P, ATZ1040WVV2XG241, ATZ110CBPXG241, ATZ110CBU2XG241, ATZ110CBV1XG241, ATZ110QBU2XG241, ATZ2040WBPXR481, ATZ2040WBU2XR481, ATZ2040WBV2XR48Q, ATZ210CBPXR48Q, ATZ210CBPXR481, ATZ210CBU2XR481, ATZ210CBV2XR481, ATZ210QBU2XR481, ATZ210QBV1XR481, ATZ210QBV2XR481, ATZ220QBU2XR481, ATZ220QBV2XR481, 2036030004, ATZ110QBV2XG24Q, ATZ1XXXBPXS24Q, ATZ2120WBPXL40V, ATZ2120WBPXR48Q, ATZ2120WBU2XR481, ATZ2XXXBPXL481
