DF2035

DF2035 Series

Lightweight duplex filters, with several media options and a high dirt holding capacity. This filter can hold up to three filter elements per reservoir. The aluminum housing provides both durability and lightness, making it easy to handle and install.

The advantages for you include:

Two different housing options, providing even more flexibility for your specific needs.

For sales or commercial inquiries please contact us at marine@insatech.com.

DF2035: A Solution for Heavy Duty Marine Filtration

Parkers DF2035 series presents a duplex filter that boasts both light weight and high flow capacity, making it ideal for use in marine gear and diesel engine lubrication systems. With an aluminum casing, the DF2035 filter provides an efficient and weight-saving solution for your heavy duty filtration needs.

The filter comes equipped with a range of filtration media options and offers a high dirt holding capacity, allowing for the use of up to three filter elements per reservoir. Additionally, two housing lengths are available, and the filter boasts a maximum flow rate of 600 l/min and a maximum pressure of 8 bar.

The elements of the DF2035 series are available with several filter materials and micron ratings - see data sheet.

Applications:

Gear systems
Diesel engine lubricating systems

Exactly what you need? Contact us here

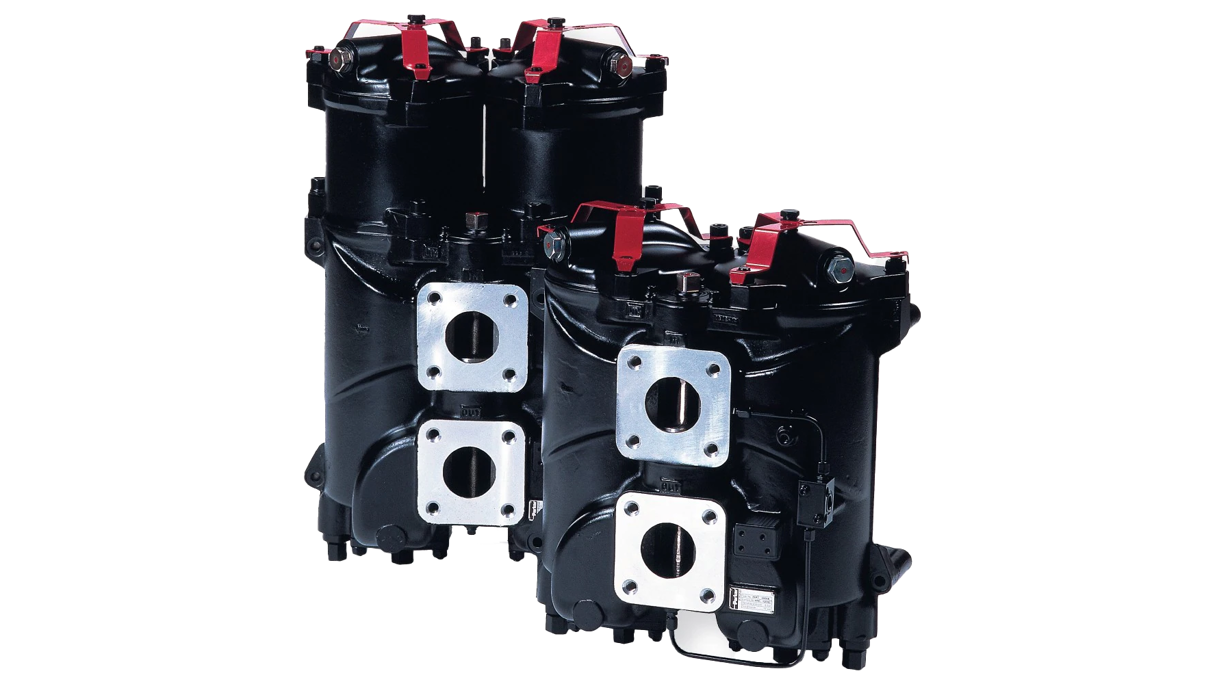

DF2035 Low Pressure In Line Duplex Filter Parker Overview

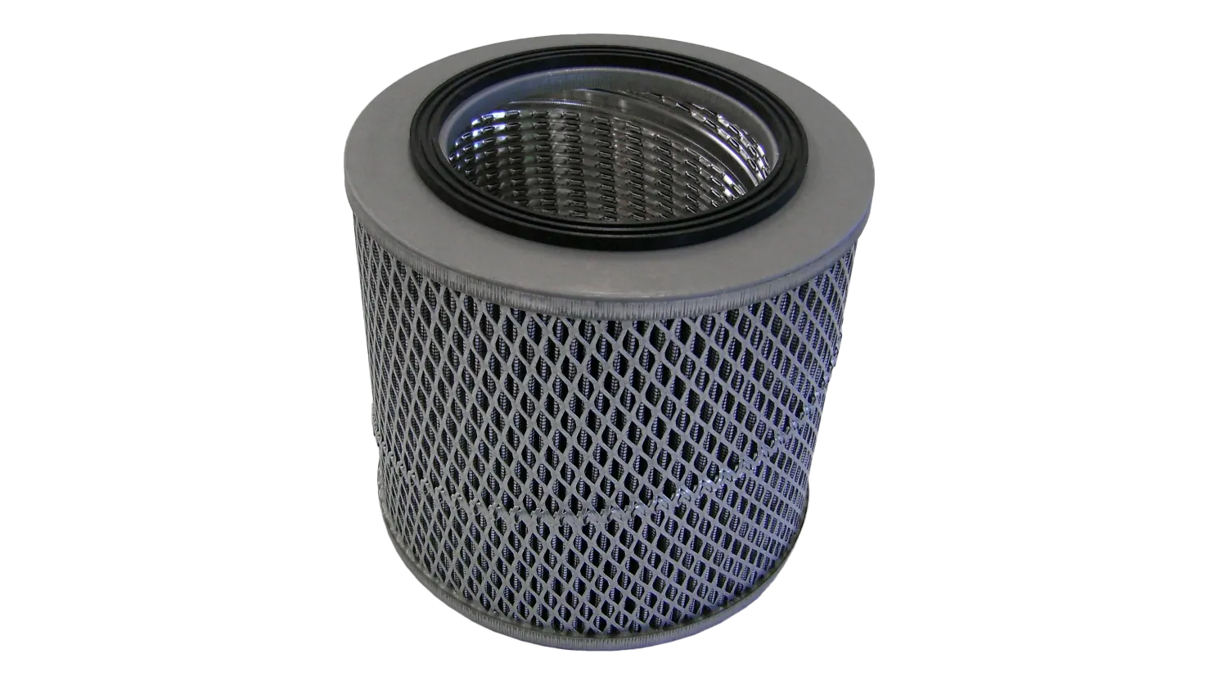

DF2035 Replacement Filter Element Parker

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com


Duplex filter	One reservoir can be closed for service, vertical installation. Length 2 includes 2 elements/side Length 3 includes 3 elements/side
Connections	Square flanges with DN65/PN16 dimensioning. Standard delivery includes blind counter flanges according DIN 2527.
Operating pressure	Maximum 8 bar
Seal material	Fluoroelastomer
Operating temperature	-20°C to +100°C
Housing material	Aluminium
Weight	Length 2: 49.0 kg Length 3: 62.5 kg
Flow rate	Maximum 600 l/min (36 m3/h)
Indicator options	Visual, electrical or electronic indicator requires an indicator block. Options: No indicator block Indicator port plugged Visual indicator Electrical indicator Electronic indicator (PNP/N.O.) Electronic indicator (NPN/N.O.)
Primary filter	Length 2: two filter elements per reservoir Length 3: three filter elements per reservoir Filtration materials: Resin impregnated heavy duty cellulose paper 15µm nominal Glassfibre Microglass III Cleanable metal mesh
Secondary filter	Filtration material cleanable metal mesh Filtration degree 60µm
Fluid compatibility	Suitable for use with regular hydraulic and lubrication oils

Data Sheet - DF2035 Series - Parker
English | pdf

Download

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Name *

E-mail *

Specify instrument *

Consent for storing of submitted data *

Yes, I give Insatech permission to store and process my data in accordance with their privacy policies.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

DF2035210QVNHD651, DF2035220QVNHD651, DF20352015NVNHD651, DF2035210QVM3HD651, DF2035220QVM3HD651, DF20352015NVM3HD651, DF2035210QVT1HD651, DF2035220QVT1HD651, DF20352015NVT1HD651, DF2035310QVNHD651, DF2035320QVNHD651, DF20353015NVNHD651, DF2035310QVM3HD651, DF2035320QVM3HD651, DF20353015NVM3HD651, DF2035310QVT1HD651, DF2035320QVT1HD651, DF20353015NVT1HD651, DF20352015NVPHD651, DF20352035WVNHD651, DF2035205QVF1HD651, DF20352060WVNHD651, DF2035210QVF1HD651, DF2035220QVPHD651, DF20353015NVPHD651, DF2035305QVF1HD651, DF2035305QVT1HD651, DF2035310QVF1HD651, DF2035320QVPHD651
