DF2089 Series Parker Low Pressure In Line Duplex Filter

DF2089 Series

The DF2089 Series from Parker is low pressure in-line duplex filters for heavy duty duplex operation. Several media options allow lube, fuel and hydraulic use – prefiltration with magnets as option. The filters are capable of handling flows of up to 350 l/min at a maximum pressure of 30 bar.

Typical applications:

  • Propulsion system lube oil filter
  • Heavy fuel oil safety filter
  • Medium pressure hydraulic systems

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Get a quote

DF2089 for your heavy duty duplex operation

Featuring a cast iron housing and a robust pressure rating of up to 40 bar, the DF2089 filter incorporates an efficient in-to-out flow design to effectively prevent particles from entering the system, even during filter replacement.

With the convenience of a differential pressure switch mounted directly on the filter, easy access is ensured for monitoring purposes. Additionally, this versatile filter offers various media options, making it suitable for lube, fuel, and hydraulic applications.

As an added benefit, the filter can be equipped with magnets for optional pre-filtration.

Need more information? Contact us here

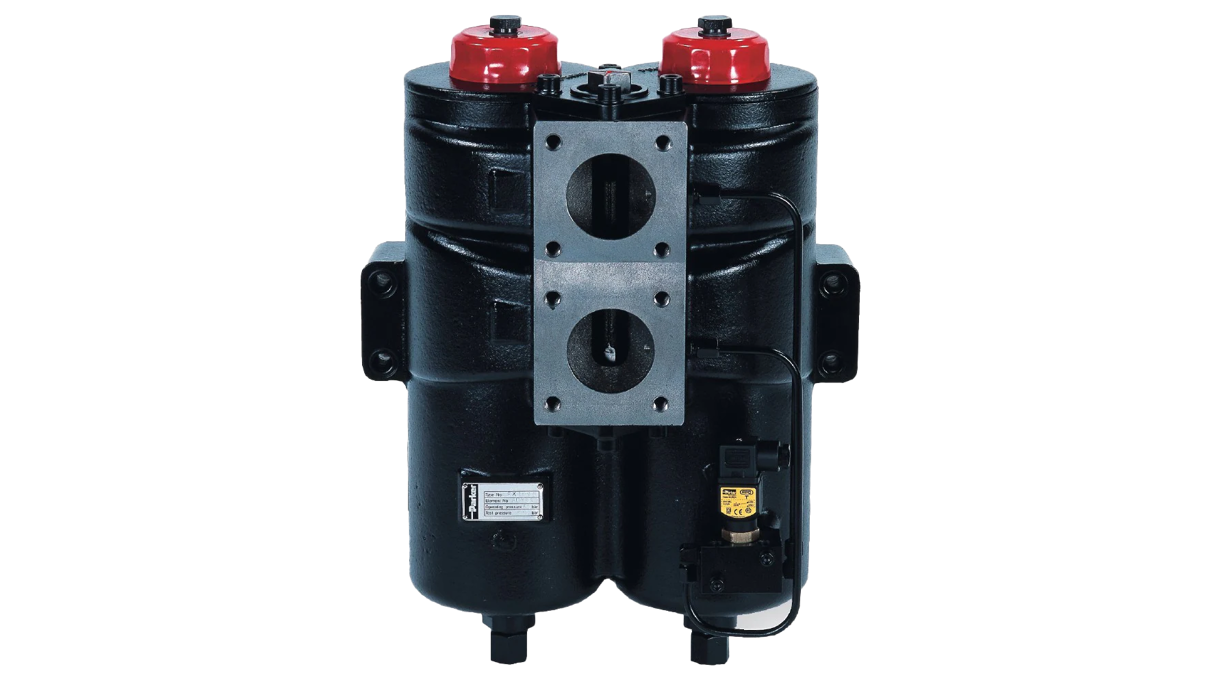

DF2089 Series Parker Low Pressure In Line Duplex Filter Overview
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Duplex filter

One reservoir can be closed for service, vertical installation.
Connections
  • Square flanges with port size 60 mm.
  • Standard delivery includes blind counter flanges.
  • Optionally available with SAE 2”-3000M flange adapters.
Operating pressure

Maximum 30 bar
Seal material

Fluoroelastomer
Operating temperature range
  • -20 to 120°C Fluoroelastomer
  • -20 to +160°C when using metal mesh elements and Fluoroelastomer seals
Housing material

Cast iron (GSJ)
Weight

65 kg
Nominal flow rate (30 cSt)

Maximum 350 l/min (21 m3/h)
Bypass valve

Standard bypass opening pressure 2.0 bar, optional opening pressure 1.6 bar or a blocked bypass.
Indicator options

Visual, electrical or electronic indicator requires an indicator block.

Options:

  • No indicator block
  • Indicator port plugged
  • Visual indicator
  • Electrical indicator
  • Electronic indicator (PNP/N.O.)
  • Electronic indicator (NPN/N.O.)
Filtration materials
  • Glassfibre Microglass III
  • Cleanable metal mesh
Fluid compatibility

Suitable for use with regular hydraulic and lubrication oils and fuel oils. Filters are delivered with documentation according PED 97/23/EC category II (required for heavy fuel oils). For other fluids contact us.
  • Data Sheet - DF2089 - Parker
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

DF2089110QVNHX601, DF2089120QVNHX601, DF2089110QVM3HX601, DF2089120QVM3HX601, DF2089110QVT1HX601, DF2089120QVT1HX601, DF20891035WVPFX601, DF20891035WVPHX601, DF20891035WVPXX602, DF20891035WVPXX604, DF2089105QVT1HR321, DF20891060WVPXX602, DF2089110QVPHX603, DF2089110QVPXX602, DF2089110QVPXX604, DF2089120QVPHR321, DF2089120QVPHX603, DF2089120QVPXR322, DF2089120QVPXX602, DF2089120QVT1HR321, DF2089120QVPKX60S01, DF20891035WVM38HX602, DF20891035WVT1HX601, DF20891060WVT1HX601, DF2089110QVF3HR321, DF2089120QVPJX601
