Parker DF2145 in-line duplex filters

DDF2145 Parker Low Pressure In Line Duplex Filter

DF2145 Series

The DF2145 Series from Parker, is low pressure in-line duplex filters for fuel, lube and hydraulic systems. Suitable for flows up to 80 l/min and pressures up to 30 bar. Used for duplex operation for security and continuous flow.

features with DF2145:

Sturdy cast iron housing
Block mounting available
Several filtration media options
Integrated differential pressure switch connection with shut off valve

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Get a quote

Enhanced Safety for Fuel, Lube, and Hydraulic Systems

Ensure optimal safety and continuous flow for fuel, lubrication, and hydraulic systems with our Duplex configuration. DF2145 features an integrated differential pressure switch connection with a shut-off valve. The sturdy cast iron housing provides durability and has a pressure rating of up to 30 bar. Additionally, block mounting is available for convenient installation.

A wide range of filtration media available

Glassfibre Microglass III
Environmentally friendly Ecoglass III. No metal parts. Ecoglass III contributes to ISO14001.
Cleanable metall mesh
Resin impregnated fine cellulose paper 10 µm nominal

Applications

Diesel engine fuel systems
Industrial lube oil systems
Industrial medium pressure hydraulic systems

Exactly what you need? Contact us here

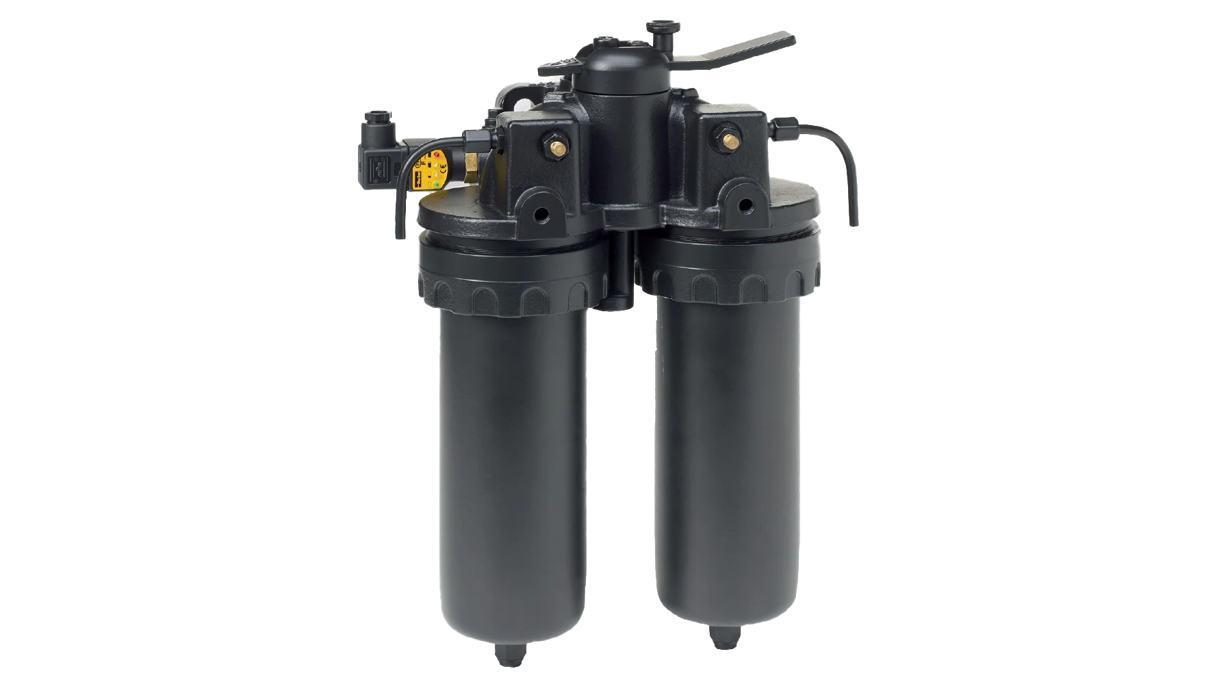

DDF2145 Parker Low Pressure In Line Duplex Filter Overview

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com


Duplex filter	Change-over valve with open center position. Handle locking device for both end positions. Vent valves with secured outlets on both sides. Integrated indicator port with test connections.
Operating pressure	Max. up to 30 bar
Connections	Two sets of threads G¾ or M26 x 1.5. Connections on flange are plugged with steel plug.
Seal material	Fluoroelastomer
Operating temperature range	-20 to 120°C Fluorelastomer seals -20 to +160°C Metal meash elements and fluorelastomer seals
Housing material	Cast iron (GJS)
Weight	15 kg
Nominal flow rate (30 cSt)	Up to 80 l/min (4,8 m3/h)
Bypass valve	Standard without bypass, optional opening pressure 3.5 bar
Filtration materials	Glassfibre Microglass III Environmentally friendly Ecoglass III. No metal parts. Ecoglass III contributes to ISO14001. Cleanable metall mesh Resin impregnated fine cellulose paper 10 μm nominal
Differential pressure indicators	Integrated indicator port. Filter can be equipped with visual, electrical or electronic differential pressure indicator. Setting 2.5 bar, other settings available.
Fluid compatibility	Suitable for use with regular hydraulic and lubrication oils & light fuel oils (diesel). For heavy fuel oil applications, please specify option P2 which ensures that filters are delivered with documentation according PED 97/23/EC category II. For other fluids contact us.

Data Sheet - DF2145 - Parker
English | pdf

Download

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Name *

E-mail *

Specify instrument *

Consent for storing of submitted data *

Yes, I give Insatech permission to store and process my data in accordance with their privacy policies.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

DF2145210QVPXG122, DF2145220QVPXG122, DF2145210QEVPXG122, DF2145220QEVPXG122, DF2145210QVM3KG122, DF2145220QVM3KG122, DF2145210QEVM3KG122, DF2145220QEVM3KG122, DF2145210QVT1KG122, DF2145220QVT1KG122, DF2145210QEVT1KG122, DF2145220QEVT1KG122, DF21452035WVM3KG121, DF21452035WVM3KG122, DF21452035WVT1KG121, DF2145205QEVM3KG121, DF21452060WVM3KG121, DF2145210QEVF1KG122, DF2145210QEVF1KM261, DF2145210QVF1KG121, DF2145210QVM3KG121, DF2145210QVPXM262, DF2145210QVT1KG121, DF2145220QVPKG121, DF2145220QVPXM262, DF2145220QVT1KG121, DF21452035WVT1KG122, DF2145210QEVF3KG121, DF2145210QVT1HG122, DF2145220QVM3KG121
