DF40 Series Parker Medium Pressure In Line Duplex Filter

DF40 Series

DF40 marine duplex filter, crafted from robust cast iron material, offering enhanced adaptability for installation. Its unique feature allows servicing from either the top or the bottom, providing added convenience.

Furthermore, you can experience the following benefits:

  • High flow and pressure capacity
  • Eco-friendly design
  • Double indicator port
  • Test connections with shut-off valves

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Get a quote

DF40 Duplex Filter is designed for Marine applications

User-friendly: The DF40 can be serviced from either the top or the bottom, providing you with added convenience. This means that the filter can be easily accessed and maintained, regardless of the installation orientation.

High Flow and Pressure: With a flow rate of up to 200 l/min and pressures up to 40 bar, DF40 ensuring efficient filtration in marine applications.

Eco-friendly Design: The filter includes Eco elements that contribute to environmental conservation by eliminating the presence of metal parts. This feature helps you reduce disposal costs.

Double Indicator Port: The DF40 is equipped with a double indicator port, allowing for easy monitoring and maintenance of the filter's performance.

Test Connections with Shut-off Valves: The filter is designed with test connections that can be isolated using shut-off valves. This enables convenient assembly and maintenance procedures.

Exactly what you need? Contact us here

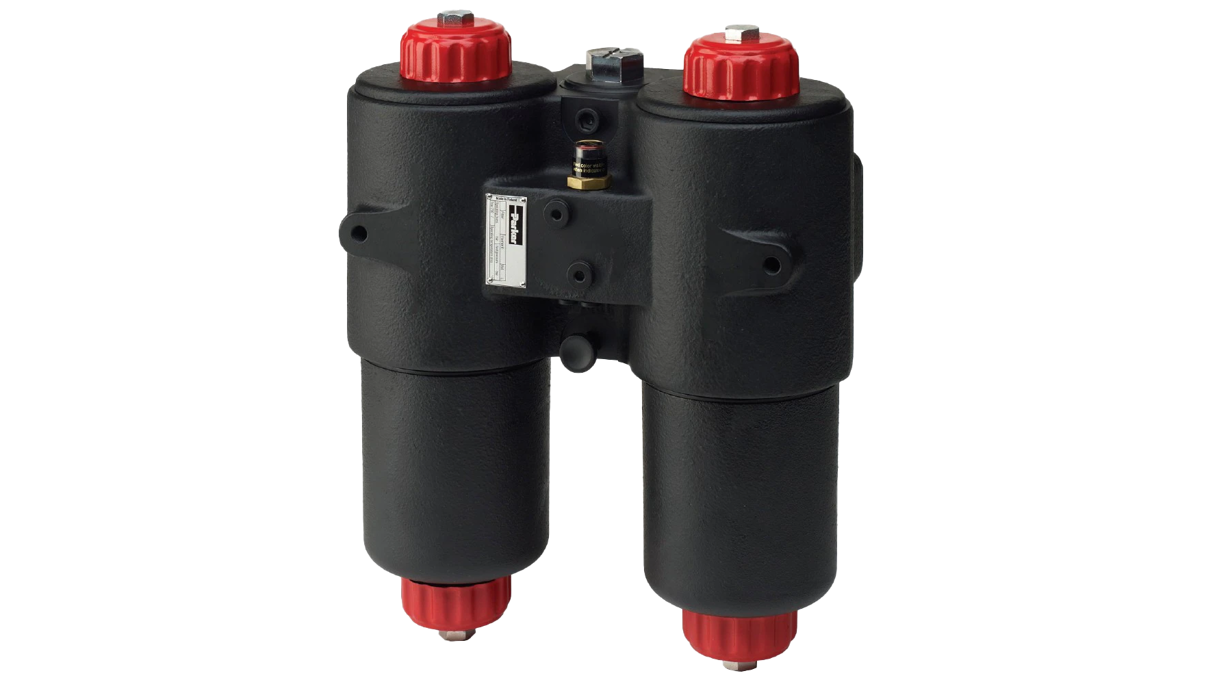

DF40 Series Parker Medium Pressure In Line Duplex Filter Overview

Typical applications:

  • Fuel filter for diesel engines up to 10 MW
  • Lubrication filter for gearboxes and propulsion systems
  • Medium pressure duplex filter in hydraulic systems
  • In-line return duplex filter in hydraulic systems

Need more information? Contact us here

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Duplex filter

Change-over valve with open center position. Locking device for both end positions. Element change is possible by opening either the top cover or the bowl in the bottom. Safety guards ensure that pressure is released prior opening the filter.
Operating pressure

Maximum 40 bar
Connections
  • Flanges SAE 1½” 3000-M as standard
  • Optional thread connections G1½ and G1¼ available with flange adapters
Seal material

Fluoroelastomer
Operating temperature range
  • -20 to 120°C Fluoroelastomer
  • -20 to +160°C when using metal mesh elements and fluoroelastomer seals
Housing material

Cast iron (GSJ)
Weight

52 kg
Nominal flow rate (30 cSt)

200 l/min (12 m3/h)
Bypass valve

Standard without bypass, optional opening pressure 3.5 bar
Indicators

Integrated indicator port. Filter can be equipped with visual, electrical or electronic differential pressure indicator. Setting 2.5 bar, other settings available. Additional indicator port and isolation valves which also enable indicator testing are available by request.
Filter element
  • Environmentally friendly Ecoglass III elements, micron ratings(abs): 2 μm, 5 μm, 10 μm and 20 μm.
  • Ecoglass III elements contribute to ISO14001 because they do not include metal parts.
  • Glassfibre Microglass III elements, micron ratings(abs): 2 μm, 5 μm, 10 μm and 20 μm.
  • Cleanable metal mesh elements, micron ratings(abs): 35 μm and 60 μm
Fluid compatibility

Suitable for use with regular hydraulic and lubrication oils & light fuel oils. For heavy fuel oils and other fluids contact us.
  • Data Sheet - DF40 - Parker
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

DF40110QEVPXR242, DF40120QEVPXR242, DF40110QEVM3KR242, DF40120QEVM3KR242, DF40110QEVT1KR242, DF40120QEVT1KR242, DF401035WVM3KR241, DF40105QEVT1KR241, DF40105QVM3KR241, DF401060WVT1KG241, DF401060WVT1KR241, DF40110QEVPKR241, DF40110QEVT1KG201, DF40110QEVT1KR241, DF40110QVT1KR241, DF40120QEVPKG201, DF40120QEVPKR241, DF40120QEVT1KG241, DF40120QEVT1KR241, DF40102QEVPXR242, DF40102QEVT1HR242, DF40102QVPXR242, DF40120QVM3KR241, DF401035WVT1KR241
