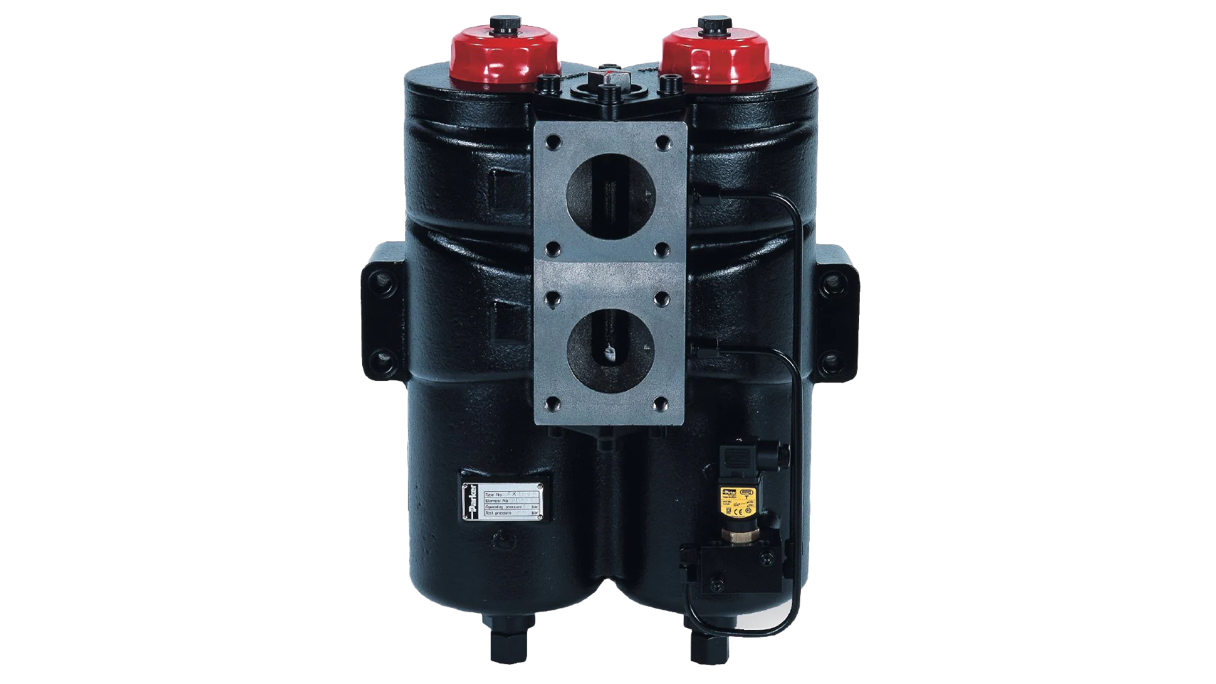

DF60 Series
Optimize your heavy-duty lubrication system with the DF60 Filter from Parker. Designed for high viscosity oils, this filter ensures maximum performance, minimal pressure drop, and continuous operation for gearbox applications.
Typical applications:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
The DF60 filters is designed to deliver maximum performance, and is specifically engineered for use with high viscosity lubricating oil.
With its large filtration area, the DF60 Filter ensures minimal pressure drop across the filter element, optimizing system efficiency. This feature is particularly beneficial in applications where maintaining consistent pressure is crucial for smooth operation.
The DF60 Filter is an excellent choice for gearbox lubrication systems that require a duplex filter for uninterrupted performance. Its robust construction and advanced filtration capabilities make it ideal for continuous operation in demanding environments.
| Duplex filter | One reservoir can be closed for service, vertical installation |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connections |
|
||||||||||||||||||
| Operating pressure | Maximum 30 bar |
||||||||||||||||||
| Seal material | Fluoroelastomer |
||||||||||||||||||
| Operating temperature range |
|
||||||||||||||||||
| Housing material | Cast iron (GSJ) |
||||||||||||||||||
| Weight | 65 kg |
||||||||||||||||||
| Nominal flow rate (30 cSt) | Maximum 350 l/min (21 m3/h) |
||||||||||||||||||
| Bypass valve | Standard bypass opening pressure 3.5 bar, optional opening pressure 1.7 bar or a blocked bypass. |
||||||||||||||||||
| Indicator options | Visual, electrical or electronic indicator requires an indicator block Options:
|
||||||||||||||||||
| Filtration materials |
|
||||||||||||||||||
| Fluid compatibility | Suitable for use with regular hydraulic and lubricating oils and diesel oil. For other fluids contact us. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
DF60110QVNKX601, DF60120QVNKX601, DF60110QVM3KX601, DF60120QVM3KX601, DF60110QVT1KX601, DF60120QVT1KX601, DF60110QVF1KX601, DF60120QVPKX601, DF60105QVPGR321, DF60102QVF3KX602, DF601035WVT1KX601, DF60105QVF1KX601, DF60105QVNGX601, DF60105QVT1KR321, DF601060WVT1KX601, DF60110QVM3GX601, DF60120QVM3KR321EX
