Parker ETF Series - Tanktop Mounted Return Line Filters

ETF Series

This low-pressure filter is designed to be mounted on tank tops, and features a reinforced co-polymer head with two return ports and a quick-release cover. The ETF Series offers an affordable solution for hydraulic systems that have flows of up to 175 l/min and up to 6 bar pressure.

The advantages for you include:

Cost-effective
Compact
No tools required to relase the filter cover
Reduction of bypass period due to low hysteresis

For sales or commercial inquiries please contact us at marine@insatech.com.

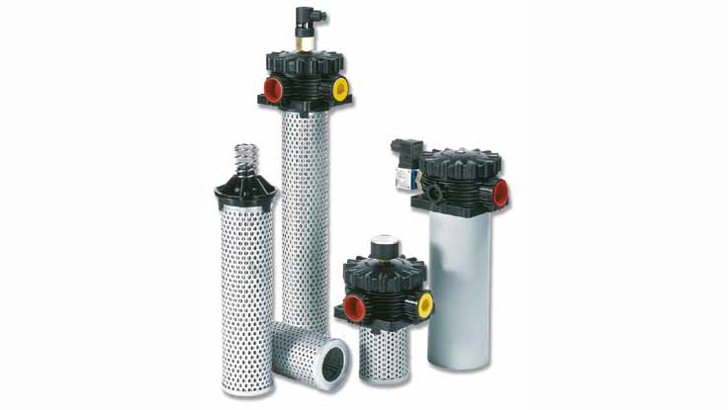

The Parker Filtration ETF Series - Low Pressure Filters

The Parker Filtration ETF Series Low Pressure Filters are designed for installation on tank tops and offer an economic solution for hydraulic systems with flows of up to 175 l/min and 6 bar pressure. These filters utilize a reinforced co-polymer head that is both durable and lightweight, making them ideal for a variety of applications.

The quick-release design makes it easy to change out filters and perform routine maintenance, reducing downtime and increasing productivity, and the in-to-out filtration helps to capture contaminants and prevent them from entering the hydraulic system.

Elements in the ETF series are available with Microglass media in 2, 5, 10 and 20 microns.

Thus, the ETF Series provides you with the following features:

ETF utilizes a re-inforced co-polymer head equipped with 2 return ports
Quick-release cover design.
Flow from inside to out
Maximum pressure 6 bar. Maximum flow 175 l/min
An economic return line filter for hydraulic systems

Need more information? Contact us here

Typical applications

Maritime equipment
Lorry mounted cranes
Agricultural equipment
Container hook loaders

Exactly what you need? Contact us here

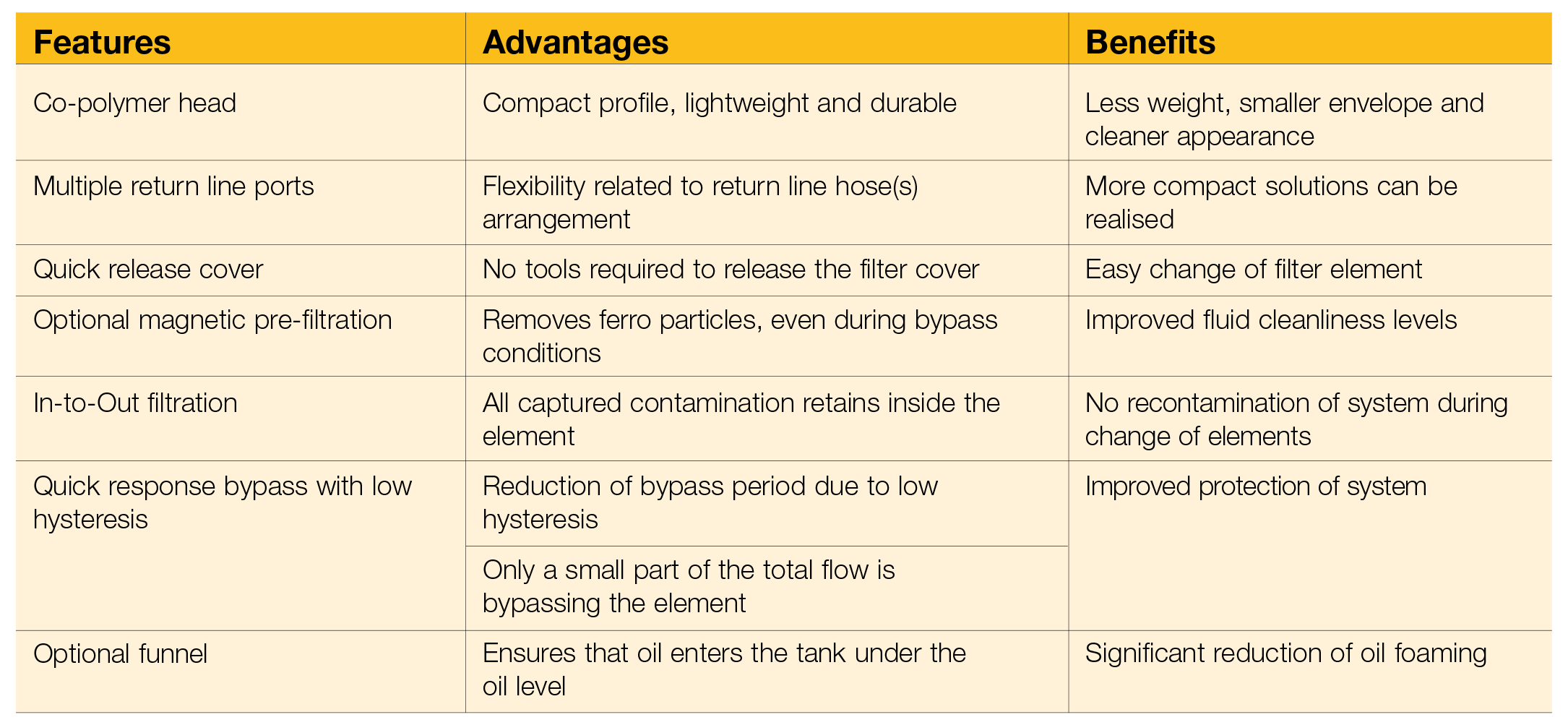

Which benefits does the ETF Series have?

The ETF Series have various features, advantages, and benefits that you can use:

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com


Pressure ratings	Maximum 6 bar
Assembly	Tank top mounted
Connections	Threads G1” + G1” (ISO 228), port B supplied as plugged connection
Filter housing	Glass reinforced co-polymer Funnel made from steel
Seal material	Nitrile
Operating temperature range	-20°C to +80°C
Bypass valve	Opening pressure 1.6 bar
Filter element	Conventional style element with steel end caps
Degree of filtration	Determined by multipass test according to ISO 16889
Flow fatigue characteristics	Filter media is supported so that the optimum fatigue life is achieved
Filtration media	Microglass III
Element burst rating	8 bar (ISO 2941)
Indicator options	Setting 1.0 bar
Fluid compatibility	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please consult Parker Filtration

Data Sheet - ETF Series - Parker
English | pdf

Download

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Name *

E-mail *

Specify instrument *

Consent for storing of submitted data *

Yes, I give Insatech permission to store and process my data in accordance with their privacy policies.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

ETF210QBP2FG164, ETF220QBP2FG164, ETF310QBP2FG164, ETF320QBP2FG164, ETF102QBG2FG161, ETF102QBS2FG164, ETF105QBS2FG164, ETF110QBG2FG161, ETF110QBP2FG164, ETF110QBS2FG164, ETF110QBS4FG164, ETF120QBG2FG164, ETF120QBP2FG164, ETF202QBG2FG164, ETF205QBG2FG164, ETF205QBP2FG164, ETF205QBS2FG164, ETF210QBG2FG161, ETF210QBG2FG164, ETF210QBS2FG161, ETF210QBS2FG164, ETF210QBS3FG164, ETF210QBS4FG164, ETF220QBG2FG164, ETF220QBS2FG164, ETF220QBS4FG161, ETF302QBG2FG161, ETF305QBG2FG164, ETF305QBP2FG164, ETF305QBS3FG164, ETF310QBG2FG161, ETF310QBG2FG164, ETF310QBS2FG164, ETF310QBS3FG164, ETF310QBS4FG164, ETF320QBG2FG164, ETF320QBS2FG164, ETF320QBS3FG164, ETF4A05QBP2FG164, ETF4A10QBG2FG164, ETF4A10QBP2FG164, ETF4A10QBS2FG164, ETF4A10QBS3FG164, ETF4A10QBS4FG164, ETF4A20QBG2FG164, ETF4A20QBP2FG164, ETF4A20QBS4FG164, ETF4B05QBG2FG164, ETF4B10QBP2FG164, ETF4B10QBS2FG164, ETF4B10QBS3FG164, ETF4B10QBS4FG164, ETF4B20QBG2FG164, ETF4B20QBS2FG161, ETF4B20QBS2FG164, ETF405QBG2FG164, ETF405QBP2FG164, ETF410QBG2FG161, ETF410QBP2FG164, ETF410QBS2FG164, ETF410QBS3FG164, ETF420QBG2FG164, ETF420QBP2FG164, ETF420QBS4FG164, 3181221260, 3181700250, 3181700275, 3181701220, 3181701250, 3181701275, 3181712260, 3181722260, 3181791260, ETF105QBG2FG161, ETF120QBG2FG161, ETF405QBS2FG164, ETF4AXXXBP2FG164, ETF4B20QBP2FG164
