GS Series

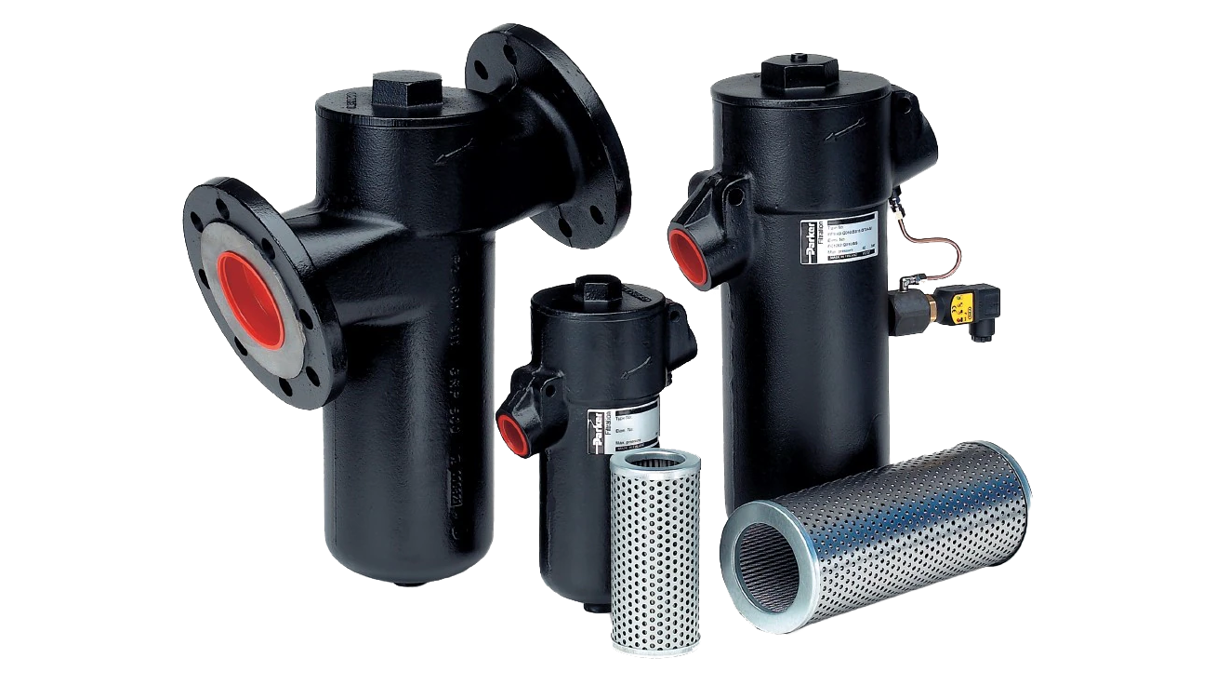

The Parker GS Series is in-line filters, allowing a wide range of application, with three different housing sizes and several media options. The filters come with cast iron housings, making them suitable for marine application.
Features for you include:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
The availability of pre-filtration with magnets improves filtration efficiency by attracting and removing magnetic particles from the media before it passes through the main filter.
This means cleaner and more effective filtration and gives you the advantage of:
Several connection options represent an important feature that allows you to customize the filter installation according to your specific needs and requirements. This ensures a seamless integration into your existing systems.
Flexibility and Compatibility with various pipe dimensions and connection methods.
The filters have cast iron housing, making them usable under demanding conditions often seen in the marine industry. Cast iron housings are known for their strength and durability. They can withstand the forces and stresses associated with high pressure, ensuring:
| Assembly | In-line filter |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating pressure | Maximum 40 bar For DN80 flanges 16 bar |
||||||||||||||||||
| Nominal flow rate (30 cSt) | 350 l/min (21 m3/h) |
||||||||||||||||||
| Connections |
|
||||||||||||||||||
| Seal material |
|
||||||||||||||||||
| Operating temperature range |
|
||||||||||||||||||
| Housing material | Cast iron |
||||||||||||||||||
| Weight |
|
||||||||||||||||||
| Magnet pack | Available as option |
||||||||||||||||||
| Bypass valve | Standard opening pressure 1.6 bar, optionally with blocked bypass |
||||||||||||||||||
| Indicator options | Visual, electrical or electronic indicator requires an indicator block. Options:
|
||||||||||||||||||
| Filtration materials |
|
||||||||||||||||||
| Fluid compatibility | Suitable for use with regular hydraulic and lubrication oils and fuel oils. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
GSN310QVNFG161, GSN320QVNFG161, GSN310QVM3FG161, GSN320QVM3FG161, GSN310QVT1FG161, GSN320QVT1FG161, GS610QVNFG241, GS620QVNFG241, GS610QVM3FG241, GS620QVM3FG241, GS610QVT1FG241, GS620QVT1FG241, GS710QVNFG241, GS720QVNFG241, GS710QVM3FG241, GS720QVM3FG241, GS710QVT1FG241, GS720QVT1FG241, GSN3035WVNFG161, GSN3060WVM3FG161, GSN3060WVM3FG166, GSN3060WVNFG161, GS6035WVM3FG242, GS6035WVNXG246, GS6035WVNXG247, GS6060WBNFG241, GS610QBNFG241, GS620QBNFG241, GS7035WBNFG241, GS7035WVNXD806, GS7035WVNXD807, GS7035WVNXG246, GS7035WVNXG247, GS705QBNFG241, GS7060WBNFG241, GS7060WBNXG242, GS7060WVNXD807, GS710QBNFG241, GS720QBNFD801, GS720QBNFG241, GS720QBNFG245, GS720QBNXG242, GS720QVF2FG241, GS720QVT1FD801, GS220QBNFG161, GS6XXXBNFG241, GS7060WBM3FD801, GS720QBPXD802, GS720QBPXD802S03, GS7XXXBNFG241, GSN3060WVT1FG166, GSN3125WVPBG165, GSN3125WVPXG166
