IN AGB Series Parker In Tank Mounted Filter 1 1

IN-AGB Series

The IN-AGB Series from Parker is a highly efficient in-built filtration solution, with a quick response bypass construction that features low hysteresis, magnetic pre-filtration, and a high dirt-holding capacity. This series allows flow from inside to out, ensuring efficient filtration. With flow rates ranging from 30 l/min to 2400 l/min, the IN-AGB Series is a low-cost, high-performance filter suitable for various applications.

The advantages for you include:

  • compact and low-cost solution
  • All captured contamination retains inside the element
  • Reduction of bypass period due to low hysteresis

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

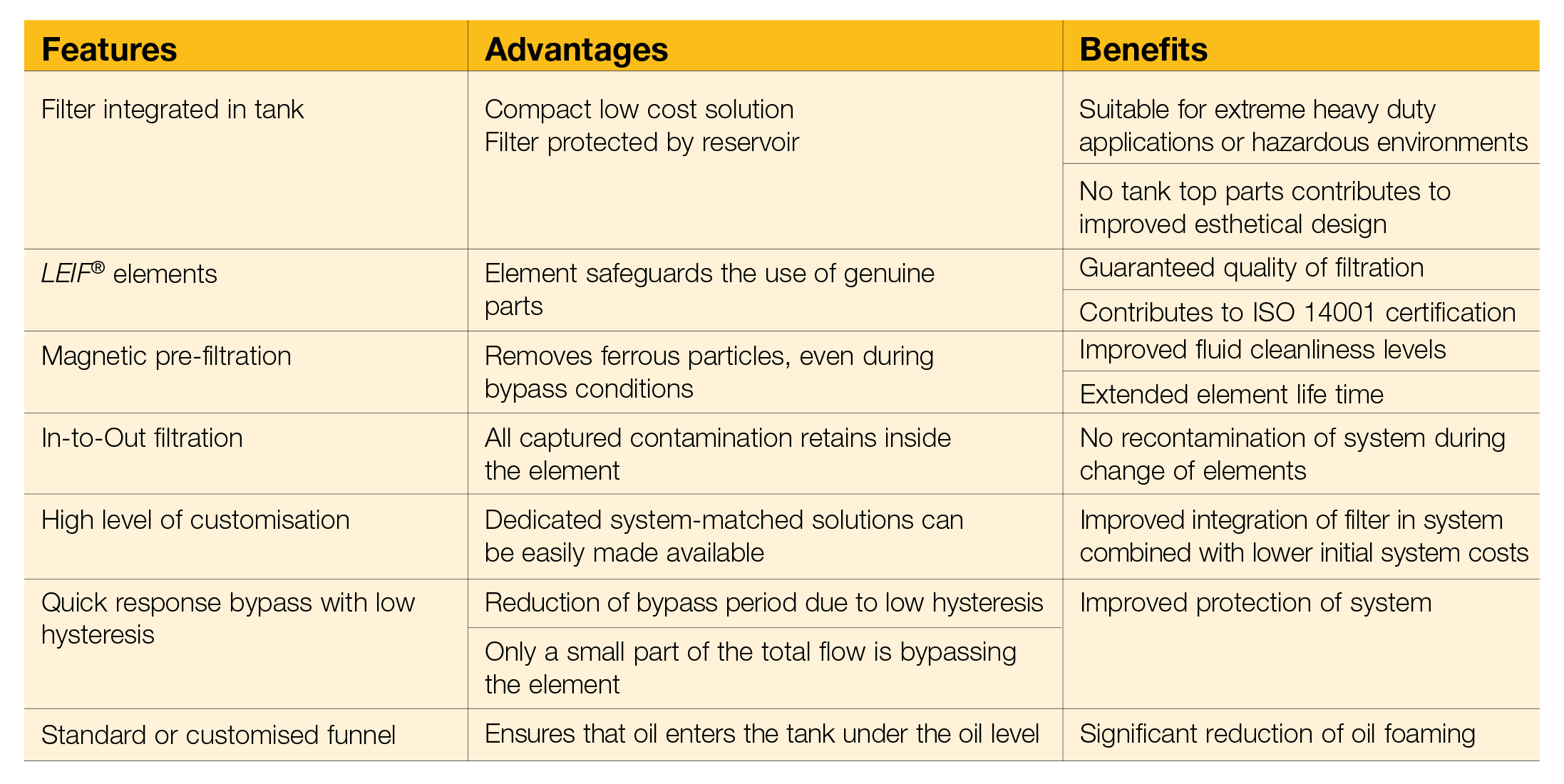

Which benefits does the IN-AGB Series have?

The IN-AGB Series have various features, advantages, and benefits that you can use:

IN-AGB Filters: Durable and Reliable Solution for Marine Applications

Parker's IN-AGB filters are built to maintain the purity of hydraulic oil, which is crucial to ensure smooth operation and prevent costly downtime. With Q3 filter media, these filters provide effective filtration, ensuring that particulates and impurities are removed from the hydraulic oil.

The bypass construction with low hysteresis ensures that the filter responds quickly, while magnetic pre-filtration provides an added layer of protection against ferrous debris. With a high dirt-holding capacity, these filters can handle a wide range of flow rates from 30 l/min up to 2400 l/min, making them suitable for various marine applications.

For flow rates up to 1500 l/min, Parker offers LEIF® elements, which are designed to meet the strictest demands for environmentally-friendly filtration. The IN-AGB filter is a durable and reliable solution for marine applications where operational reliability is crucial. It is also easy to install and maintain, making it a practical and efficient option for maintaining the purity of hydraulic oil in marine applications.

Overall, the IN-AGB filter series offers marine operators a efficient solution for ensuring the reliability and longevity of their hydraulic systems.

Features

  • Filter integrated in tank
  • LEIF® elements
  • Magnetic pre-filtration
  • In-to-Out filtration
  • High level of customisation
  • Full flow bypass with low hysteresis
  • Standard or customised funnel
Need more information? Contact us here

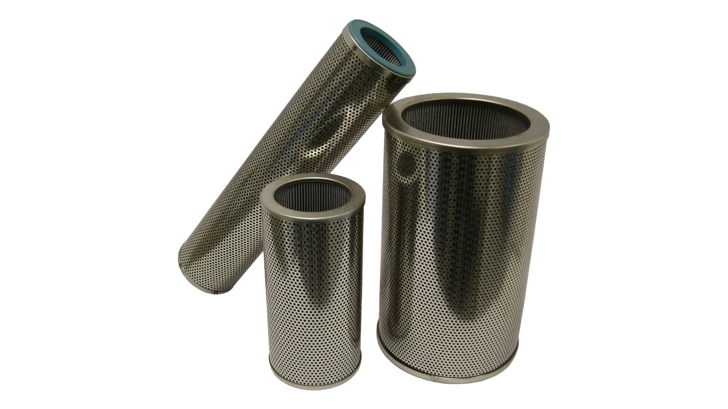

IN AGB Parker Replacement Filter Element

Replacement Elements

The Parker IN-AGB Filter Serie replacement elements are made with high-quality filter materials. These elements are available in a variety of sizes and micron ratings to fit specific filtration needs. The LEIF® elements are patented and have a reusable metal sleeve, providing added reliability.

Fluid flows through the elements in an inside-to-outside direction, capturing particles inside the filter cartridge, preventing reinjection of contaminants during element replacement. The filter series comes with magnetic pre-filtration, removing ferrous particles even during bypass conditions, thereby extending the filter element's life.

Exactly what you need? Contact us here

Typical applications

The IN-AGB Series is applicable for various purposes including:

  • Maritime equipment
  • Agricultural machines
  • Articulated dump trucks
  • Forestry equipment
  • Wheeled loaders
  • Lubrication systems
  • Excavators

Get more information here

IN AGB Series Parker In Tank Mounted Filter Overview

Advantages of the IN-AGB Series

The IN-AGB filter series offers a range of advantages. One of the most notable advantages is its compact and low-cost design, making it a cost-effective solution for maintaining hydraulic system purity. The filter is protected by the reservoir, ensuring that it remains safe from external contaminants.

The IN-AGB filter is equipped with an element that safeguards the use of genuine parts. This is important in marine applications where the use of pirate parts can lead to significant problems with the hydraulic system. The element removes ferrous particles, even during bypass conditions, ensuring that the hydraulic oil is free of contaminants.

All captured contamination is retained inside the element, ensuring that it does not enter the hydraulic system. Additionally, dedicated system-matched solutions can be easily made available, ensuring that operators can select the right filter for their specific requirements.

The IN-AGB filter features a quick response bypass construction with low hysteresis. This results in a reduction of the bypass period, which ensures that more of the hydraulic oil is filtered. Only a small part of the total flow is bypassing the element, ensuring that the majority of the hydraulic oil is effectively filtered.

Finally, the IN-AGB filter ensures that oil enters the tank under the oil level. This ensures that the hydraulic system remains efficient and free from contaminants.

All the above advantages gives you the following benfits:

  • Suitable for extreme heavy duty applications or hazardous environments
  • Guaranteed quality of filtration
  • Extended element life time
  • No recontamination of system during change of elements
  • Improved integration of filter in system combined with lower initial system costs
  • Improved protection of system
  • Significant reduction of oil foaming
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Assembly

Inside tank
Seal material
  • Nitrile
  • Fluoroelastomer
  • Neoprene
Operating temperature range
  • -40°C to +100°C for seal matieral Nitrile
  • -20 to +100°C for seal material Fluoroelastomer
Bypass setting
  • 0.8/1.5 bar
  • 2.0 bar
  • Other settings on request
Degree of filtration

Determined by multipass test according to ISO 16889
Flow fatigue characteristics

Filter media is supported so that the optimal fatigue life is achieved
Filtration media
  • Microglass III
  • Ecoglass III for LEIF® elements
  • Also available 10µm Cellulose and 40µm stainless steel mesh
Element burst rating

10 bar (ISO 2941)
Options
  • Diffuser type P (straight pipe, no perforated plate area)
  • Diffuser type T (with closed diffuser end cap and with perforated plate area, recommended when oil entry in reservoir is close to the reservoir bottom or to ensure oil entry under the reservoir oil level)
Magnetic pack

Standard

Note: IN-AGB 2-400 and 2-500 are standard supplied without magnets
Filter element
  • LEIF® element with reusable metal element sleeve
  • Optional conventional style element with steel end caps

The LEIF® element is patented and safeguards the use of genuine parts.

Note: LEIF® element can be used with mineral and HEES type oils. For other fluids consult Parker Filtration. LEIF® contributes to ISO 14001 quality standards
  • Data Sheet - IN-AGB - Parker
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Part #

IN310QBNEXXX1, IN320QBNEXXX1, IN305QLBNEXXX1, IN310QLBNEXXX1, IN320QLBNEXXX1, IN510QBNEXXX1, IN520QBNEXXX1, IN505QLBNEXXX1, IN510QLBNEXXX1, IN520QLBNEXXX1, IN610QBNEXXX1, IN620QBNEXXX1, IN605QLBNEXXX1, IN610QLBNEXXX1, IN620QLBNEXXX1, IN810QBNEXXX1, IN820QBNEXXX1, IN805QLBNEXXX1, IN810QLBNEXXX1, IN820QLBNEXXX1, IN1010QBNEXXX5, IN1020QBNEXXX5, IN1005QLBNEXXX5, IN1010QLBNEXXX5, IN1020QLBNEXXX5, IN1210QBNEXXX1, IN1220QBNEXXX1, IN1205QLBNEXXX1, IN1210QLBNEXXX1, IN1220QLBNEXXX1, IN1210QBNEXXX3, IN1220QBNEXXX3, IN1205QLBNEXXX3, IN1210QLBNEXXX3, IN1220QLBNEXXX3, IN1510QBNEXXX1, IN1520QBNEXXX1, IN1505QLBNEXXX1, IN1510QLBNEXXX1, IN1520QLBNEXXX1, IN1510QBNEXXX3, IN1520QBNEXXX3, IN1505QLBNEXXX3, IN1510QLBNEXXX3, IN1520QLBNEXXX3, IN1710QBNEXXX1, IN1720QBNEXXX1, IN1705QLBNEXXX1, IN1710QLBNEXXX1, IN1720QLBNEXXX1, IN1710QBNEXXX3, IN1720QBNEXXX3, IN1705QLBNEXXX3, IN1710QLBNEXXX3, IN1720QLBNEXXX3, IN010CBNBXXX1, IN010QLBNEXXX1, IN020QBNEXXX1, IN1005QBNEXXX5, IN1020QBNHXXX5, IN11A10CBNEXXX1, IN11A10QLVNEXXX3, IN11A20QBNEXXX5, IN1102QLBNEXXX3, IN1105QBNEXXX1, IN1105QBNEXXX3, IN1105QLBNEXXX1, IN1110CBNEXXX1, IN1110QBNEXXX1, IN1110QBNEXXX3, IN1110QLBNEXXX1, IN1110QLBNEXXX3, IN1110QLBNXXXX1, IN1120QBNEXXX1, IN1120QBNEXXX3, IN1120QBNXXXX3, IN1120QLBNEXXX3, IN1202QBNEXXX3, IN1202QLBNEXXX3, IN12040WBNEXXX1, IN1205QBNEXXX5, IN1210CBNEXXX1, IN1210CBNEXXX3, IN1210CBNXXXX1, IN1220QLBNHXXX3, IN1220QVNBXXX3, IN1302QLBNEXXX3, IN1305QBNEXXX1, IN1305QLBNEXXX1, IN1310QBNEXXX1, IN1310QBNEXXX3, IN1310QLBNEXXX3, IN1310QVNEXXX3, IN1320QBNEXXX1, IN14040WBNEXXX1, IN1405QBNEXXX1, IN1410QBNEXXX1, IN1410QBNEXXX3, IN1410QLBNEXXX1, IN1410QLBNEXXX3, IN1410QLVNEXXX1, IN1410QVNBXXX3, IN1410QVNEXXX4, IN1420QBNEXXX1, IN1510CBNEXXX1, IN1510QLVNEXXX1, IN1520QLBNBXXX3, IN1602QLBNEXXX3, IN1605QLBNEXXX3, IN1605QVNEXXX3, IN1610QBNEXXX1, IN1610QBNEXXX3, IN1610QLBNEXXX1, IN1610QLBNEXXX3, IN1620QBNEXXX1, IN1620QBNEXXX3, IN1702QBNEXXX1, IN1702QBNEXXX3, IN17040WBNBXXX3, IN17040WBNEXXX1, IN17040WBNEXXX3, IN1705QBNEXXX1, IN1705QBNEXXX3, IN1710CBNBXXX1, IN1710QBNXXXX3, IN1802QBNEXXX3, IN1805QBNEXXX3, IN1810QBNEXXX3, IN1820QBNEXXX1, IN1820QBNEXXX3, IN210QBNEXXX1, IN210QBNEXXX5, IN402QBNBXXX1, IN4040WBNEXXX1, IN405QBNHXXX1, IN410QLBNEXXX1, IN420QLBNEXXX1, IN510QBNEXXX5, IN702QLBNEXXX1, IN705QBNEXXX1, IN705QLBNEXXX1, IN710CBNEXXX1, IN710QBNEXXX1, IN710QLBNEXXX1, IN720QBNBXXX1, IN720QBNEXXX1, IN720QLBNBXXX1, IN720QLBNEXXX1, IN802QBNEXXX1, IN810CBNEXXX1, IN810QLBNBXXX1, IN1020QLBNEXXXH, IN1010QBNEXXX1, IN1405QLBNEXXX1, IN710QBNEXXX4, IN11D20QBNEXXX1, IN1005QBNEXXX1, IN12XBNEXXX1, 2041150008, 2041080023, 2041023013, IN1810QBNEXXX1, 2041150013, 2041009005, IN810QLBNEXXX3, IN11D10QBNEXXX1, IN010QBNEXXX1, 2041030010, 2041050062, 2041050013, 2041060010, 2041006008, IN11E05QBNEXXX1, IN1120QLBNEXXX1, 2041017005, 2041039028, 2041050020, 2041100015, 2041200008, IN1010QLBNBXXX1, IN1020QBNEXXX3, IN11A20QLNBEXXX1, IN1202QBNEXXX1, IN1210QBNBXXX1, IN1210QBNEXXXA, IN1220QBNHXXX1, IN13060WBNEXXX1, IN15120WBNBXXX3, IN15120WBNEXXX3, IN15A10QBNEXXX1, IN15XXXLBNEXXX1, IN1610QBNBXXX1, IN3XXXVNEXXX1, IN810CBNEXXX3
