TTF Series
The perfect solution for marine applications where the use of aluminum is restricted. These filters are designed to handle a maximum flow of 500 l/min and a maximum pressure of 10 bar, making them an ideal choice for hydraulic system designers and specifiers seeking reliable filtration options.
For sales or commercial inquiries please contact us at marine@insatech.com.
The STF Tank top mounted return filters from Parker, comes equipped with a magnetic column and a bypass with low hysteresis for efficient pre-filtration. Employing the "In-to-Out" filtration principle, the filter prevents contaminated oil from seeping back into the system. Crafted with a cast iron filter head assembly, this filter is well-suited for marine applications that require non-aluminum materials. With a filter head that boasts multiple ports, it can easily handle flow rates of up to 500 liters per minute at 10 bar working pressure, making it a convenient and effective option for integrating return line filtration with power packs. Additionally, standard airtight diffusers are available as an optional feature to prevent air ingress in the return line.
The STF series offer several advantages for marine applications where the use of aluminum is restricted, featuring:

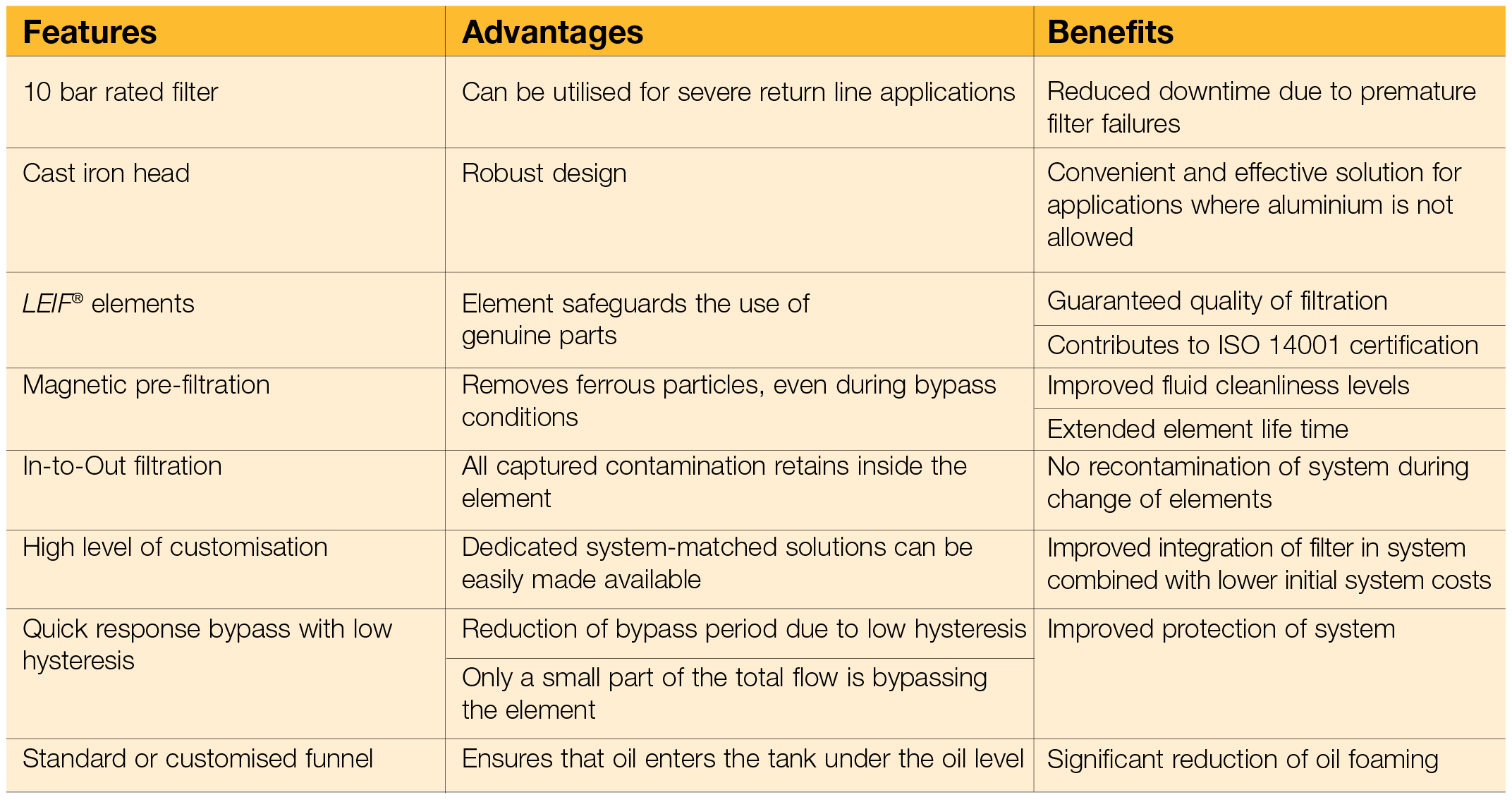

The STF Series have various features, advantages, and benefits that you can use:
| Operation pressure | Max. 10 bar |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Assembly | Tank top mounted |
||||||||||||||||||
| Connections |
|
||||||||||||||||||
| Filter housing and cover | Cast Iron (GGG40) |
||||||||||||||||||
| Seal material |
|
||||||||||||||||||
| Operation temperature range |
|
||||||||||||||||||
| Bypass setting | Opening pressure 0.8 / 1.5 / 2 bar |
||||||||||||||||||
| Degree of filtration | Determined by multipass test according to ISO 16889. |
||||||||||||||||||
| Flow fatigue characteristics | Filter media is supported so that the optimum fatigue life is achieved |
||||||||||||||||||
| Filtration media |
|
||||||||||||||||||
| Element burst rating | 10 bar (ISO 2941) |
||||||||||||||||||
| Pressure indicator options |
|
||||||||||||||||||
| Options |
|
||||||||||||||||||
| Magnetic pack | Standard, only not included for STF 400 and 500 |
||||||||||||||||||
| Filter element |
|
||||||||||||||||||
