The 10MFP Series portable filter cart is a mobile filtration device that removes free water and contaminants from hydraulic fluid. The 10MFP hydraulic trolley is the ideal way to pre-filter whilst transferring fluids into reservoirs or to clean up a system and is capable of pre-filtering and transferring fluid at 38 l/min.
For sales or commercial inquiries please contact us at marine@insatech.com.
It is necessary to filter hydraulic fluids before use, because most new fluids (right out of the drum) contains high levels of contamination (solid particulate matter and water).
If the fluid is not polished and/or cleansed before entering the hydraulic circuit, these contaminations can significanly impact system performance and cause damage to critical component. This can lead to shorter maintenance intervals, added downtime and increased costs.

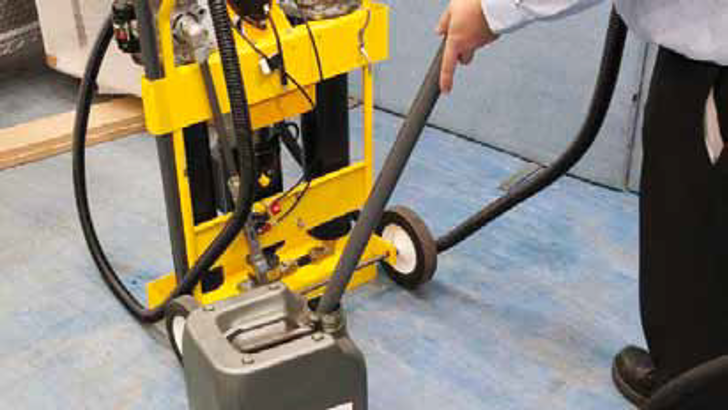

This 10MFP Series portable filtration trolley / cart from Parker is a CE certified, mobile field service maintenance tool. With this on you hand, you can ensure the performance and reliability of heavy equipment by removing free water and contaminants, that often make their way into hydraulic fluid during mixing, handling, transfer and storage.
Experience hifh-efficiency filtration and log-term dependability, which is vital to todays's hydraulic systems, with the two high-capacity ModuflowTM Plus Series filters. The first stage inlet filter (20 or 40 micron synthetic) captures larger particles, while the second stage outlet filter (2, 5, 10 or 20 micron) removes finer particles.
By installing Par-Gel elements in the outlet filter, which are made from a polymer that has a very high affinity for free water (water that is above a particular fluid’s saturation level), you can remove water.
The icountPD particle detector can be mounted to the standard frame of the filter cart for enhanced monitoring of your hydraulic system (allow accurate detection of particulate when transferring oil).
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum Recommended Fluid Viscosity: | 108 cSt |
||||||||||||||||||
| Visual Indicator (outlet filter) | Visual differential type 3-band (clean, change, bypass) |
||||||||||||||||||
| Filter Bypass Valve Settings | Integral to Element:
|
||||||||||||||||||
| Flow rate | 38 l/min |
||||||||||||||||||
| Operating Temperature | -40°C ... +66°C |
||||||||||||||||||
| Electrical Service Required | 240 volts, 60/50 Hz, single phase |
||||||||||||||||||
| Electrical Motor | ¾ hp @ 3450 rpm, O.D.P. |
||||||||||||||||||
| Construction |
|
||||||||||||||||||
| Weight | 45.4kg |
||||||||||||||||||
