Racor Turbine Series FF/WS have exceptional water removing efficiency for both bulk and emulsified water, low restriction of fuel flow and high dirt-holding capacity. The heart of the system is the three coalescing and filtration stages powered by the patented Aquabloc® filter element.
Key features:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
To avoid issues with blocked filter, bypassing, split or leaking seals, dirty fuel reaching engine, water in fuel reaching engine, cracked head casting, contains banned substances, cracked clear bowl and filter accessories, Racor has commited to Quality by:
An integral bail handle makes change-outs easy.
Racor’s toll-free number is shown on the end cap. It puts you in touch with Racor’s technical service staff who can answer any availability, application, or service question.
Aquabloc® media is a blend of high-grade cellulose compounded with resins and a special chemical treatment.
Genuine Racor Turbine Series are compatible with UL Approved Turbine Housings
Diesel engine injector tolerances are measured in microns and the latest engines inject fuel at pressures over 30,000 psi (207 kPa). Under these conditions the smallest particle of dirt or water can score and erode precision components, leading to damage to engines, operations and profitability.

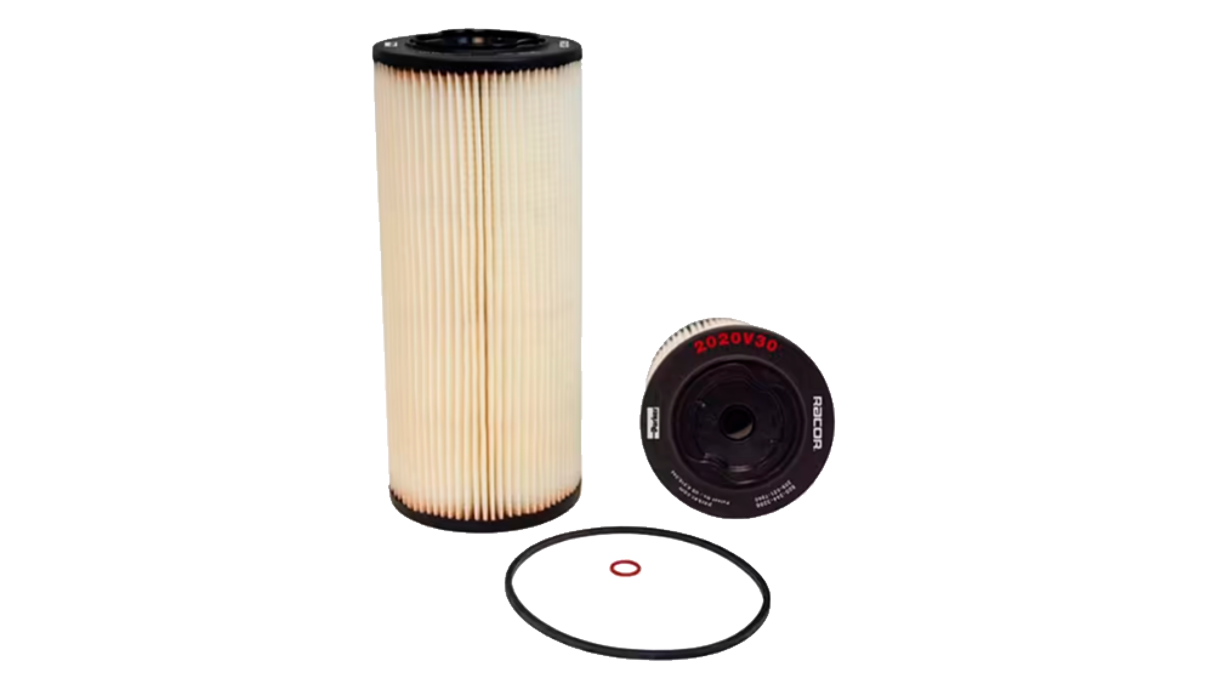

Racor 2020V30 have exceptional water removing efficiency for both bulk and emulsified water, low restriction of fuel flow and high dirt-holding capacity. The heart of the system is the three coalescing and filtration stages powered by the patented Aquabloc® filter element.
| Products | Status | Product Style | Micron Rating | Height | Compatible Series |
|---|---|---|---|---|---|
| 2010PM-OR | Tan potted end caps | 98% @ 30 Micron | 2.7" (6.9 cm) | Filter Housing: 500 | |
| 2010SM-OR | Tan potted end caps | 98% @ 4 Micron | 2.7" (6.9 cm) | Filter Housing: 500 | |
| 2010TM-OR | Tan potted end caps | 98% @ 10 Micron | 2.7" (6.9 cm) | Filter Housing: 500 | |
| 2020PM-OR | Tan potted end caps | 98% @ 30 Micron | 9.6" (24.4 cm) | Filter Housing: 1000 | |
| 2020SM-OR | Tan potted end caps | 98% @ 4 Micron | 9.6" (24.4 cm) | Filter Housing: 1000 | |
| 2020TM-OR | Tan potted end caps | 98% @ 10 Micron | 9.6" (24.4 cm) | Filter Housing: 1000 | |
| 2040PM-OR | Tan potted end caps | 98% @ 30 Micron | 4.6" (11.7 cm) | Filter Housing: 900 | |
| 2040SM-OR | Tan potted end caps | 98% @ 4 Micron | 4.6" (11.7 cm) | Filter Housing: 900 | |
| 2020N-30 | Black molded endcaps | 98% @ 30 Micron | 9.6" (24.4 cm) | Filter Housing: 1000 | |
| 2020N-02 | Black molded endcaps | 98% @ 4 Micron | 9.6" (24.4 cm) | Filter Housing: 1000 | |
| 2020N-10 | Black molded endcaps | 98% @ 10 Micron | 9.6" (24.4 cm) | Filter Housing: 1000 | |
| 2040N-30 | Black molded endcaps | 98% @ 30 Micron | 4.6" (11.7 cm) | Filter Housing: 900 | |
| 2040N-02 | Black molded endcaps | 98% @ 4 Micron | 4.6" (11.7 cm) | Filter Housing: 900 | |
| 2040N-10 | Black molded endcaps | 98% @ 10 Micron | 4.6" (11.7 cm) | Filter Housing: 900 | |
| 2020V10 | Black molded endcaps | 98% @ 10 Micron | 9.6" (24.4 cm) | Filter Housing: 1000FV and 1000 | |
| 2020V10-BP240 | Black molded endcaps | 98% @ 10 Micron | 9.6" (24.4 cm) | Filter Housing: 1000FV and 1000 | |
| 2020V2 | Black molded endcaps | 98% @ 4 Micron | 9.6" (24.4 cm) | Filter Housing: 1000FV and 1000 | |
| 2020V30 | Black molded endcaps | 98% @ 30 Micron | 9.6" (24.4 cm) | Filter Housing: 1000FV and 1000 | |
| 2020V30-BP240 | Black molded endcaps | 98% @ 30 Micron | 9.6" (24.4 cm) | Filter Housing: 1000FV and 1000 | |
| 2040V10 | Black molded endcaps | 98% @ 10 Micron | 4.6" (11.7 cm) | Filter Housing: 900FV and 900 | |
| 2040V10-BP480 | Black molded endcaps | 98% @ 10 Micron | 4.6" (11.7 cm) | Filter Housing: 900FV and 900 | |
| 2040V2 | Black molded endcaps | 98% @ 4 Micron | 4.6" (11.7 cm) | Filter Housing: 900FV and 900 | |
| 2040V30 | Black molded endcaps | 98% @ 30 Micron | 4.6" (11.7 cm) | Filter Housing: 900FV and 900 | |
| 2040V30-BP480 | Black molded endcaps | 98% @ 30 Micron | 4.6" (11.7 cm) | Filter Housing: 900FV and 900 | |
| 2020V2LL | Long Life Element with Black molded endcaps | 98% @ 10 Micron | 9.6" (24.4 cm) | Filter Housing: 1000FV and 1000 | |
| 2040V2LL | Long Life Element with Black molded endcaps | 98% @ 10 Micron | 4.6" (11.7 cm) | Filter Housing: 900FV and 900 | |
| 2020V2-BP240 | Black molded endcaps | 98% @ 4 Micron | 9.6" (24.4 cm) | Filter Housing: 1000FV and 1000 | |
| 2010-149W | Tan potted end caps | 100 Micron | 2.7" (6.9 cm) | Filter Housing: 500 | |
| 2010TL-OR | Tan potted end caps | 98% @ 10 Micron | 2.7" (6.9 cm) | Filter Housing: 500 | |
| 2020-149W | Tan potted end caps | 100 Micron | 9.6" (24.4 cm) | Filter Housing: 1000 | |
| 2020TL-OR | Tan potted end caps | 98% @ 10 Micron | 9.6" (24.4 cm) | Filter Housing: 1000 | |
| 2040-149W | Tan potted end caps | 100 Micron | 4.6" (11.7 cm) | Filter Housing: 900 | |
| 2040TL-OR | Tan potted end caps | 98% @ 10 Micron | 4.6" (11.7 cm) | Filter Housing: 900 | |
| 2010PM-OR-BP720 | Tan potted end caps | 98% @ 30 Micron | 2.7" (6.9 cm) | Filter Housing: 500 | |
| 2010TM-OR-BP720 | Tan potted end caps | 98% @ 10 Micron | 2.7" (6.9 cm) | Filter Housing: 500 | |
| 2020PM-OR-BP240 | Tan potted end caps | 98% @ 30 Micron | 9.6" (24.4 cm) | Filter Housing: 1000 | |
| 2020SM-OR-BP240 | Tan potted end caps | 98% @ 4 Micron | 9.6" (24.4 cm) | Filter Housing: 1000 | |
| 2020TM-OR-BP240 | Tan potted end caps | 98% @ 10 Micron | 9.6" (24.4 cm) | Filter Housing: 1000 | |
| 2040PM-OR-BP480 | Tan potted end caps | 98% @ 30 Micron | 4.6" (11.7 cm) | Filter Housing: 900 | |
| 2040TM-OR-BP480 | Tan potted end caps | 98% @ 10 Micron | 4.6" (11.7 cm) | Filter Housing: 900 | |
| 2000PM-OR | Tan potted end caps | 98% @ 30 Micron | 2.84" (7.2 cm) | Housing: 200FG | |
| 2000SM-OR | Tan potted end caps | 98% @ 4 Micron | 2.84" (7.2 cm) | Housing: 200FG | |
| 2000TM-OR | Tan potted end caps | 98% @ 10 Micron | 2.84" (7.2 cm) | Housing: 200FG | |
| 2020PMF | Tan potted end caps | 98% @ 30 Micron | 9.6" (24.4 cm) | Obsolete | |
| 48029-10 | Tan potted end caps | 98% @ 10 Micron | 6.7" (17.0 cm) | Housing : 777 | |
| 48029-30 | Tan potted end caps | 98% @ 10 Micron | 6.7" (17.0 cm) | Housing : 777 |
Opting for subpar media means facing early performance issues, with potential blockages occurring up to 70% sooner compared to Racor's superior Aquabloc® media. Racor's proprietary Aquabloc® media surpasses OEM fuel injection systems' standards for water removal and particle efficiency, ensuring optimal performance and longevity.
Inferior filter construction can lead to internal bypass, permitting contaminated fuel and water to reach the engine. However, Racor employs top-notch materials and adheres to ISO/TS16949 production standards to eradicate bypass issues, ensuring only clean, quality fuel reaches your engine.
Substandard seals can swell excessively, leading to leaks and premature deterioration. However, Racor implements high-quality automotive-grade gaskets and seals, including NBR, HNBR, and Viton®, ensuring compatibility with B20 bio-diesel and longevity throughout the service period.
Ineffective filters fail to safeguard the engine adequately. However, Racor replacement filters are engineered to perform precisely as intended for their designated application, ensuring optimal engine protection.
Most copycat filters fall short of meeting original equipment specifications. However, Racor maintains consistency by utilizing identical media and materials in both original equipment and replacement filters, ensuring performance to the highest standards.
Low-quality pump diaphragms and seals can harden over time, leading to leaks. However, Racor employs premium materials specifically rated for operating temperatures ranging from -40°F to +255°F (-40°C to +124°C), ensuring durability and preventing potential leakage issues.
Certain copy filters may contain prohibited substances in their canister coating and plating. In contrast, Racor canisters are free from any banned substances and undergo thorough validation testing in extreme salt spray and climatic conditions, ensuring compliance and durability.
Unauthorized Racor copies often lack necessary accessories, and if they do include them, they likely haven't undergone testing. Conversely, Racor provides a comprehensive selection of filter accessories meticulously validated for integrity, EMC compatibility, and safety, ensuring optimal performance and reliability.
Our team of Sales Specialists
Tel.: +45 5537 2095
Email: quotes@insatech.com
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
Insatech supplies high-performance Racor fuel filters, water separators, and replacement filter elements engineered for modern diesel engines. Backed by Parker Hannifin’s certified manufacturing, Racor technology ensures clean, dry fuel and dependable engine protection.
Racor filtration delivers reliable fuel separation, long service life, and proven performance for marine and industrial applications.
Racor Marine Systems are built on advanced filtration technology designed to keep engines running reliably in demanding conditions. The proprietary Aquabloc® media delivers superior contaminant and water removal while maintaining consistent fuel flow, ensuring stable engine performance even when fuel quality fluctuates or environments are harsh.
| Overall Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Racor |
||||||||||||||||||
| Application | Diesel Engines |
||||||||||||||||||
| Product Series | Cartridge FF/WS, Turbine |
||||||||||||||||||
| Micron Rating | 98% @ 30 Micron |
||||||||||||||||||
| Fluid Type | B20 |
||||||||||||||||||
| Compatible Series | Filter Housing: 1000FV and 1000 |
||||||||||||||||||
