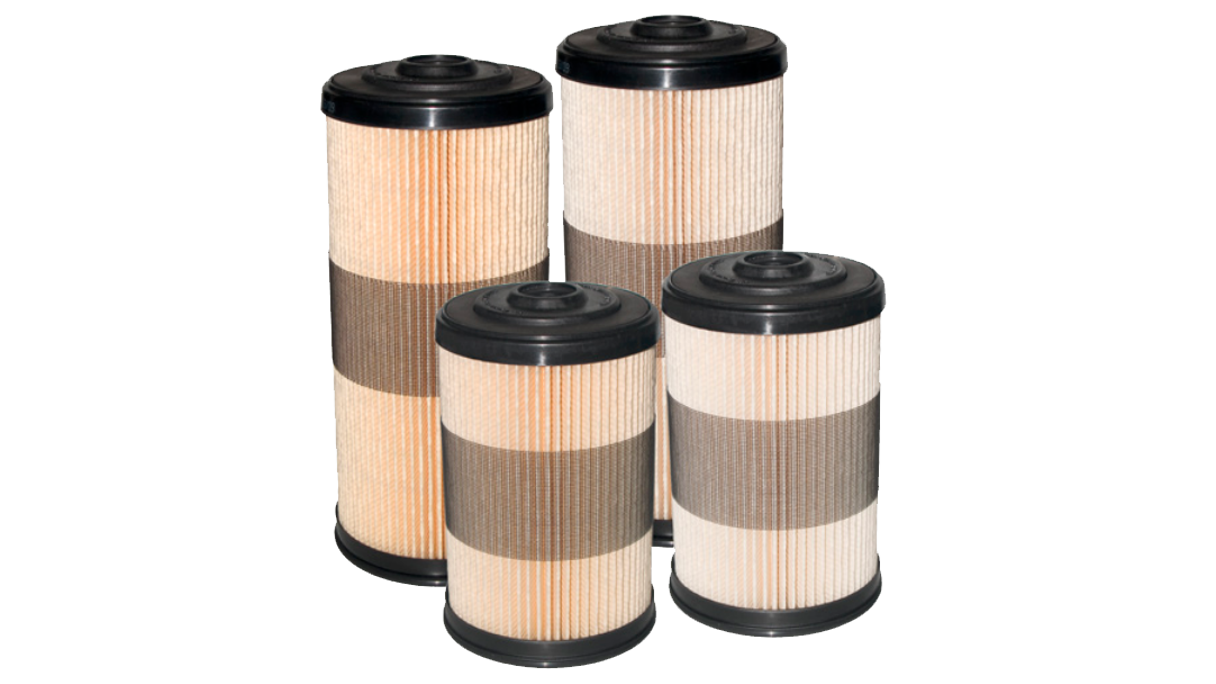

Racor FBO Series Replacement Cartridges are designed for use with FBO Filtration Assemblies. They are available as water separators, silicone-treated particle removers, and water-absorbing filters, with ratings of 1, 5, 10, or 25 microns.
Key features:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
To avoid issues with blocked filter, bypassing, split or leaking seals, dirty fuel reaching engine, water in fuel reaching engine, cracked head casting, contains banned substances, cracked clear bowl and filter accessories, Racor has commited to Quality by:
Removes water that enters the system during refueling.
Removes hard particles present in air that are introduced during fueling, such as sand and silica.
Prevents costly injector damage and increases operational life of downstream filters.
Saves time and money by eliminating unplanned maintenance and unscheduled downtime from system component failure.
Available in a wide range of configurations to meet the unique requirements of customers’ engines, including marine (UL-approved) versions.
Locking ring collar allows a single person to easily perform filter change-outs
The FBO filtration assembly can be used on mobile refuelers or installed in refueling cabinets. The unit can also be used for diesel fuel dispensing pumps or as a primary fuel filter/water separator on large diesel engines. The FBO assembly features a locking ring collar, which attaches the filter housing to the aluminum die-cast filter head with four bolts. The closure hardware allows maintenance personnel – even one person – to easily change out the filter cartridge element.

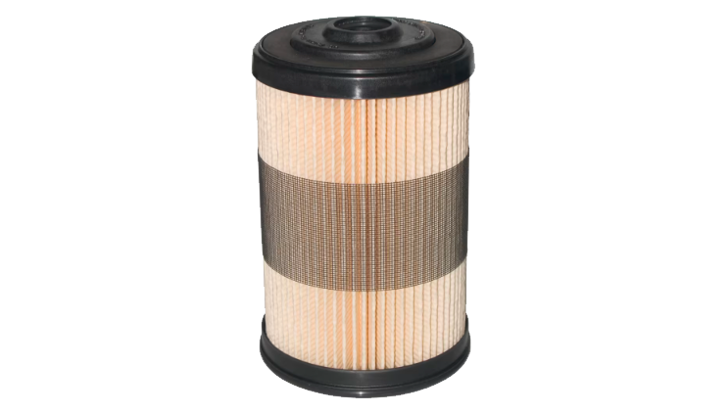

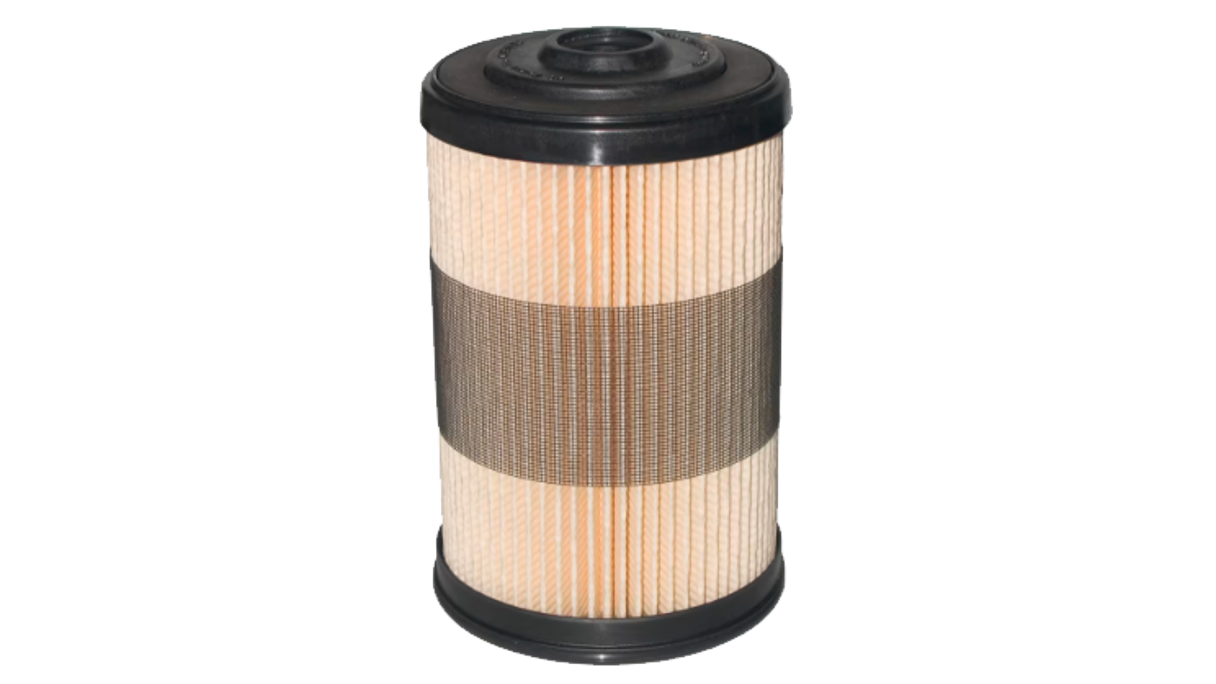

Replacement cartridges are available in three options:
Coalescer/Separator - Coalescer/separator filters are a two-stage element that removes water and contaminants from diesel fuel streams.
| Part Number | Assembly | Element Type | Micron Rating | Cartridge Code |
|---|---|---|---|---|
| FBO 60327 | FBO-10 | Water Separator | 1 | C10/1 |
| FBO 60328 | FBO-10 | Water Separator | 5 | C10/5 |
| FBO 60353 | FBO-10 | Water Separator | 10 | C10/10 |
| FBO 60329 | FBO-10 | Water Separator | 25 | C10/25 |
| FBO 60336 | FBO-14 | Water Separator | 1 | C14/1 |
| FBO 60337 | FBO-14 | Water Separator | 5 | C14/5 |
| FBO 60356 | FBO-14 | Water Separator | 10 | C14/10 |
| FBO 60338 | FBO-14 | Water Separator | 25 | C14/25 |
| FBO 60330 | FBO-10 | Silicone Treated | 1 | F10/1 |
| FBO 60331 | FBO-10 | Silicone Treated | 5 | F10/5 |
| FBO 60354 | FBO-10 | Silicone Treated | 10 | F10/10 |
| FBO 60332 | FBO-10 | Silicone Treated | 25 | F10/25 |
| FBO 60339 | FBO-14 | Silicone Treated | 1 | F14/1 |
| FBO 60340 | FBO-14 | Silicone Treated | 5 | F14/5 |
| FBO 60357 | FBO-14 | Silicone Treated | 10 | F14/10 |
| FBO 60341 | FBO-14 | Silicone Treated | 25 | F14/25 |
| FBO 60333 | FBO-10 | Water Absorber | 1 | W10/1 |
| FBO 60334 | FBO-10 | Water Absorber | 5 | W10/5 |
| FBO 60355 | FBO-10 | Water Absorber | 10 | W10/10 |
| FBO 60335 | FBO-10 | Water Absorber | 25 | W10/25 |
| FBO 60342 | FBO-14 | Water Absorber | 1 | W14/1 |
| FBO 60343 | FBO-14 | Water Absorber | 5 | W14/5 |
| FBO 60358 | FBO-14 | Water Absorber | 10 | W14/10 |
| FBO 60344 | FBO-14 | Water Absorber | 25 | W14/25 |
| FBO 60363 | FBO-10 | Advanced Coalescer | 10 | FBO 60363 |
| FBO 60364 | FBO-14 | Advanced Coalescer | 10 | FBO 60364 |
| FBO 60362 | FBO-10 | Water Separator | 10.0 | FBO 60362 |
Opting for subpar media means facing early performance issues, with potential blockages occurring up to 70% sooner compared to Racor's superior Aquabloc® media. Racor's proprietary Aquabloc® media surpasses OEM fuel injection systems' standards for water removal and particle efficiency, ensuring optimal performance and longevity.
Inferior filter construction can lead to internal bypass, permitting contaminated fuel and water to reach the engine. However, Racor employs top-notch materials and adheres to ISO/TS16949 production standards to eradicate bypass issues, ensuring only clean, quality fuel reaches your engine.
Substandard seals can swell excessively, leading to leaks and premature deterioration. However, Racor implements high-quality automotive-grade gaskets and seals, including NBR, HNBR, and Viton®, ensuring compatibility with B20 bio-diesel and longevity throughout the service period.
Ineffective filters fail to safeguard the engine adequately. However, Racor replacement filters are engineered to perform precisely as intended for their designated application, ensuring optimal engine protection.
Most copycat filters fall short of meeting original equipment specifications. However, Racor maintains consistency by utilizing identical media and materials in both original equipment and replacement filters, ensuring performance to the highest standards.
Low-quality pump diaphragms and seals can harden over time, leading to leaks. However, Racor employs premium materials specifically rated for operating temperatures ranging from -40°F to +255°F (-40°C to +124°C), ensuring durability and preventing potential leakage issues.
Certain copy filters may contain prohibited substances in their canister coating and plating. In contrast, Racor canisters are free from any banned substances and undergo thorough validation testing in extreme salt spray and climatic conditions, ensuring compliance and durability.
Unauthorized Racor copies often lack necessary accessories, and if they do include them, they likely haven't undergone testing. Conversely, Racor provides a comprehensive selection of filter accessories meticulously validated for integrity, EMC compatibility, and safety, ensuring optimal performance and reliability.
Our team of Sales Specialists
Tel.: +45 5537 2095
Email: quotes@insatech.com
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
Insatech supplies high-performance Racor fuel filters, water separators, and replacement filter elements engineered for modern diesel engines. Backed by Parker Hannifin’s certified manufacturing, Racor technology ensures clean, dry fuel and dependable engine protection.
Racor filtration delivers reliable fuel separation, long service life, and proven performance for marine and industrial applications.
Racor Marine Systems are built on advanced filtration technology designed to keep engines running reliably in demanding conditions. The proprietary Aquabloc® media delivers superior contaminant and water removal while maintaining consistent fuel flow, ensuring stable engine performance even when fuel quality fluctuates or environments are harsh.
| Overall Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Racor |
||||||||||||||||||
| Application | Diesel and Gasoline |
||||||||||||||||||
| Product Series | Cartridge FF/WS |
||||||||||||||||||
| Filter Element Type | Cartridge Filter Element, Water Separator, Silicone Treated, Water Absorber, Advanced |
||||||||||||||||||
| Type | Coalescer |
||||||||||||||||||
| Micron Rating | 1, 5, 10, or 25 microns |
||||||||||||||||||
| Fluid Type | Diesel, Kerosene, Gas |
||||||||||||||||||
| Compatible Series | FBO Series |
||||||||||||||||||
