Yokogawa Rotamass TI Nano

Use this flowmeter for your application with low flow. A small dual bent tube Coriolis flowmeter series for highly accurate measurement at lowest flows.

The dual tube design compensates for fluctuations of density, temperature, pressure and environment conditions, which provides a consistent repeatable and accurate measurement especially for small size Coriolis flowmeters.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

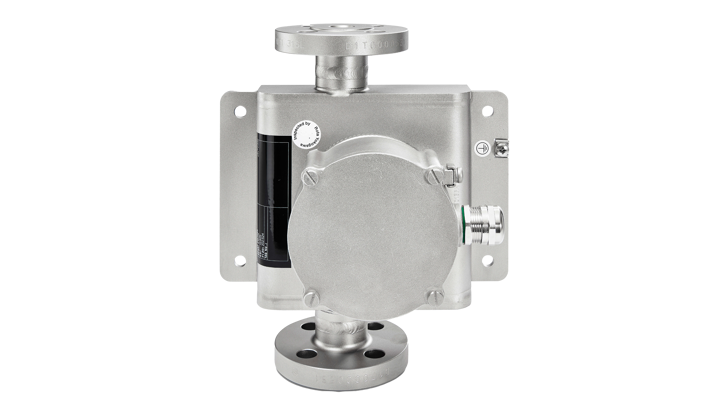

Insatech Yokogawa Rotamass TI Nano RCEN15K Front 1440P 16 9

Typical Applications

  • Batching
  • Dosing
  • Blending
  • Chemical injection
  • Dosing systems
  • High pressure gases
  • Liquid and gas low flow measurement
  • Precision coatings
  • Metering pump control
  • Metrology
  • R&D laboratory
  • Vacuum thin film coating

Two Options of Transmitters

The ROTAMASS TI product family uses a common transmitter platform with two options that give you the highest flexibility.

The Essential transmitter is the cost effective solution for general applications.
The Ultimate transmitter provides various additional features to give you the best possible measurement, and is used for demanding & critical applications.

Insatech Yokogawa Rotamass TI Ultimate Transmitter Perspective 1440P 16 9

Essential Transmitter

  • Multilingual wizard for easy setup and guidance through the main configuration
  • “Event Management” as unique and useful support to run the process effectively and safely
  • Data mobility provided by microSD card for easy transfer to other devices for fast setup or to pc for in-dept process analysis or remote service
  • Widest range of I/O combinations in the market for most flexible adjustment to the existing system periphery
  • Universal power supply to install the device anywhere in the world
  • Hart, Modbus communiction
  • NAMUR NE95 compliance, SIL 2 and SIL 3 compliance


Ultimate Transmitter

  • Patented “Tube Integrity” function and “Total Health Check” for inline meter verification without disturbing running measurements
  • “Features on demand” for easy expansion of special functions via software activation key
  • Batching function and Viscosity function
  • “Dynamic Pressure Compensation” for consistently accurate and stable measurement even with significant fluctuations in operating pressures
  • Inline concentration measurement
  • Integrated net oil computing acc. API standard
  • Hart, Modbus, Foundation Fieldbus, Profibus PA communication

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com


Contact us now

Technical Specifications
Max. Mass flow

1.5 t/h

  • Mass flow for liquids up to: ± 0.1 %
  • Mass flow for gas up to: ± 0.35 %
  • Density for liquids up to: ± 0.5 g/l
Process temperature

-50 to +260 °C / -58 to +500 °F

Process pressure up to

285 bar or 460 bar on demand / 4183 psi or 6672 psi on demand

Line sizes
  • DN15, DN25, DN40
  • ¼", ⅜", ½", ¾", 1", 1½"

Yokogawa FlowConfigurator

With Yokogawa's FlowConfigurator you can find and select the flow meter that best meets your specific needs and requirements. The FlowConfigurator allows you to generate your datasheet and save your sizing projects for later use.

The tool is free, but requires you to create an account.

Find the flowconfigurator here

Specifications & Manuals

  • Technical Specifications - Yokogawa ROTAMASS TI Nano
    English | pdf
  • Brochure - Yokogawa ROTAMASS TI
    English | pdf
  • Manual - Yokogawa ROTAMASS TI
    English | pdf
