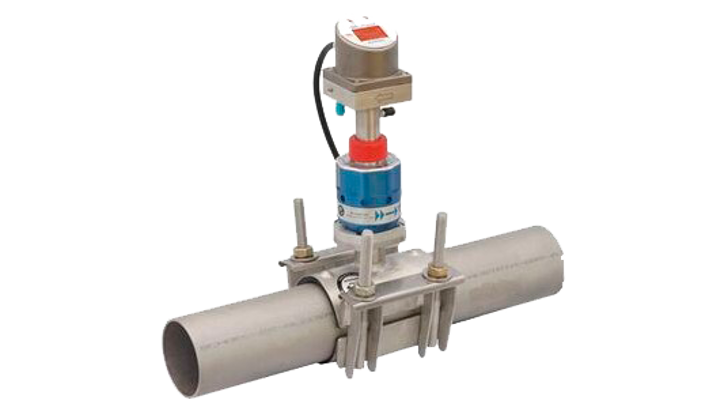

The deltaflowC from systec Controls is a revolutionary gas flow meter that operates on the advanced differential pressure (dp) principle for measuring gas massflow.
Features:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
DeltaflowC measures mass flow and compensates for changes in (static) pressure and temperature. Compared to other technologies such as thermal mass flow meters, deltaflowC is highly resistant to long-term operational issues like fouling and dust accumulation on the sensor surface. Its intelligent zero-drift compensation algorithms make deltaflowC a maintenance-free flow meter. It can be used across a wide range of flow rates, temperatures, and pressures.
DeltaflowC is available in a single size for all pipe diameters, making it advantageous to keep in stock.

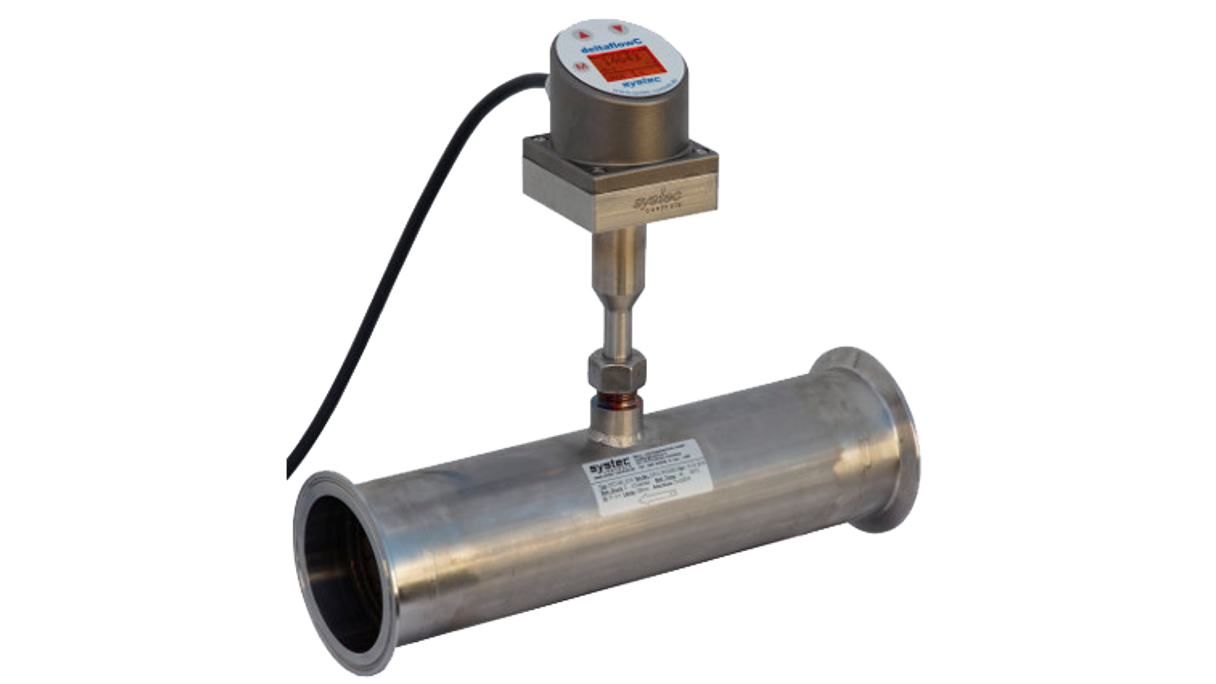

The deltaflowC gas flow meter delivers a complete, all-in-one solution by measuring gas mass flow and volume while simultaneously monitoring process pressure and temperature.
Specifically designed for controlling and monitoring ventilation systems and various gas applications in pipes and ducts, deltaflowC is an ideal choice for differential pressure flow metering. It’s perfectly suited for use as both a compressed air meter and a gas mass flow meter.

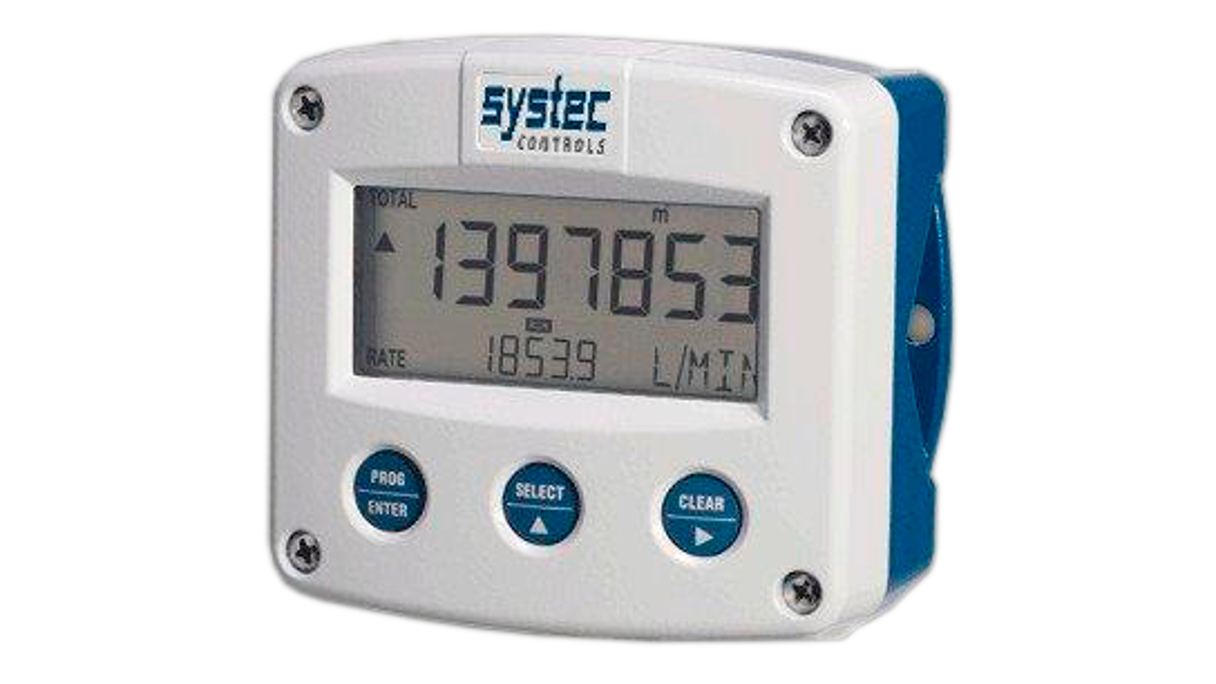

The two units work perfectly together: while deltaflowC collects all relevant data, the deltaflowC F012 display uses the data from the 4...20 mA or 0...10 V interface to show not only the current flow but also the totalized flow (totalizer).
At the same time, deltaflowC supplies the display with the required operating voltage - a symbiosis that enables an affordable, professional solution!

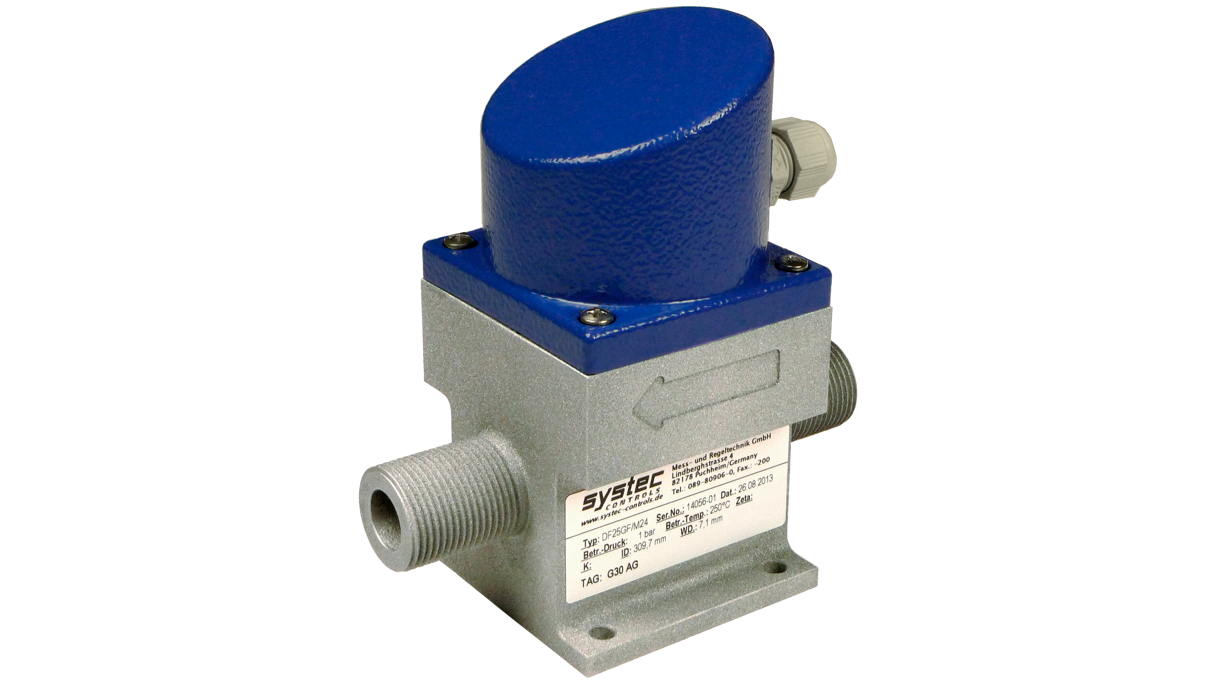

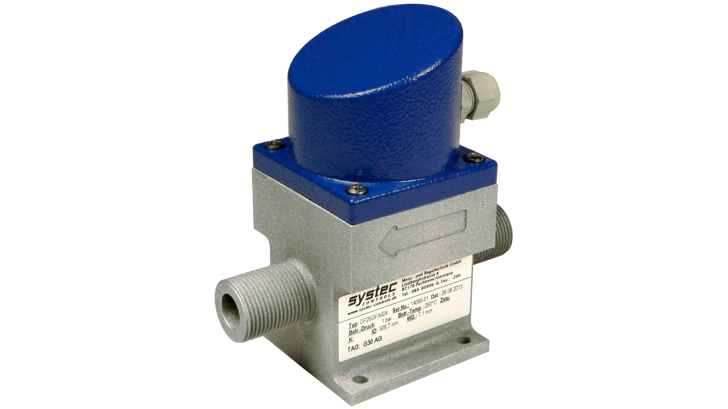

In addition to the standard version, a compact venturi version of the deltaflowC is available for pipe diameters from ¾" to 2". This version features simple threads for easy installation, which is particularly advantageous for small pipes.
The venturi version can cover a wide range of flow velocities by selecting different diameters.
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Systec Controls |
||||||||||||||||||
| Outputs | 1×4…20mA, 1×0…10V |
||||||||||||||||||
| Supply | 18-36VDC |
||||||||||||||||||
| Ambient Temperature | -40..120°C |
||||||||||||||||||
| Fluid Pressure | 0..10bar a |
||||||||||||||||||
| Fluid Temperature | -80..250°C |
||||||||||||||||||
| Burst Pressure | 16bar |
||||||||||||||||||
| Primary Element | SS 1.4571 |
||||||||||||||||||
| Housing Material | SS316 |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
