Evaluation unit with digital display - Two input signals

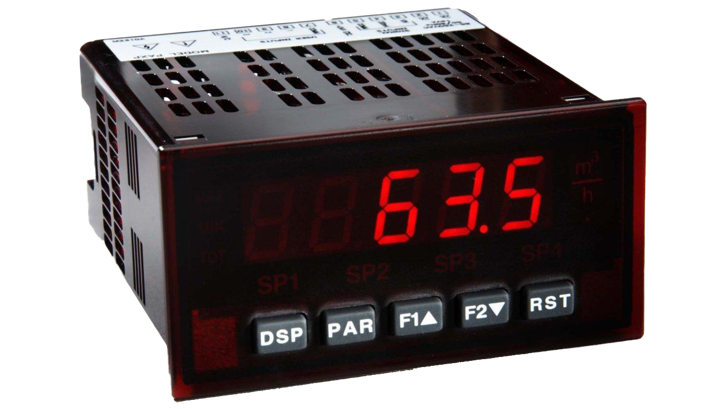

Digital display PAX DP Dual Process Input Meter
The PAX DP digital display unit converts analog signals from flow and vent-captor units into digital values. It accepts two input signals (0/4 - 20 mA or 0 - 10 VDC), independently scaling and displaying them.
5 digit display, 14 mm high, red LED
Display setting: MIN/MAX/TOT/IST
Up to 105 measurements per second / 16bit resolution
16 step linearisation
Programmable by push buttons at the unit itself or by PC
With a 5-digit display and the capability to process up to 105 measurements per second, the PAX DP Series ensures precise real-time monitoring. Explore the features, including flexible operating voltages and additional output function cards, providing a comprehensive solution tailored to your marine applications.
The unit is equipped with five front-panel push buttons for operation. During programming, users can specify which displayed values and programmed data are changeable or protected after activating the programming stop.
Totalizer Functionality
The signal totalizer allows computation of a time-input product, enabling a readout of totalized flow. With a flexible unit comprising a time base and factor, it provides versatile functionality.
Customizable Units
Individual physical units ( e.g., m³/h) can be positioned behind the transparent front panel, illuminated by a background light for enhanced visibility.
