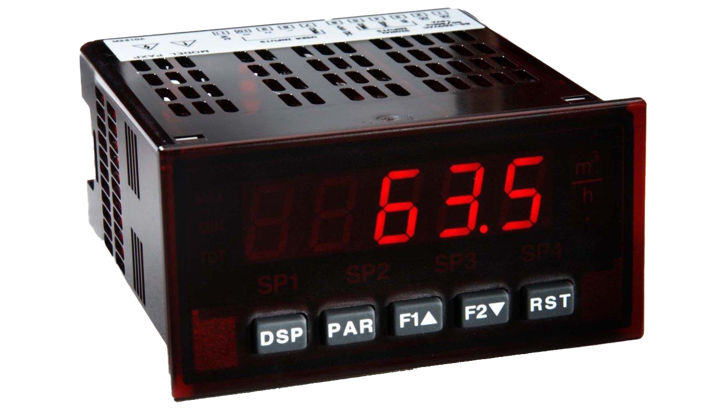

Digital Display PAX P Process Input Meter

The digital display unit PAX P from Weber Sensors serves as a converter for analog output signals generated by flow and vent-captor units, transforming them into digital values.

  • 5-digit display with 14mm high red LED
  • Display settings: Actual Value (IST) or Totalized Value (TOT)
  • 20 measurements per second, 16 Bit resolution
  • 16-step linearization for enhanced accuracy
  • Programmable via push buttons on the unit or through a PC

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Control and display features

Handling

The unit is equipped with five front-panel push buttons for operation. During programming, users can specify which displayed values and programmed data are changeable or protected after activating the programming stop.

Totalizer Functionality

The signal totalizer allows computation of a time-input product, enabling a readout of totalized flow. With a flexible unit comprising a time base and factor, it provides versatile functionality.

Customizable Units

Individual physical units ( e.g., m³/h) can be positioned behind the transparent front panel, illuminated by a background light for enhanced visibility.

Technical specifications

Display: 5 digit display

Measuring: 20 measurements per second

Operating Voltage: 85 - 250 VAC

Output: Additional output function cards

Exactly what you need? Contact us here

Weber Sensors Captor Pax P

Additional Output Function Cards

PAXCDL10 / Analog Output:

  • Output signal options: 0 to 20 mA, 4 to 20 mA, or 0 to 10 VDC
  • Galvanic isolated output

PAXCDS40 / Transistor Output:

  • 4 x PNP - OC transistors
  • Max. 100 mA/30 V
  • Galvanic isolated output

PAXCDS10 / Relay Output:

  • 2 x relay, single-pole double-throw contact
  • 5 A at 120/240 VAC
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Mechanical data
Material housing

robust plastic housing, dark red
Relative air humidity

max. 85 %, no condensation
Ambient temperature

0 to 40 °C under function conditions
Protection standard

IP 65 on to front panel
Electrical Data
Supply voltage

85 - 250 VAC
Power consumption

15 VA
Input signals

0 to 20 mA, 4 to 20 mA, 0 to 10 V
Connection

backside terminal row
Additional Output Function Cards
PAXCDL10 / Analog output

output signal can be selected, 0 to 20 mA, 4 to 20 mA or 0 to 10 VDC output is galvanic isolated
PAXCDS40 / Transistor output

4 x PNP - OC transistors: max. 100 mA/30 V, galvanic isolated
PAXCDS10 / Relay output

2 x relay, single pole double throw contact 5 A at 120/230 VAC
  • Data Sheet - Digital display PAX P - Weber Sensors
    English | pdf
  • Instruction Manual - Digital display PAX P - Weber Sensors
    English | pdf
