Proxi Captor 2400.xx / 2500.xx

The analog proxi-captor 2400.xx / 2500.xx from Weber Sensors is an inductive proximity switch within a remote system, designed to be paired with a separate coil of the 28xx type for diverse customer applications. It is advisable for usage in challenging environmental conditions commonly encountered in heavy industries

  • Remote inductive proximity switch
  • Self-adjusting or manually adjustable
  • Robust due to full casting resin encapsulation
  • No moving parts
  • Rugged aluminium housing
  • ISO 9001:2015

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Adjustable and self-adjusting Proxi-Captors

The model 2400.xx is adjustable
The model 2500.xx is self-adjusting

The 2400.xx model boasts adjustability, offering users the flexibility to tailor its settings according to specific requirements. In contrast, the 2500.xx model is designed to be self-adjusting, ensuring a consistent oscillation in any operational scenario. This self-adjusting feature guarantees that the units adapt automatically to varying environmental conditions, maintaining a constant operating state even with temperature fluctuations.

In situations where a customizable switching range is essential, the 2400.xx proxi-captor comes equipped with a potentiometer, allowing users to easily make adjustments to meet their application needs. This versatile design ensures optimal performance and adaptability for a range of industrial settings.

Need more information? Contact us here

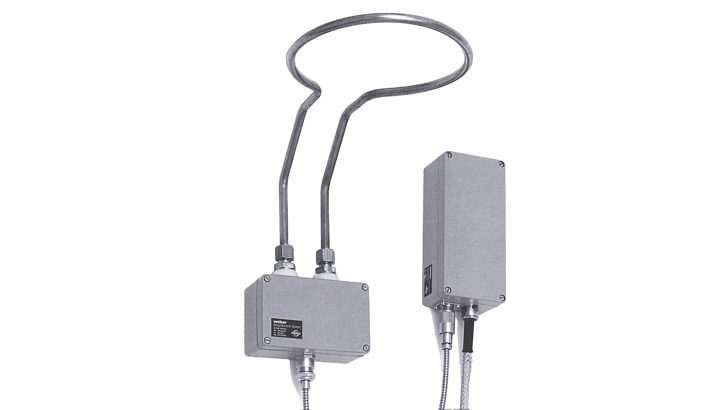

Weber Sensor Proxi Captor 28 2800 2400 2500 16 9

Features

  • Remote system
  • For ambient temperatures from -20 °C to +65 °C  (separate coil up to max. 200 °C)
  • Switching distances according to the shape and size of the coil
  • Self-adjusting or adjustable
  • Housing made of aluminium (full encapsulation)
  • Customized production

Does it match your need - contact us now

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Mechanical data
Types
  • 2400.xx
  • 2500.xx
Construction

Remote electronic unit
Housing material

Aluminium
Switching distance
  • 2400.xx: adjustable
  • 25000.xx: self-adjusting
Nominal switching distance (sn)

related to type of remote coil
Hysteresis

approx. 10 %
Ambient temperature

-10° C to + 65° C
Protection standard

IP 65
Function indicator logic
  • x.52: LED on when inactivated
  • x.53 / x.14 / x.15: LED on when activated
Mass

approx. 1.5 kg
Electrical data AC
Output
  • .52: n.c.
  • .53: n.o.
Supply voltage

Supply voltage must be specified

  • 115 VAC ± 15 %, 50 - 60 Hz
  • 230 VAC ±15%, 50 - 60Hz
  • other voltages on request


Current consumption unactivated

approx. 10 mA at 230 VAC
Voltage drop

approx. 10V
Trip point for overload protection

approx. 500 mA
Switching current

max. 300 mA, min. 20 mA
Electrical data DC
Output
  • .14: NPN n.c. / PNP n.o.
  • .15: NPN n.o. / PNP n.c.
Supply voltage

24 VDC ±15 %
Current consumption unactivated

approx. 18 mA
Voltage drop

2,5 V at 400mA
Trip point for overload protection

approx. 550 mA
Switching current

max. 400 mA
