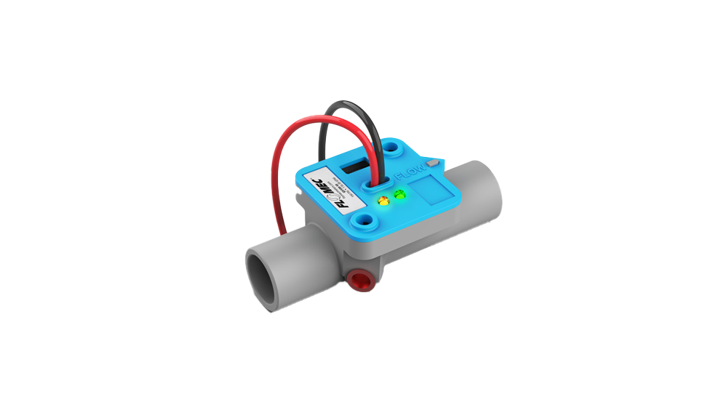

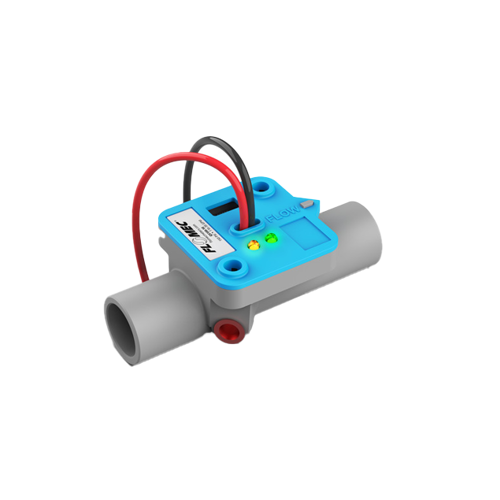

QS100 Turf Irrigation Flow Sensor
The Ultrasonic Turf Irrigation Flow Sensor in the QS100 Series from Flomec has no moving parts or flow restrictions, which makes it almost indestructible.
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
The QS100 Turf Irrigation Flow Sensor has the following features that benefits you:
The QS100 can be used in various settings including:
The QS100 measures water flow rates 5X LOWER than competing flow sensors. It literally senses leaky valves, blockages, and other problems.
This 1-inch flow sensor is not only economically priced but is also excellent for commercial and residential irrigation flow detection and measurement of small leaks and line breaks.
The ability to detect flows down to 0.22 GPM makes it ideal for low-flow drip zones.
In addition to its low-flow capabilities, ultra-sonic technology means no moving parts to wear out or fail when winterizing systems using compressed air.
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Housing Material | Schedule 80 PVC (Polyvinyl chloride) |
||||||||||||||||||
| Coverplate Materials | PC/ABS (Polycarbonate/Acrylonitrile Butadiene Styrene) |
||||||||||||||||||
| Wetted Materials | PVC (Polyvinyl chloride) |
||||||||||||||||||
| Type | Ultrasonic Flow Sensor |
||||||||||||||||||
| Unit of Measure | Controller Dependant |
||||||||||||||||||
| Flow Rate |
|
||||||||||||||||||
| Accuracy | +/- 2% of Reading |
||||||||||||||||||
| Uncertainty | 0.04 GPM / 0.018 ft/sec |
||||||||||||||||||
| Temperature Rating |
|
||||||||||||||||||
| Max Working Pressure | 150 psi @ 70° F (10.3 bar @ 21° C) |
||||||||||||||||||
| Field Calibration | No |
||||||||||||||||||
| Inlet / Outlet Connections | 1 in. Male Spigot |
||||||||||||||||||
| Weight | 0.42 lbs. (0.19 kg) |
||||||||||||||||||
| Electrical | Powered By:
Transducer Excitation:
Output Frequency:
Output Pulse Width:
|
||||||||||||||||||
