TMQ Series

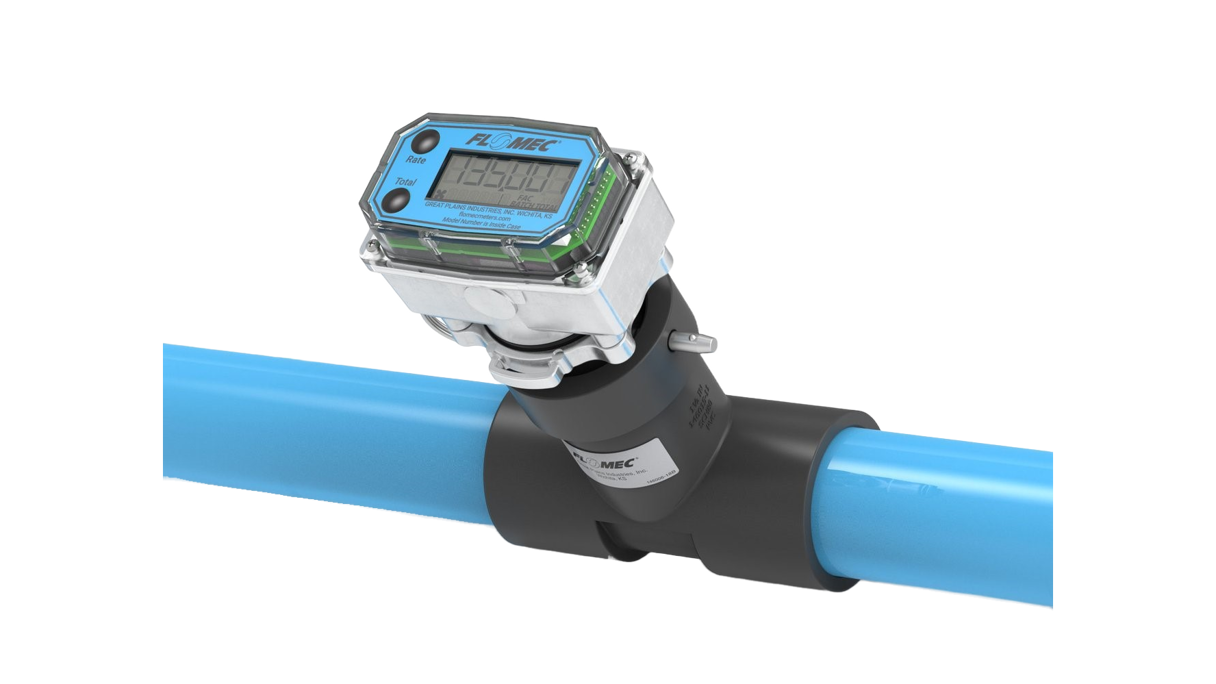

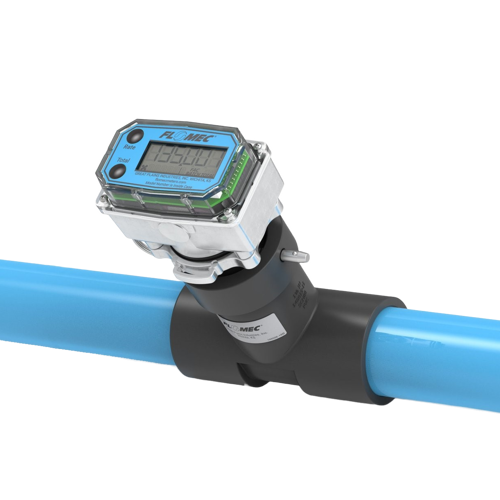

The TMQ series from Flomec is an ultrasonic flow meter with a Q9 display, which is engineered to deliver better performance, higher quality, and lower costs. Moreover, it is available with Saddle and Tee.

Key features include:

Easy to Read Local Display
± 2% Accuracy of Reading
No Moving Mechanical Parts (Low Maintenance).

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Accurate, versatile, and dependable

The Ultrasonic Flowmeters in the TMQ series has the following features that benefits you:

Accurate and repeatable ultrasonic technology
Dependable as it has no moving parts. Thus, no maintenance is required

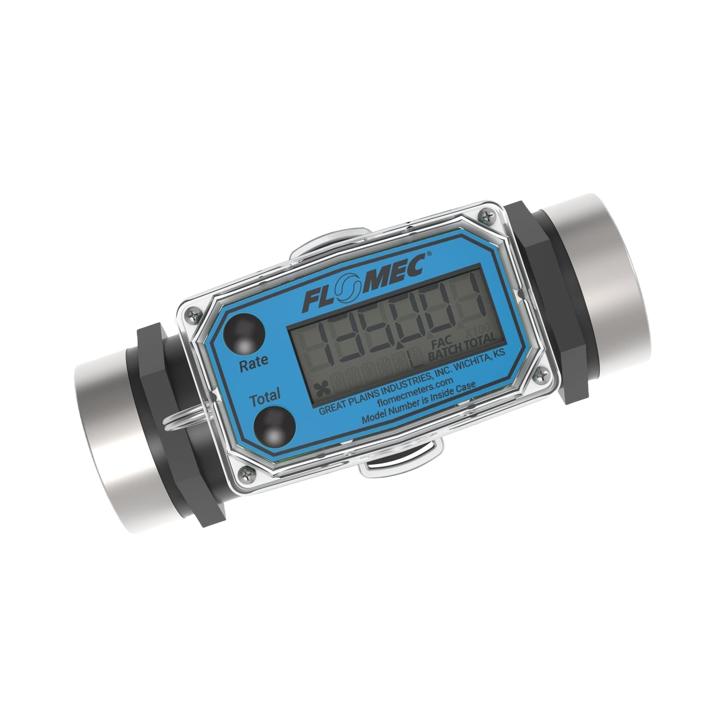

Powerful as it has a configurable, battery powered Local Q9 computer display
Flexible with nine pipe sizes and five fitting types available.
Versatile because of the loop-powered 4-20mA and Scaled Pulse outputs available
NSF Certification is available for 1"-4" meters.
Easy installation on the larger sizes (6"-12"); just drill a hole and install the meter/saddle assembly. Thus, there is no need to cut the pipe.

Typical Applications

The TMQ series is applicable in various purposes including:

Ground Water
Remediation
Agricultural Irrigation
Irrigation and Fresh Water
Pumping Stations
Chemical Feed Systems
Industrial Effluent Water
Water Treatment Skids.

Does it match your need - contact us here

Three power options

The TMQ series has the three following power solutions:

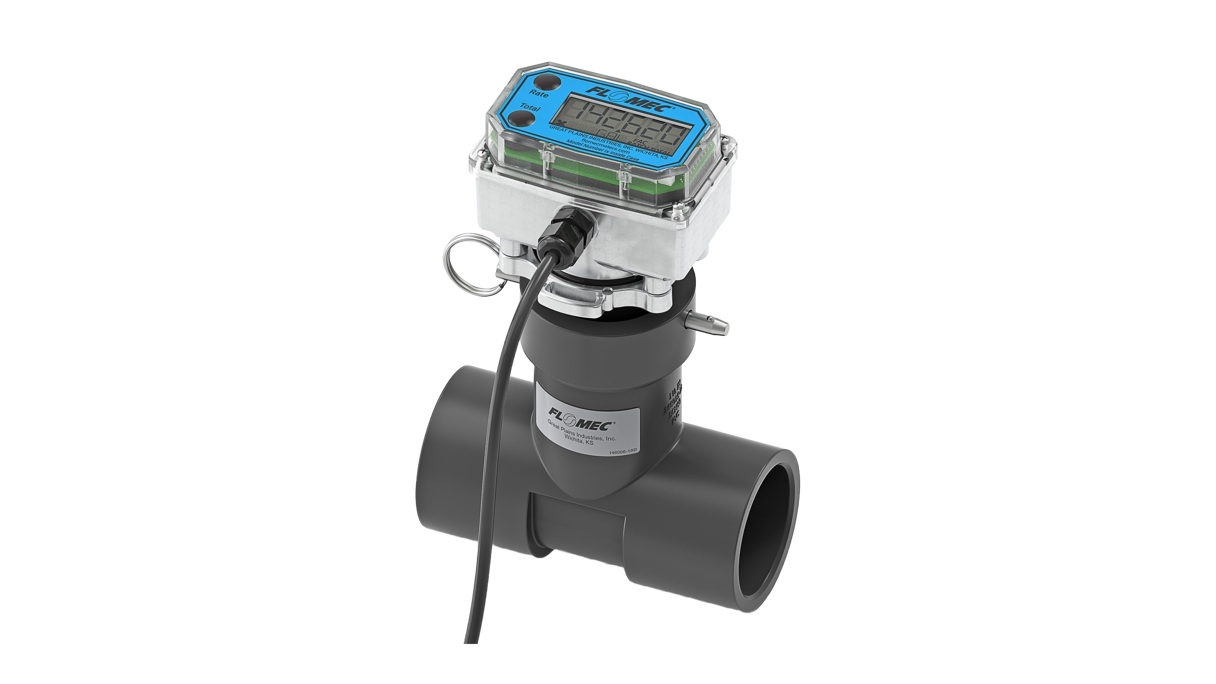

Loop-Powered (with 4-20mA and Pulse Output Module)
External-Powered (2- or 4-Conductor Jacketed Cable and Pulse Output Module)
Battery-Powered (2-Year Life)

Get more information here

TMQ Pipe Sizes Fitting Types Flomec 1024X16x9

NSF Certification

IF you need a flowmeter that is NSF-certified, the TMQ series are perfect for you. This series and the QS2000 series will be the flowmeter from Flomec that has the NSF option available.

So, the QSE series electromagnetic meters and TM series turbine meters will, therefore, no longer hold the NSF certification

See all Turbine Meters here

Flexible TMQ Series

The TMQ series offers you a high degree of flexibility, as mentioned above, thus it has:

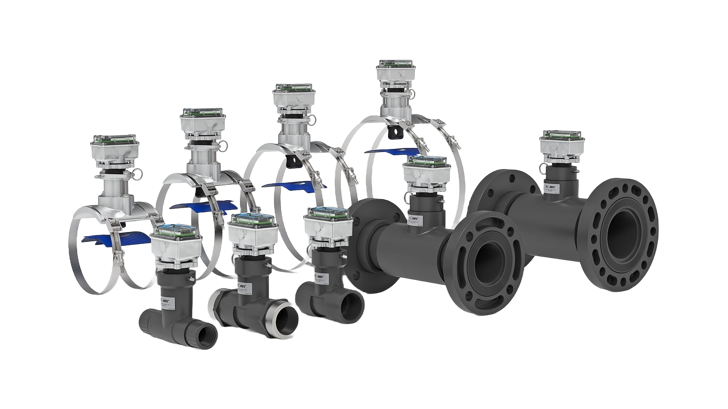

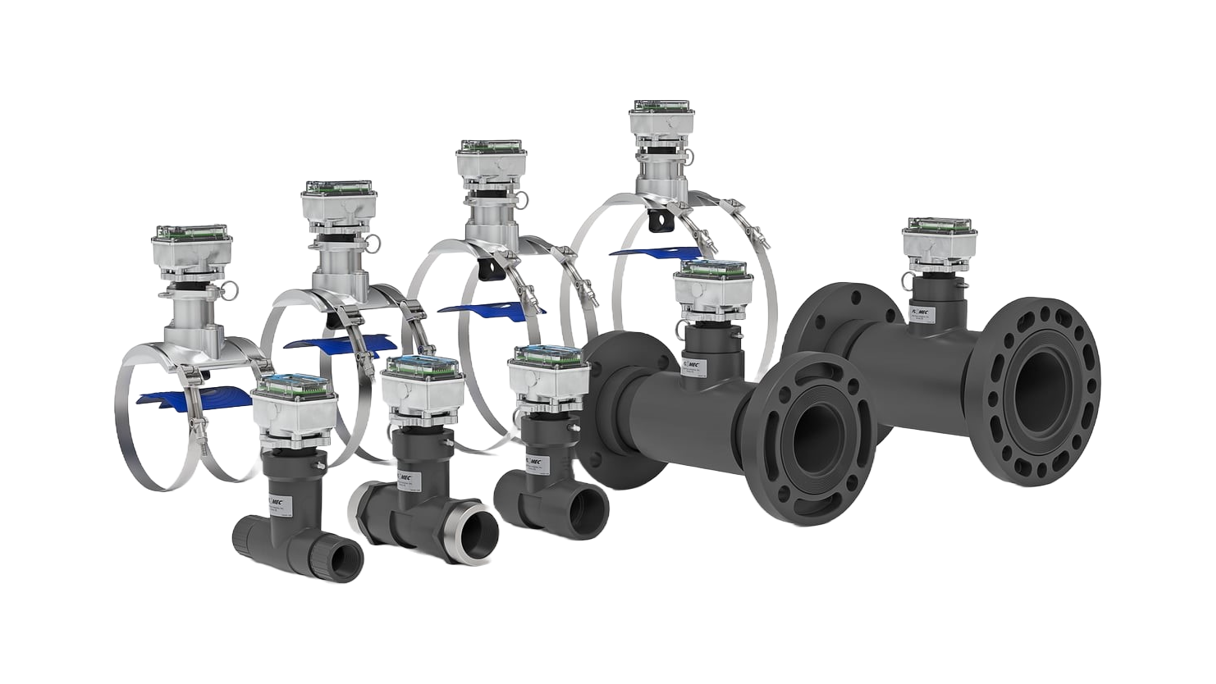

Nine pipe sizes available: 1", 1-1/2", 2", 3", & 4" with PVC Tee, 6", 8", 10" & 12" with Saddle.
Five fitting types: NPT, Socket, BSP for 1"-2", NPT, & ANSI or DIN Flange for 3" and 4".

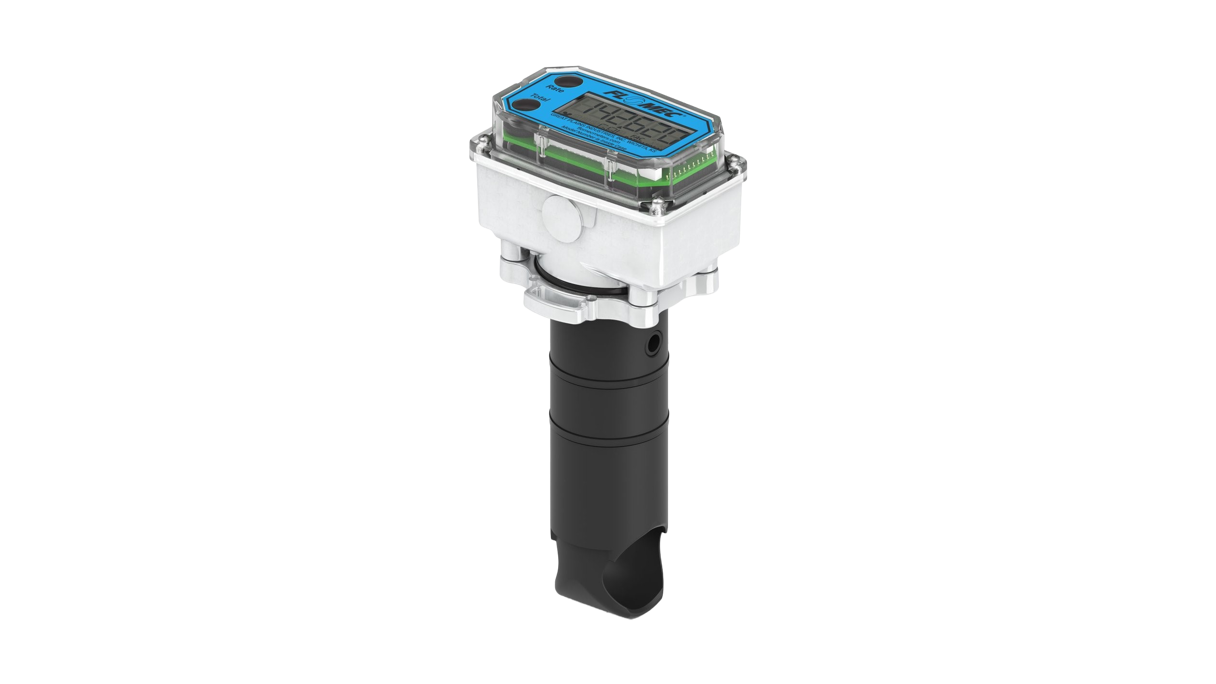

Retrofit insert is available.
