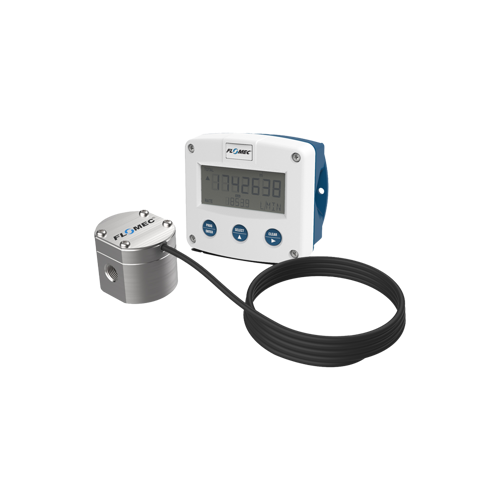

FCS KIT Marine 1 1024 Square (1)

FCS Consumption Kit for Marine Use

The Fuel consumption System (FCS) from Flomec is a complete fuel monitoring system that gives you an accurate measurement of fuel consumption rates and total fuel consumption.

The fuel consumptions system is used on board of all types of boats and vessels from small to medium sized engines. The system instantly calculates an accurate fuel consumption and shows the flow rate and totalization on the included display.

The kit includes:

  • 2 x EGM-Series Electronic Flowmeter
  • 1 x F127 Totaliser
  • 2 x Meter Brackets
  • 1 x Fuel Strainer plus Connector
  • Cable Glands.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

The features and benefits
EGM Flowmeter

Flow Rates: 0.50 GPH – 21.1 GPM (2 L/hr – 80 L/min)

Sizes: 1/4″ – 3/4″ (6 mm – 20 mm)

Engine Power: 7.5HP – 5000HP (Contact us for larger engines)

Temperature Range: -40°F – +176°F (-40°C – +80°C)

Body Material: Stainless Steel 316

Rotor Material: PPS (Stainless Steel 316 for EGM006 meters)

Cable Length: 2 meters (can be extended by using cable connector)

Read more about the EGM Flowmeter here.

F127 Totalizer

Casing: Robust IP66/IP67 field enclosure

Display: 7-digit resettable total, 11-digit accumulated total with backlight

Required Power Supply: 8 – 24V (dc) (in case of power failure the backup power supply is built in to save settings)

Temperature Limit: -40°F – +176°F (-40°C – +80°C)

Output Options: 4-20mA and pulse output available

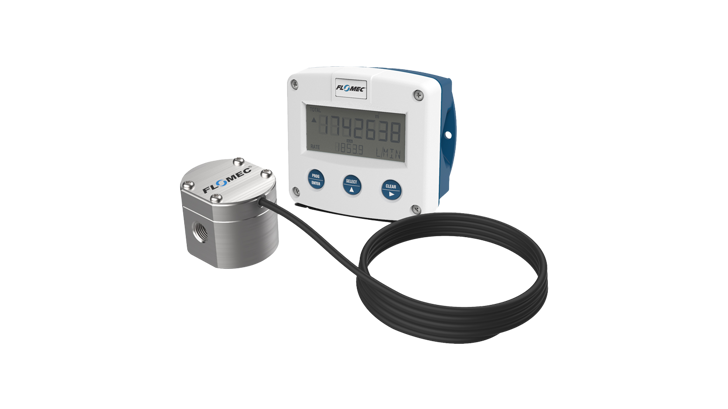

FCS KIT Marine 1 1024X16x9

High accuracy

As the Fuel Consumptions Systems comprises two EGM positive displacement meters and an F127 flow instrument it can accurately measure fuel consumption of combustion engines. This is possible, as the FCS can correct the temperature differences from the inlet to the outlet of the engine.

The renowned positive displacement meters give you an accurate and economic way of measuring you fuel consumption for all engines sizes. This is possible because of the:

  • Pulsating flow electronics
  • Elimination of error due to fuel injection pulsation
  • Integral PT100 resistance thermometers.

Does it match your need - contact us here

Kit Selection

To reach this high accuracy the kit selection is crucial.

The Fuel Consumption Kit might consist of the same items. However, the size of the engine is important as is in direct correlation with the rate of the flow that determines the change of the meter and the process connection.

This becomes apparent, as the average diesel loop system would have 3,5 times more fuel in its line than what the engine consumes at full load.

Selecting the correct kit based on the engine’s power output is, therefore, essential to secure accuracy and the durability of the positive displacement meter.

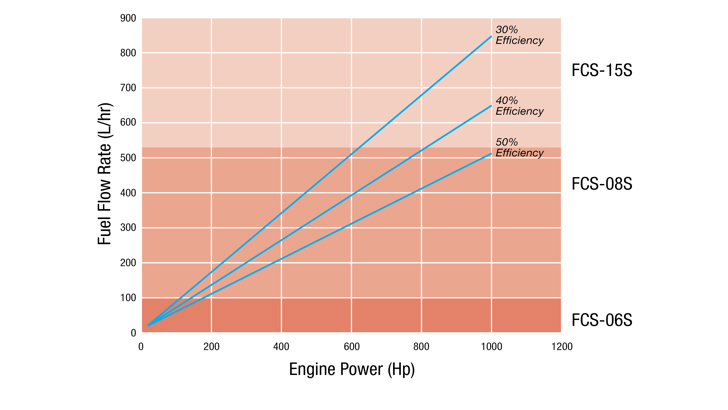

The graph here can guide you in determining the required size of the kit for you.

Get more information here

FCS Marine Graph 1024X16x9
Accessories
F-Series Wall Mount Kit:

Stainless Steel wall mount kit for F127 totalizer, screws included



F-Series Pipe Mount Kit:

Stainless Steel wall pipe kit for F127 totalizer, excludes worm clamps

Worm Clamp Kit 1.0-1.57"(25-40 mm):

Includes 2pcs of stainless steel worm clamps and pipe. OD from 1.0-1.57"(25-40 mm)

Worm Clamp Kit 1.81-2.76"(46-70 mm):

Includes 2pcs of stainless steel worm clamps and pipe. OD from 1.81-2.76"(46-70 mm)

M16 Cable Gland:

Includes cable gland, locking nut and o-ring

M20 Cable Gland:

Includes cable gland, locking nut and o-ring

Cable Connector:

7-Pin IP67 Polyamide connector kit

Flomec OM Series Oval Gear Princip 1024X16x9

The positive displacement principle

The Oval Gear Meters use a measuring principle, where a pair of oval-shaped gears in a measuring chamber rotate by the force of the liquid on these. The liquid flows into a chamber and is sealed off once the chamber is full and produces either an electronic pulse or drives a gear to register the volume as it exits the chamber.

As illustrated in the example on the right, the pulse is generated because the (green) liquid is sealed from both the inlet (red liquid) and exit (blue liquid). This set up would produce four pulses as the meter transmits four identical volumes for every cycle.

Thus, it matters which Flowmeter you choose because the simplest meters register each time a bucket is filled. Here the total volume would be the sum of the number of buckets filled. In the complex meters the discrete volumes passed each time can be summed together to see the overall volume passing through the meter.

See all Oval Gear Flow Meters here

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

EGM flowmeter Technical Specifications
Normal Size

1/8"(4 mm) - 3/4" (20 mm)

Flow range

Norminal Flow Range* @ 3cP: 0.26 GPH(1.0 L/hr) - 145 GPH(550 L/hr)
                                                    .26 GPM(1 L/min) - 21 GPM (80 L/min)

Flow Range @ 1cP: 0.25 GPH(2 L/hr) - 116.24 GPH(440 L/hr)
                                 0.39 GPM(1 L/min) - 16.91 GPM (64 L/min)

Flow Range @ 7cP: 0.13 GPH(0.5 L/hr) - 145.29 GPH(550 L/hr)
                                 0.13 GPM(0.5 L/min) - 21.13 GPM (80 L/min)

Flow Range @ 200cP: 0.10 GPH(0.4 L/hr) - 145.29 GPH(550 L/hr)
                                    0.10 GPM(0.4 L/min) - 21.13 GPM (80 L/min)

Flow Range @ 500cP: 0.06 GPH(0.25 L/hr) - 145.29 GPH(550 L/hr)
                                     0.08 GPM(0.3 L/min) - 26.42 GPM (80 L/min)

Flow Range @ 1000cP: 0,03 GPH(0.12 L/hr) - 95.10 GPH(360 L/hr)
                                        0.05 GPM(0.2 L/min) - 13.21 GPM (80 L/min)

Accuracy+

± 1% of reading (on the EGM004, EGM006 and EGM008) and ± 0.5 of reading (on the EGM015 and EGM020)

Repeatability

Typically ± 0.03% of reading

Ambient Temperature Range

5° F to +176° F (-15° C to +80° C)

Fluid Temperature Range

23˚F to +176˚F (-5˚C to +80˚C)

Max. Pressure (AI meters)

290 psi (20 bar) - 500 psi (34 bar)

Max. Pressure (SS meters)

290 psi(20 bar) - 800 psi (55 bar)

Protection Class

IP65

Recommended Filtration

200 mesh [75 μm] - 100 mesh [150 μm]

Pulse Output Type

NPN Open Collector (Hall Effect Sensor)

Voltage

5 - 24 V (dc)

Current Draw

20mA max.

Switching Current

10mA max.

Pulse Output Resolution - Standard Pulse/USG [Pulse/L]

398 [105] - 10600 [2800]

Pulse Output Resolution - Fuel Cons. Option Pulse/USG [Pulse/L]

99.5 [26.3] - 10600 [2800]

RTD Specification (Integral Option 2)

Platinum Resistance Thermometer 100 Ohms (PT100) Class F0.3

Notes

*Maximum flow reduces as viscosity increases, see flow de-rating guide.
Max recommended Pressure drop is 14.5 psi (1 bar).


+When used to meter rate, at very low flow rates, the rate can jump, due
to resolution (not accuracy)

Model/ Type
Stainless Steel BSP Fuel Consumption Systems - For Marine Use

FCS-06SB: 1/4" (6mm), BSPP (ISO 228). Includes: 2 x flow meters (EGM006A511-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets 4976.

FCS-08SB: 3/8" (8mm), BSPP (ISO 228). Includes: 2 x flow meters (EGM008A001-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets 4815.

FCS-15SB: 1/2" (15mm), BSPP (ISO 228). Includes: 2 x flow meters (EGM015A001-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers, mounting brackets 5243.

FCS-20SB: 3/4" (20mm), BSPP (ISO 228). Includes: 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets.

Stainless Steel NPT Fuel Consumption Systems - For Marine Use

FCS-06SN: 1/4" (6mm), NPT. Includes: 2 x flow meters (EGM006A511-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets 4976.

FCS-08SN: 3/8" (8mm), NPT. Includes: 2 x flow meters (EGM008A001-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets 4815.

FCS-15SN: 1/2" (15mm), NPT. Includes: 2 x flow meters (EGM015A001-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers, mounting brackets 5243.

FCS-20SN: 3/4" (20mm), NPT. Includes: 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets.
