Turbine Meters (G2 Series)

The Flomec G2 Series Turbine Meters are a cost-efficient turbine type flow meter for low viscous liquids of up to 100 cSt. Furthermore, all Meters are available with the new Q9 displays and in different materials.

Benefits:

  • High Accuracy – ±1.5% precision with excellent repeatability.
  • Durable Build – Robust materials for various fluids.
  • Easy Setup – Simple installation and low maintenance.

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Get a quote

Precision, Accuracy and easy maintenance

The Precision Turbine Meters in the G2 series has following features that benefits you:

  • Designed for thin fluids < 100 cp
  • Use with Output Modules, Sensors and Remote Transmitters with modular design
  • 2 Totals (Batch = Resettable, Cumulative = Non resettable); Rate of Flow, Factory calibrated in gallons or liters. Field calibratable. Includes nonvolatile totals
  • High accuracy
  • Easy maintenance (simple to replace internal parts)
  • AAA Alkaline battery life: 2 years.



G2 Series 1 Flomec 1024X16x9

Typical Applications

The G2 series suits with the majority of water and chemical purposes including:

  • Batching
  • Food & Beverage Processing
  • Blending
  • Fuel Products
  • Water
  • Monitoring Clean Fluids
  • Industrial Fluids
  • Plant Process Water
  • Plating Solutions
  • Chemical Feed Lines
  • Ammonium
  • Harsh Chemicals (Sulfuric Acid & Bleach).

Does it match your need - contact us here

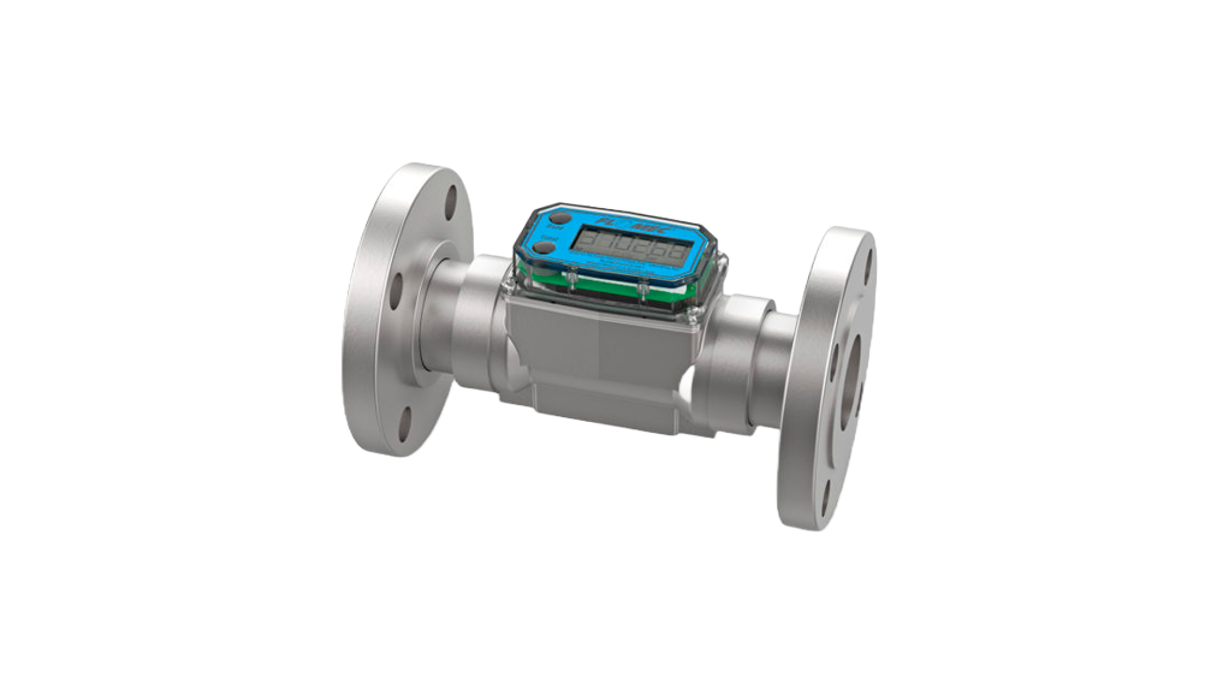

G2 Series 3 Flomec 1024X16x9

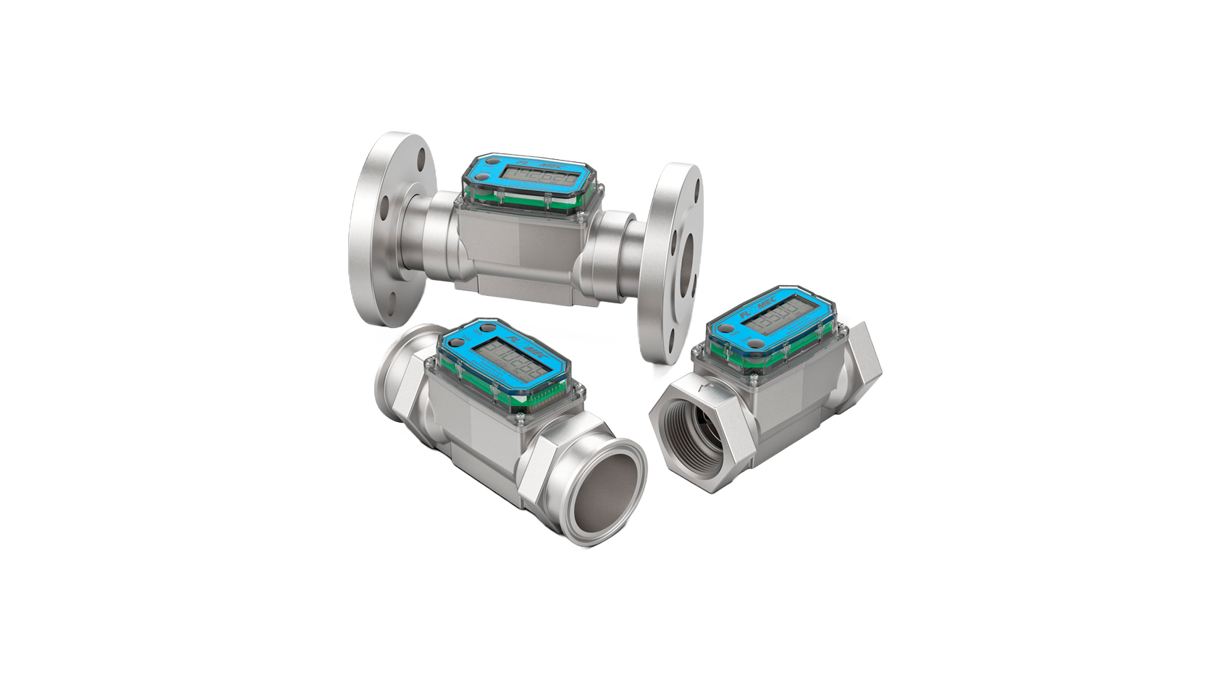

G2 Series Flomec 1024X16x9 G2 Series Flomec 2 1024X16x9 G2 Series 4 Flomec 1024X16x9 G2 Series 3 Flomec 1024X16x9 G2 Series 1 Flomec 1024X16x9
G2 Series Flomec 1024X16x9

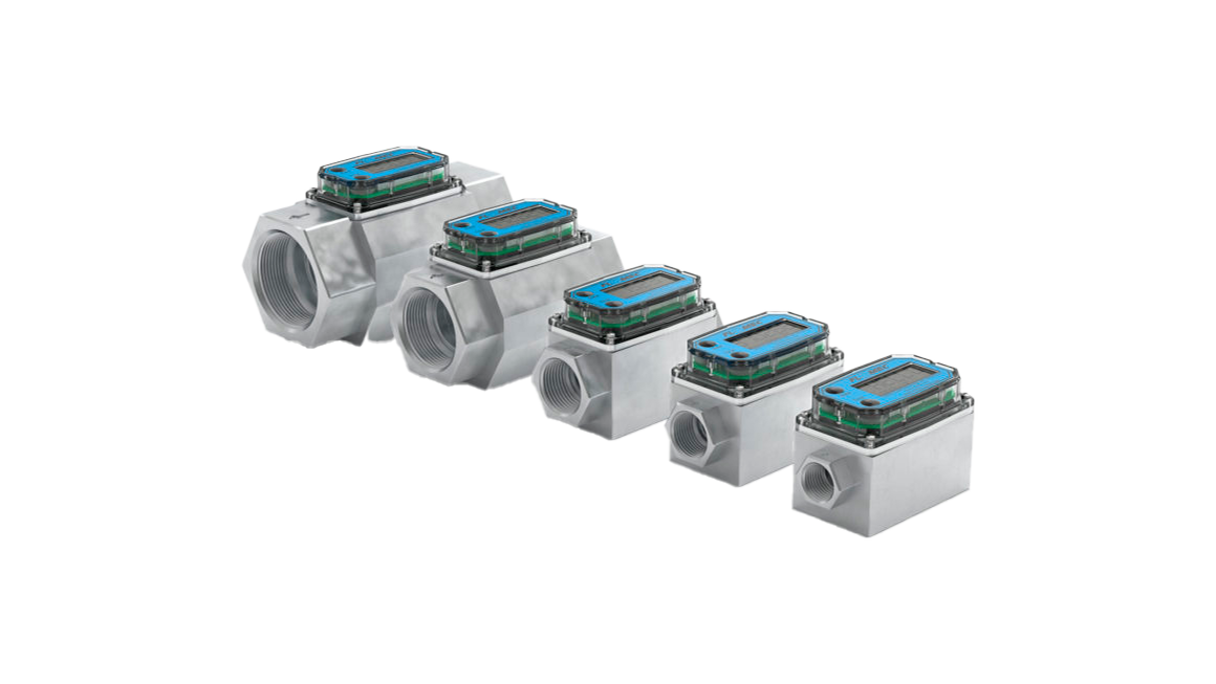

G2 Series Flomec 2 1024X16x9
G2 Series 4 Flomec 1024X16x9
G2 Series 3 Flomec 1024X16x9
G2 Series 1 Flomec 1024X16x9

Choose the right turbine model

The internal roto in the turbine housing is spinning when liquid flows through. An electrical signal is created in the pickup oil when the rotor spins. This is the electrical signal that provides the necessary output to be able to operate the on-boad computer electronics. This display gives you a local indication directly on the turbine. Other accessory modules are also available so you can transmit the signal to external equipment.

The turbine is a precision measuring instrument, but for this work optimal you have to make sure that the turbine model meets your particular requirements. Look into the following three parameters, that;

  1. The flowrate is within the limits of your model
  2. The liquid is compatible with the turbine’s wetted components
  3. The system’s pressure does not exceed the turbine’s maximum pressure rating.

See all Turbine Meters here

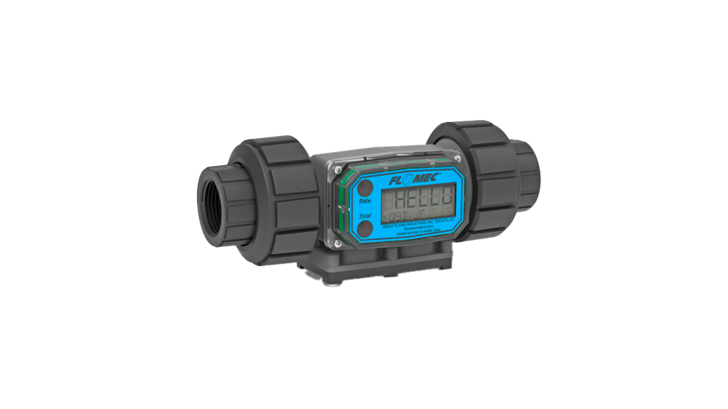

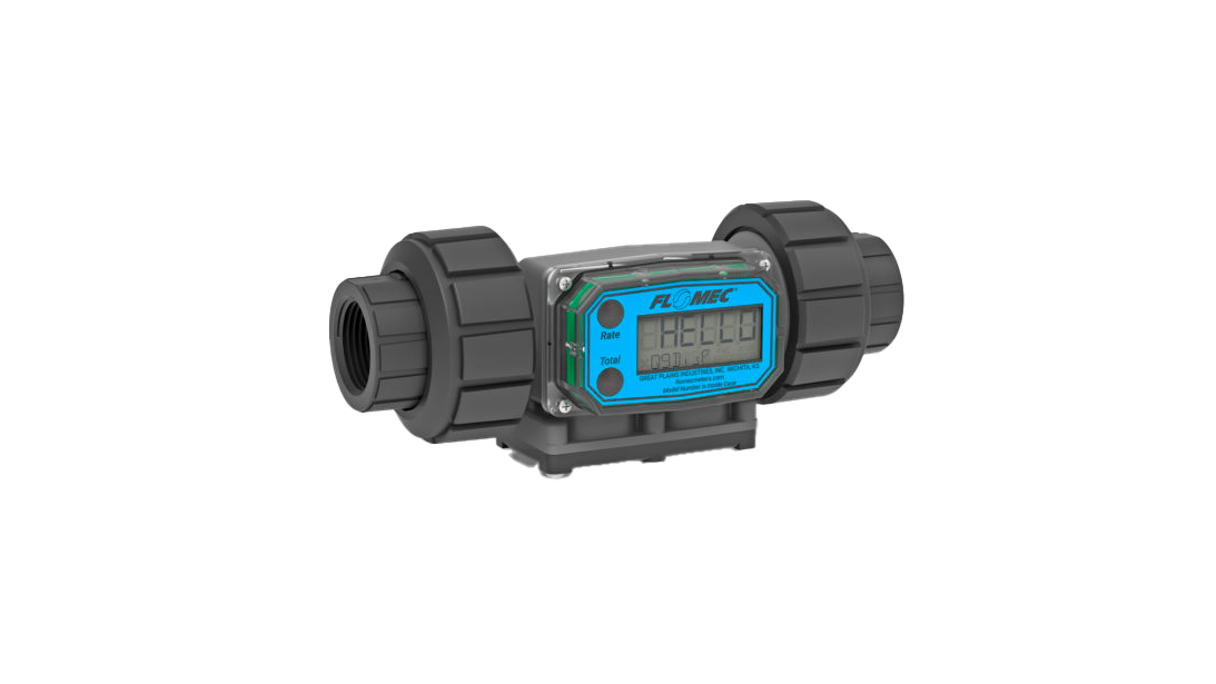

G2 Series 4 Flomec 1024X16x9

FLOMEC® G2 Series Turbine Meters

Product Configuration

PRODUCT IDENTIFIER [1]
G2 = Industrial Grade Flowmeters

TURBINE MATERIAL [2]
S = Stainless Steel
A = Aluminum
P = PVDF (1/2 in. y 1 in. only)
X = Electronics only (For metal meters)
Z = Electronics only (For plastic meters)

TURBINE SIZE [3]
05 = ½ in.
07 = ¾ in.
10 = 1 in.
15 = 1-½ in.
20 = 2 in.

FITTING TYPE [4]
N = NPT (Female)
I = ISO (Female) BSPT (ISO 7 Designation is RC)
F = 150# ANSI Flange (Available on S10, S15 & S20 only)
T = Tri-Clamp Fitting (Available on S05, S07, S10, S15 & S20 only)
X = No Turbine Body

ELECTRONIC CHOICE [5]
Computer Display, Meter Mounted
Q9 = Q9 2-Button Computer
Q1 = Q9 2-Button Computer, Vertical Mount (90° Adapter) Retrofit Computer Kit (Display Only
R9 = Q9 2-Button Computer Retrofit Kit (Replaces 09 Display) No Electronics - Turbine Only
XX = No Electronics - Turbine Only

CALIBRATION OF COMPUTER / DISPLAY [6]
GM = Gallons Per Minute (Gallons Default)
LM = Liters Per Minute (Litres Default)
GD = Gallons Per Minute (Gallons Default) with NIST Certificate
LD = Liters Per Minute (Litres Default) with NIST Certificate
XX = No Calibration

PACKAGING [7]
A = 05 Thru 10 Turbines, Turbine Only or w/Q9 Electronics 05 Thru 20 Electronics Only (Q9 Replacement Kit or R9 Retrofit Kit)
B = 15 & 20 Turbines, Turbine Only or w/Q9 Electronics 05 Thru 10 Turbines w/Q1 Electronics
C = 15 Thru 20 Turbine w/Q1 Electronics
D = 10 Turbines with ANSI Flange Turbine Only or w/Q9, Q1 Electronics
E = 15 & 20 Turbines with ANSI Flange Turbine Only or w/Q9, Q1 Electronics

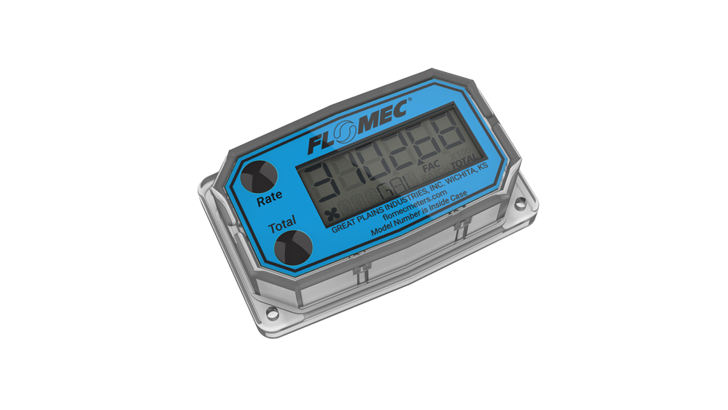

Flomec Q9 1 Display 1024X16x9
Flomec Logo Overview

FAQ

Get in Touch with Our Experts

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

Test Af Websitebillede FREJ ANAN HNI
For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Technical Specifications
Normal Size

1/8"(4 mm) - 3/8" (8 mm)
Flow range

0,26 GPH(1.0 L/hr) - 145 GPH(550 L/hr)
Accuracy+ @ 3cp

± 1.0% of reading (accuracy is ± 0.2% of reading with optional RT14 with non-linearity correction)
Repeatability

Typically ± 0.03% of reading
Temperature Range:

-40° F to +300° F (-40° C to +150° C)
Model/ Type (FM, ATEX & IECEx Approval for HAZARDOUS AREA)
Product Identifier

G2: G2 Series Turbine Meters
Body Size and Material

Aluminium Body

  • A05: 1/2" Aluminium
  • A07: 3/4" Aluminium
  • A10: 1" Aluminium
  • A15: 1-1/2" Aluminium
  • A20: 2" Aluminium

Stainless Steel Body

  • S05: 1/2" Stainless Steel
  • S07: 3/4" Stainless Steel
  • S10: 1" Stainless Steel
  • S15: 1-1/2" Stainless Steel
  • S20: 2" Stainless Steel

PVDF Body

  • P05: 1/2" PVDF
  • P10 1" PVDF

No Turbine Body, Q9 & R9 Replacement Computer Kit for Metallic Body

  • X05: 1/2" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
  • X07: 3/4" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
  • X10: 1" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
  • X15: 1-1/2" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
  • X20: 2" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only

No Turbine Body, Q9 & R9 Replacement Computer Kit for PVDF Body

  • Z05: 1/2" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
  • Z10: 1" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
Rotor/ Bearing Material
  • 00: PPS (not suitable for Temp code 3)
  • 10: High Viscosity PPS (not suitable for Temp code 3)
  • 44: Aluminium/Hardened Steel Roller Bearing (100E only)
  • 51: Stainless Steel / Carbon Ceramic Bearing
  • 71: High Viscosity Stainless Steel / Carbon Ceramic Bearing
Fitting Type

Threaded

  • N: NPT (Female)
  • I: ISO (Female) or RC: Series Taper British Standard Pipe (ISO 7)

Flanged

  • F: Class 150 ANSI Flange (S10, S15 & S20 only) 475

Sanitary

T: Sanitary Fitting (S05, S07, S10, S15 & S20 only) {NOT Food Grade} 198

No Turbine Body

X: No Turbin
Electronic Choice

Local Computer w/Display, Meter Mounted

  • Q9: Q9 2-Button Computer
  • Q1: Q9 2-Button Computer, Vertical Mount (90° Adaptor)

Retrofit Computer Kit (Display Only)

  • R9: Q9 2-Button Computer Retrofit Kit (Replaces 09 Display)

No Electronics-Turbine Only

  • XX: No Electronics-Turbine Only
Calibration of Computer/ Display
  • GM: Gallons Per Minute (For Use With Q9, Q1, R9 Electronics)
  • LM: Liters Per Minute (For Use With Q9, Q1, R9 Electronics)
  • GD: Gallons Per Minute with NIST Certificate (For Use With Q9, Q1 Electronics)
  • LD: Liters Per Minute with NIST Certificate (For Use With Q9, Q1 Electronics)
  • XX: No Calibration (Use with XX Electronics Choice Only)
Hazardous Area Approval (FM, ATEX and IECEx)
  • A: DISPLAY ONLY (Q9 Replacement Kit or R9 Retrofit Kit)
  • A: 05 Thru 10 Turbines, Turbine Only or w/Q9 Electronics
  • B: 15 & 20 Turbines, Turbine Only or w/Q9 Electronics
       05 Thru 10 Turbines w/Q1 Electronics
  • C: 15 & 20 Turbines w/Q1 Electronics
  • D: 10 Turbines with ANSI Flange Turbine Only or w/Q9 or Q1 Electronics
  • E: 15 & 20 Turbines with ANSI Flange Turbine Only or w/Q9, Q1 Electronics
Model/ Type (Non-Approved Version - SAFE AREA ONLY)
Product Identifier

G2: G2 Series Turbine Meters
Body Size and Material

Aluminium Body

  • A05: 1/2" Aluminium
  • A07: 3/4" Aluminium
  • A10: 1" Aluminium
  • A15: 1-1/2" Aluminium
  • A20: 2" Aluminium

Stainless Steel Body

  • S05: 1/2" Stainless Steel
  • S07: 3/4" Stainless Steel
  • S10: 1" Stainless Steel
  • S15: 1-1/2" Stainless Steel
  • S20: 2" Stainless Steel

PVDF Body

  • P05: 1/2" PVDF
  • P10 1" PVDF

No Turbine Body, Q9 & R9 Replacement Computer Kit for Metallic Body

  • X05: 1/2" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
  • X07: 3/4" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
  • X10: 1" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
  • X15: 1-1/2" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
  • X20: 2" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only

No Turbine Body, Q9 & R9 Replacement Computer Kit for PVDF Body

  • Z05: 1/2" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
  • Z10: 1" Calibration, No Turbine Body - Use With Q9 & R9 Electronics Only
Rotor/ Bearing Material
  • 00: PPS (not suitable for Temp code 3)
  • 10: High Viscosity PPS (not suitable for Temp code 3)
  • 44: Aluminium/Hardened Steel Roller Bearing (100E only)
  • 51: Stainless Steel / Carbon Ceramic Bearing
  • 71: High Viscosity Stainless Steel / Carbon Ceramic Bearing
Fitting Type

Threaded

  • N: NPT (Female)
  • I: ISO (Female) or RC: Series Taper British Standard Pipe (ISO 7)

Flanged

  • F: Class 150 ANSI Flange (S10, S15 & S20 only) 475

Sanitary

T: Sanitary Fitting (S05, S07, S10, S15 & S20 only) {NOT Food Grade} 198

No Turbine Body

X: No Turbin
Electronic Choice

Local Computer w/Display, Meter Mounted

  • Q9: Q9 2-Button Computer
  • Q1: Q9 2-Button Computer, Vertical Mount (90° Adaptor)
  • H9: Q9 2-Button Computer, Vertical Mount (90° Adaptor)

Local Computer w/Display & Module, Meter Mounted

  • P9: Q9 2-Button Computer w/Scaled Pulse Out Module, includes External Power and 10 ft. of Cable 934
    42: Q9 2-Button Computer w/4-20mA Module, includes Scaled Pulse Out and 10 ft. of Cable

Module, meter mounted (No Display)

  • PO: Pulse Out (unscaled) Conditioned Signal Module w/Cable

QSI Options, meter mounted (No Display)

  • 81: QSI version 1 (Scales Pulse, RS485 [Modbus or BACnet], BTU Calculator, Bluetooth)
  • 82: QSI version 2 (Scales Pulse, BTU Calculator, Bluetooth)
  • 83: QSI version 3 (Scales Pulse, 4-20mA, Bluetooth)

Retrofit Computer Kit (Display Only)

  • R9: Q9 2-Button Computer Retrofit Kit (Replaces 09 Display)

No Electronics-Turbine Only

  • XX: No Electronics-Turbine Only
Calibration of Computer/ Display
  • GM: Gallons Per Minute (For Use With Q9, Q1, R9 Electronics)
  • LM: Liters Per Minute (For Use With Q9, Q1, R9 Electronics)
  • GD: Gallons Per Minute with NIST Certificate (For Use With Q9, Q1 Electronics)
  • LD: Liters Per Minute with NIST Certificate (For Use With Q9, Q1 Electronics)
  • XX: No Calibration (Use with XX Electronics Choice Only)
Packaging

Non-Approved Version - SAFE AREA ONLY

  • V: DISPLAY ONLY (Q9 Replacement Kit or R9 Retrofit Kit)
  • V: 05 Thru 10 Turbines, Turbine Only or w/Q9 Electronics No Charge
  • W:15 & 20 Turbines, Turbine Only or w/Q9 Electronics
         05 Thru 10 Turbines w/Q1 Electronics No Charge
  • X: ELECTRONICS ONLY (P9 or 42 Replacement Kit)
  • X: 15 & 20 Turbines w/Q1 Electronics
         05 Thru 20 Turbines w/P9, 42, PO Electronics
  • Y: 10 Turbines with ANSI Flange Turbine Only or w/Q9, Q1, P9, 42, PO Electronics
  • Z:15 & 20 Turbines with ANSI Flange Turbine Only or w/Q9, Q1, P9, 42, PO Electronics
       10 Turbines with ANSI Flange w/81, 82 & 83 Electronics
  • F: 05 Thru 20 Turbines w/81, 82 & 83 Electronics
  • G: 15 & 20 Turbines with ANSI Flange w/81, 82 & 83 Electronics

Specifications & Manuals

  • Data Sheet - G2 Series Turbine Meter - Flomec - Agency Approved
    English | pdf
  • Data Sheet - G2 Series Turbine Meter - Flomec - Non-Agency Approved
    English | pdf
  • Owners Manual - G2 Turbing Hoursing - Flomec - Agency Approved
    English | pdf
  • Owners Manual - G2 Turbine Housing - Flomec - Non-Agency Approved
    English | pdf
  • Owners Manual - G2 PVDF - Flomec - Agency Approved
    English | pdf
  • Owners Manual - G2 PVDF - Flomec - Non-Agency Approved
    English | pdf
  • Owners Manual - Q9 Computer - Flomec - Agency Approved
    English | pdf
  • Owners Manual - Q9 Computer - Flomec - Non-Agency Approved
    English | pdf
  • Owners Manual - 4-20mA Output Module - Flomec
    English | pdf
  • Owners Manual - Pulse Access/ External Power/ Scaled Pulse Output Module - Flomec
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.

Fill out the contact form

Consent for storing of submitted data *


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

To top

Search
