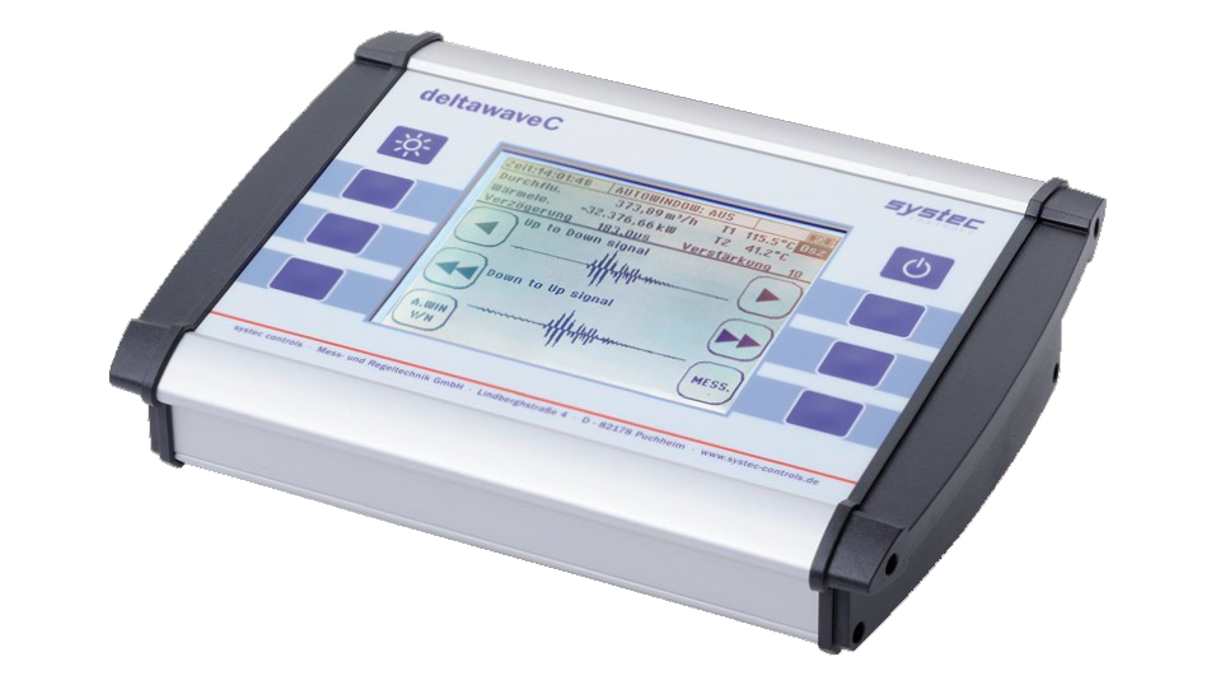

The deltawaveC-P by Systec Controls is a portable, clamp-on ultrasonic flowmeter designed for precise, non-invasive measurement of liquid flow and heat quantity in filled pipes.
Features:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

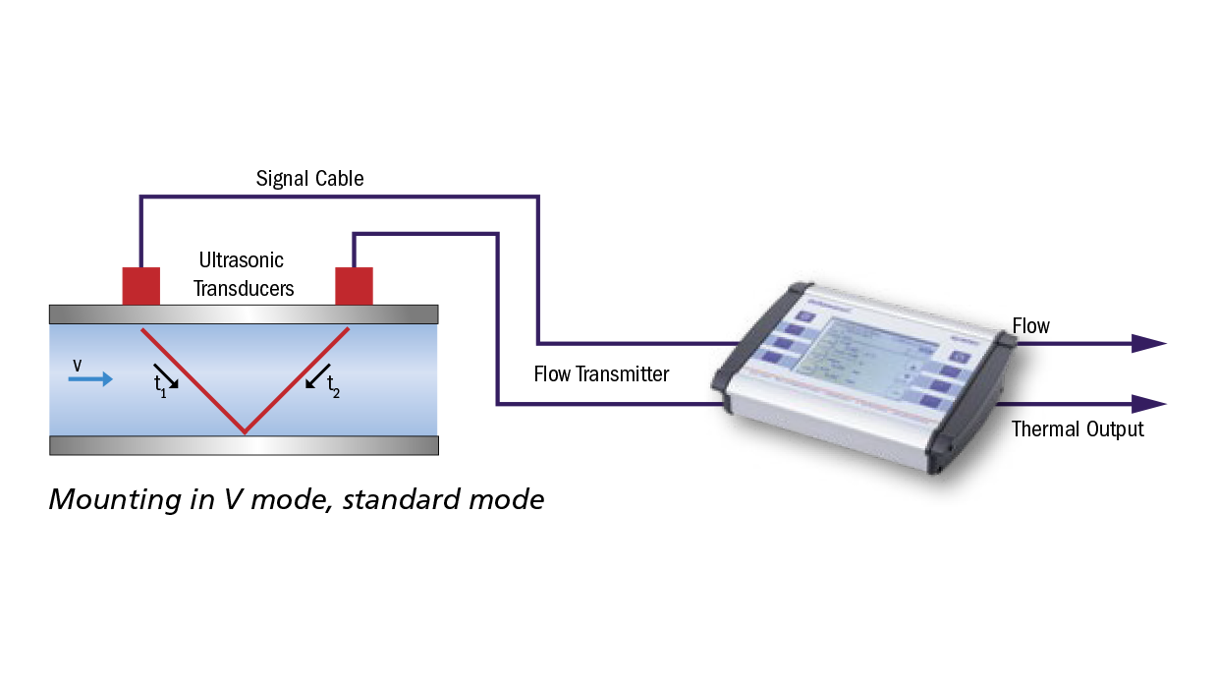

The deltawaveC-P is a clamp-on flow meter designed to measure liquid flow in filled pipes. In short, it operates by sending ultrasound through the pipe and the medium to calculate the flow velocity. This velocity is then multiplied by the pipe’s cross-sectional area to determine the flow rate. One of the key advantages of clamp-on technology is that it eliminates the need to cut or weld the pipe.
The transducers are mounted directly onto the pipe and transmit the ultrasound through it, making the measurement completely non-intrusive. This makes the meter especially attractive for the food and pharmaceutical industries, where strict hygiene standards apply.
Additionally, it is well-suited for measuring toxic or aggressive media that could otherwise damage instruments in direct contact with the fluid.
Installing and setting up the deltawaveC-P is both fast and straightforward thanks to the user-friendly equipment and intuitive display.

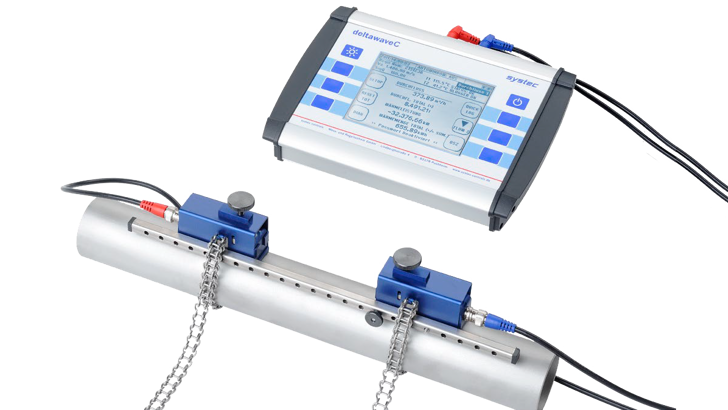

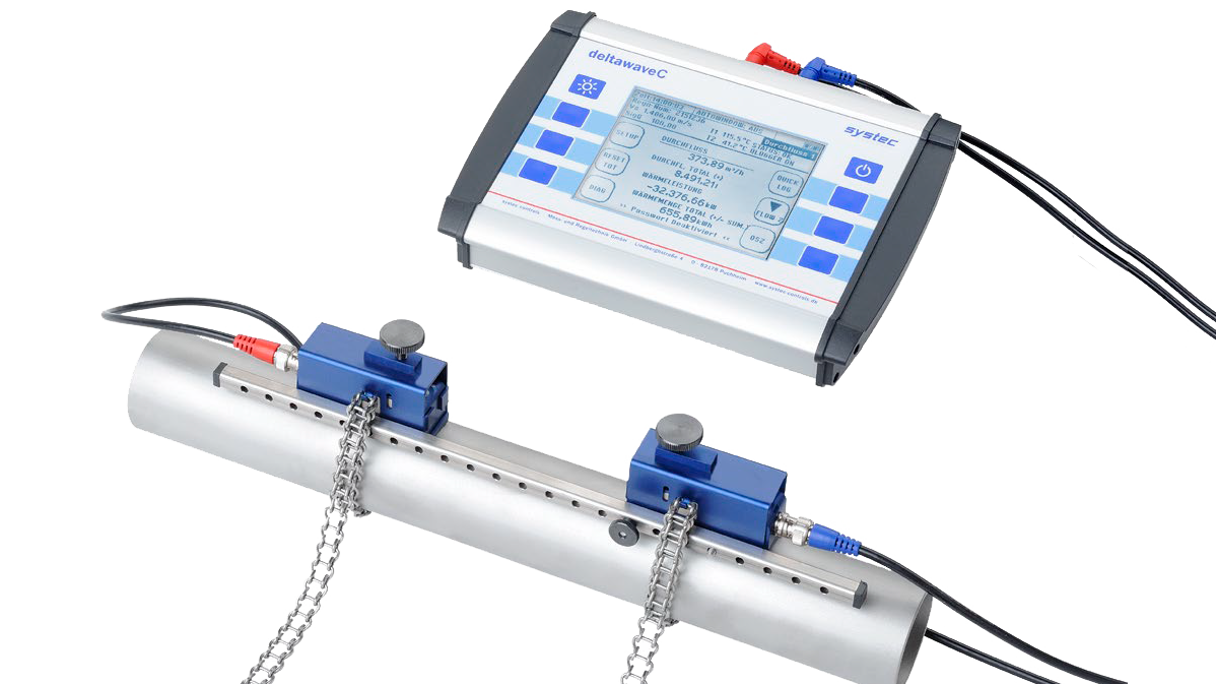

The transducers (sensors) are mounted on the outside of the pipe using a Quickfix mounting kit (clamp-on).
The Quick Setup function then allows all necessary parameters to be configured within minutes.
The deltawaveC-P combines the ultrasonic measurement method, 50–150 measurements per second, and advanced signal processing to ensure high precision - even under challenging measurement conditions. The flow meter can detect flow velocities as low as 0.01 m/s, making it ideal for leak detection in, for example, water and heating systems.
The built-in Auto-Optimizer function significantly improves signal quality, especially in difficult pipe and sensor combinations. This results in:
Even for simpler measurement tasks, signal optimization reduces zero-point errors and enables dynamic measurements with less variation in the measured values.
For high-temperature applications such as tar, thermal oil systems, boiler water, or various hydrocarbons in refineries, high-temperature transducers are the ideal solution. These transducers are designed to withstand temperatures up to 380 °C, making them suitable for demanding industrial environments.
Energy measurement is a standard feature of the deltawaveC-P. In addition to Systec Controls’ precise and easy-to-mount temperature sensors, existing Pt100 sensors installed at the inlet and outlet can also be used. With a temperature range from -40 to +150 °C, the clamp-on meter is well-suited for most heating and cooling system measurements.
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Systec Controls |
||||||||||||||||||
| Measurement method | Ultrasonic transit time difference |
||||||||||||||||||
| Temperature range | -40 to +150 °C |
||||||||||||||||||
| Pipe diameter | DN10 – DN6000 |
||||||||||||||||||
| Pipe materials | All common sound-conducting materials (steel, plastics, etc.) |
||||||||||||||||||
| Languages | EN-DE-FR; EN-ES-FR; EN-RU-CH |
||||||||||||||||||
| Media | Sound conducting liquids |
||||||||||||||||||
| Flow velocity | 0.01...30 m/s |
||||||||||||||||||
| Additional function | Heat quantity measurement (opt.) |
||||||||||||||||||
| Inputs | 2x Pt100 (3-wire) optional |
||||||||||||||||||
| Outputs | 1x USB socket (Mini B) |
||||||||||||||||||
| Power supply unit | Input: 100-240 V/AC |
||||||||||||||||||
| Accumulator | Li-Ion-Akku: 6000 mAh |
||||||||||||||||||
| Measured values | Volume flow, mass flow, flow velocity and sound velocity |
||||||||||||||||||
| Measuring range | -30 … +30 m/s |
||||||||||||||||||
| Units | metric, imperial |
||||||||||||||||||
| Power consumption | approx. 10 Watt |
||||||||||||||||||
| Integrated data storage | Micro SD card, 4 GB (more possible) |
||||||||||||||||||
| Signal damping | 1…60 sec (adjustable) |
||||||||||||||||||
| Diagnostic functions | Speed of sound, signal strength, SNR, signal quality, amplitude, energy. Signals can be shown graphically on the display. |
||||||||||||||||||
